Crawler Excavators
Get the most out of your working day with Crawler Excavators. Providing durability and high quality, these machines increase your operation rate and asset value, leading to ultimate satisfaction.

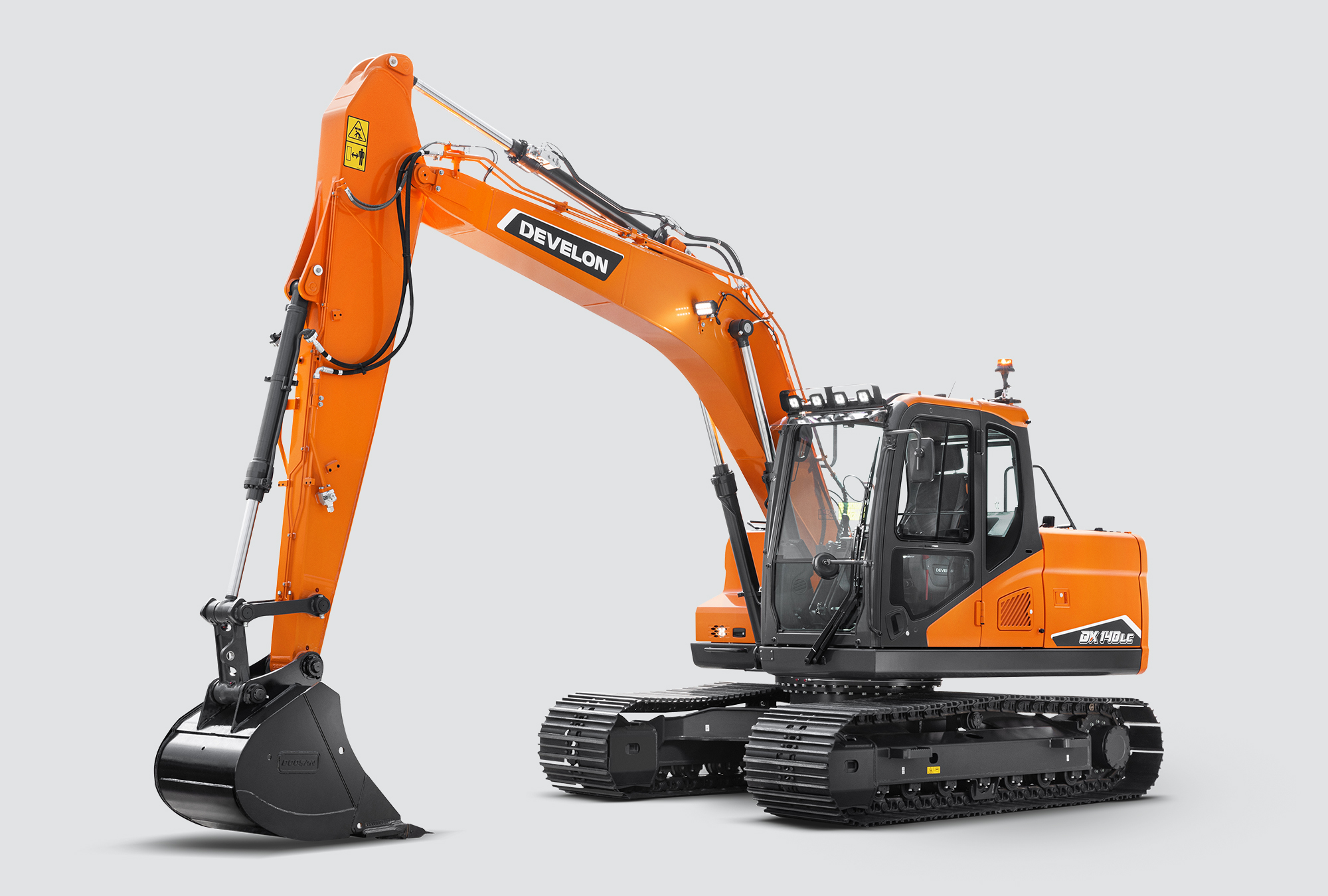

DX140LC-7K
- Engine Develon G2 D34
- Operating weight 14.4 t
- Engine power 86 kW (115 hp) at 2000 rpm
- Buckets 0.51 m³
- Main pumps max flow 2 × 114 l/min

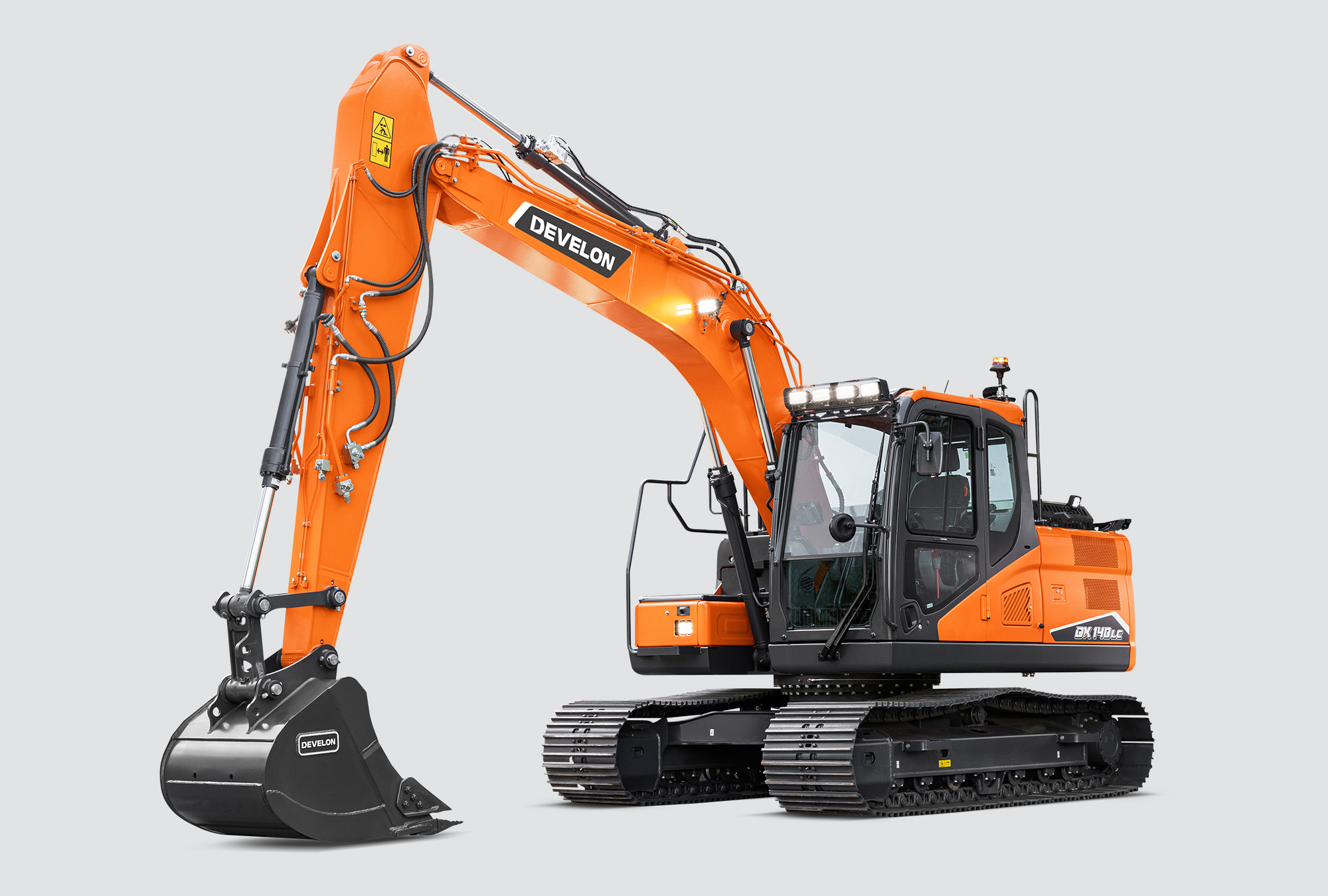

DX140LC-7
- Engine Develon G2 D34
- Operating weight 14.400 kg
- Engine power 86 kW / 115 HP @ 1800 RPM
- Buckets 0.51 m³
- Main pumps max flow 2 × 114 l/min

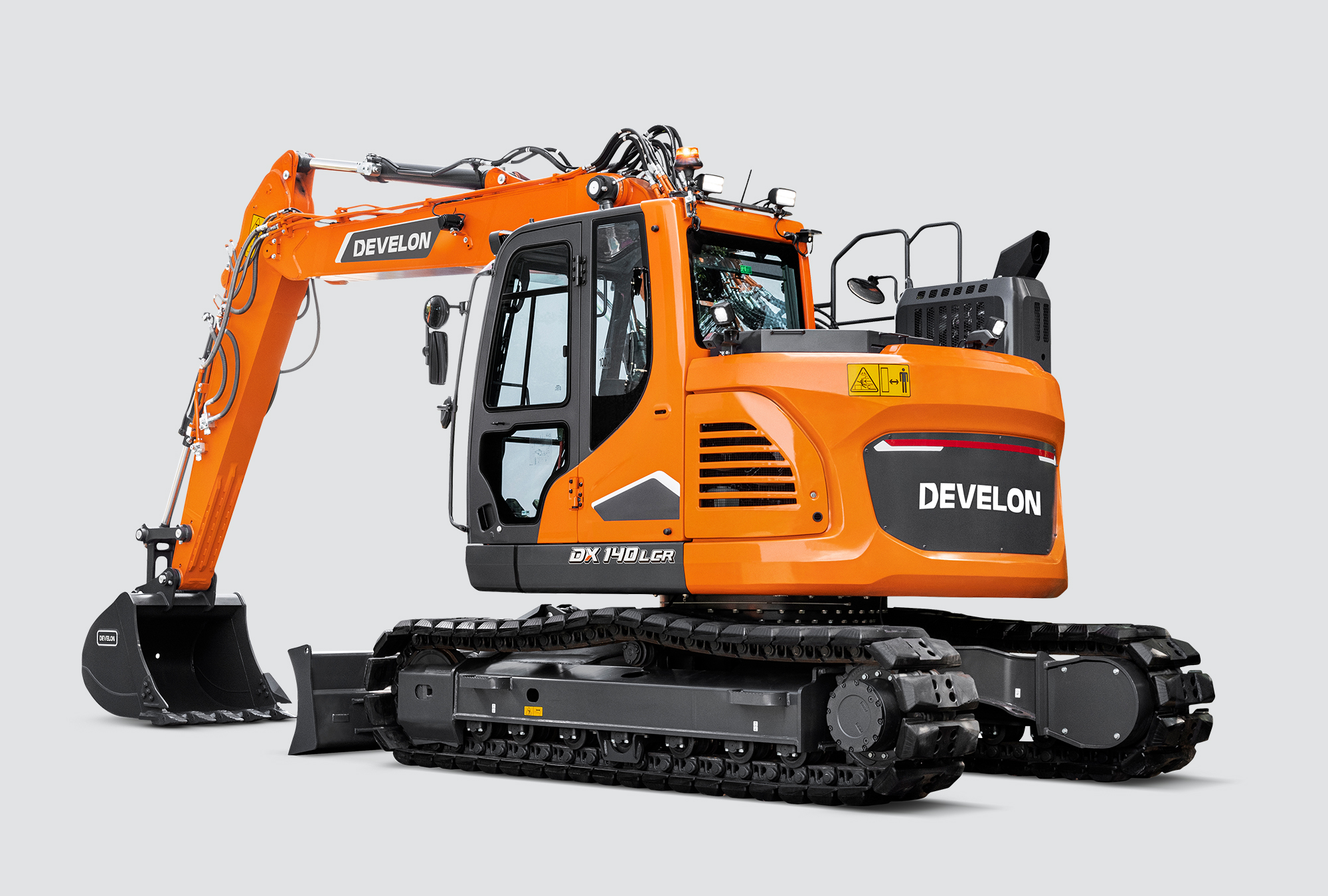

DX140LCR-7
- Engine Develon G2 D34
- Operating weight 15.600 kg
- Engine power 86 kW / 115 HP @ 2000 RPM
- Buckets 0.51 m³
- Main pumps max flow 2 × 114 l/min

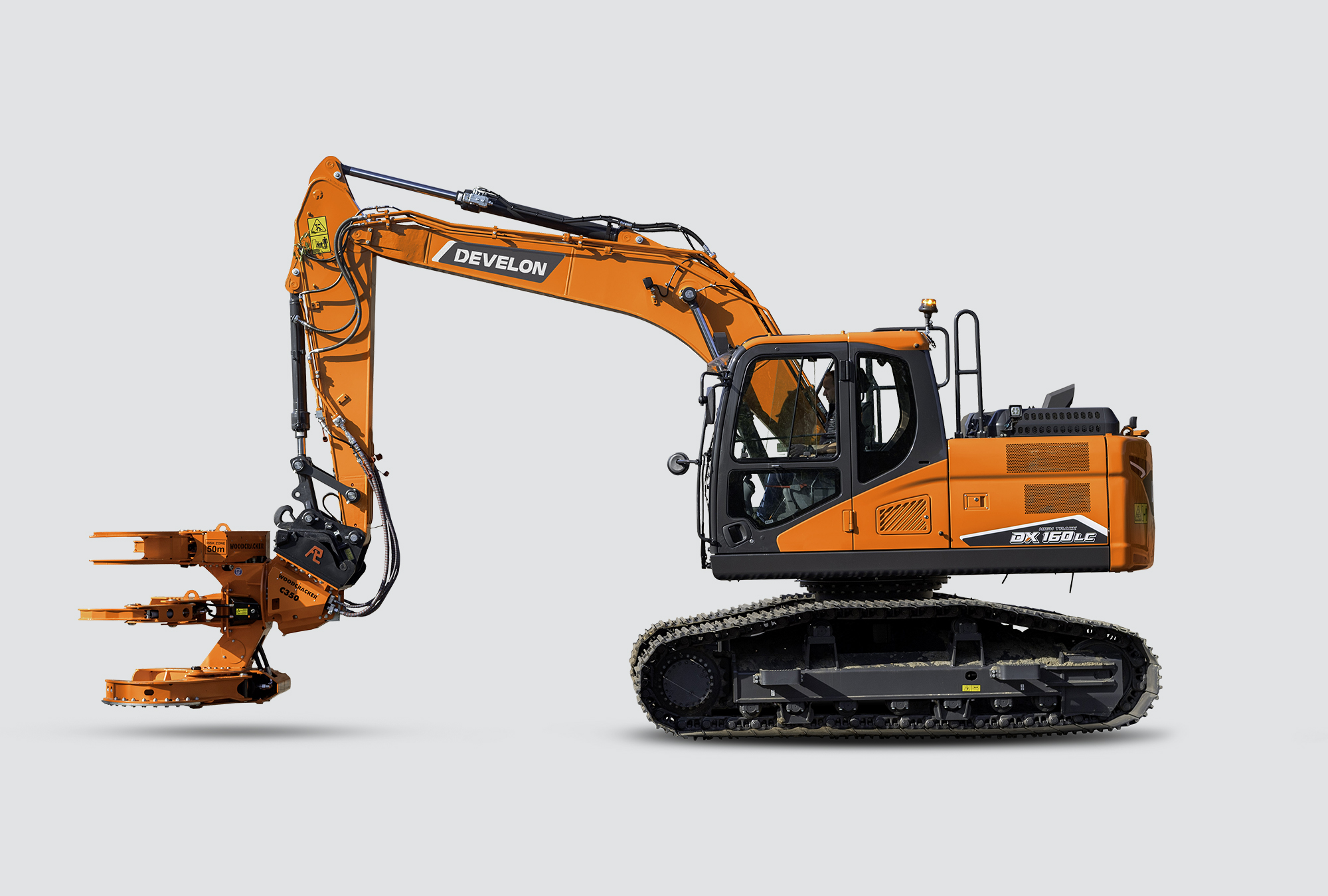

DX160LC-7HT
- Engine Develon D34 G2
- Operating weight 16.8 t
- Engine power 86 kW / 115 HP @ 2000 RPM
- Buckets 0.5 - 0.75 m³
- Main pumps max flow 2 × 114 l/min
DX210-7
- Engine Develon DL06V
- Operating weight 21.900 kg
- Engine power 124 kW / 166 HP @ 1800 RPM
- Buckets 0.51 - 1.32 m3
- Main pumps max flow 2 × 210.6 l/min

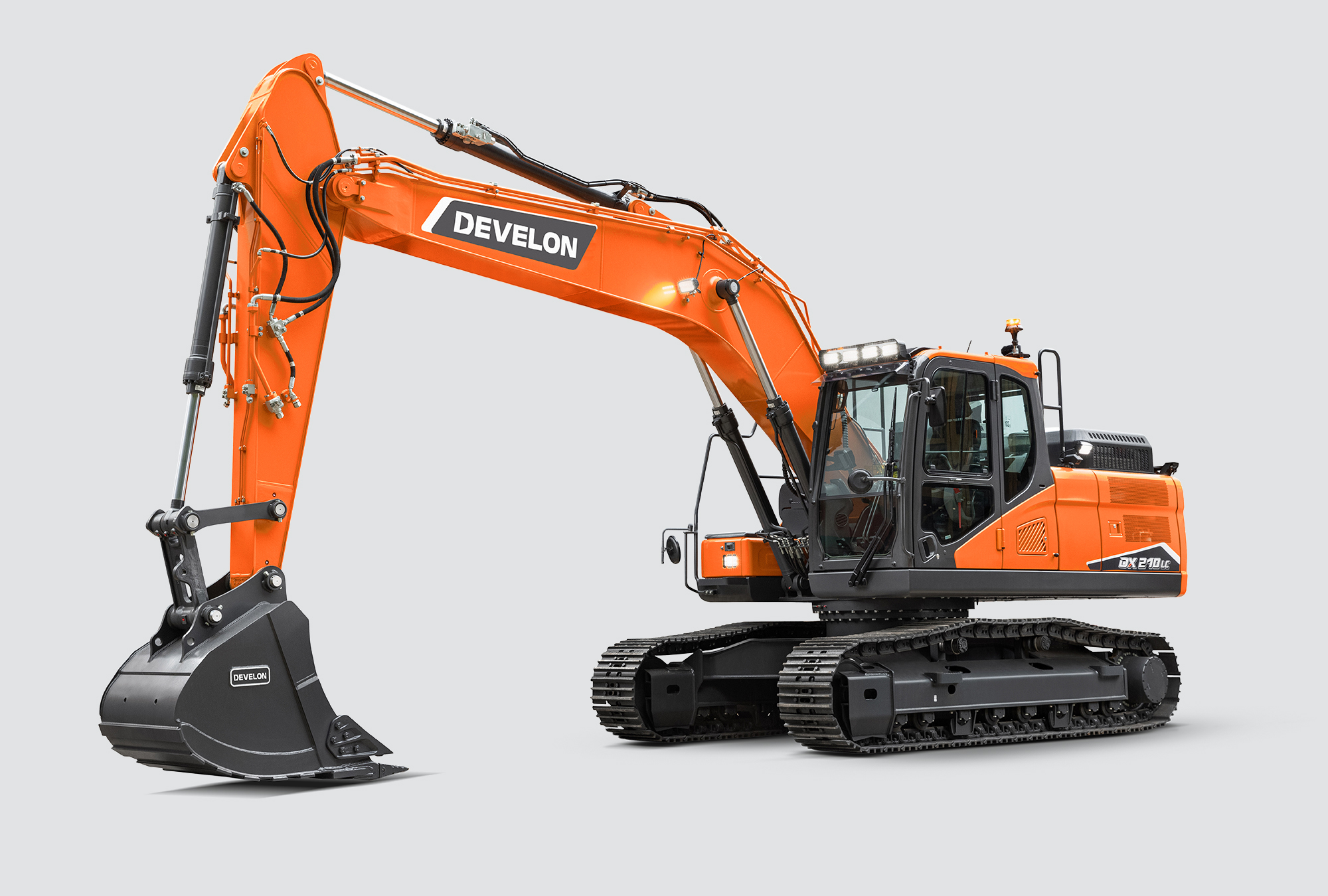

DX210LC-7
- Engine Develon DL06V
- Operating weight 22.300 kg
- Engine power 124 kW / 166 HP @ 1800 RPM
- Buckets 0.51 - 1.32 m3
- Main pumps max flow 2 × 210.6 l/min

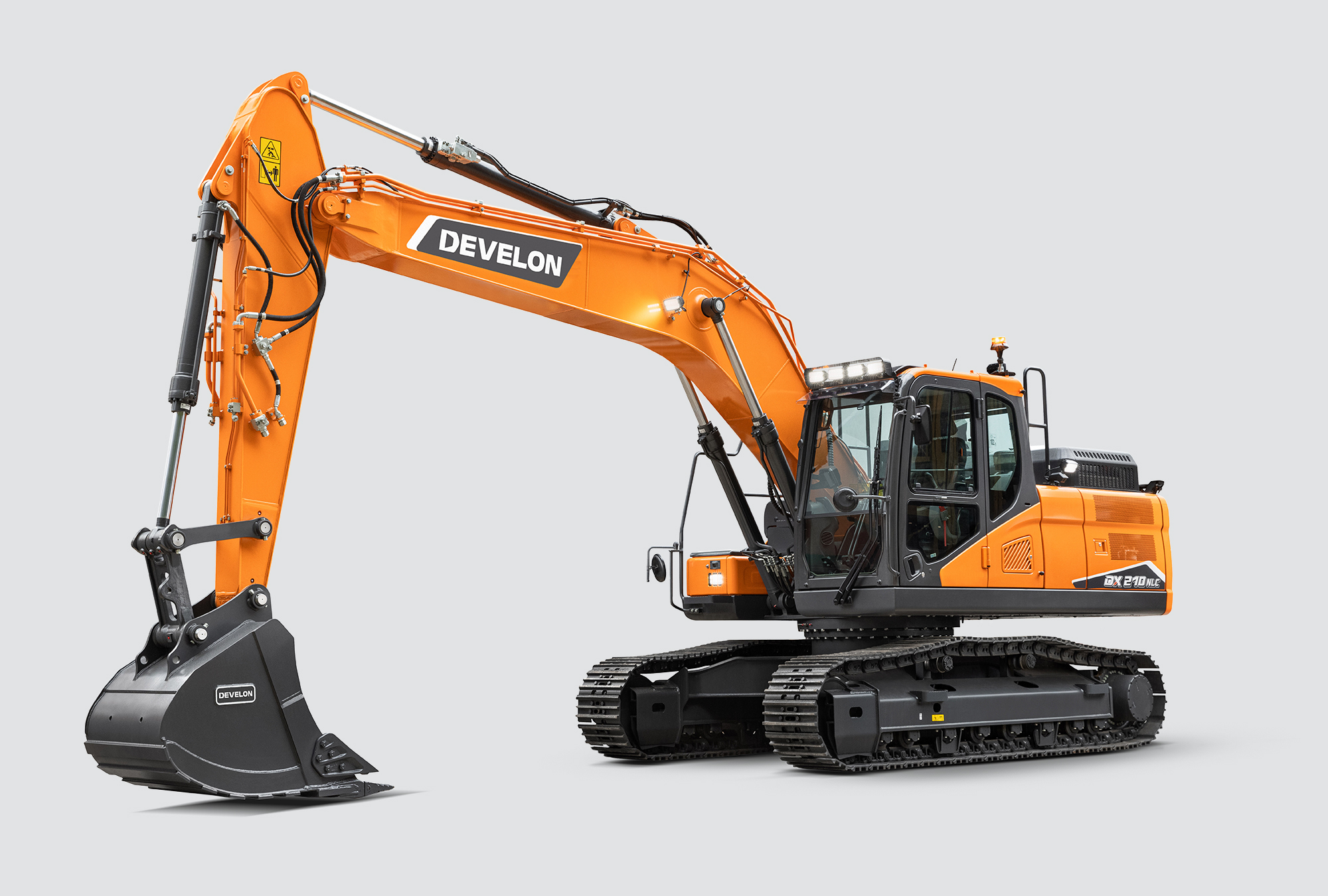

DX210NLC-7
- Engine Develon DL06V
- Operating weight 22.100 kg
- Engine power 124 kW / 166 HP @ 1800 RPM
- Buckets 0.51 - 1.32 m3
- Main pumps max flow 2 × 210.6 l/min

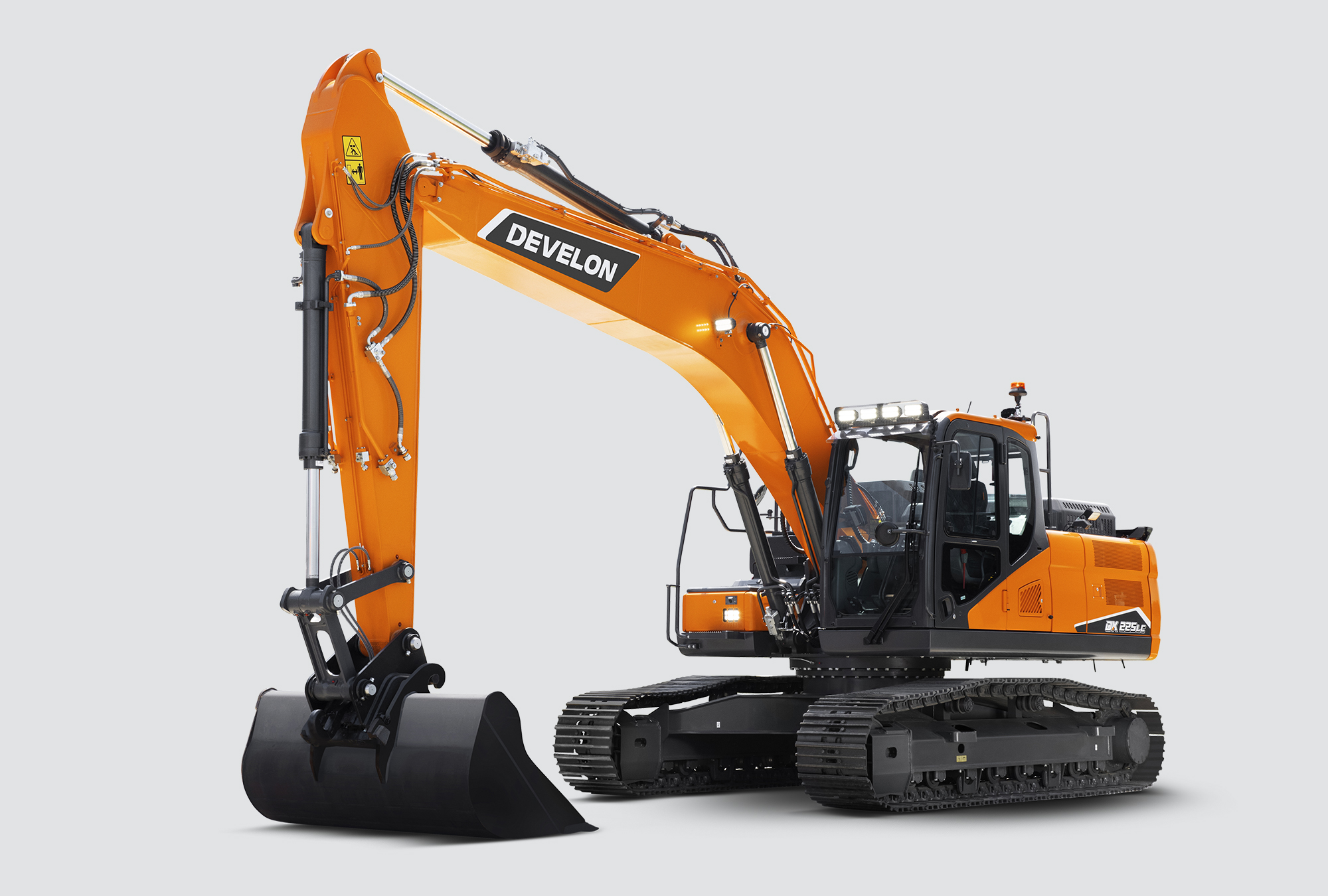

DX225LC-7
- Engine Develon DL06V
- Operating weight 23.300 kg
- Engine power 129 kW / 174 hp @ 1800 rpm
- Buckets 1.28 m3
- Main pumps max flow 2 × 210.6 l/min

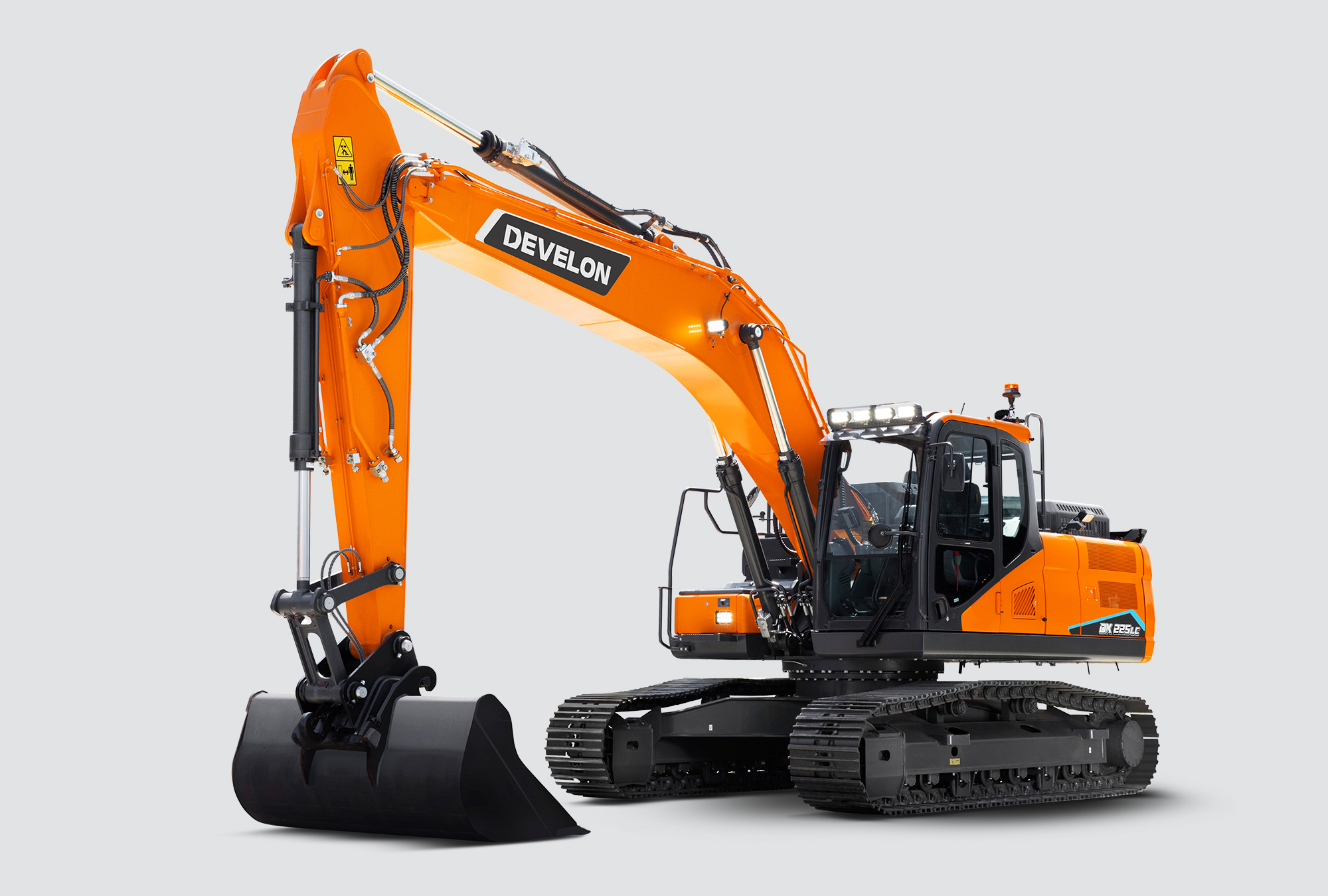

DX225LC-7X
- Engine Develon DL06V
- Operating weight 23.3 t
- Engine power 129 kW/ 174 hp @1800 rpm
- Buckets 1.28 m3
- Main pumps max flow 2 x 210.6 l/min

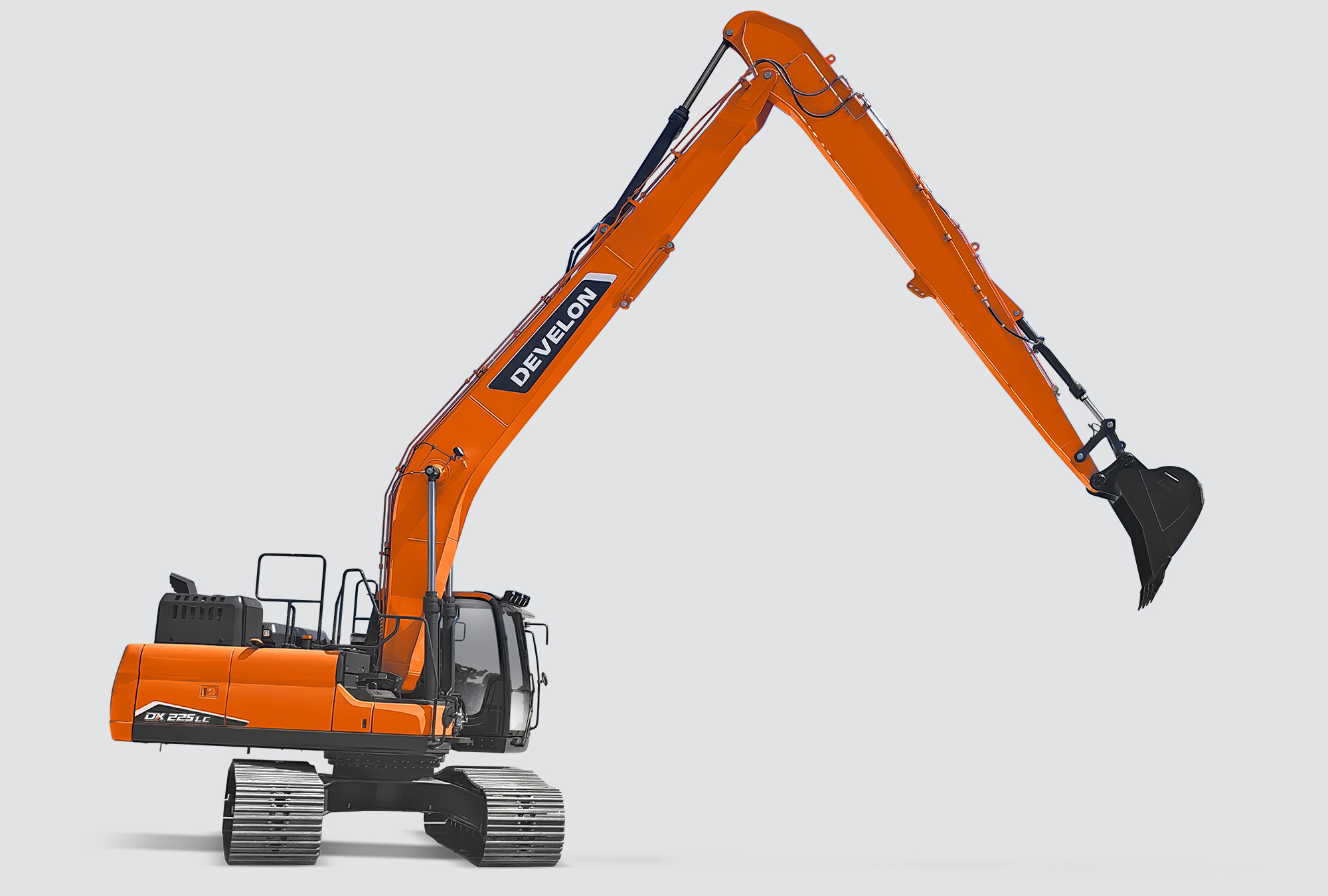

DX225LC-7 SLR
- Engine Develon DL06V
- Operating weight 24.6 t
- Engine power 129 kW (174 HP) @ 1800 rpm (SAE J1995)
- Buckets 0.39 m³
- Main pumps max flow 2 x 210.6 l/m

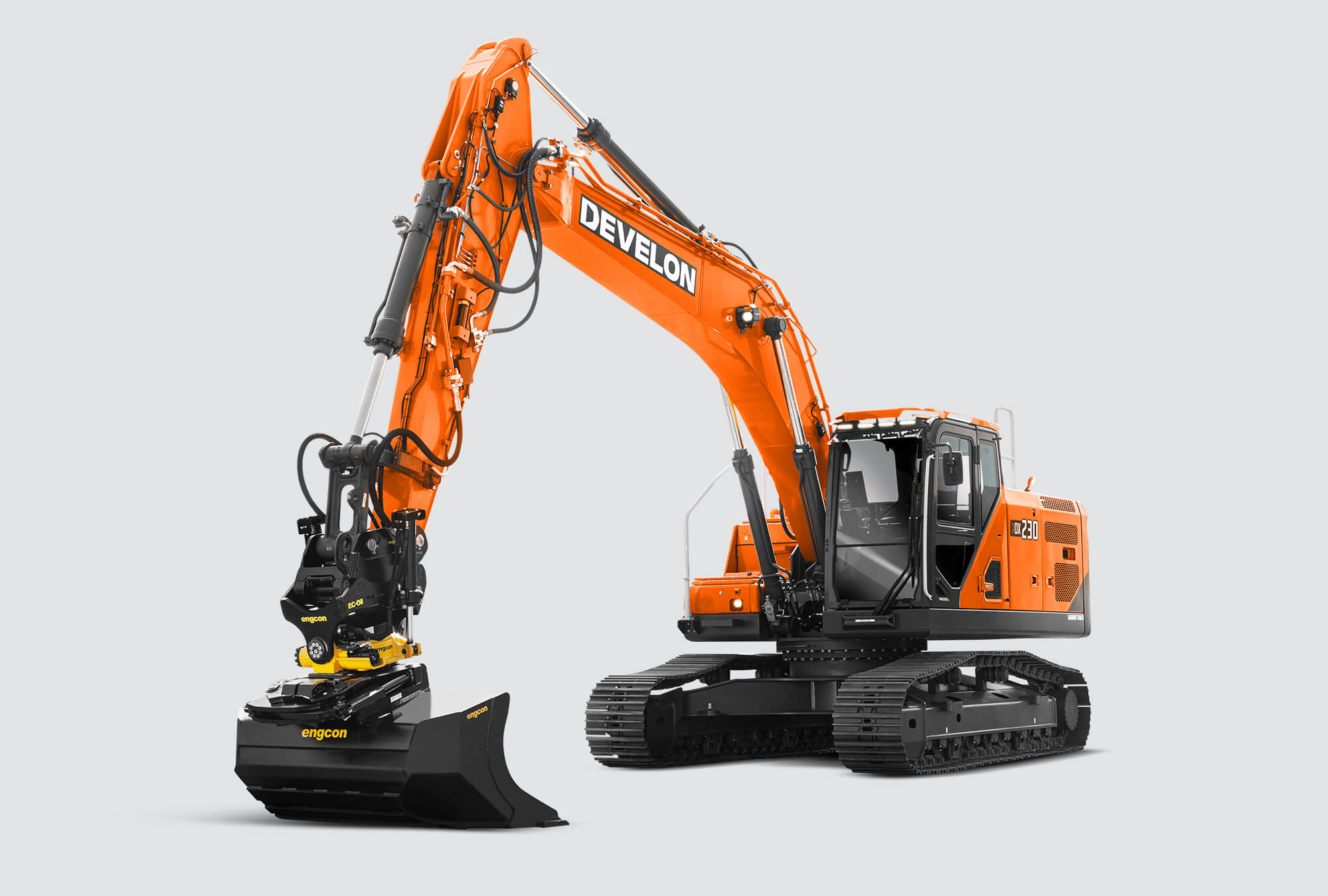

DX230LC-9
- Engine Develon DX05V
- Operating weight 23 600 kg
- Engine power 141 kW / 189.1 hp
- Buckets 1.2 m3
- Main pumps max flow 2 × 212 l/min

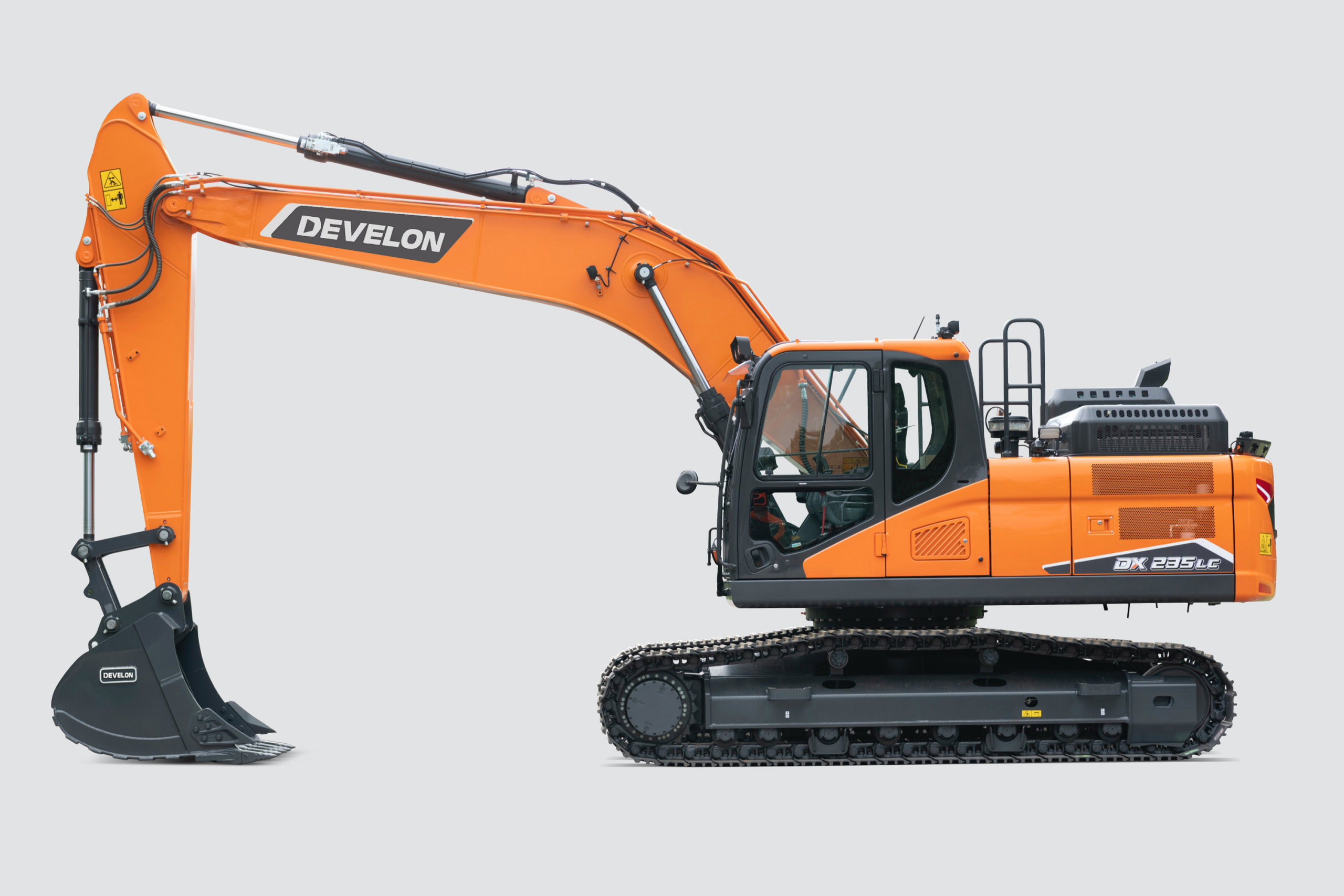

DX235LC-7
- Engine Develon DL06V
- Operating weight 23.200 kg
- Engine power 129 kW / 173 hp @ 1800 rpm
- Buckets 1.3 m3
- Main pumps max flow 2 × 210.6 l/min

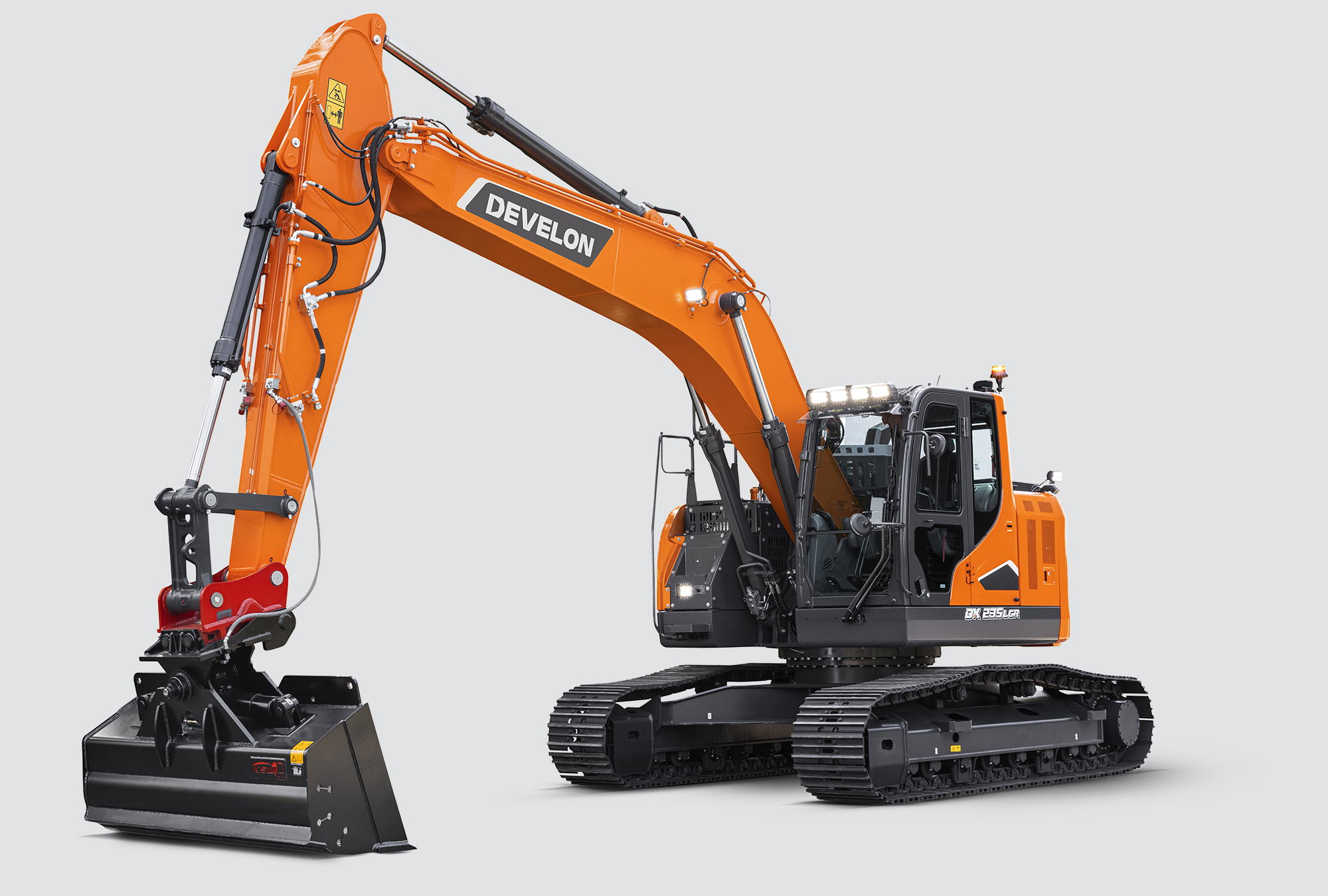

DX235LCR-7
- Engine Develon DL06V
- Operating weight 24.300 kg
- Engine power 141 kW / 189 HP @ 1900 RPM
- Buckets 0.92 m³
- Main pumps max flow 2 × 222.3 l/min
DX245NHD-7
- Engine Develon DL06V
- Operating weight 25.100 kg
- Engine power 129 kW / 173 hp @ 1800 rpm
- Buckets 1.3 m3
- Main pumps max flow 2 × 210.6 l/min

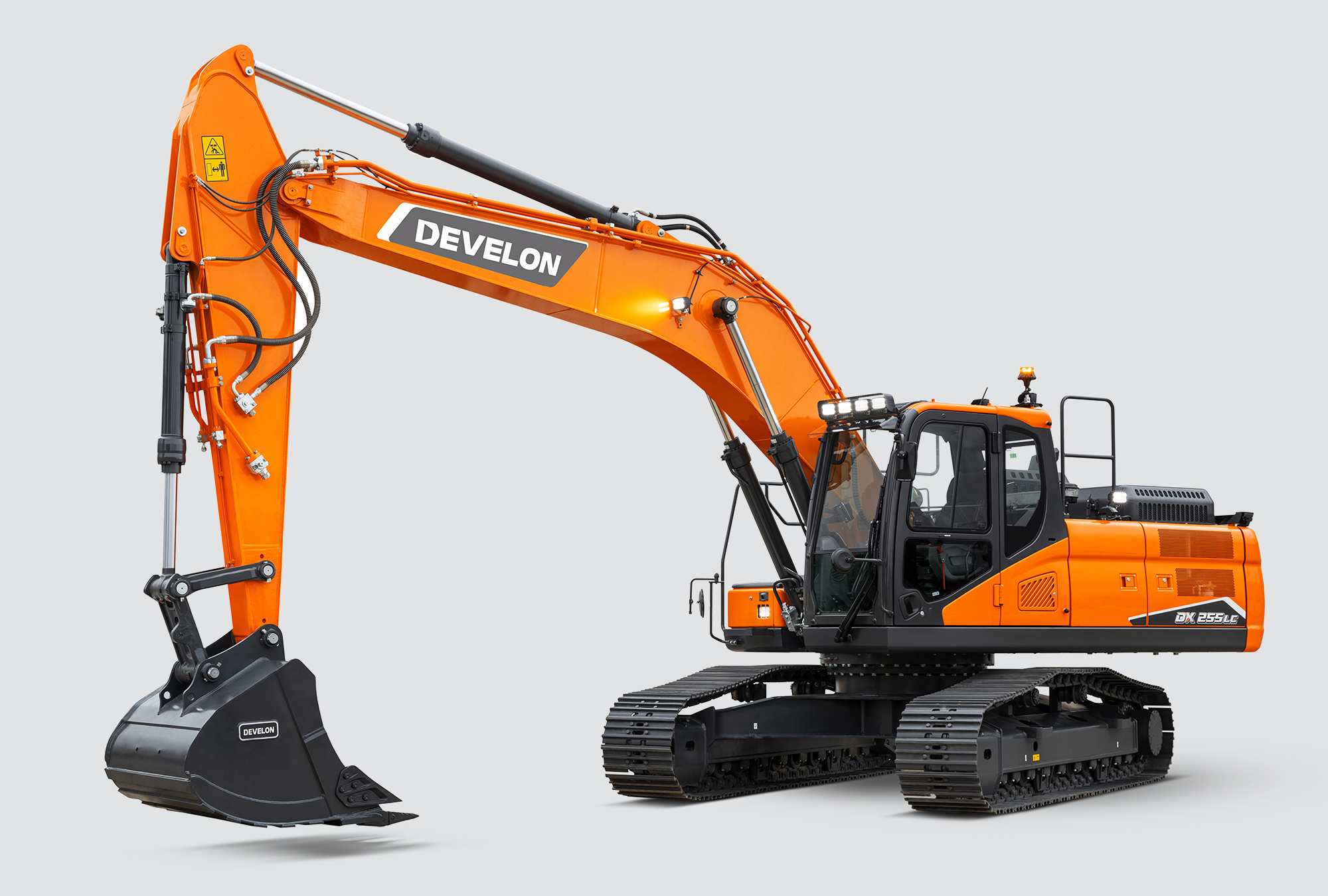

DX255LC-7
- Engine Develon DL06V
- Operating weight 25.700 kg
- Engine power 141.3 kW / 189 hp @1900 rpm
- Buckets 0.92 – 1.17 m³
- Main pumps max flow 2 × 210.6 l/min

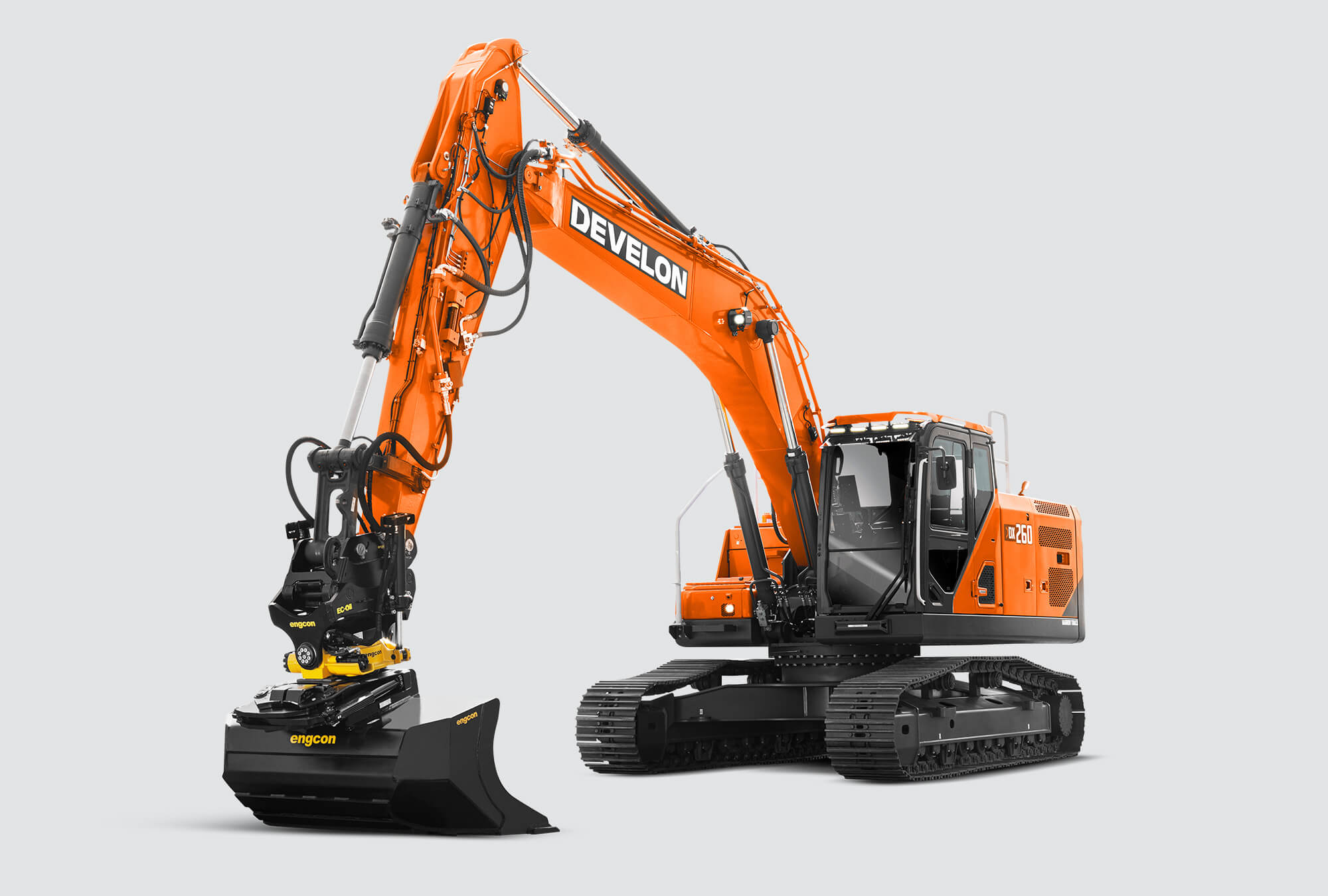

DX260LC-9
- Engine Develon DX05V
- Operating weight 26 300 kg
- Engine power 171.1 kW / 229.4 hp
- Buckets 1.4 m3
- Main pumps max flow 2 × 237.5 l/min

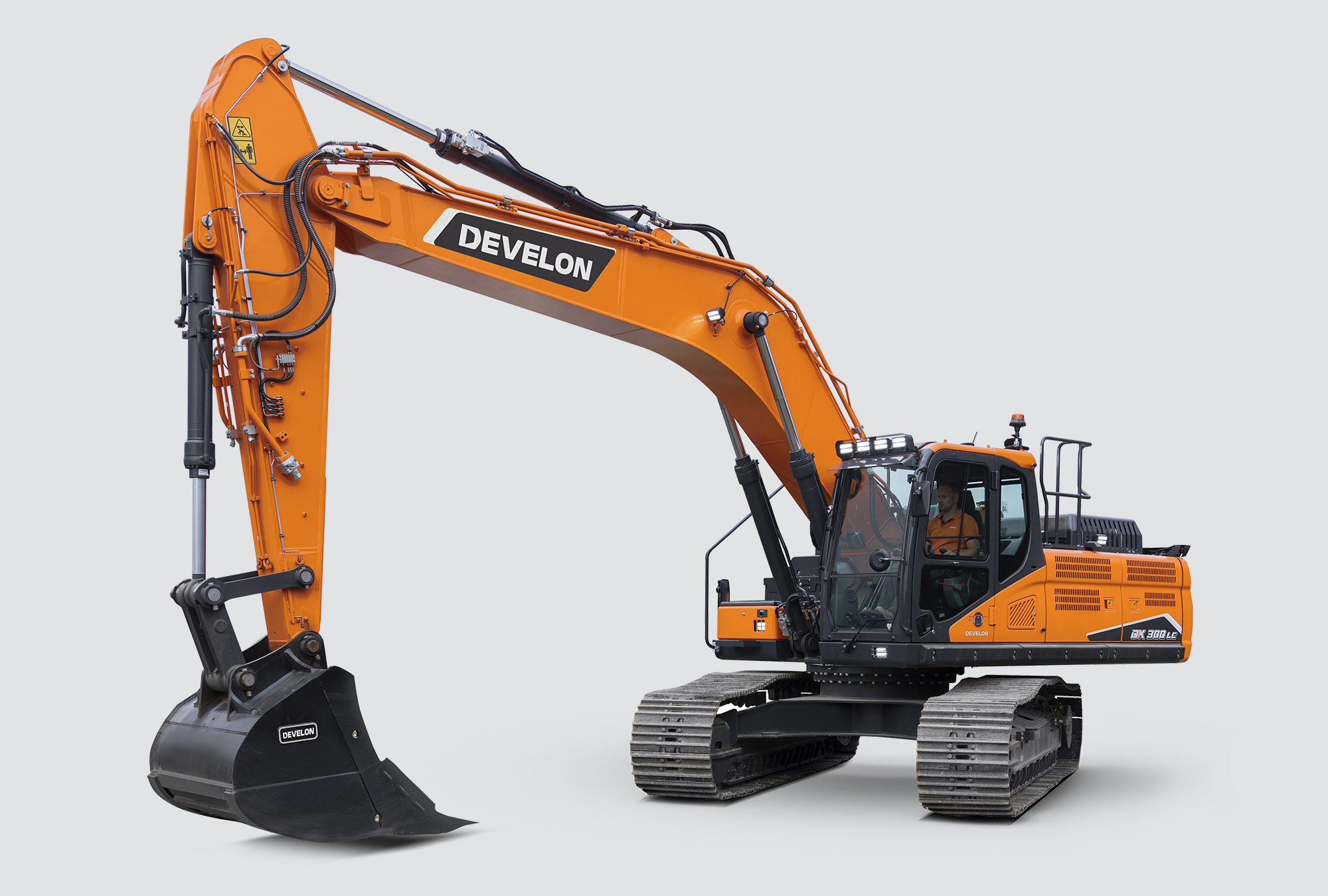

DX300LC-7K
- Engine DL08V
- Operating weight 31.500 kg
- Engine power 202 kW (271 HP) @ 1800 rpm (SAE J1995)
- Buckets 0.80 – 1.75 m³
- Main pumps max flow 2 x 248 l/m

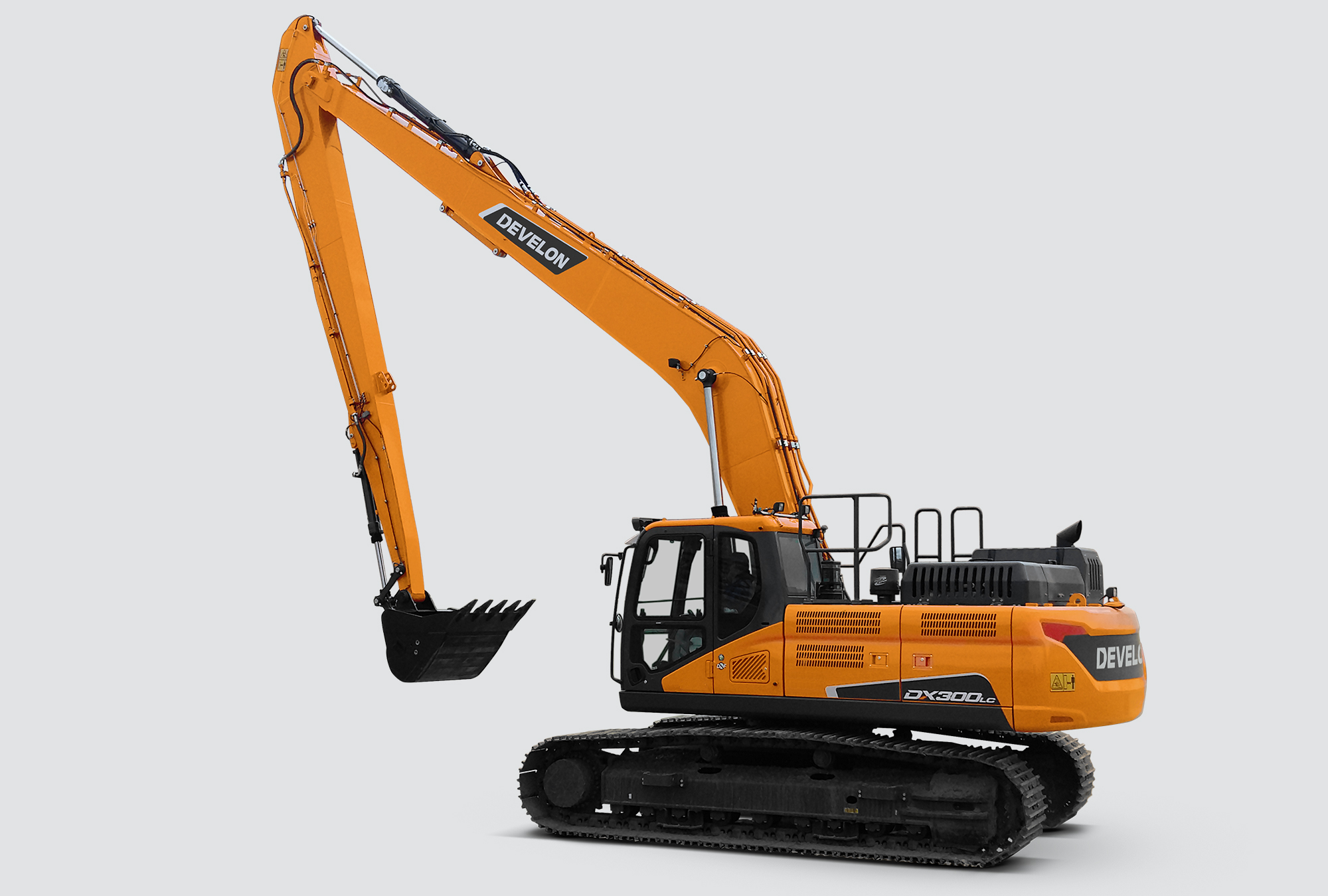

DX300LC-7 SLR
- Engine DL08V
- Operating weight 33.000 kg
- Engine power 202 kW (271 HP) @ 1800 rpm (SAE J1995)
- Buckets 0.64 m³
- Main pumps max flow 2 x 248 l/m

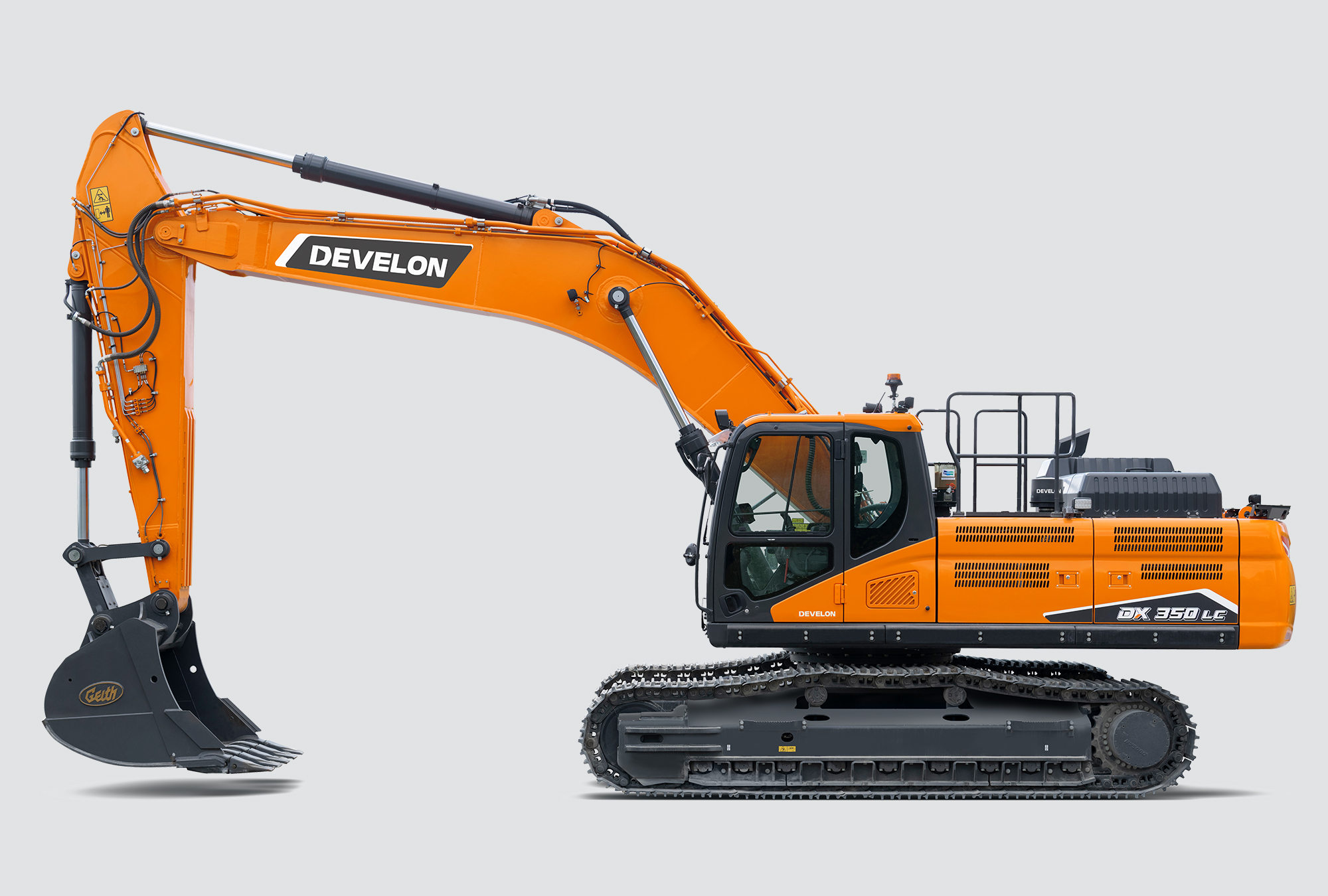

DX350LC-7K
- Engine DL08V
- Operating weight 36.100 kg
- Engine power 213 kW (290 HP) @ 1800 rpm (SAE J1995)
- Buckets 1.25 – 2.32 m³
- Main pumps max flow 2 x 350 l/m

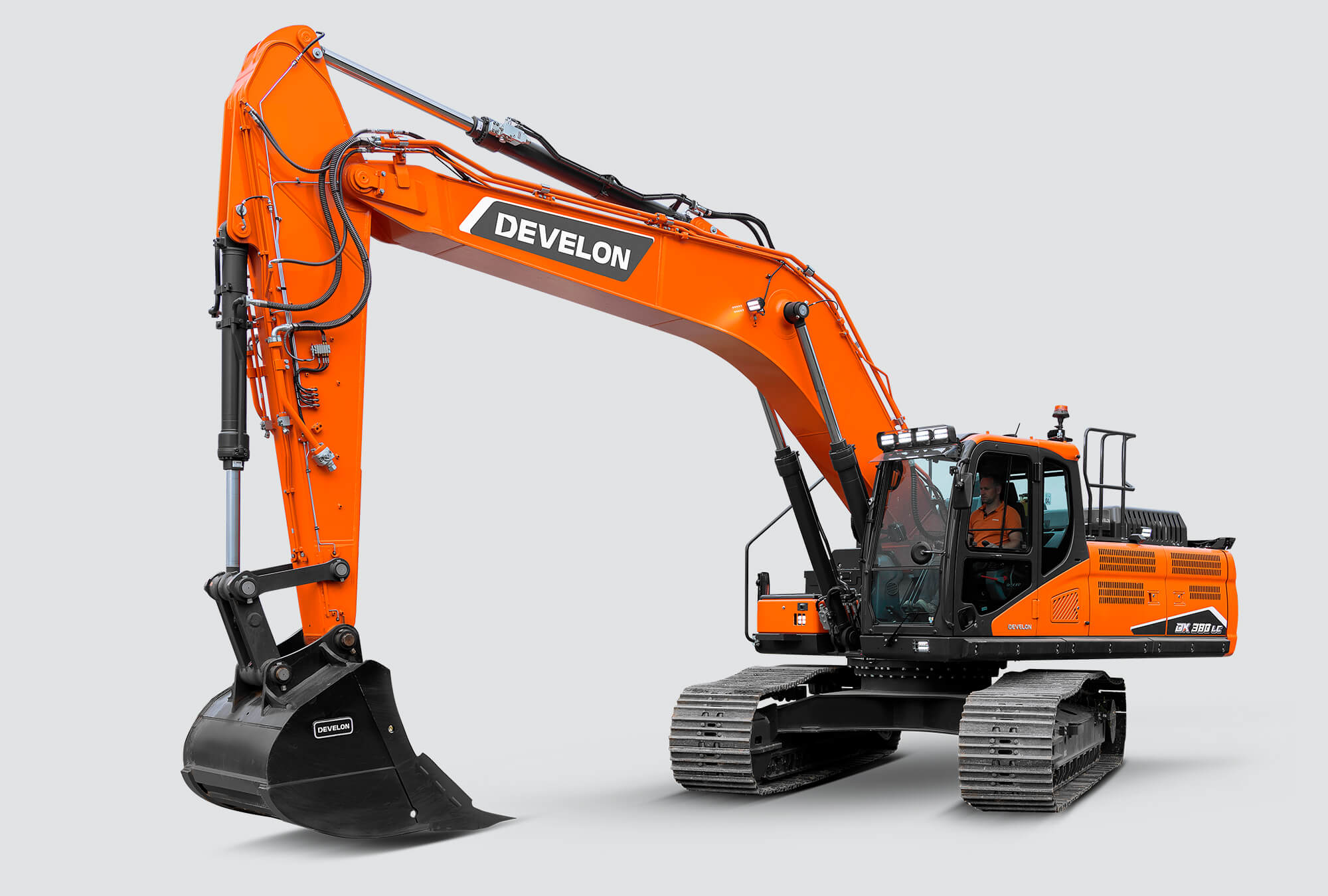

DX380LC-7K
- Engine Scania DC09
- Operating weight 40.200 kg
- Engine power 240 kW (326 HP) @ 1800 rpm (SAE J1995)
- Buckets 1.25 – 2.32 m³
- Main pumps max flow 2 x 350 l/m

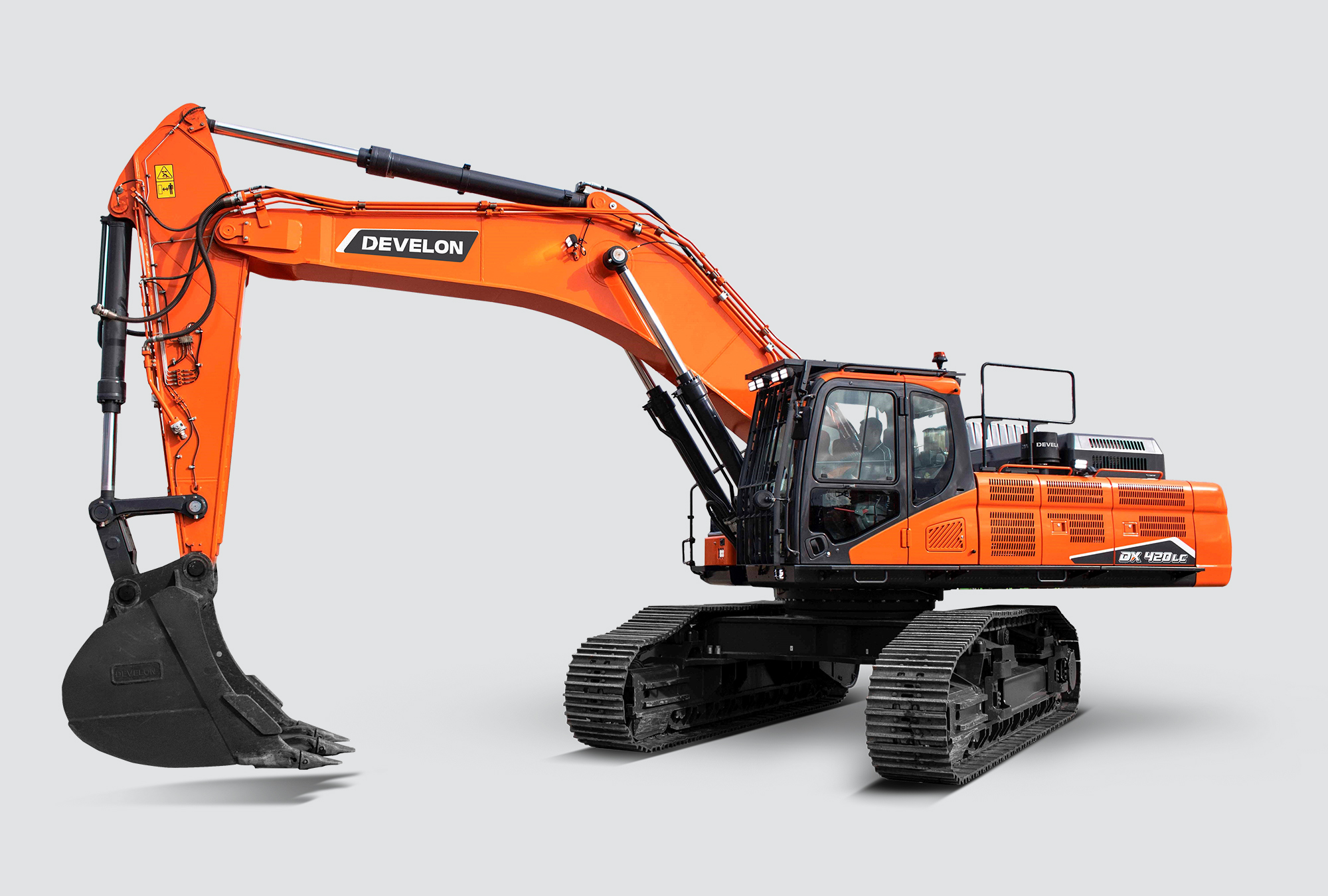

DX420LC-7K
- Engine Scania DC13
- Operating weight 43.500 kg
- Engine power 257 kW (344 HP) @ 1800 rpm (SAE J1995)
- Buckets 1,5 – 2,1 m³
- Main pumps max flow 2 x 333 l/m

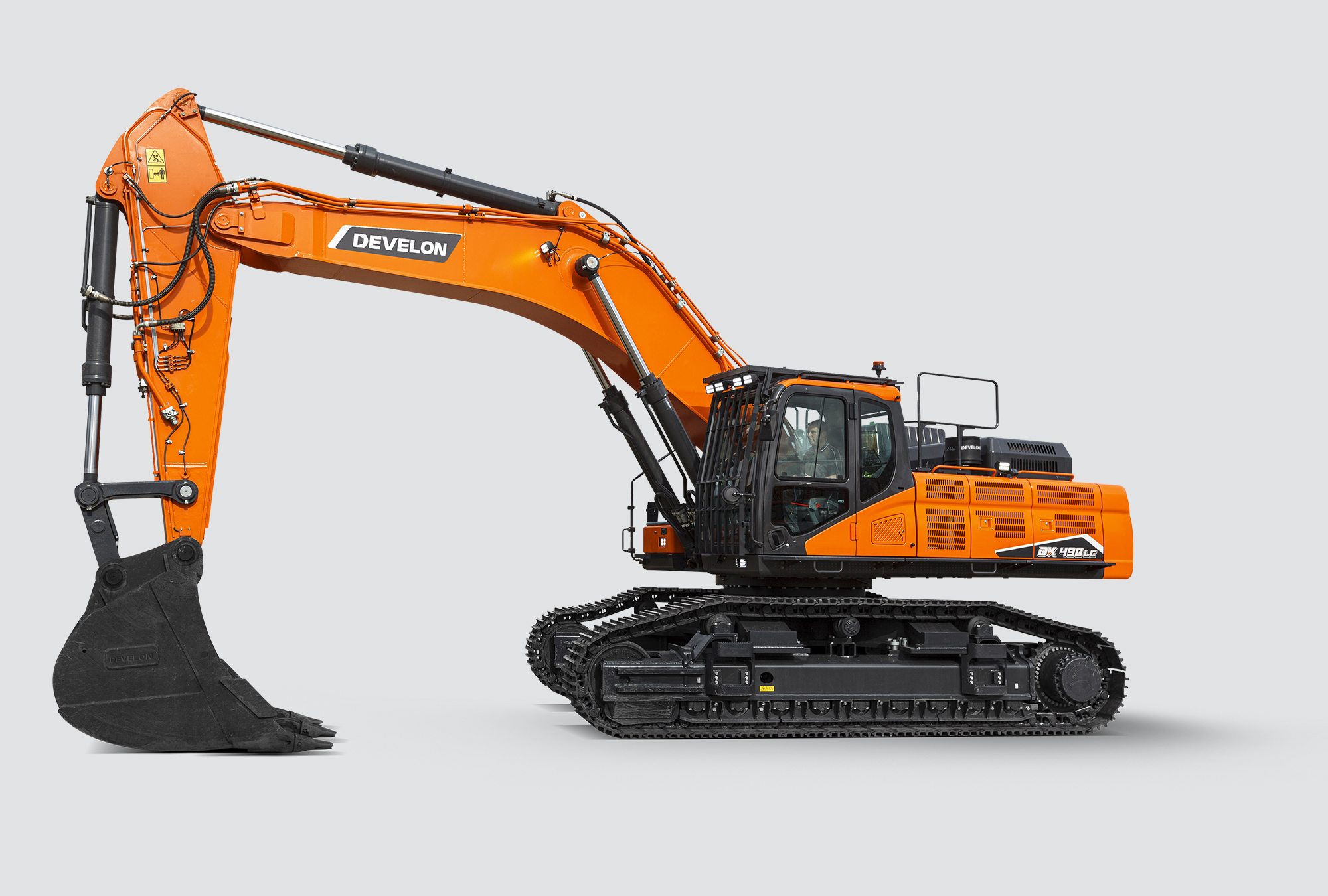

DX490LC-7K
- Engine Scania DC13
- Operating weight 50.400 kg
- Engine power 294 kW (394 HP) @ 1800 rpm (SAE J1995)
- Buckets 1.71 – 3.6 m³
- Main pumps max flow 2 x 390 l/m
DX530LC-7K
- Engine Scania DC13
- Operating weight 52.900 kg
- Engine power 294 kW (394 HP) @ 1800 rpm (SAE J1995)
- Buckets 1,71 – 3,6 m³
- Main pumps max flow 2 x 390 l/m

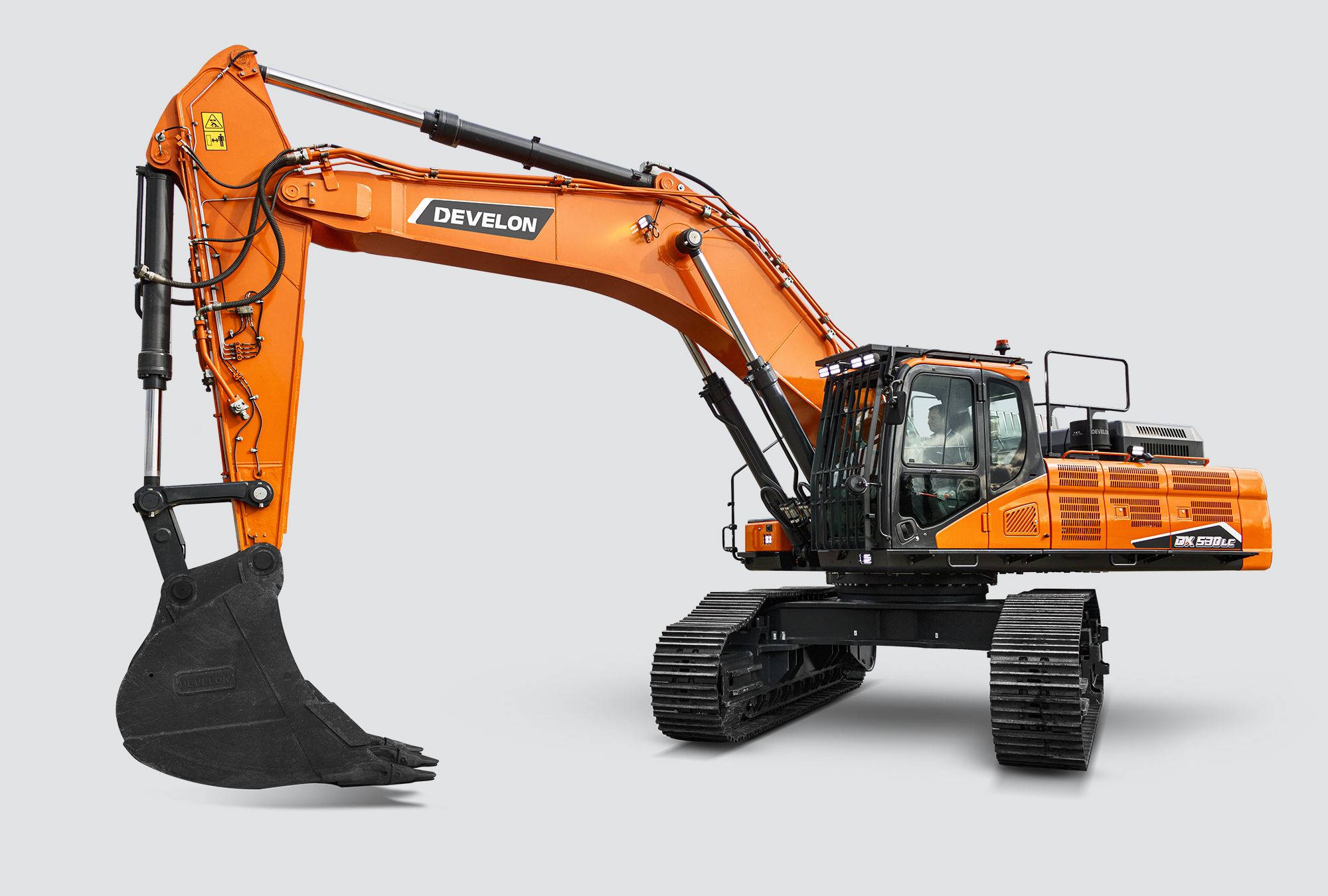

DX530LC-7 SLR
- Engine Scania DC13
- Operating weight 52.200 kg
- Engine power 294 kW (394 HP) @ 1800 rpm (SAE J1995)
- Buckets 0.92 m³
- Main pumps max flow 2 × 390 l/min

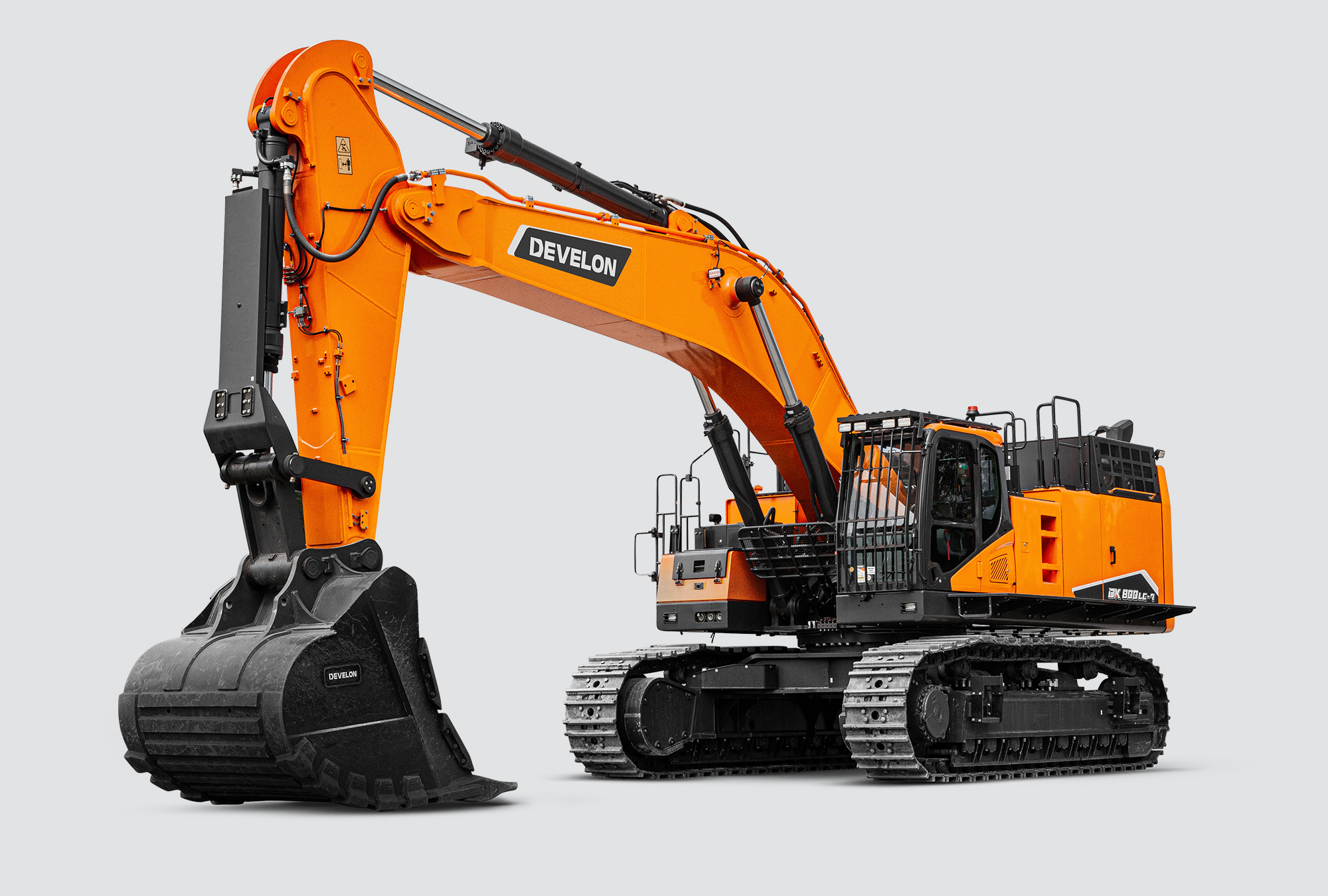

DX800LC-7
- Engine Perkins 2506J
- Operating weight 79.500 kg
- Engine power 403 kW (548 HP) @ 1800 rpm (SAE J1995)
- Buckets 4,25 – 5,24 m³
- Main pumps max flow 2 x 504 l/m

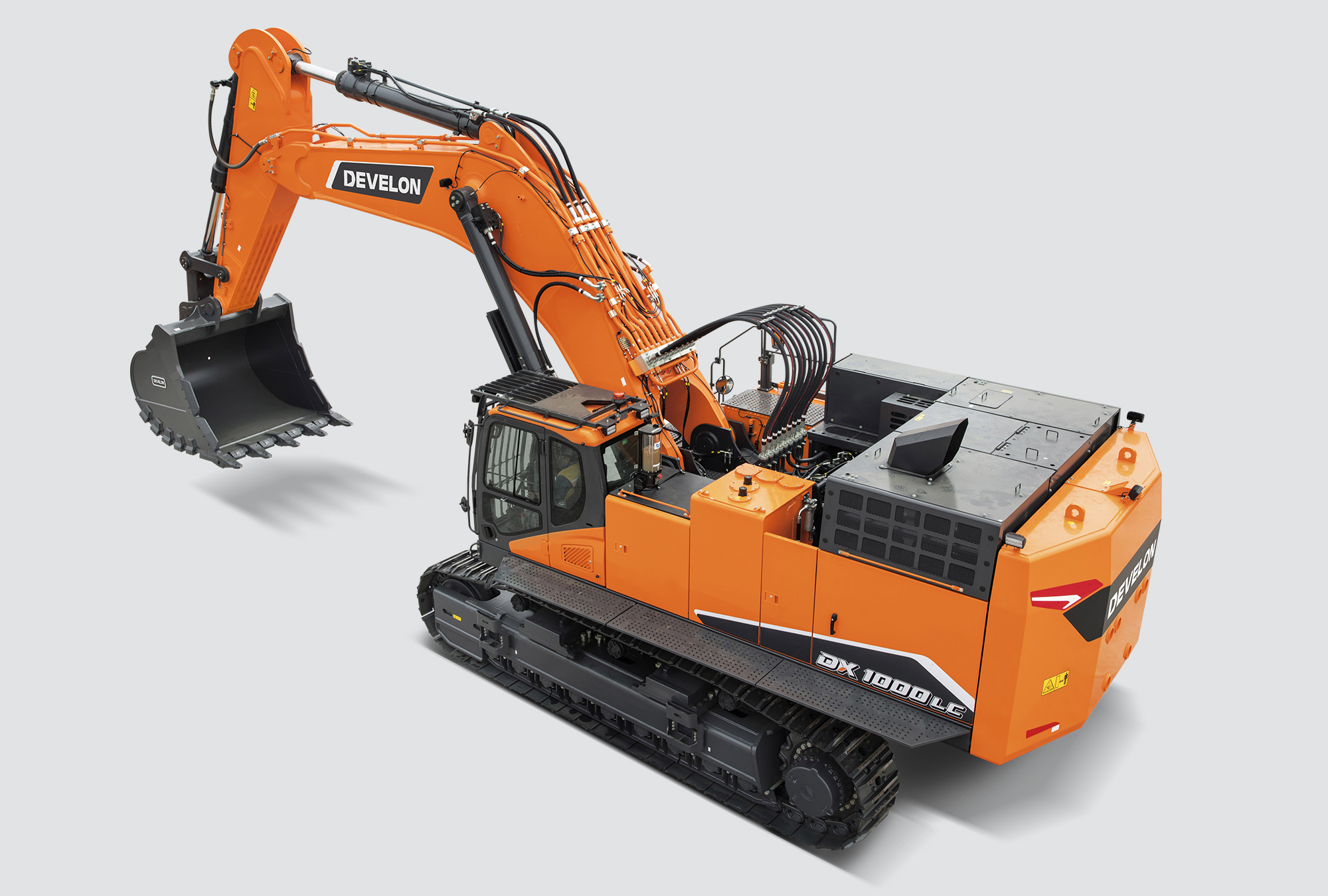

DX1000LC-7
- Engine Perkins 2806
- Operating weight 97.000 ~ 99.500 kg
- Engine power 469 kW (629 HP) @ 2000 rpm
- Buckets 5.4 ~ 6.8 m³
- Main pumps max flow 3 × 523 l/min
| DX140LC-7K | Develon G2 D34 | 14.4 t | 86 kW (115 hp) at 2000 rpm | 0.51 m³ | 2 × 114 l/min |
| DX140LC-7 | Develon G2 D34 | 14.400 kg | 86 kW / 115 HP @ 1800 RPM | 0.51 m³ | 2 × 114 l/min |
| DX140LCR-7 | Develon G2 D34 | 15.600 kg | 86 kW / 115 HP @ 2000 RPM | 0.51 m³ | 2 × 114 l/min |
| DX160LC-7HT | Develon D34 G2 | 16.8 t | 86 kW / 115 HP @ 2000 RPM | 0.5 - 0.75 m³ | 2 × 114 l/min |
| DX210-7 | Develon DL06V | 21.900 kg | 124 kW / 166 HP @ 1800 RPM | 0.51 - 1.32 m3 | 2 × 210.6 l/min |
| DX210LC-7 | Develon DL06V | 22.300 kg | 124 kW / 166 HP @ 1800 RPM | 0.51 - 1.32 m3 | 2 × 210.6 l/min |
| DX210NLC-7 | Develon DL06V | 22.100 kg | 124 kW / 166 HP @ 1800 RPM | 0.51 - 1.32 m3 | 2 × 210.6 l/min |
| DX225LC-7 | Develon DL06V | 23.300 kg | 129 kW / 174 hp @ 1800 rpm | 1.28 m3 | 2 × 210.6 l/min |
| DX225LC-7X | Develon DL06V | 23.3 t | 129 kW/ 174 hp @1800 rpm | 1.28 m3 | 2 x 210.6 l/min |
| DX225LC-7 SLR | Develon DL06V | 24.6 t | 129 kW (174 HP) @ 1800 rpm (SAE J1995) | 0.39 m³ | 2 x 210.6 l/m |
| DX230LC-9 | Develon DX05V | 23 600 kg | 141 kW / 189.1 hp | 1.2 m3 | 2 × 212 l/min |
| DX235LC-7 | Develon DL06V | 23.200 kg | 129 kW / 173 hp @ 1800 rpm | 1.3 m3 | 2 × 210.6 l/min |
| DX235LCR-7 | Develon DL06V | 24.300 kg | 141 kW / 189 HP @ 1900 RPM | 0.92 m³ | 2 × 222.3 l/min |
| DX245NHD-7 | Develon DL06V | 25.100 kg | 129 kW / 173 hp @ 1800 rpm | 1.3 m3 | 2 × 210.6 l/min |
| DX255LC-7 | Develon DL06V | 25.700 kg | 141.3 kW / 189 hp @1900 rpm | 0.92 – 1.17 m³ | 2 × 210.6 l/min |
| DX260LC-9 | Develon DX05V | 26 300 kg | 171.1 kW / 229.4 hp | 1.4 m3 | 2 × 237.5 l/min |
| DX300LC-7K | DL08V | 31.500 kg | 202 kW (271 HP) @ 1800 rpm (SAE J1995) | 0.80 – 1.75 m³ | 2 x 248 l/m |
| DX300LC-7 SLR | DL08V | 33.000 kg | 202 kW (271 HP) @ 1800 rpm (SAE J1995) | 0.64 m³ | 2 x 248 l/m |
| DX350LC-7K | DL08V | 36.100 kg | 213 kW (290 HP) @ 1800 rpm (SAE J1995) | 1.25 – 2.32 m³ | 2 x 350 l/m |
| DX380LC-7K | Scania DC09 | 40.200 kg | 240 kW (326 HP) @ 1800 rpm (SAE J1995) | 1.25 – 2.32 m³ | 2 x 350 l/m |
| DX420LC-7K | Scania DC13 | 43.500 kg | 257 kW (344 HP) @ 1800 rpm (SAE J1995) | 1,5 – 2,1 m³ | 2 x 333 l/m |
| DX490LC-7K | Scania DC13 | 50.400 kg | 294 kW (394 HP) @ 1800 rpm (SAE J1995) | 1.71 – 3.6 m³ | 2 x 390 l/m |
| DX530LC-7K | Scania DC13 | 52.900 kg | 294 kW (394 HP) @ 1800 rpm (SAE J1995) | 1,71 – 3,6 m³ | 2 x 390 l/m |
| DX530LC-7 SLR | Scania DC13 | 52.200 kg | 294 kW (394 HP) @ 1800 rpm (SAE J1995) | 0.92 m³ | 2 × 390 l/min |
| DX800LC-7 | Perkins 2506J | 79.500 kg | 403 kW (548 HP) @ 1800 rpm (SAE J1995) | 4,25 – 5,24 m³ | 2 x 504 l/m |
| DX1000LC-7 | Perkins 2806 | 97.000 ~ 99.500 kg | 469 kW (629 HP) @ 2000 rpm | 5.4 ~ 6.8 m³ | 3 × 523 l/min |
