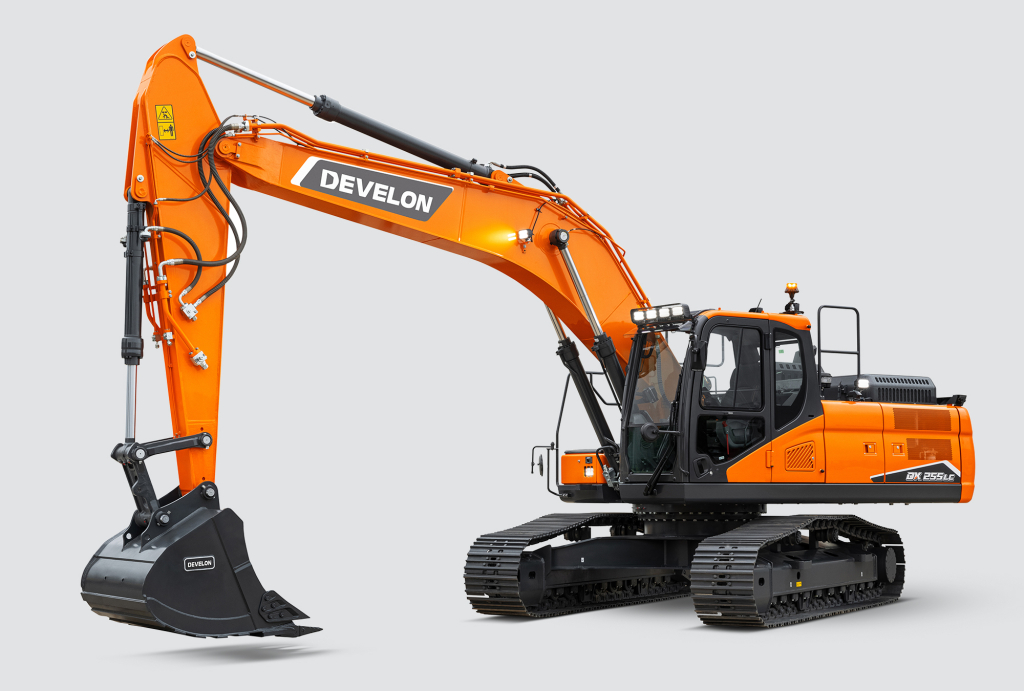

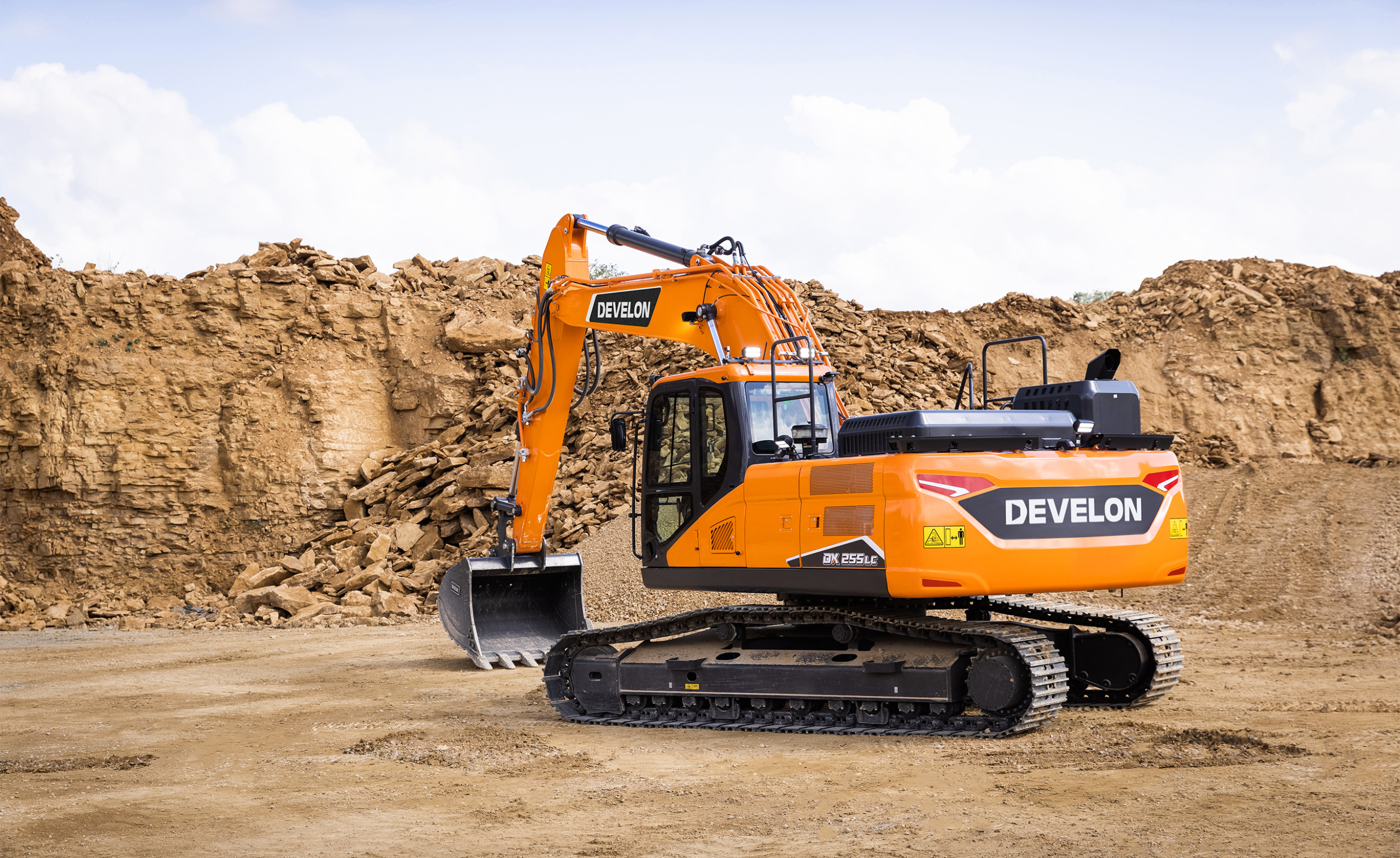

DX255LC-7

Lift your business to the next level with the DX255LC-7 Develon excavator. Exceptionally powerful, yet environmentally friendly, the DX255LC-7 excavator features extraordinary fuel efficiency.


Reinforced castings and forged steel pivot points and reinforced heavy-duty arm and boom to withstand high-impact materials. Monoboom or articulated boom for added versatility. Improved hydraulic line routing to protect your investment. One of the most spacious cabs in the market, with low noise & vibration levels and excellent all-round visibility. Thanks to the heating and even an optional cooling functionality of the premium seat and improved air ventilation in the DX255LC-7, you can focus on the job at hand in any situation. The latest evolution of the legendary Stage V Develon DL06V engine achieves greater fuel savings thanks to D-Eco Power and the 3rd generation of Smart Power Control (SPC3) Take full control over your fuel consumption with the settable engine shut off.


New Brand, Same Values: A Story From Portugal
Machine Specs
Maximum power189 hp
Operating weight25.700 kg
Bucket capacity1.4 m³
Emission standardStage V
EngineDevelon DL06V
Number of cylinders6
Engine power141.3 kW / 189 hp @1900 rpm
Buckets0.92 – 1.17 m³
Arm lenght2500 – 3500 mm
Boom lenght5900 – 6090 mm
Bucket digging force17.0 - 17.9 t
Arm digging force11.7 - 15.4 t
Main pumps max flow2 × 210.6 l/min
Options & Attachments

Quick Coupler

Part namePart #Pin Diameter mmMin - Max Centers x - y )mmBase Width  mmWeight  kg (lbs)
16 - 29t Quick CouplerQC80 (H) (M)80385 - 530280/300628 (285)
16 - 29t Quick CouplerQC80 (H) (M)80385 - 530280/300628 (285)

Bucket

Part namePart #Width mmCapacity m3Weight kg
Bucket H25-1500H25-150015001,091031
Bucket H25-1500H25-150015001,091031
