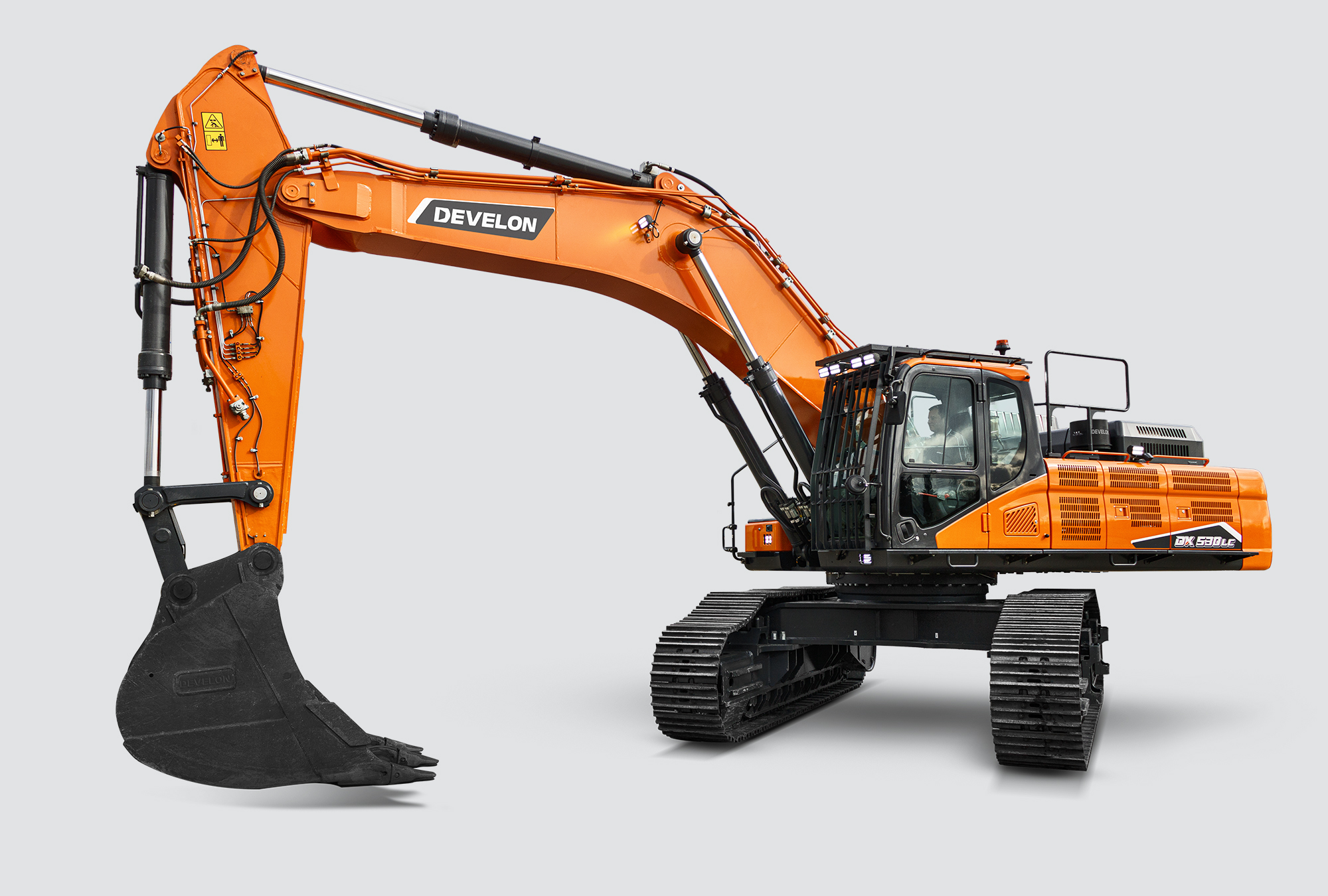

DX530LC-7K

Boost your productivity

Lift your business to the next level with the new DX530LC-7K Develon excavators!
Exceptionally powerful, yet environmentally friendly, the  DX530LC-7K excavator equipped with the latest generation Scania DC13 engine features extraordinary fuel efficiency.
DX530LC-7K Machine Specs
Operating weight 52.900 kg
Buckets 1,71 – 3,6 m³
Engine Scania DC13
Maximum power 394 HP
Emission standard Stage V
Engine power 294 kW (394 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow 2 x 390 l/m
Number of cylinders 6
Travel speed 3.2 / 5.6 km/h
Maximum traction 45.7 t
Bucket capacity 3.3 m³
Tail swing radius 3800 mm
Max. digging reach 19615 mm
Max. digging depth 15125 mm
Max. loading height 11890 mm
Max. digging height 14435 mm
BUCKET (Normal/Press. Up) 14.3 / 15.2 t
ARM (Normal/Press. Up) 10.9 / 11.9 t
DX530LC-7K Semi-SLR & SLR Machine Specs
Operating weight (Semi-SLR/SLR) 51.900/52.200 kg
Buckets (Semi-SLR/SLR) 1.27/0.92 m³
Engine Scania DC13
Maximum power 394.2 HP
Engine power 294 kW (394 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow 2 x 390 l/min
Number of cylinders 6
Travel speed 3.2 / 5.6 km/h
Maximum traction 45.7 t
Bucket capacity (Semi SLR/SLR) 1.27/0.92 m³
Tail swing radius 3800 mm
Max. digging reach (Semi SLR/SLR) 16060/19615 mm
Max. digging depth (Semi SLR/SLR) 11759/15125 mm
Max. loading height (Semi SLR/SLR) 9800/11890 mm
Max. digging height (Semi SLR/SLR) 12755/14435 mm
BUCKET (Normal/Press. Up) - Semi SLR 19.2 / 20.3 t
BUCKET (Normal/Press. Up) - SLR 14.3 / 15.2 t
ARM (Normal/Press. Up) - Semi SLR 13.8 / 15.1 t
ARM (Normal/Press. Up) - SLR 10.9 / 11.9 t
New Brand, Same Values: A Story From Portugal
Machine Specs
Operating weight52.900 kg
Buckets1,71 – 3,6 m³
EngineScania DC13
Maximum power394 HP
Emission standardStage V
Engine power294 kW (394 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow2 x 390 l/m
Number of cylinders6
Travel speed3.2 / 5.6 km/h
Maximum traction45.7 t
Bucket capacity3.3 m³
Tail swing radius3800 mm
Max. digging reach19615 mm
Max. digging depth15125 mm
Max. loading height11890 mm
Max. digging height14435 mm
BUCKET (Normal/Press. Up)14.3 / 15.2 t
ARM (Normal/Press. Up)10.9 / 11.9 t
Options & Attachments

Quick Coupler (Standard configuration)

Part namePart #Pin Diameter mmMin - Max Centers x - y )mmBase Width  mmWeight  kg (lbs)
50 - 65t Quick CouplerQC120 (H)120570 - 635428/4682402 (1090)
50 - 65t Quick CouplerQC120 (H)120570 - 635428/4682402 (1090)
