Boost your productivity

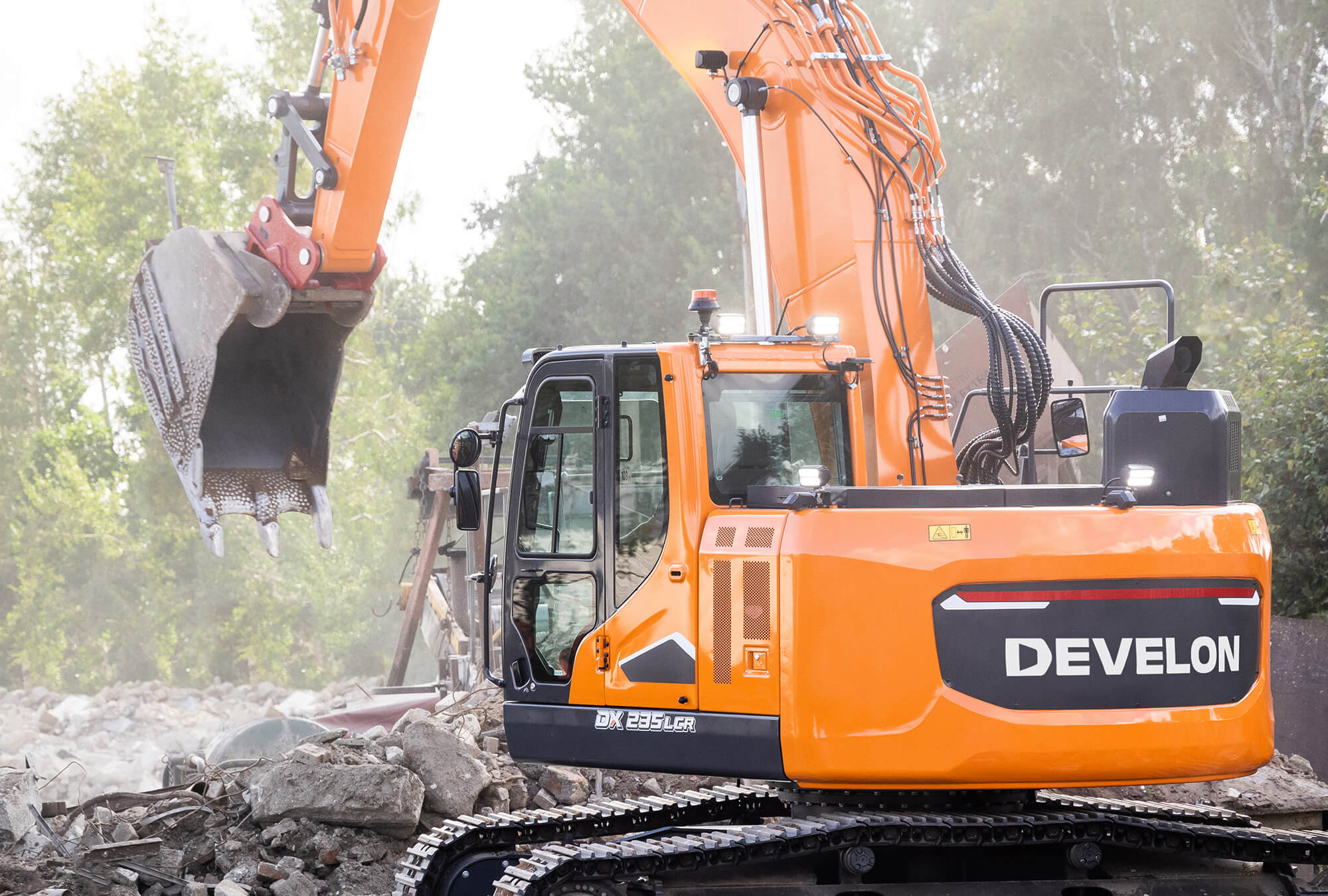

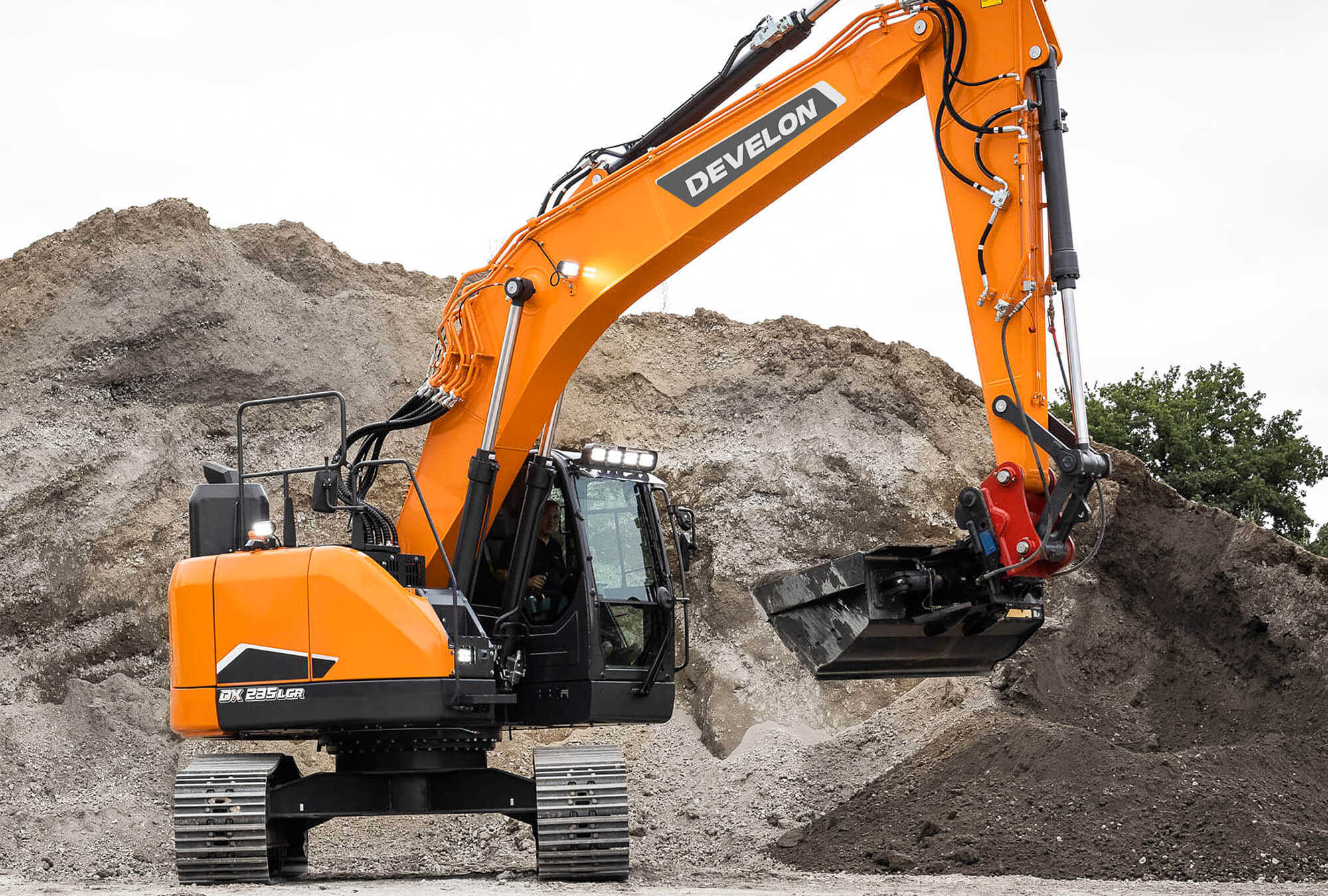

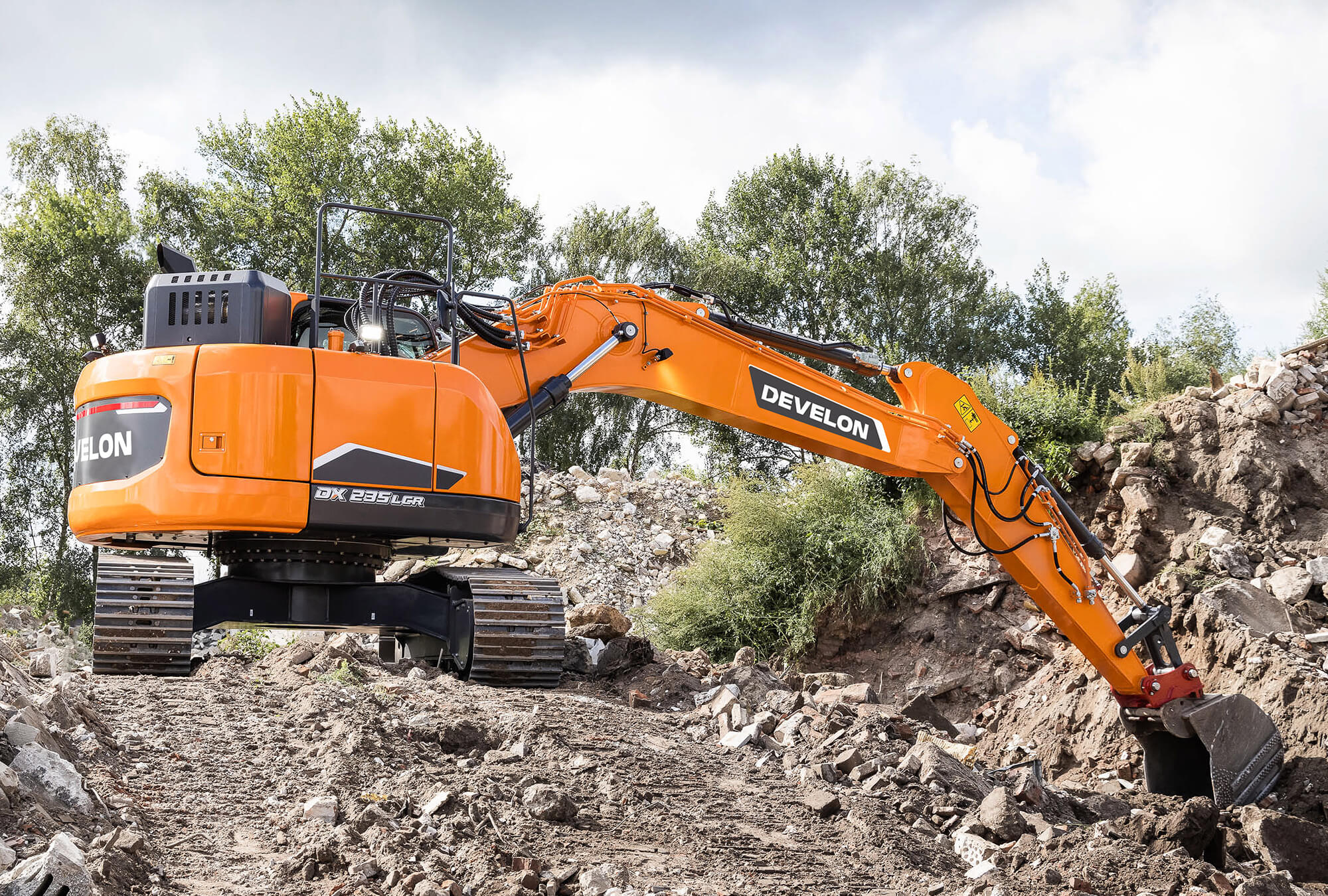

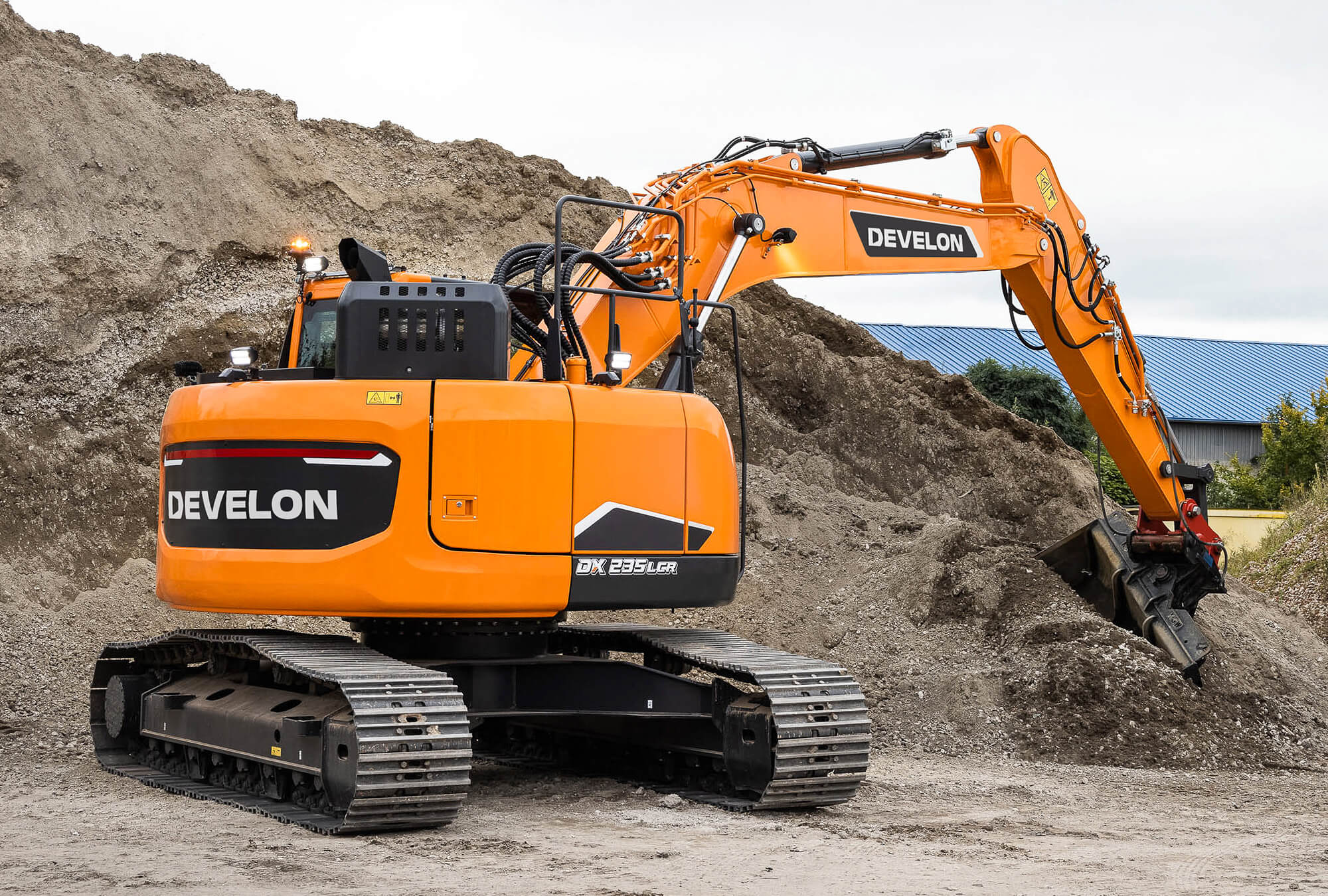

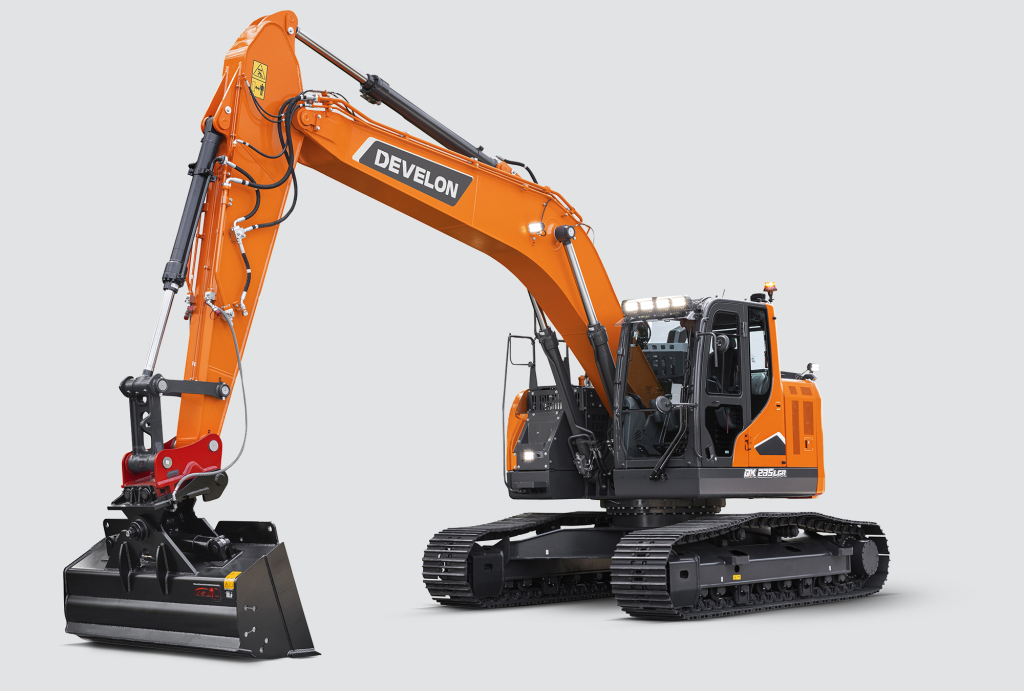

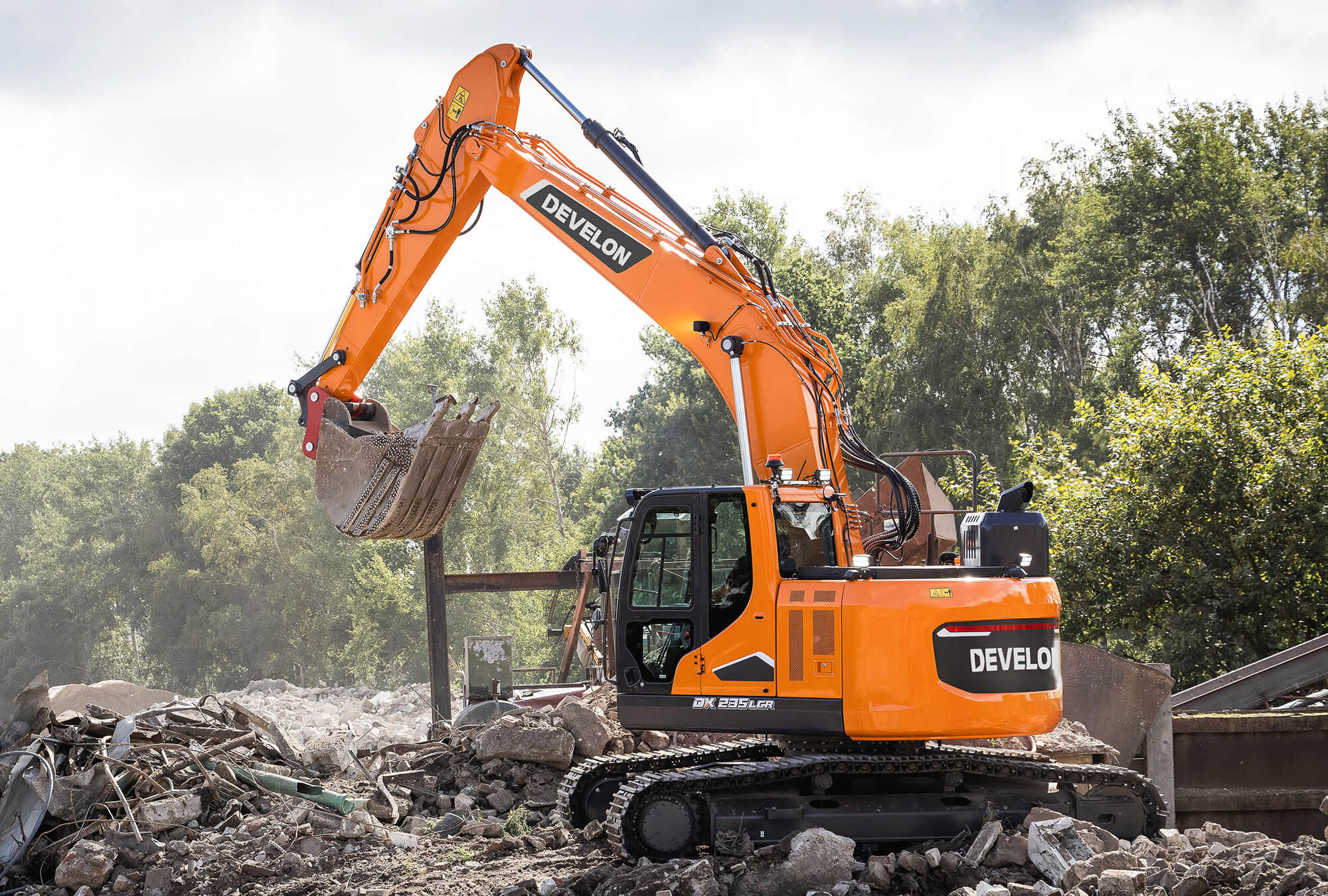

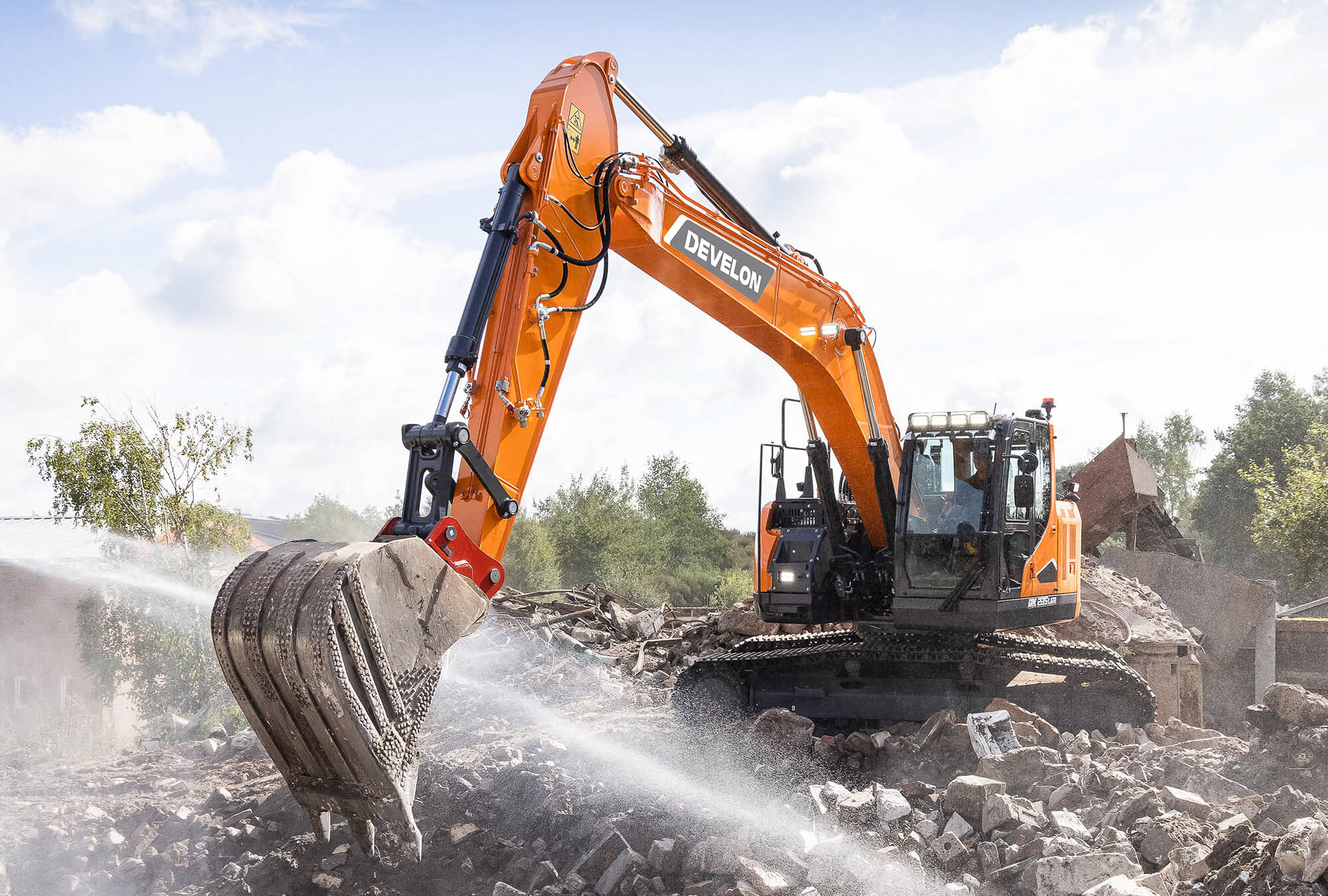

DX235LCR-7 is further model in the company’s new generation medium-sized Stage V compliant excavators. This model has a reduced tail swing radius, which makes them ideal for working in the city and in restricted areas, in residential as well as commercial construction.

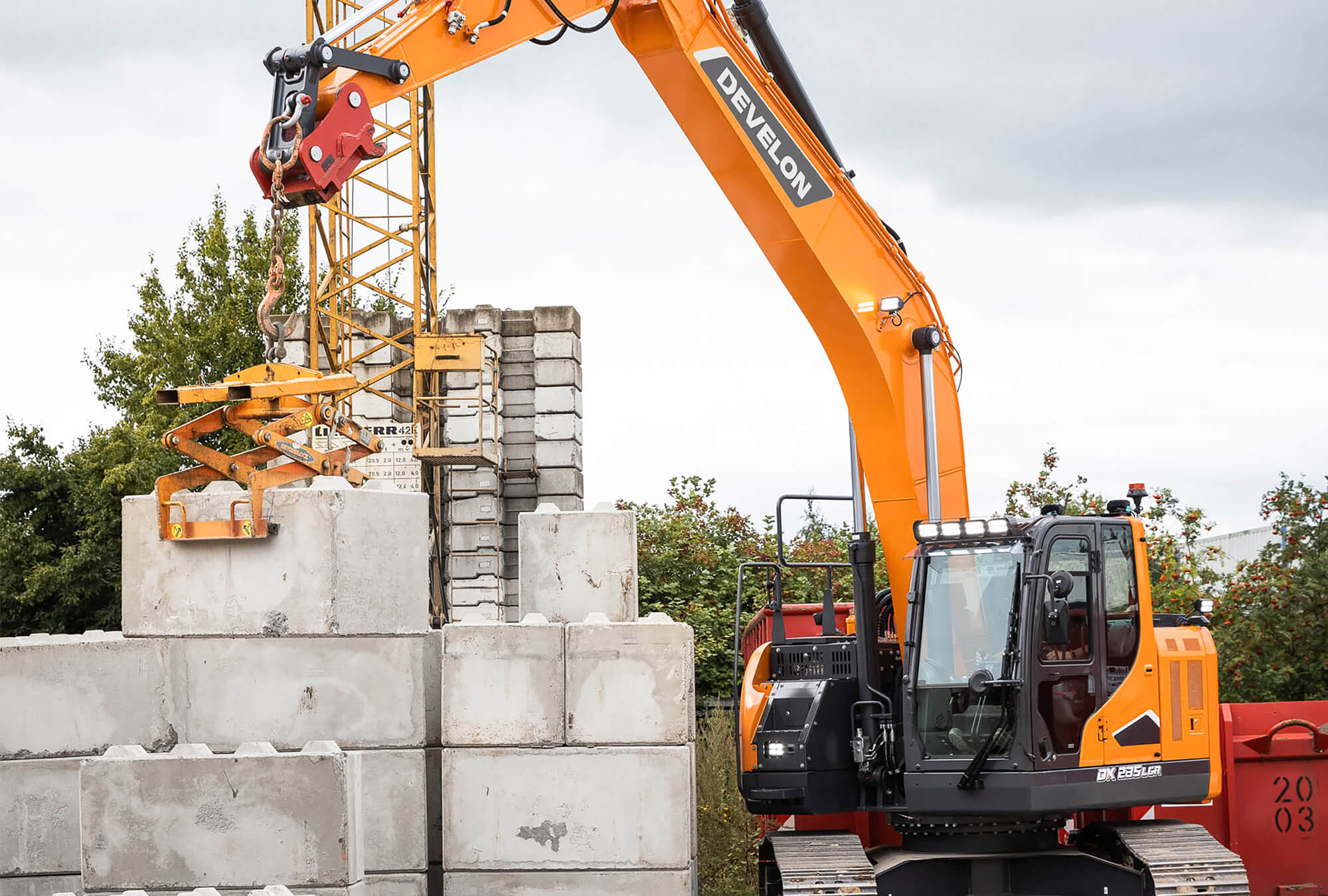

The lifting performance of DX235LCR-7 models is simply outsdanding! Thanks to an optional heavy counterweight, you can easily lift massive objects like pipes and big concrete blocks - whatever your job site requires. To make the machine's maintenance as convenient as possible, we've updated the counterweight design to provide greater service accessability. On top of that, the "-7" generation of Develon Excavators allows you to unlock the door remotely and start or stop the engine with the Develon Smart Key.

New Brand, Same Values: A Story From Portugal
Machine Specs
Maximum power189 HP
Operating weight24.300 kg
Buckets0.92 m³
Emission standardStage V
EngineDevelon DL06V
Engine power141 kW / 189 HP @ 1900 RPM
Main pumps max flow2 × 222.3 l/min
Maximum swing speed11.5 rpm
Maximum swing torque9626 kgf·m
Travel speed (low - high)3.2 - 5.8 km/h
Maximum traction29.200 kg
Maximum gradeability35° / 70%
