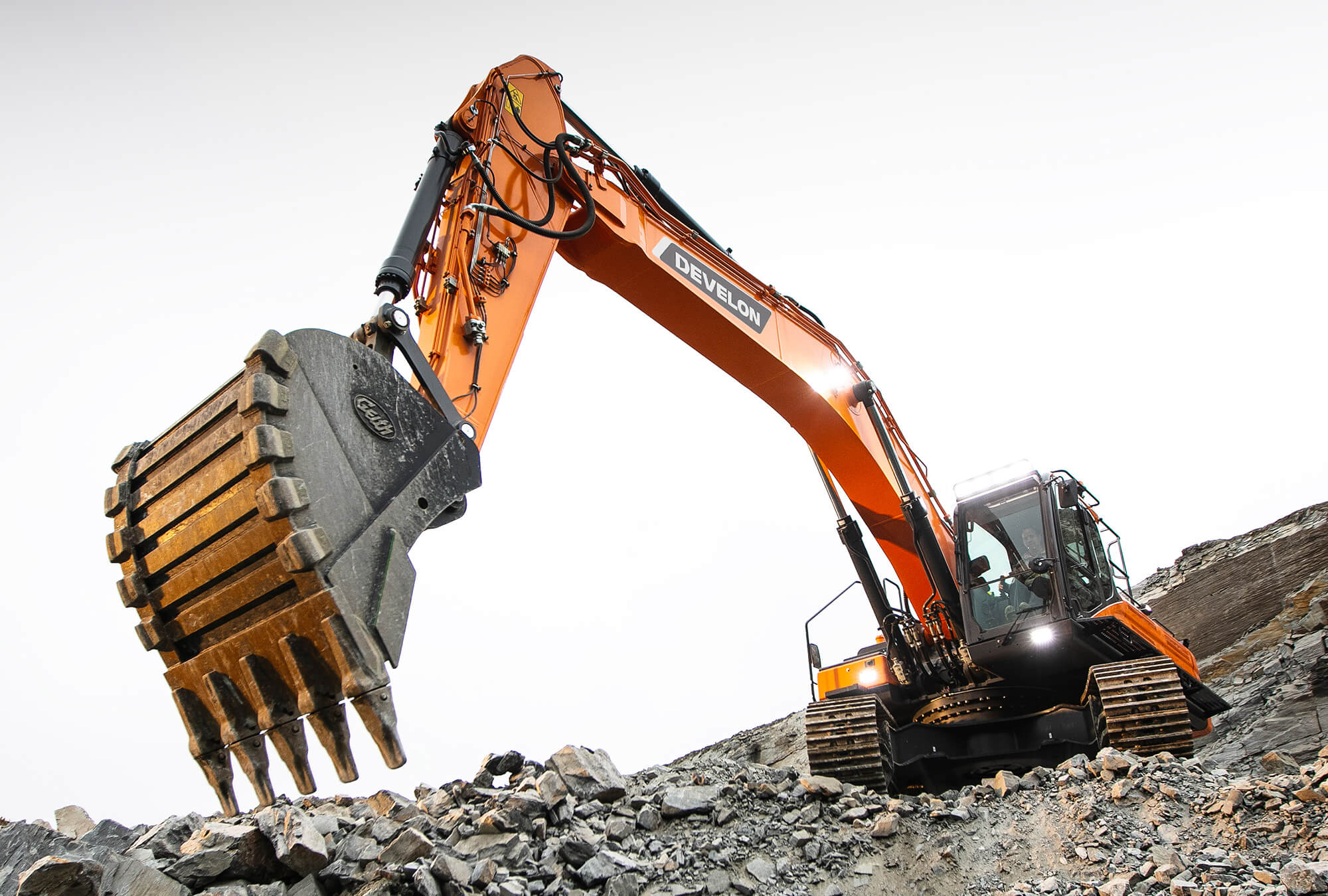

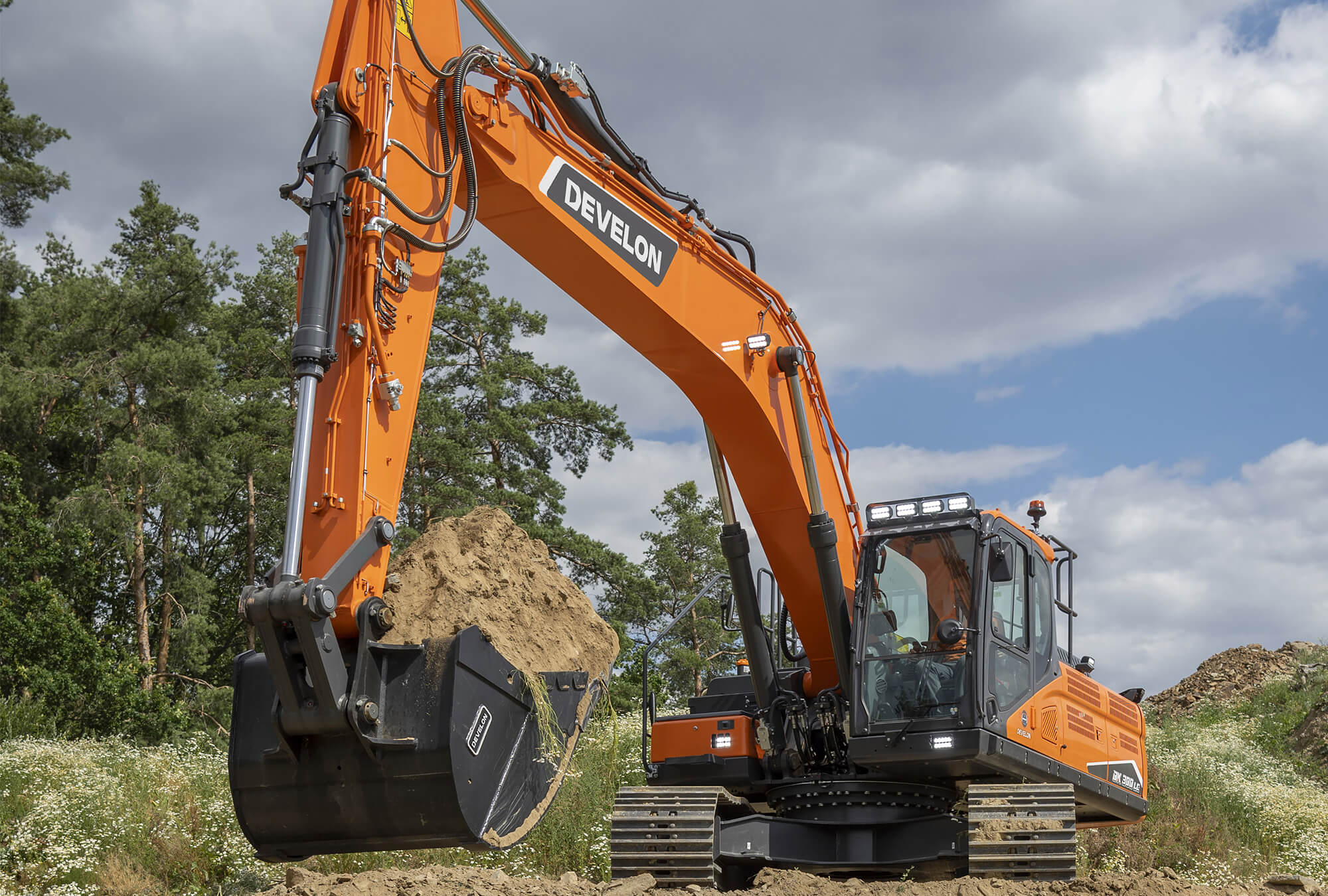

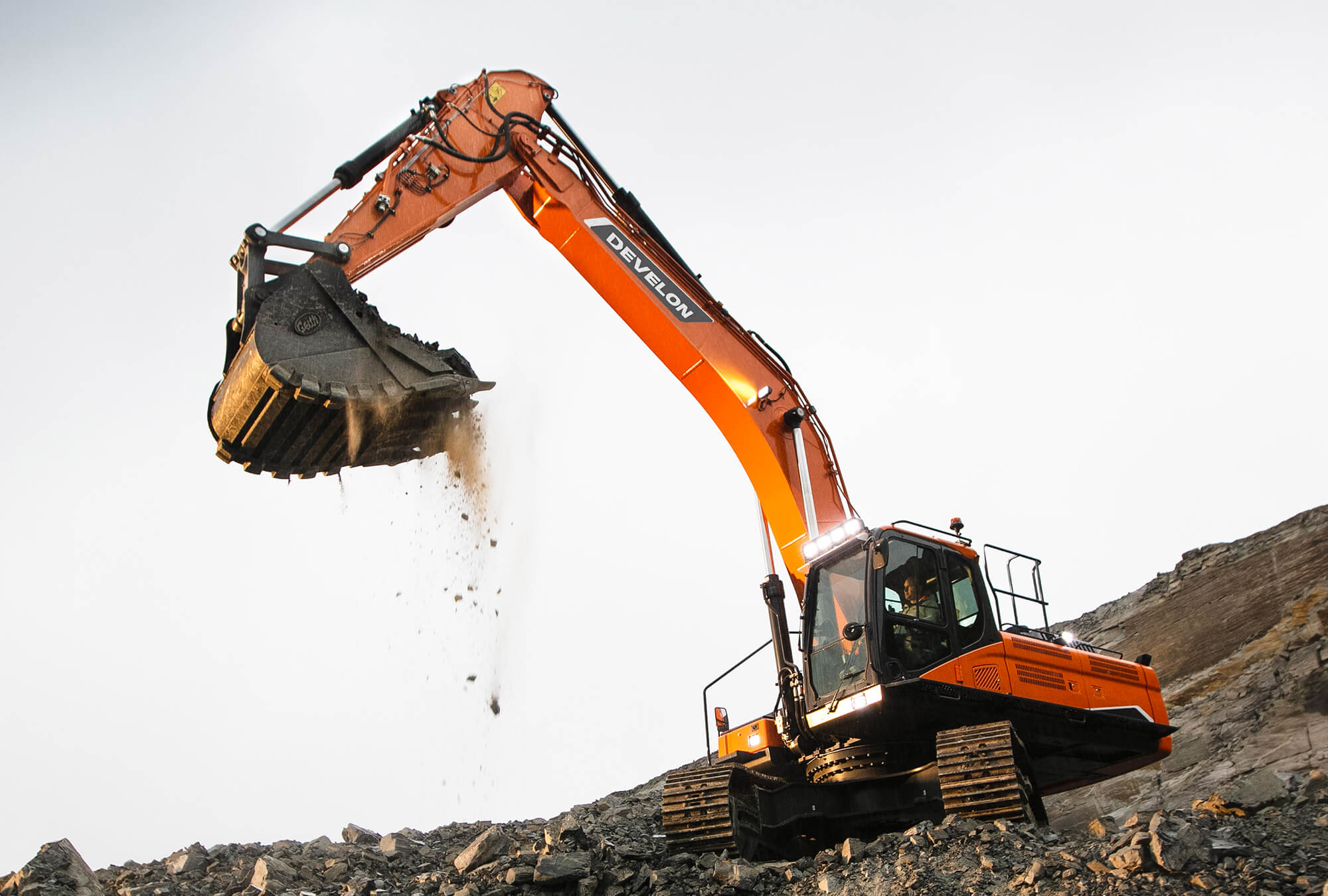

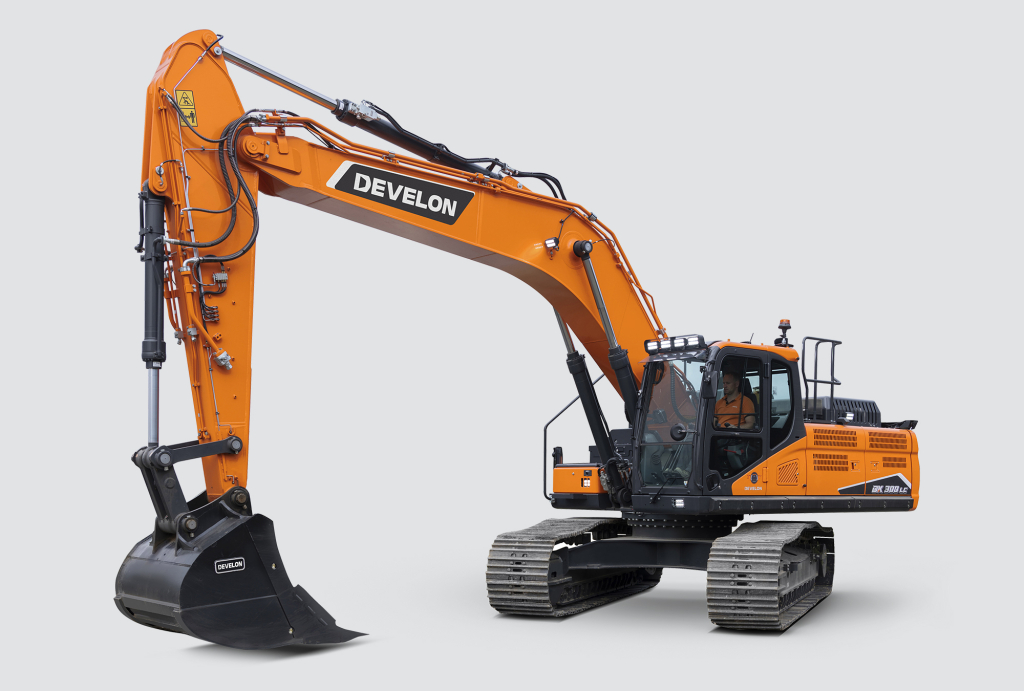

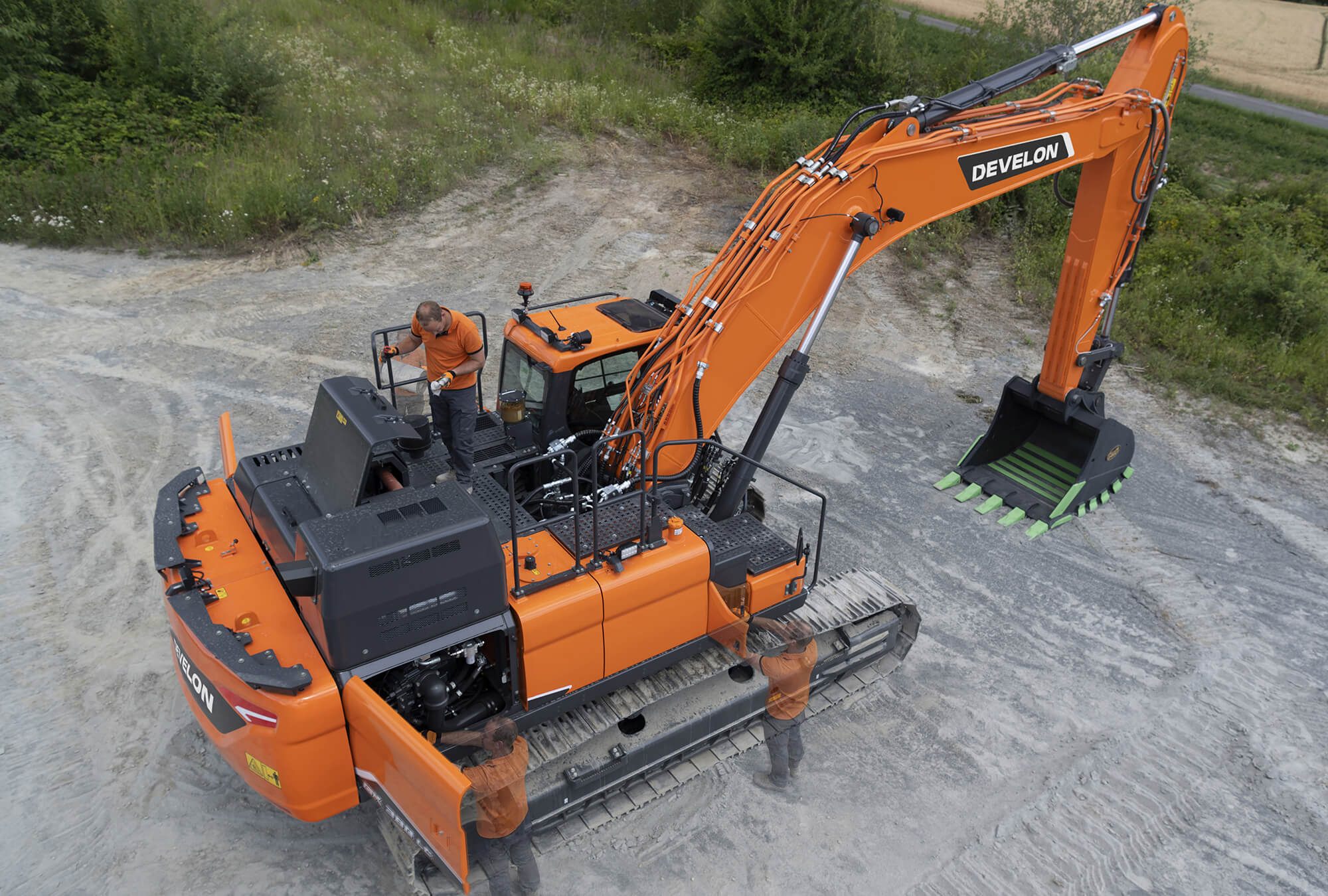

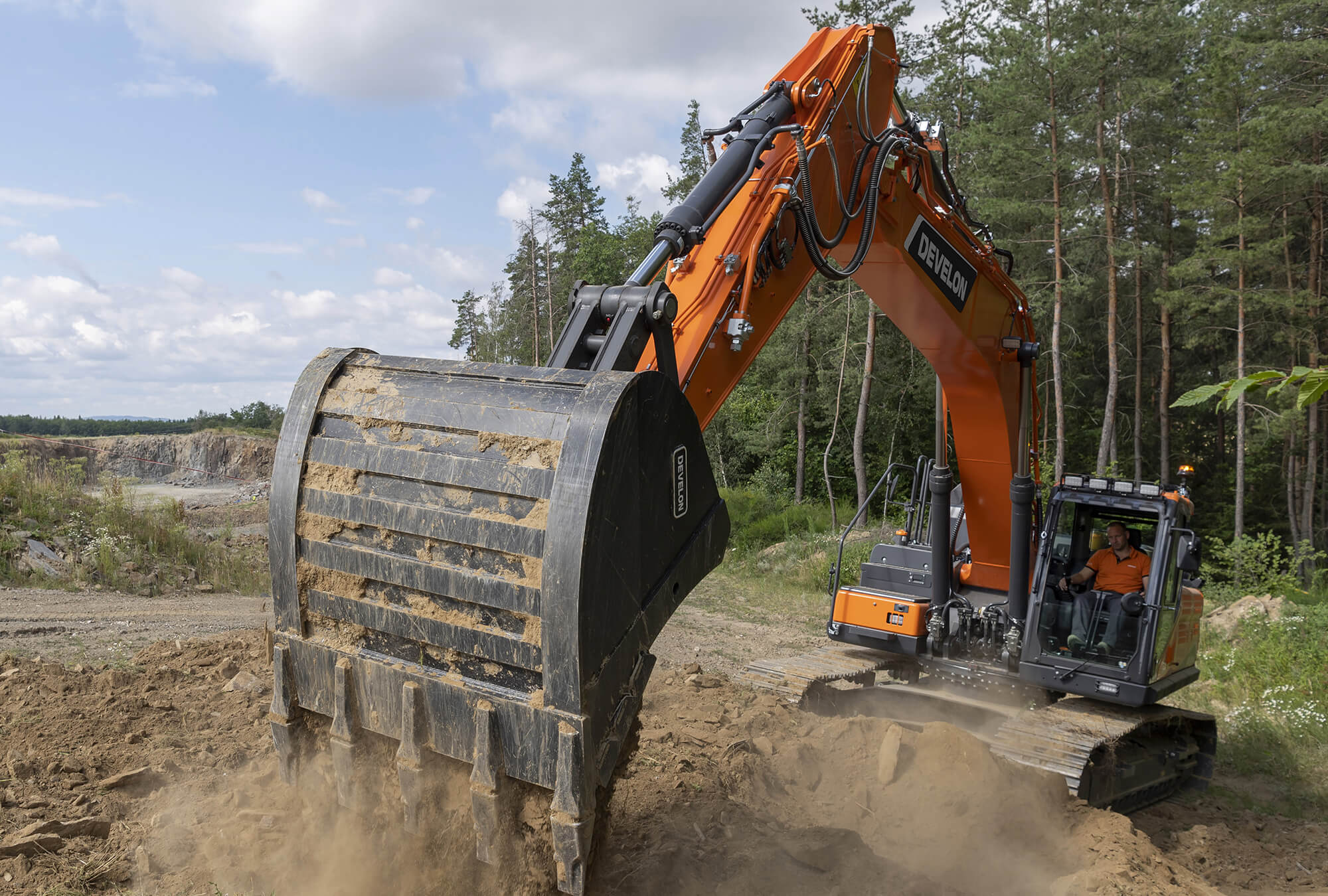

DX300LC-7K

The DX300LC-7K offers an unmatched combination of high performance, operating features, fuel efficiency, reliability and durability in the 30 tonne excavator class.



The new DX300LC-7K, build on the very successful design of the previous Stage IV machines. The new LC-7 excavators introduce major enhancements in operator comfort, machine controllability, productivity, uptime and return on investment, with a strong focus on low fuel consumption, increased power, robustness and versatility.
DX300LC-7K Machine Specs
Operating weight 30.300 kg
Engine DL08V
Engine power 202 kW (271 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow 2 x 248 l/m
Number of cylinders 6
Travel speed 3.0 / 5.5 km/h
Maximum traction 35 t
Buckets 0.80 – 1.75 m³
Tail swing radius 3230 mm
Bucket digging force 20 t
Arm digging force 12.4 t
Max. digging reach 11240 mm
Max. digging depth 7950 mm
Max. digging height 10405 mm
DX300LC-7K SLR Machine Specs
Operating weight 30.300 kg
Engine DL08V
Engine power 202 kW (271 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow 2 x 248 l/m
Number of cylinders 6
Travel speed 3.0 / 5.5 km/h
Maximum traction 35 t
Buckets 0.64 m³
Tail swing radius 3230 mm
Max. digging reach 17510 mm
Max. digging depth 13780 mm
Max. digging height 14195 mm
New Brand, Same Values: A Story From Portugal
Machine Specs
Operating weight31.500 kg
EngineDL08V
Engine power202 kW (271 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow2 x 248 l/m
Number of cylinders6
Travel speed3.0 / 5.5 km/h
Maximum traction35 t
Buckets0.80 – 1.75 m³
Tail swing radius3230 mm
Bucket digging force20 t
Arm digging force12.4 t
Max. digging reach11240 mm
Max. digging depth7950 mm
Max. digging height10405 mm
Options & Attachments

Quick Coupler (Standard configuration)

Part namePart #Pin Diameter mmMin - Max Centers x - y )mmBase Width  mmWeight  kg (lbs)
24 - 35t Quick CouplerQC90 (H) (M)90380 - 570320930 (422)
24 - 35t Quick CouplerQC90 (H) (M)90380 - 570320930 (422)
