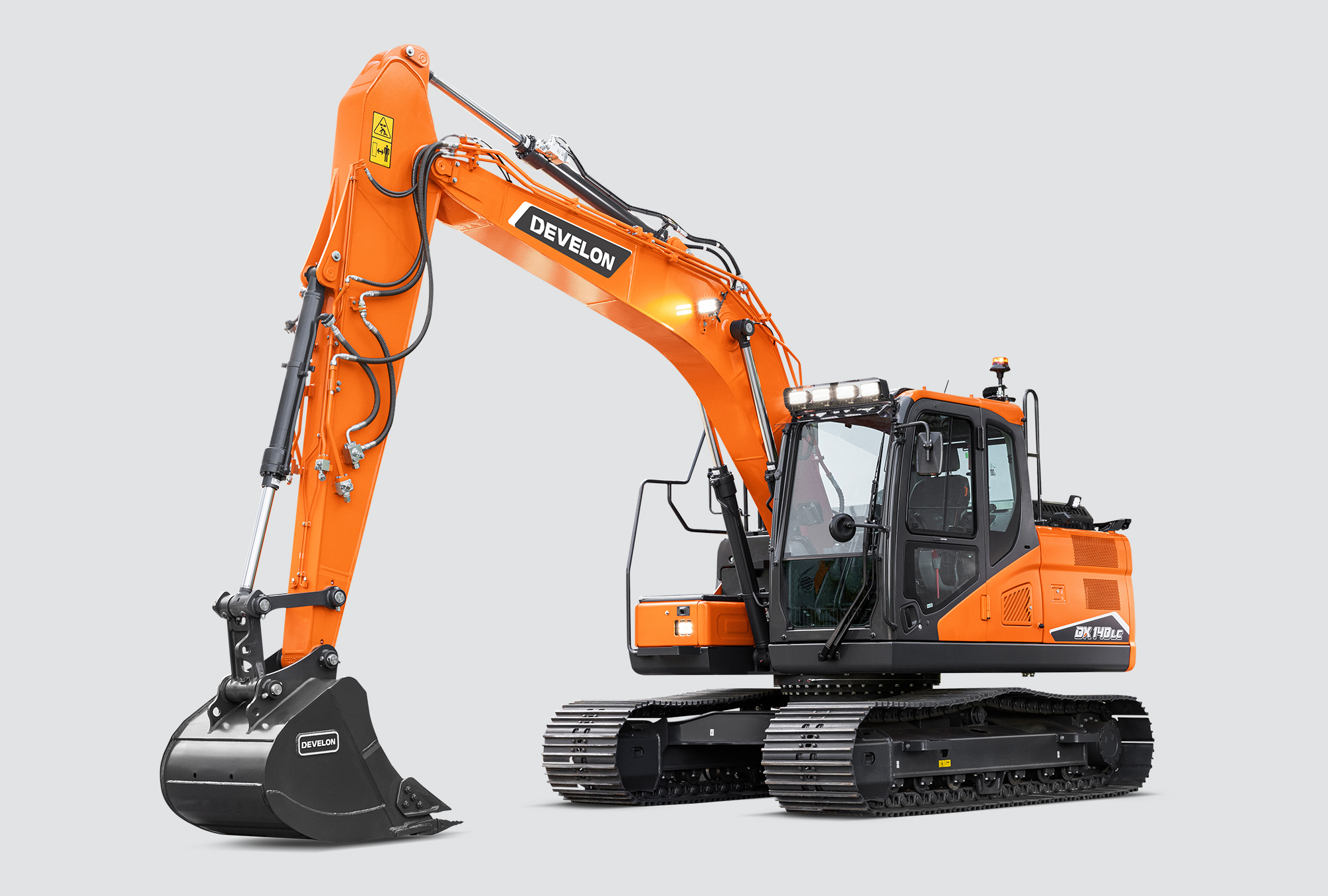

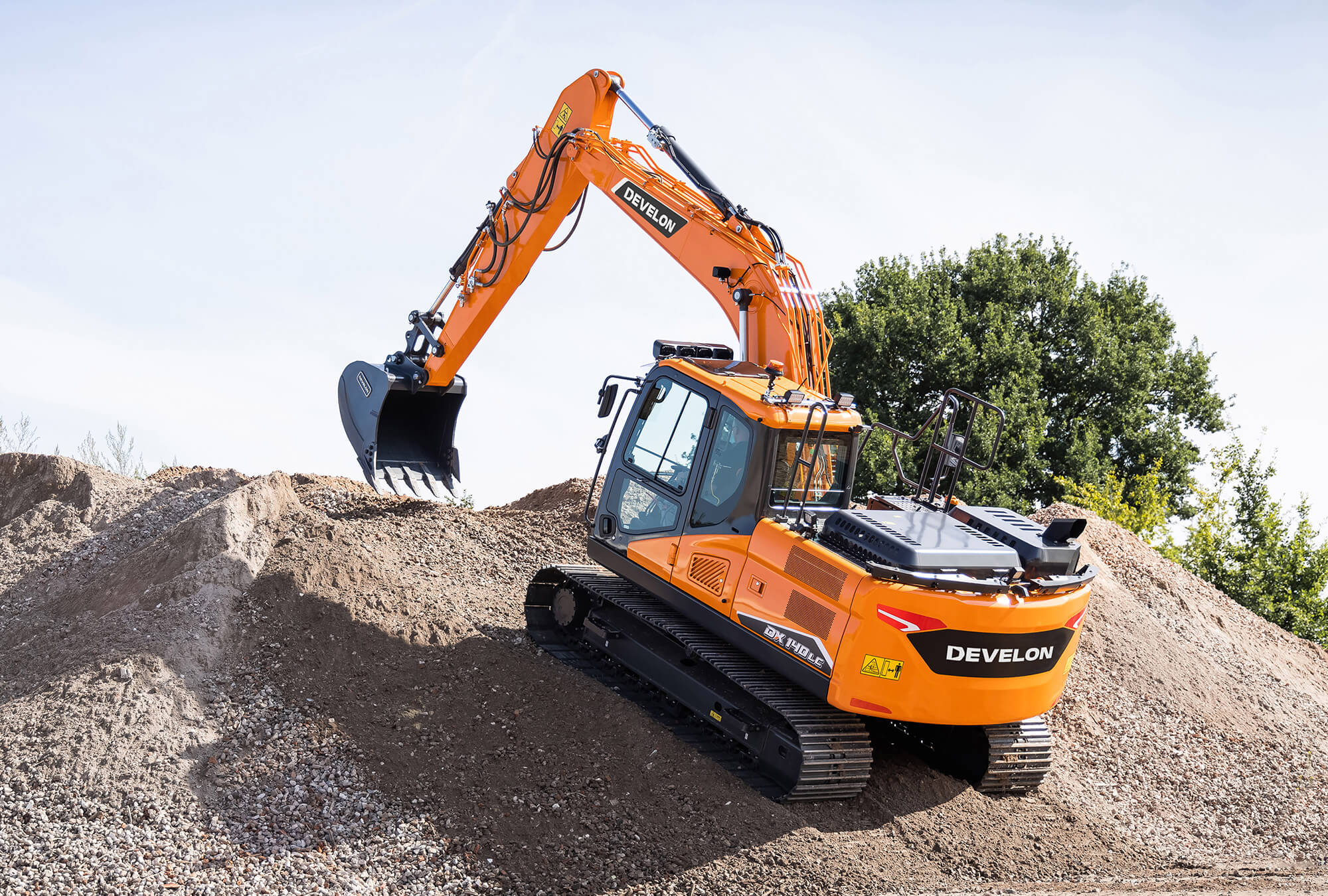

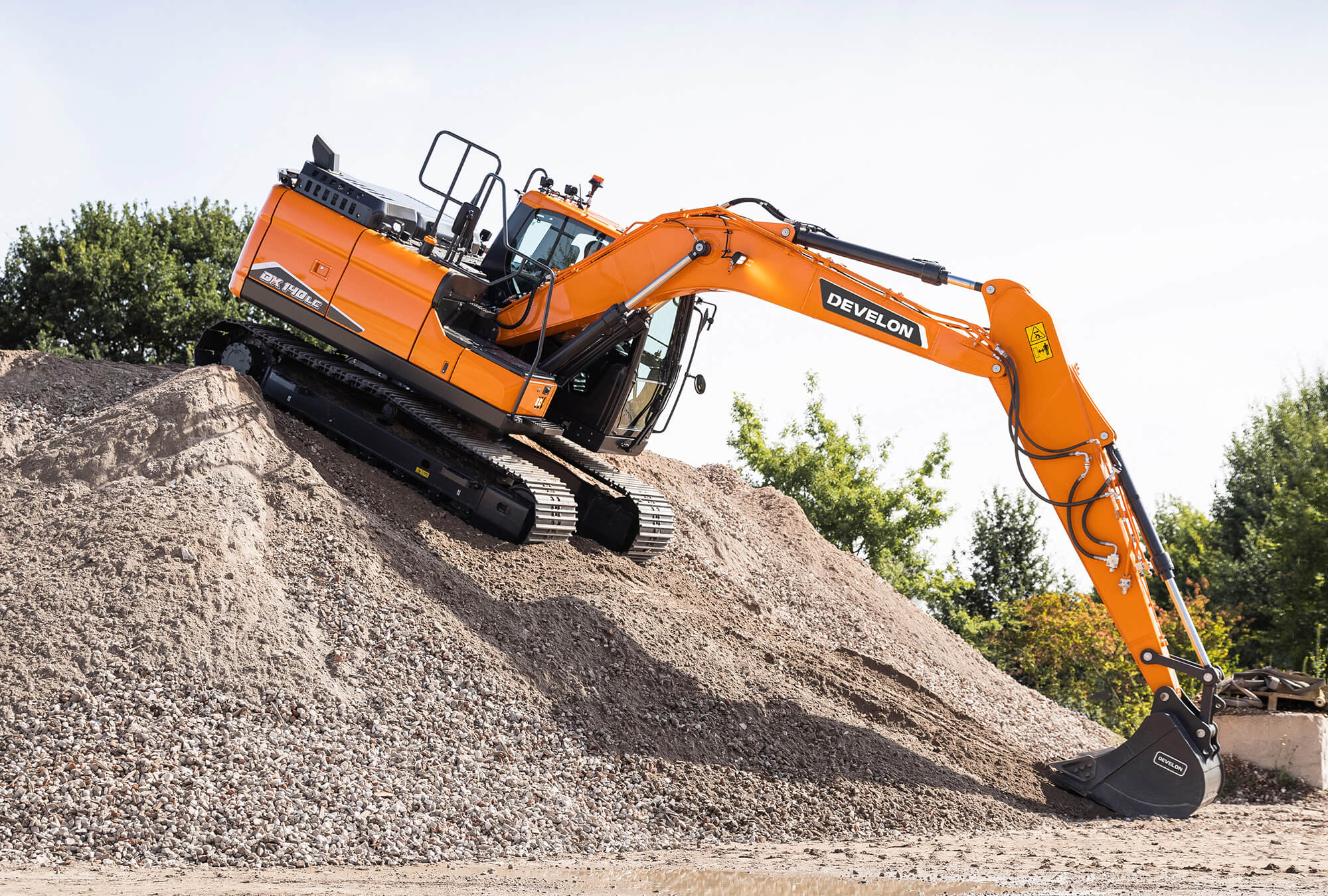

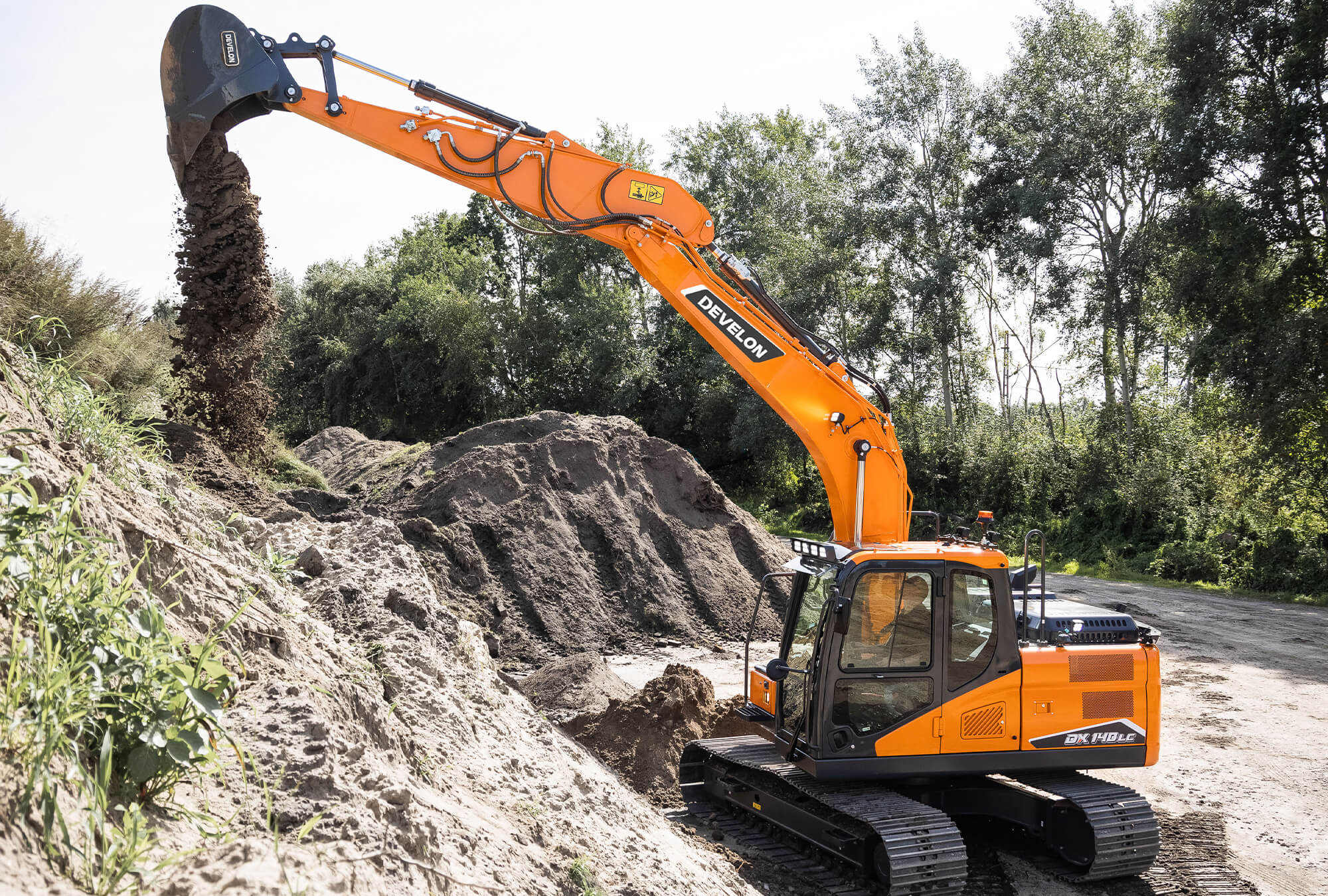

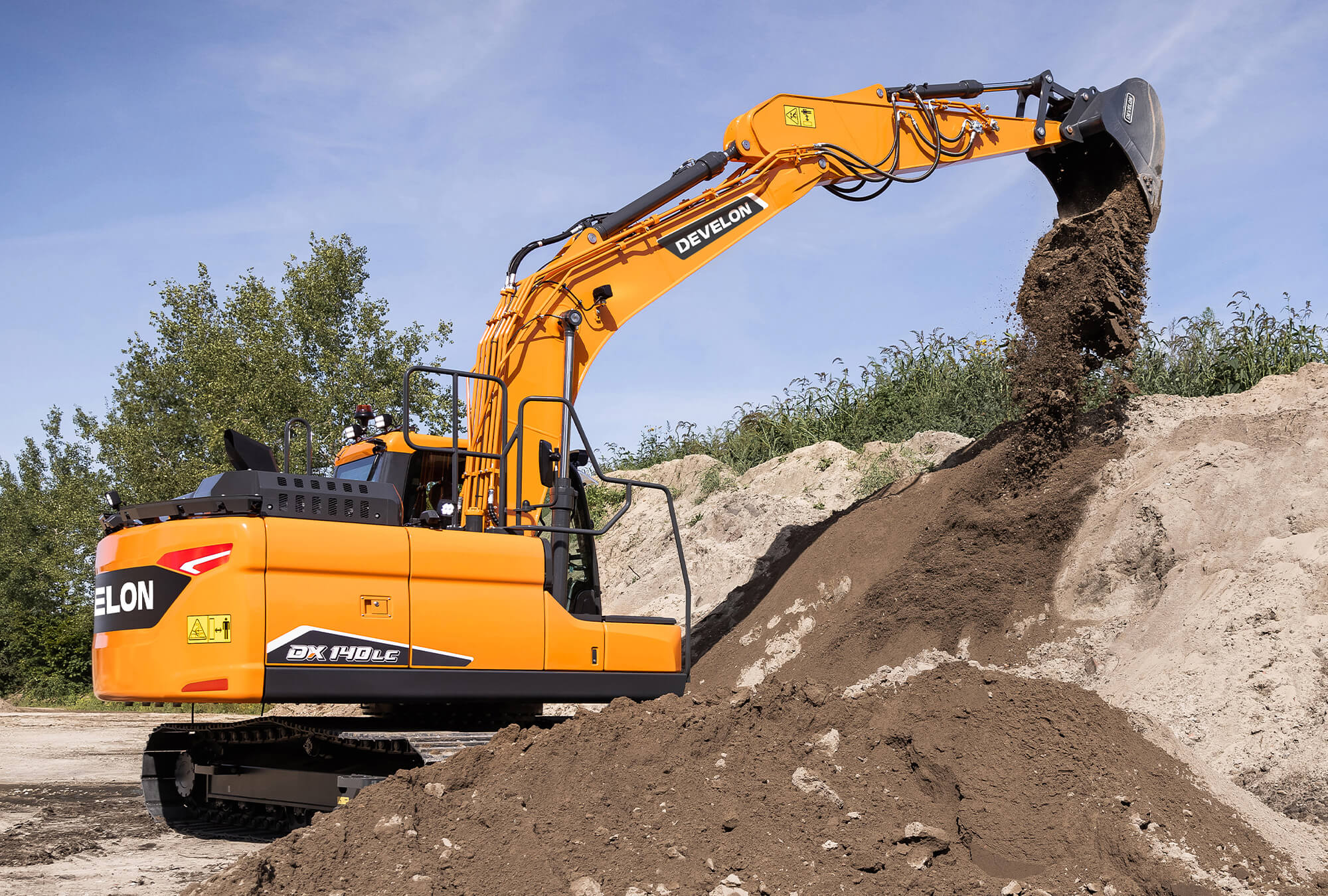

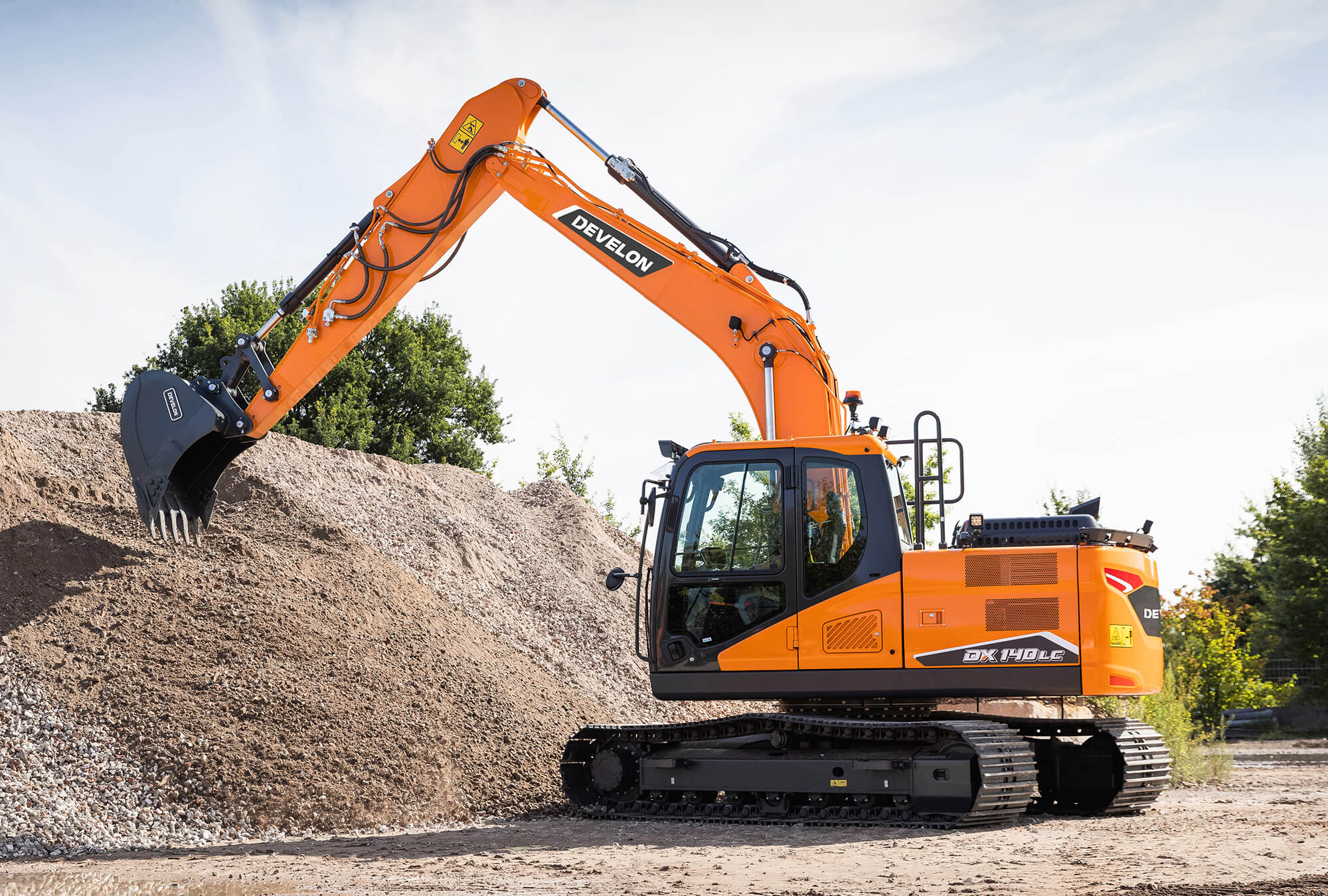

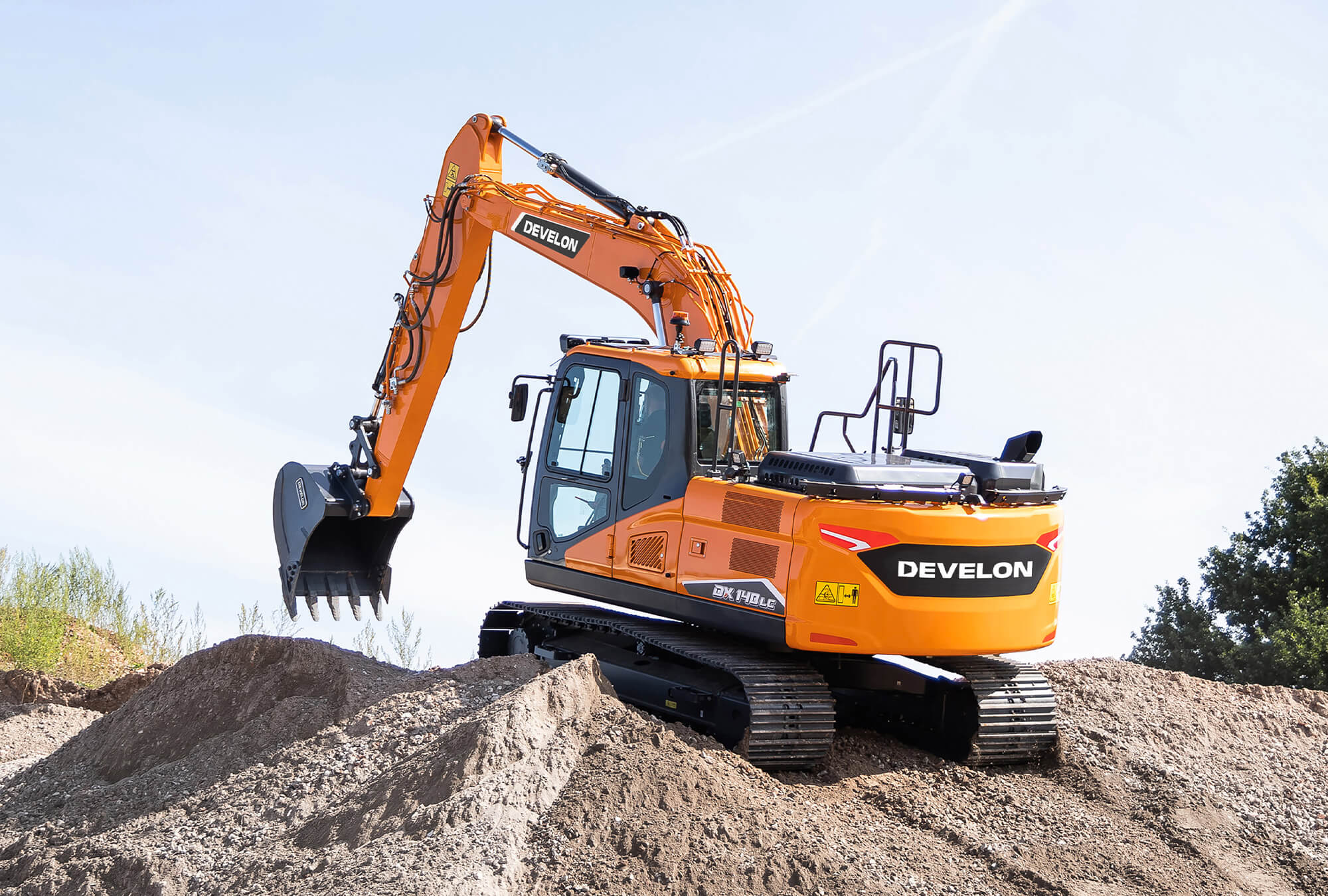

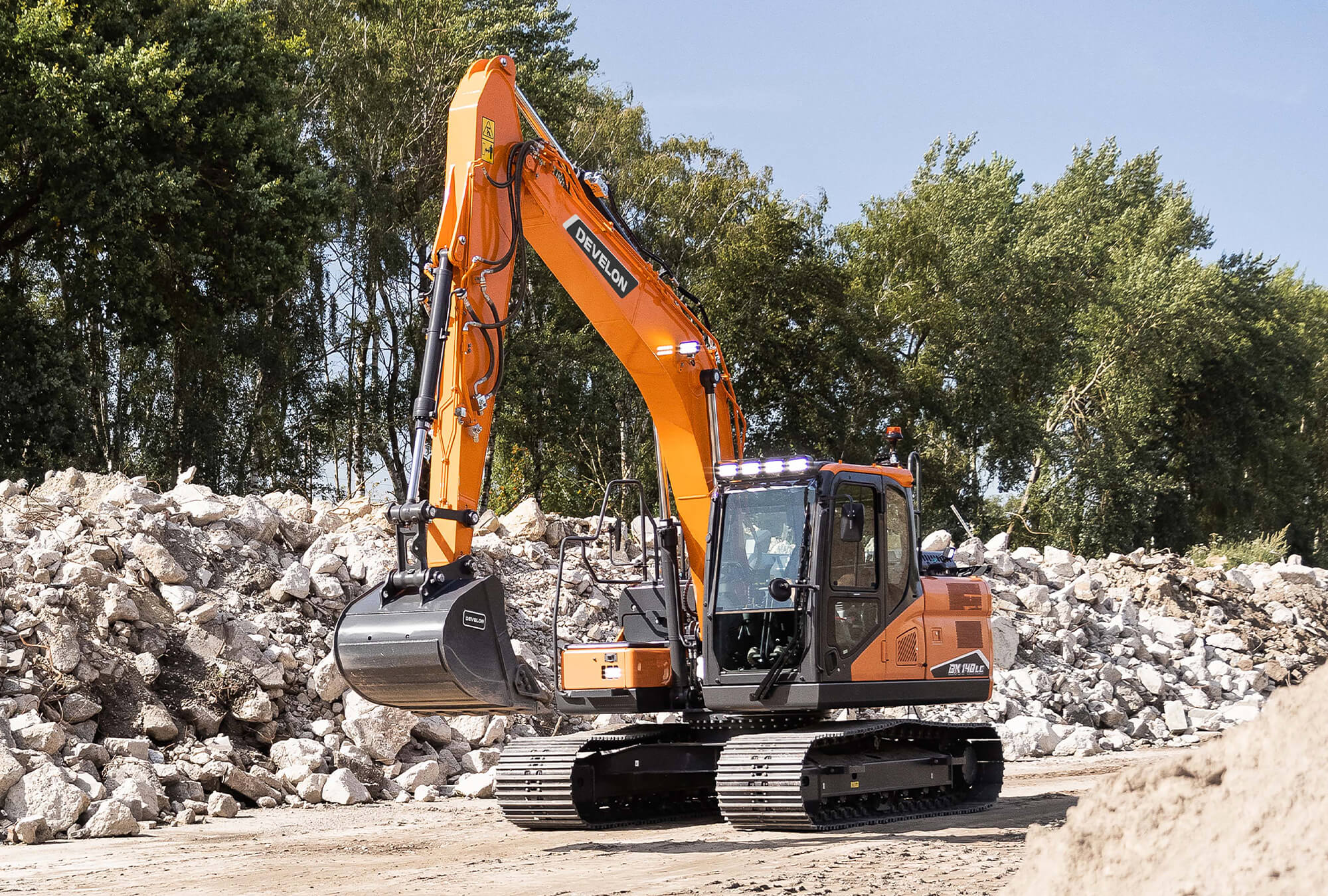

DX140LC-7

The new DX140LC-7 14.6 tonne and DX140LCR-7 15.9 tonne crawler models. Both excavators are now powered by the Develon D34 4-cylinder Stage V diesel engine providing 87.2 kW (117 HP) of power at 2000 RPM

The D34 engine offers a new solution to exceed Stage V regulations without exhaust gas recirculation (EGR), that boosts the quantity of air available during combustion, increasing the temperature of the process and greatly reducing the amount of particulates produced. The enhanced fuel efficiency of the D34 engine in combination with a new hydraulic main valve and the new generation SPC3 Smart Power Controls, provides increased fuel saving compared to the previous generation machines.

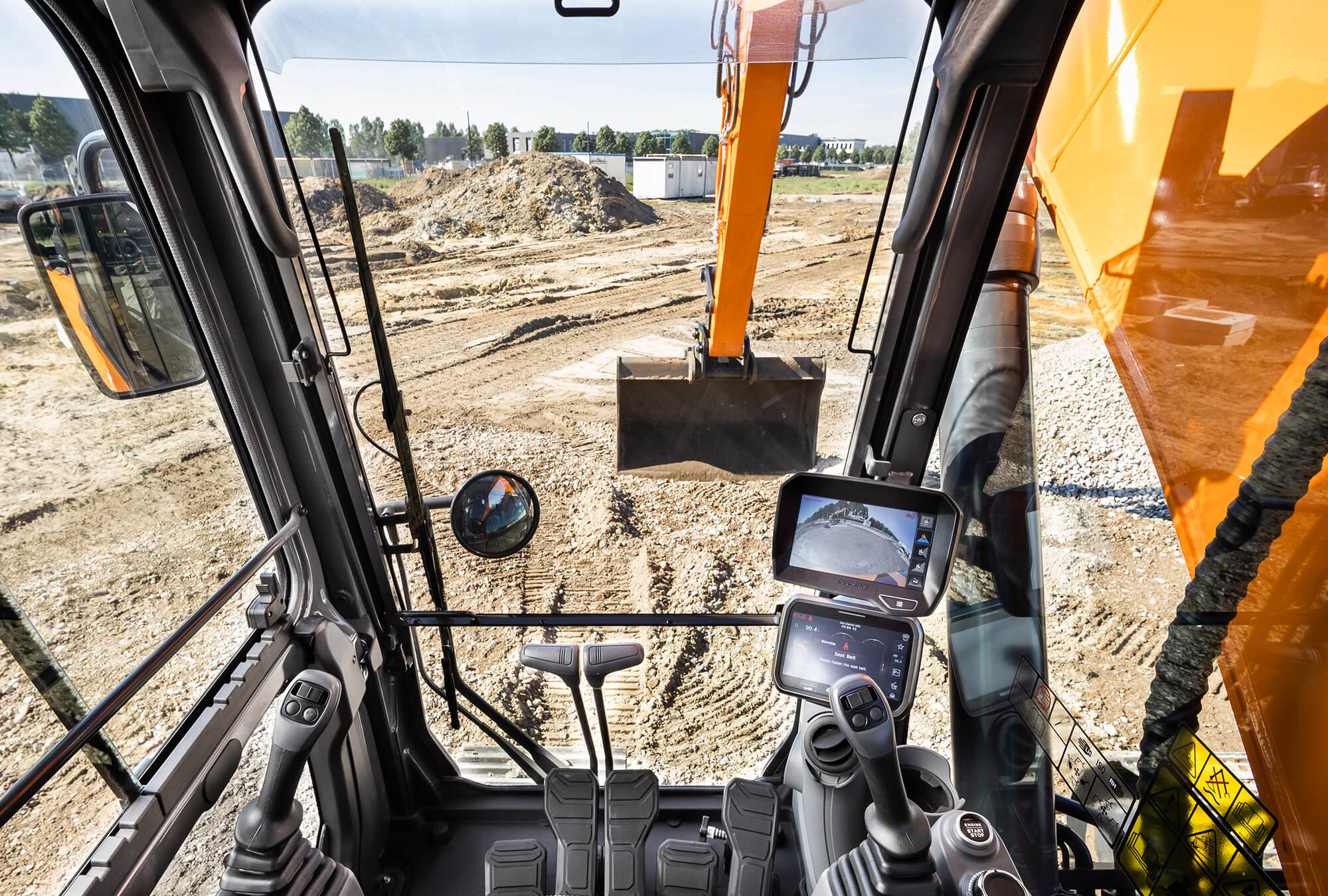

Both new models combine enhanced comfort and controllability together with a range of features to boost fuel efficiency, uptime and return on investment, with a focus on increased power, productivity, robustness and agility. In addition, the DX140LCR-7 is a reduced tail swing model, allowing operators greater flexibility where space is a premium without sacrificing performance. The DX140LCR-7 also has a new counterweight design that offers enhanced service accessibility.

New Brand, Same Values: A Story From Portugal
Machine Specs
Maximum power115 HP
Operating weight14.400 kg
Buckets0.51 m³
Emission standardStage V
EngineDevelon G2 D34
Engine power86 kW / 115 HP @ 1800 RPM
Main pumps max flow2 × 114 l/min
Maximum swing speed10.13 rpm
Maximum swing torque4888 kgf·m
Travel speed (low - high)2.9 - 4.7 km/h
Maximum traction15.200 kg
Maximum gradeability35° / 70%
