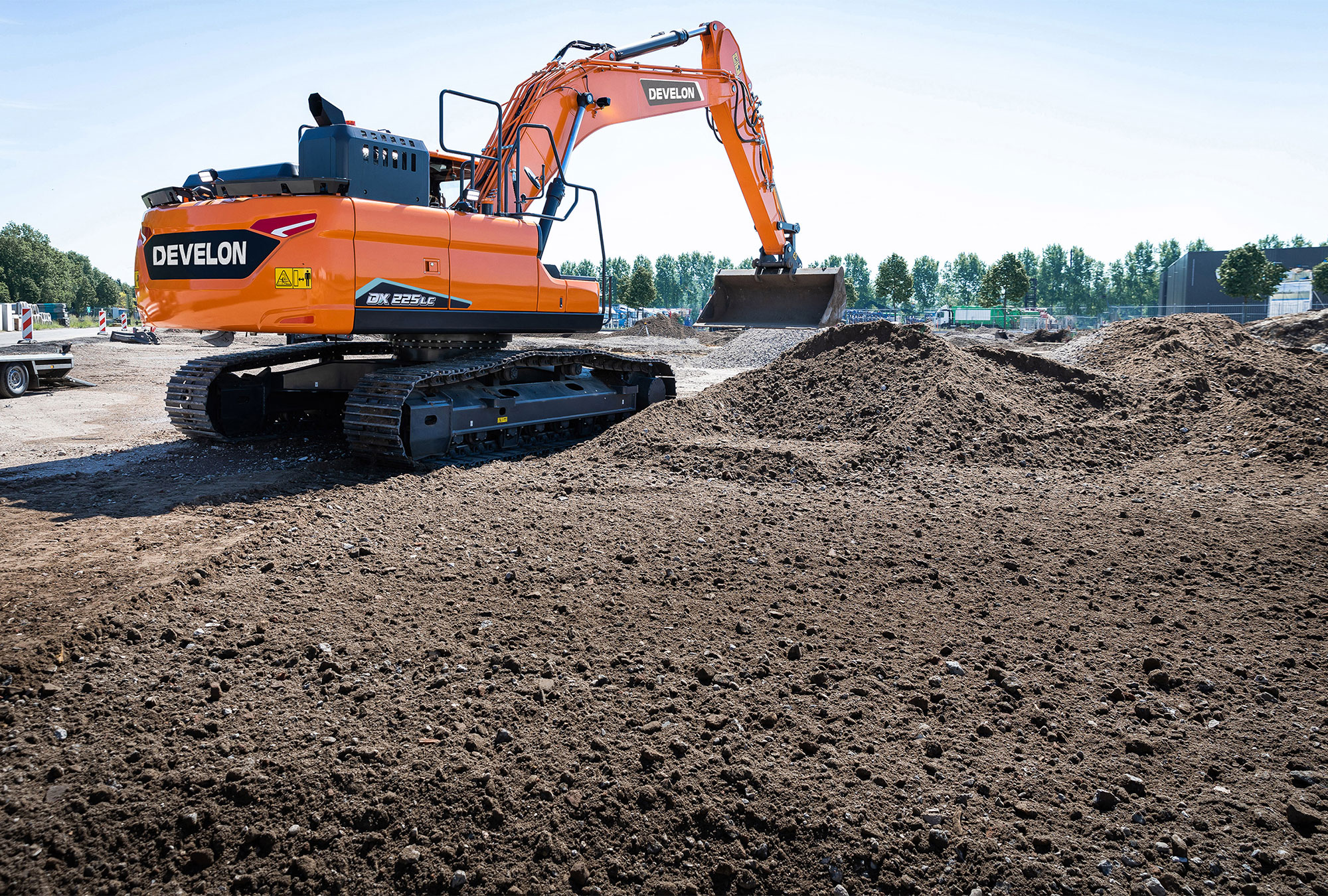

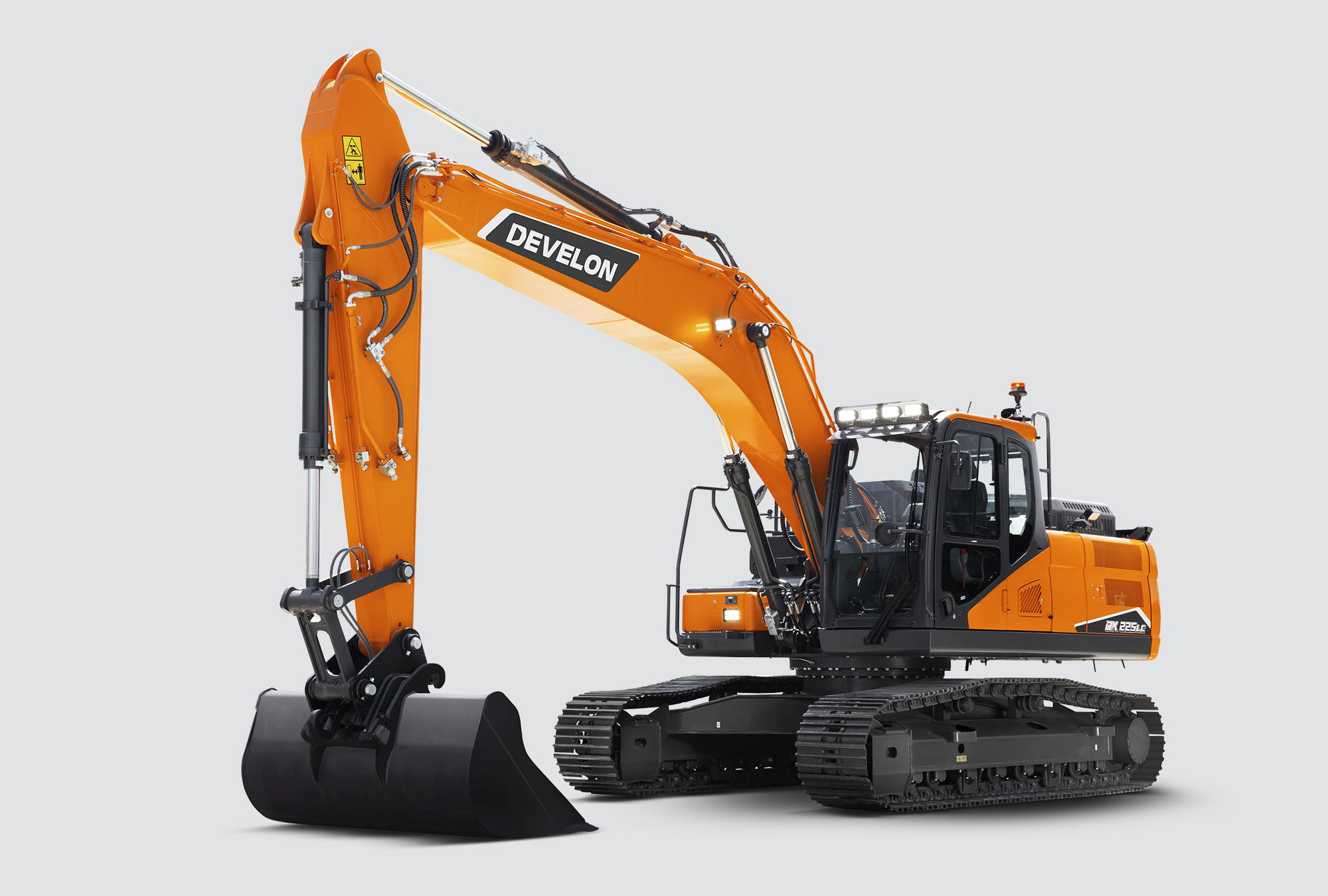

Lift your business to the next level with the DX225LC-7 Develon excavator. Exceptionally powerful, yet environmentally friendly, the DX225LC-7 excavator features extraordinary fuel efficiency.
The new generation medium-sized Stage V compliant excavators - the new DX225LC-7 23 tonne crawler model. The DX225LC-7 is also the first Develon excavator of this size to feature Develon innovative D-ECOPOWER virtual bleed off (VBO) technology, providing operators with higher productivity and around 7% lower fuel consumption per hour than the previous Stage IV model, as well as smoother controls.
|Maximum power||174 hp|
|Operating weight||23.300 kg|
|Bucket capacity||1.28 m3|
|Emission standard||Stage V|
|Number of cylinders||6|
|Engine power||129 kW / 174 hp @ 1800 rpm|
|Bucket capacity||0.81 – 1.05 m³|
|Arm lenght||2400 – 3500 mm|
|Boom lenght||5700 – 5850 mm|
|BUCKET (Normal/Press. Up)||15.6 - 16.5 t|
|ARM (Normal/Press. Up)||9.7 - 13.4 t|
|Main pumps max flow||2 × 210.6 l/min|
