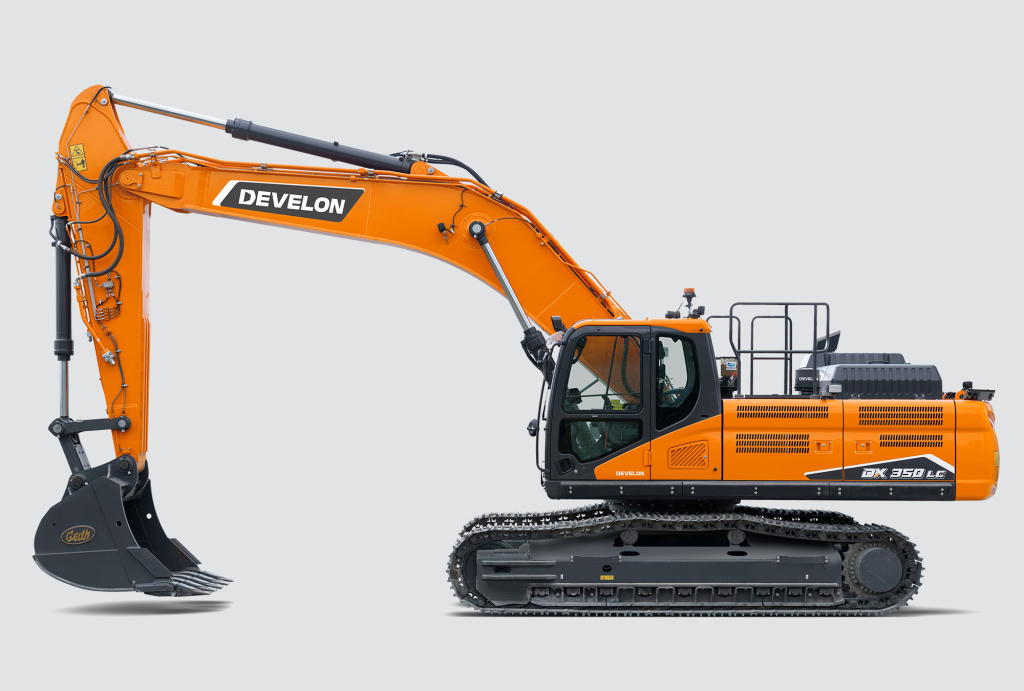

DX350LC-7K

The DX350LC-7K model features a new generation engine to meet the latest Stage V engine emission regulations.

It is a new solution without exhaust gas recirculation (EGR) to increase the quantity of air during combustion - the temperature during combustion is therefore higher and the amount of emission particles are reduced as much as possible. Thanks to the new technology, the diesel particle filter (DPF) requires really low maintenance.
New Brand, Same Values: A Story From Portugal
Machine Specs
Operating weight36.100 kg
EngineDL08V
Engine power213 kW (290 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow2 x 350 l/m
Number of cylinders6
Travel speed3.4 / 5.6 km/h
Maximum traction37.9 t
Buckets1.25 – 2.32 m³
Tail swing radius3530 mm
Bucket digging force25.9 t
Arm digging force23.3 t
Max. digging reach12165 mm
Max. digging depth8125 mm
Max. digging height13175 mm
Options & Attachments

Quick Coupler

Part namePart #Pin Diameter mmMin - Max Centers x - y )mmBase Width  mmWeight  kg (lbs)
24 - 35t Quick CouplerQC90 (H) (M)90380 - 570320930 (422)
24 - 35t Quick CouplerQC90 (H) (M)90380 - 570320930 (422)
