DX85R-7

Boost your productivity

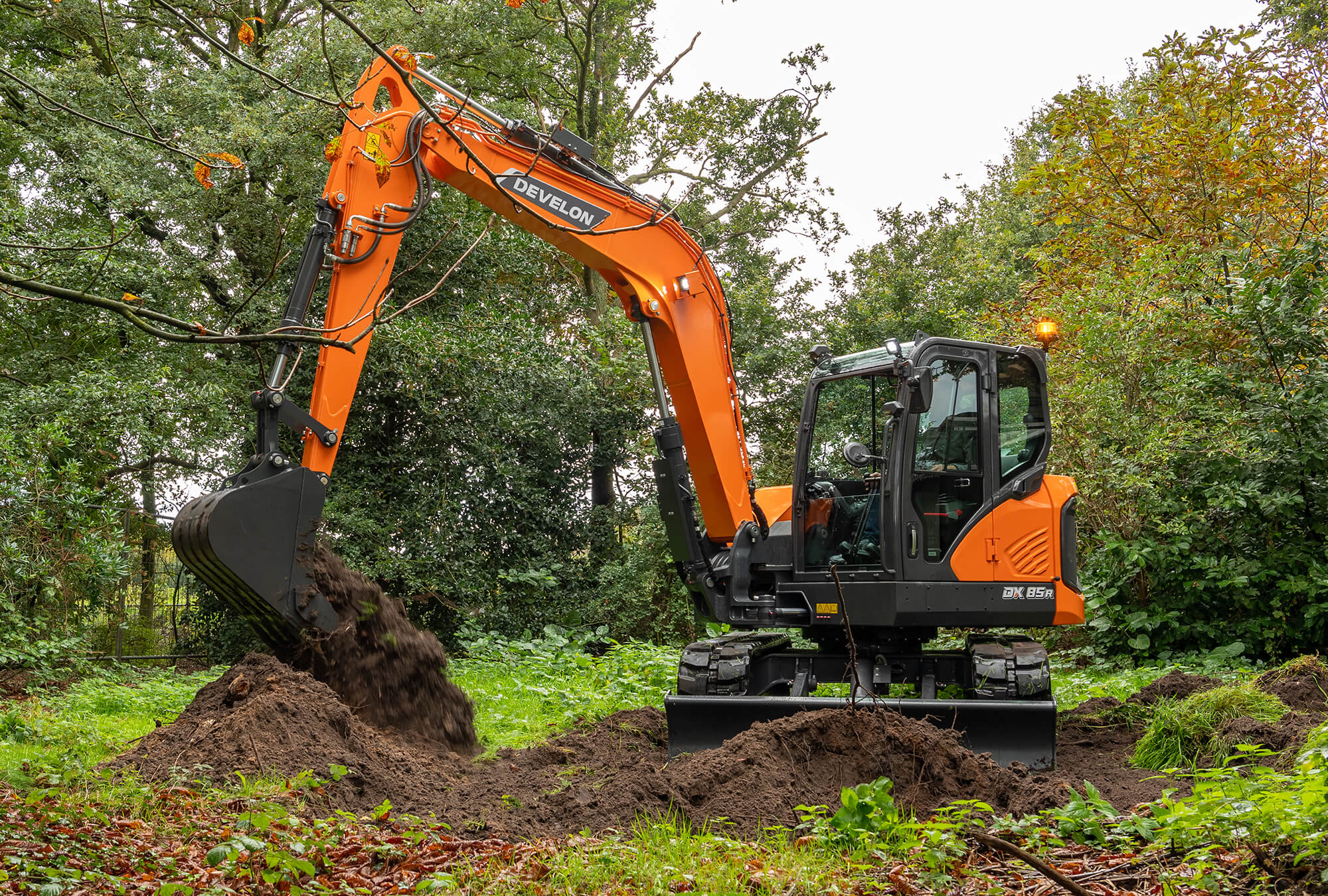

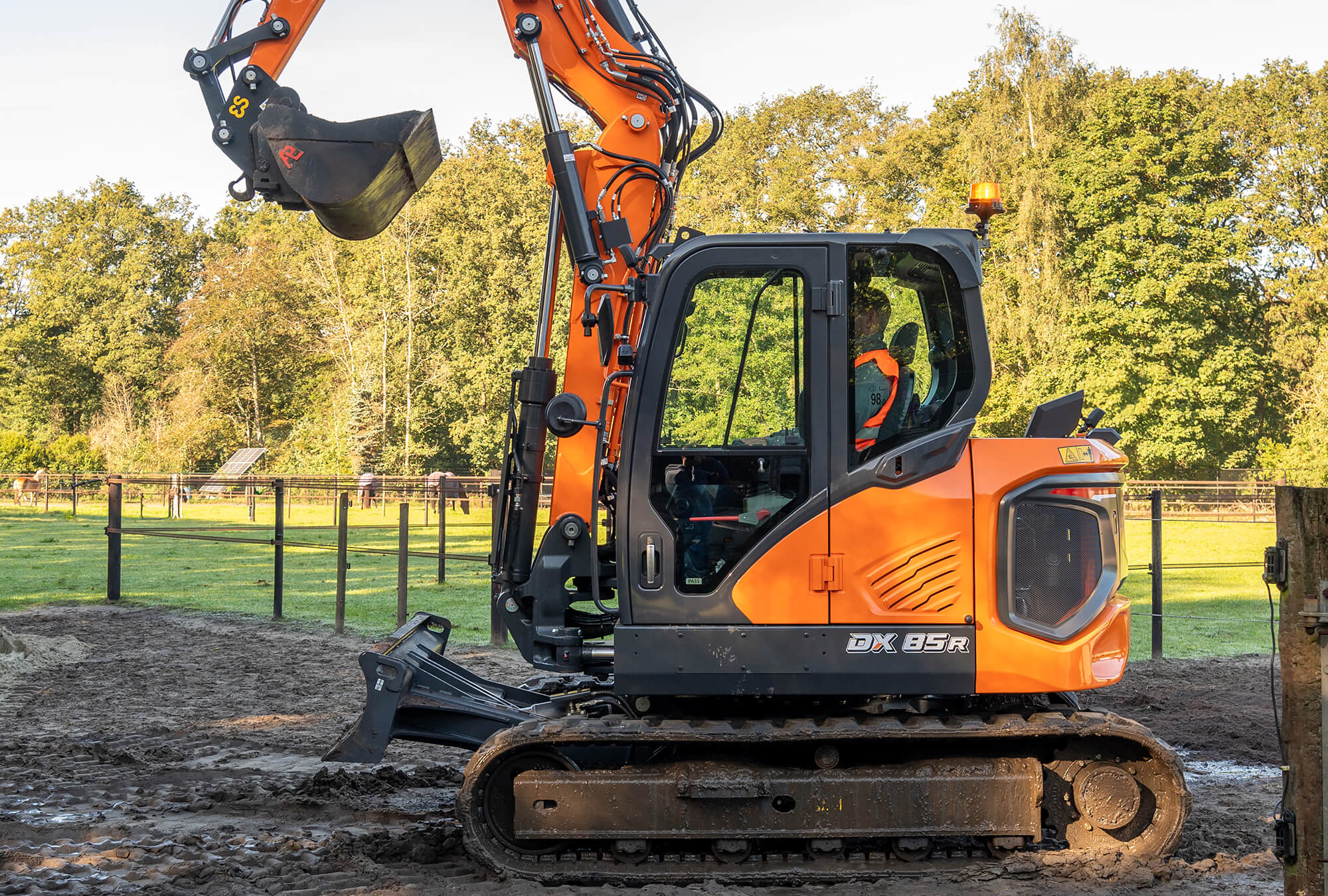

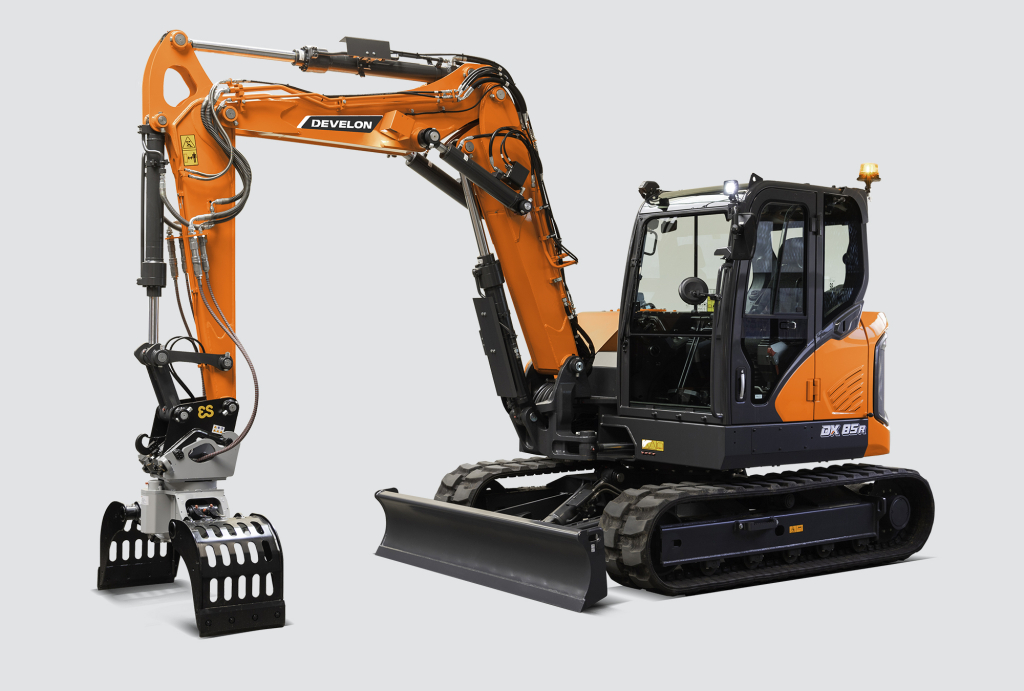

Develon DX85R-7 high performance hydraulic excavator Offers a host of redesigned features and new technologies to ensure smooth operation, superior productivity and stability, top-class operator comfort and improved fuel efficiency. This powerful machine will give your job site a huge boost.

Thanks to new Main Control Valve, the machine can be precisely controlled in single and complex operations with the improved performance by reducing the internal pressure loss and the front hydraulic flow matched to the workload. This contributes to great fuel economy and smooth operation.

Download BrochureFind a Dealer
Machine Specs
EngineDevelon D24
Engine power48.5 kW (65 hp) @ 2100 rpm
Operating weight9528 kg
Bucket capacity0.28 m3
Standard arm1700 mm
Long arm2250 mm
Max. digging reach7015/7530 mm
Max. digging depth (std / long arm)4110/4670 mm
Travel speed2.9/4.8 km/h
Width2250 mm
Max. reach ground level (standard/long arm)6850 / 7380 mm
