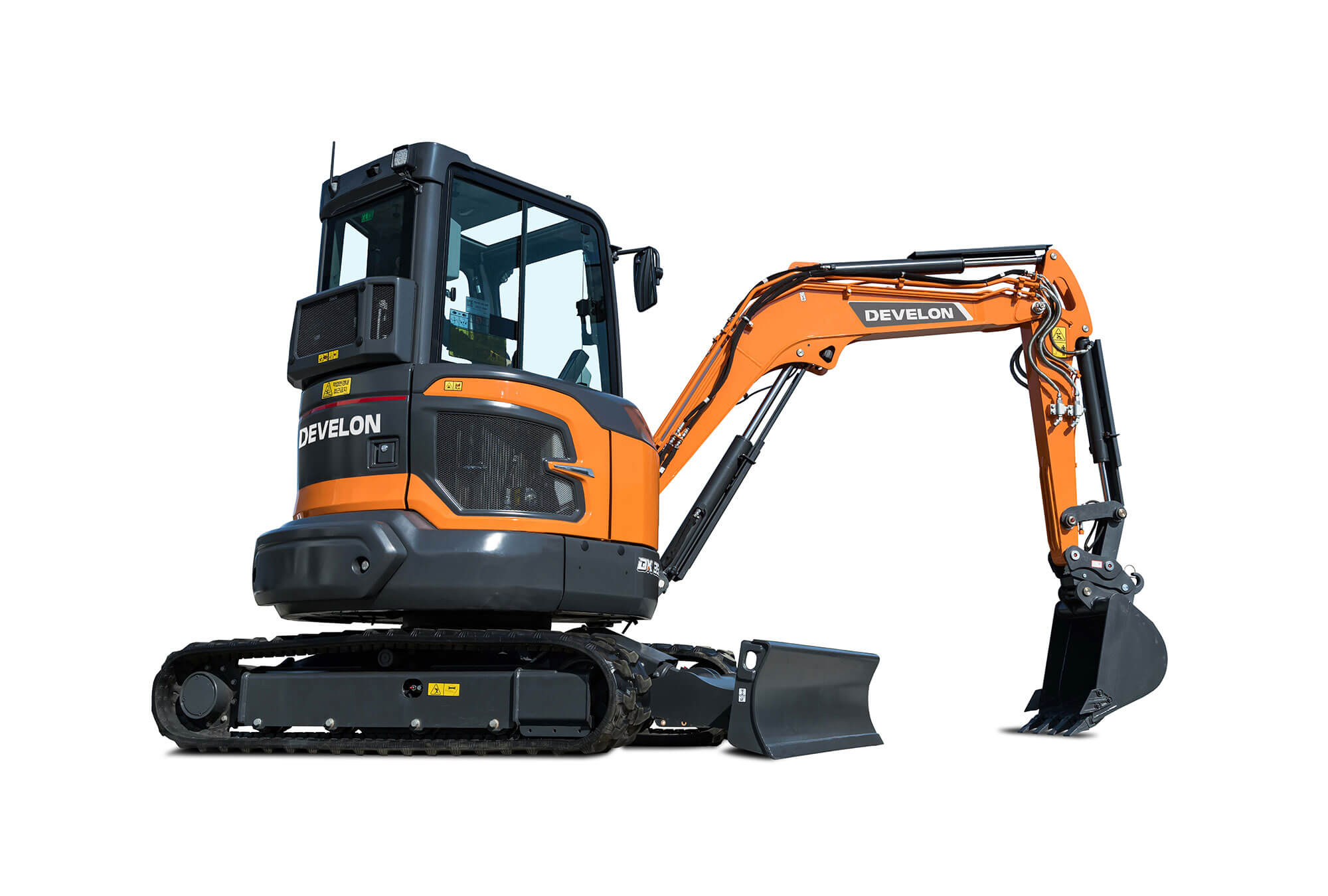

The DX35Z is equipped with optimal systems suitable for various applications from pipe work to landscaping.

The compactness of the machine allows operations within confined spaces as well as operations in restricted areas around buildings. The accurate, smooth and powerful digging performance maximizes the productivity.
Machine Specs
Maximum power24.8 hp
Operating weight3 995 kg
Max. bucket capacity0,11 m³
EngineDevelon D17
Nominal flywheel power18.2 kW / 2.200 RPM
Max. reach ground level (short / long arm)5235 / 5400 mm
Max. dumping height (standard / long arm)3340 / 3521 mm
Max. digging depth (standard / long arm) 3275/ 3445 mm
Digging force - bucket33.43 kN
Travel speed2.6 / 4.7 km/h
Options & Attachments

Quick Coupler

Part namePart #Pin Diameter mmMin - Max Centers x - y )mmBase Width  mmWeight  kg (lbs)
2-4t Quick CouplerQC35-40 (H)35 / 40130 - 22512277 (35)


Part namePart #Width mmCapacity m3Weight kg
Bucket G04-1200G04-120013000,161124
Bucket H04-0300H04-03003000,03950
Bucket H04-0450H04-04504500,06863
Bucket H04-0600H04-06006000,09777
