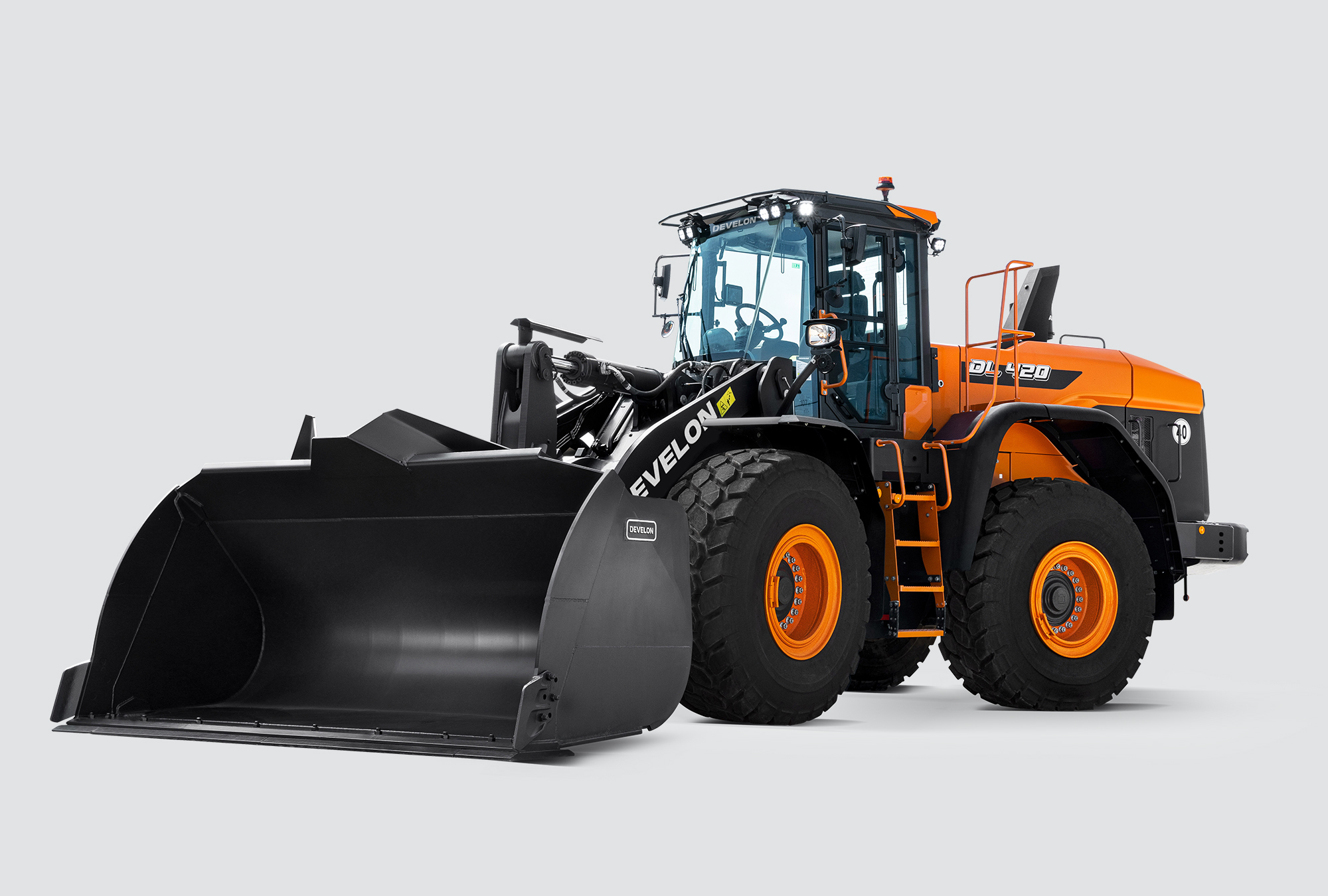

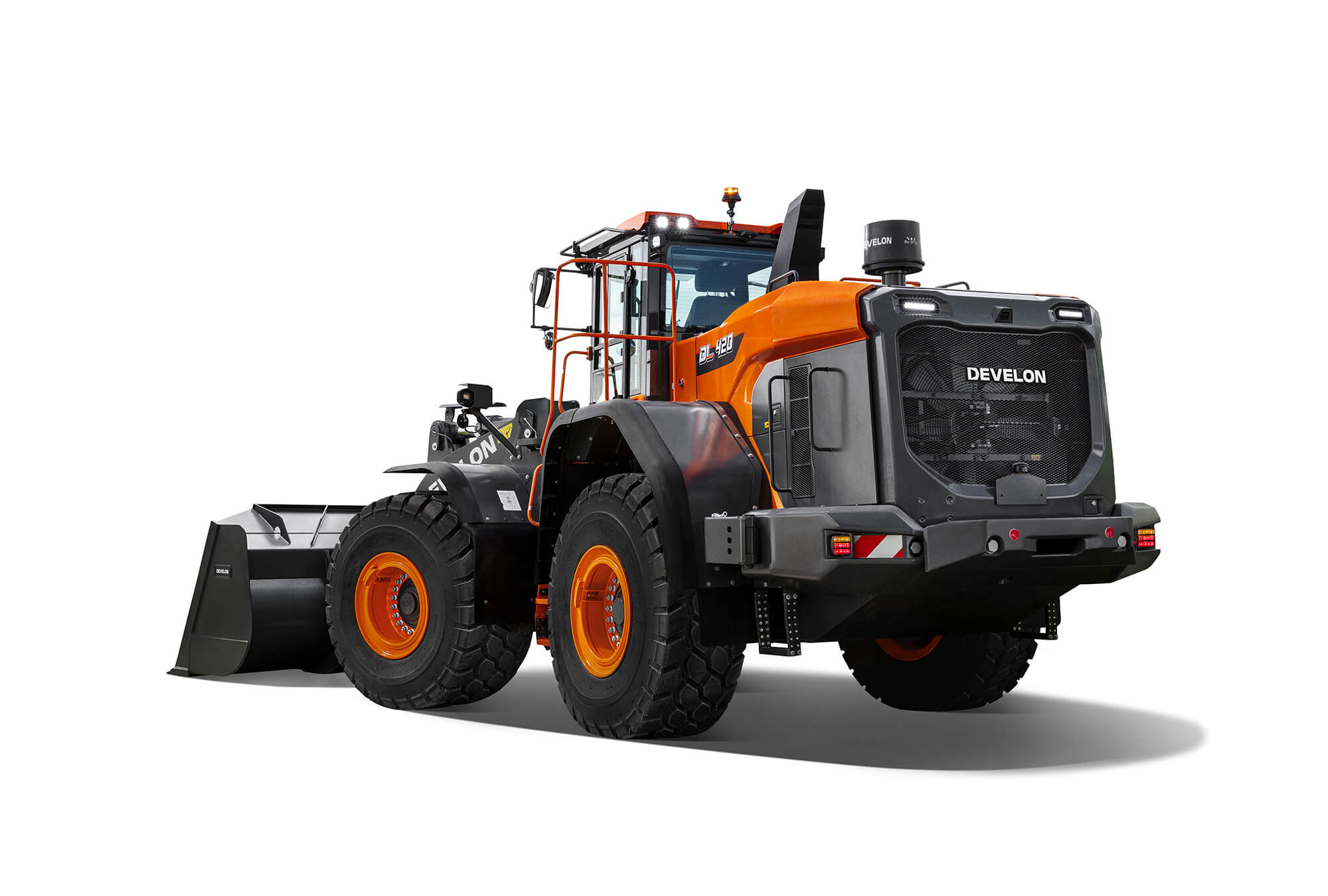

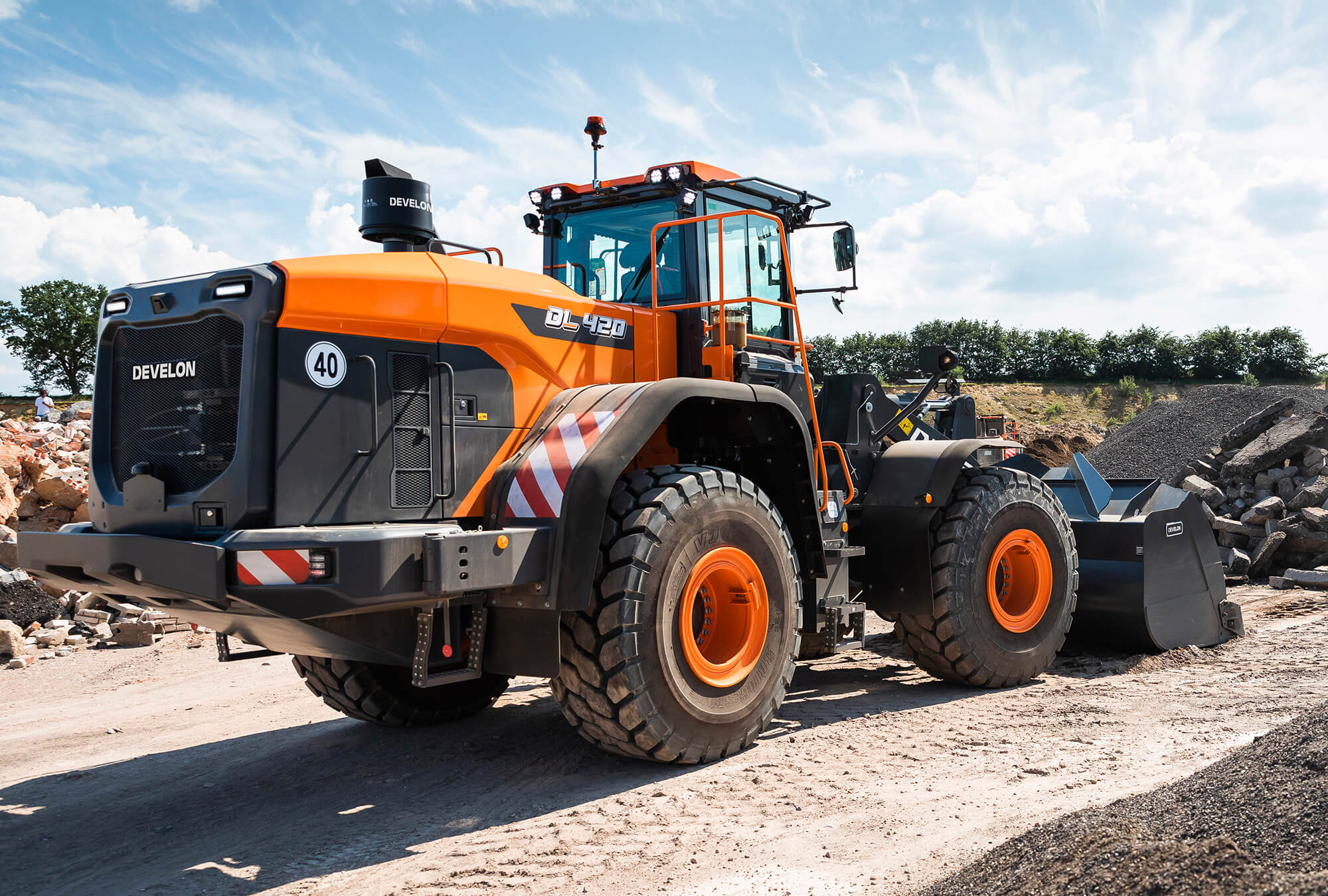

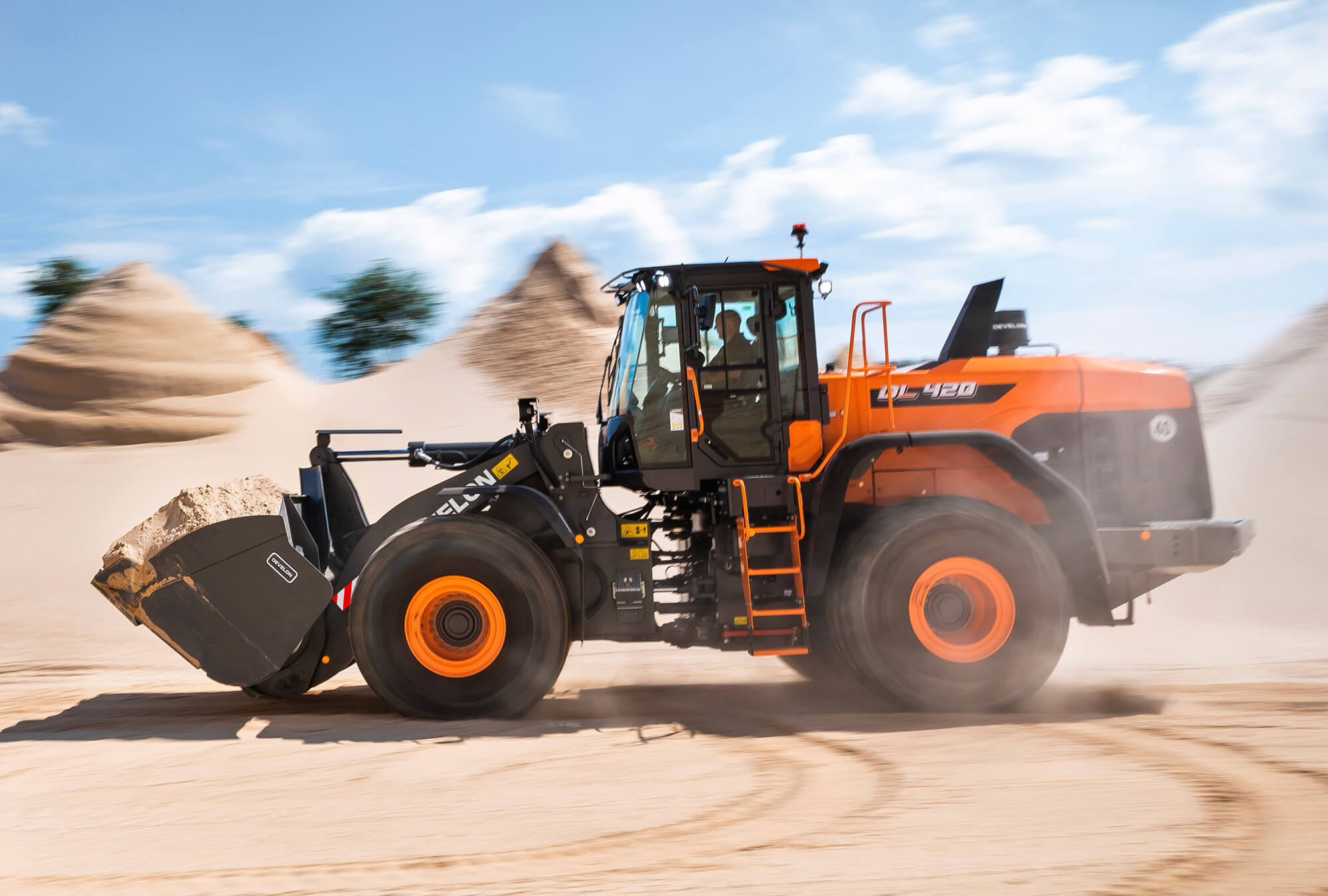

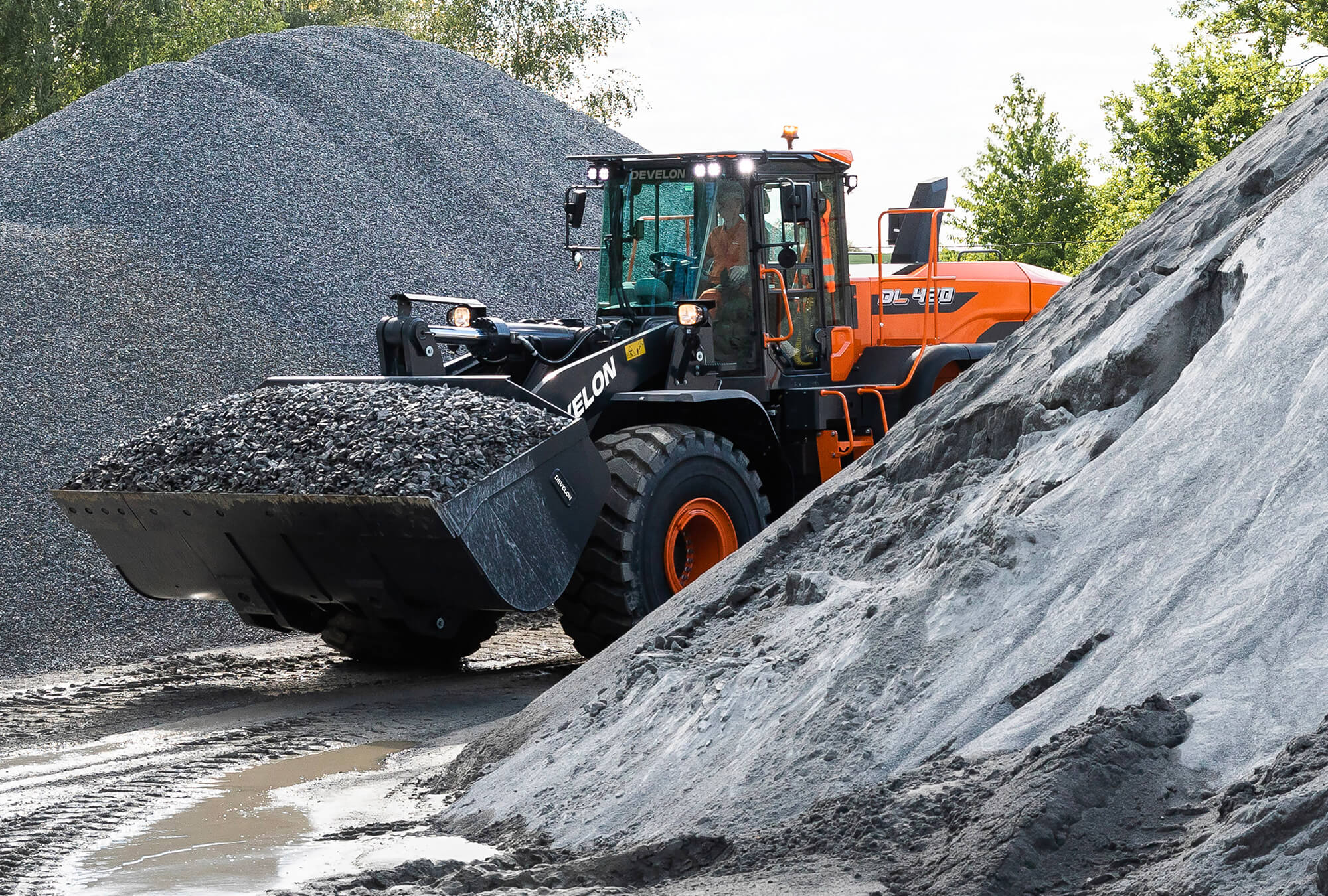

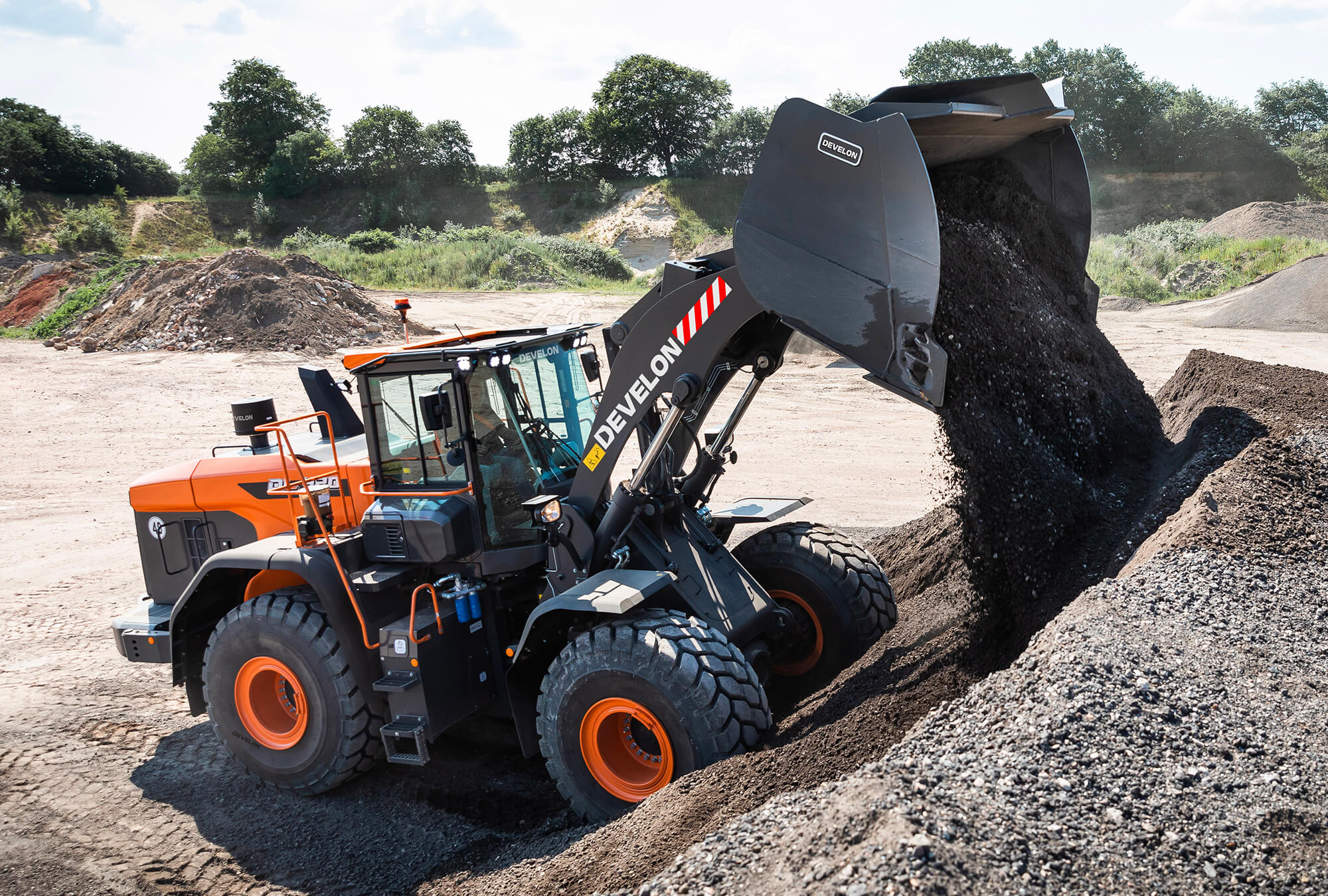

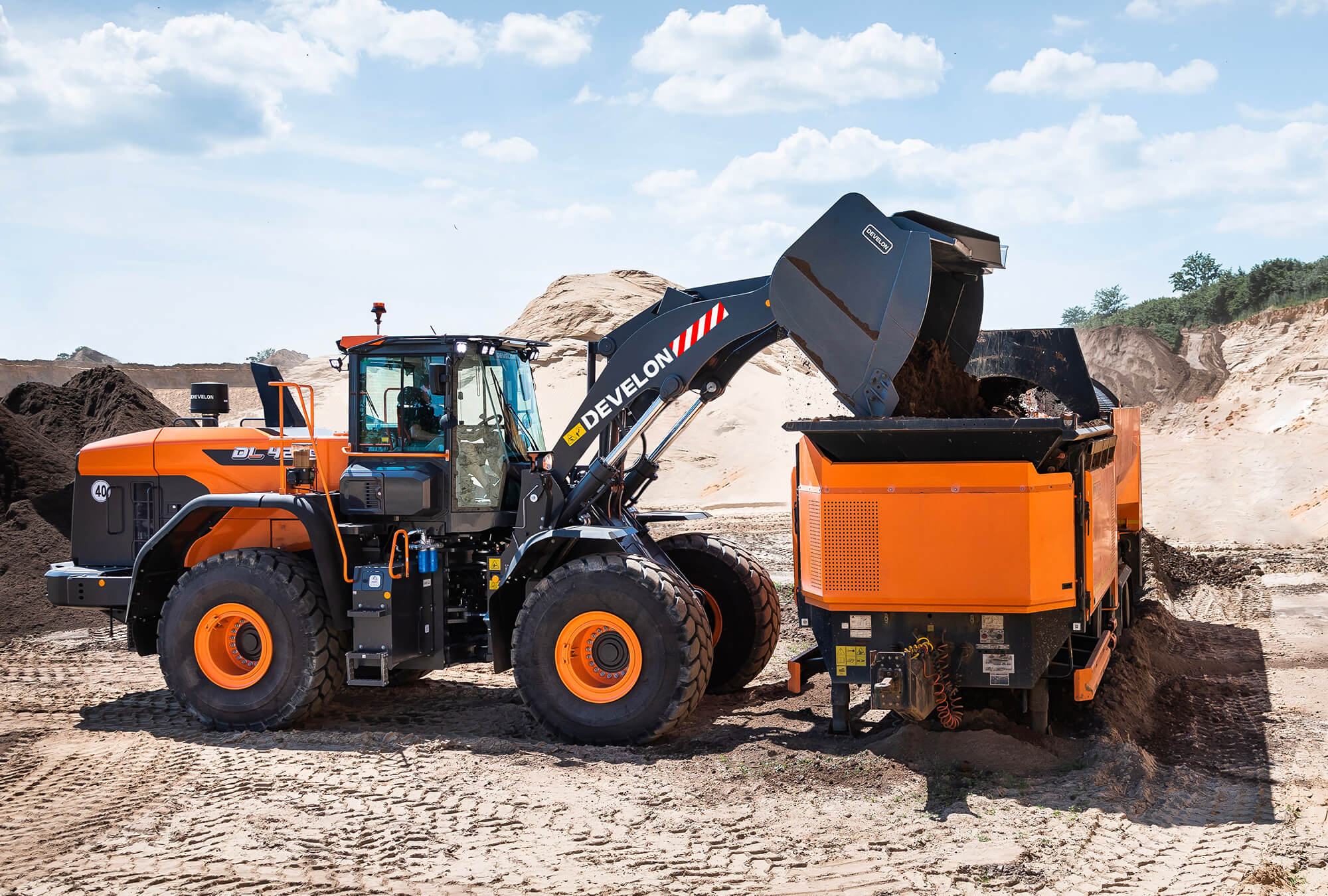

The new DL420-7 Stage V wheel loader, featuring a completely new design, providing higher performance, increased fuel efficiency and a much enhanced environment for the operator compared to the previous Stage IV model.
The DL420-7 introduces a fresh look for the Develon wheel loader range, with a brand new spacious, ergonomic cab and innovative features for higher productivity, increased controllability and operator comfort.
The DL420-7 has a higher standard bucket capacity of 4.5 m3, the largest in its class, and provides a 7% increase in productivity over the previous ‘-5’ model. With automatic 5-speed powershift transmission and heavy duty HDL axles as standard, the DL420-7 operates exceptionally, especially in high-load environments. The DL420-7 also has smooth and responsive hydraulics and auxiliary hydraulic connections, to provide the ideal material handling solution for construction, demolition, waste, recycling, mining and quarrying.
|Straight side cutter, teeth, width 3200 mm||4.3 m³|
|Straight side cutter, Bolt-on cutting edge, width 3200 mm||4.5 m³|
|Performance bucket - straight side cutter, teeth, width 3000 mm||4.4 m³|
|Performance bucket - straight side cutter, Bolt-on cutting edge, width 3000 mm||4.5 m³|
|Convex side cutter, teeth, width 3000 mm||4.7 m³|
|Convex side cutter, Bolt-on cutting edge, width 3000 mm||4.9 m³|
Owing to blind spots caused by the buckets on wheel loaders, the area in front of the machine has been considered an area of major concern in terms of safety. The system records images at the front of the wheel loader with two cameras mounted on the top and bottom of the machine and displays the combined images in real time on the monitor in the cab using a curved projection method.
See more information about our Transparent Bucket System.
|Bucket capacity||4.5 m³|
|Tipping load||18.696 kg|
|Static tipping load, at 40°||16.493 kg|
|Length with bucket||8.926 mm|
|Width with bucket||3.200 mm|
|Bucket hinge height||4.265 mm|
|Dump height (at 45°) with bolt-on cutting edge||2.990 mm|
|Dump reach (at 45°) with bolt-on cutting edge||1.320 mm|
|Wheel Base||3.525 mm|
|Turning radius, bucket edge||7.010 mm|
|Maximum travel speed (5th gear)||40 kph|
|Engine||Scania DC13 Stage V (6-cylinder )|
|Operating weight||23.990 kg|
|Engine power||257 kW (345 HP) at 1800 rpm|
|Standard tyres||26.5 R25 (L3)|
|Breakout force||171 kN|
