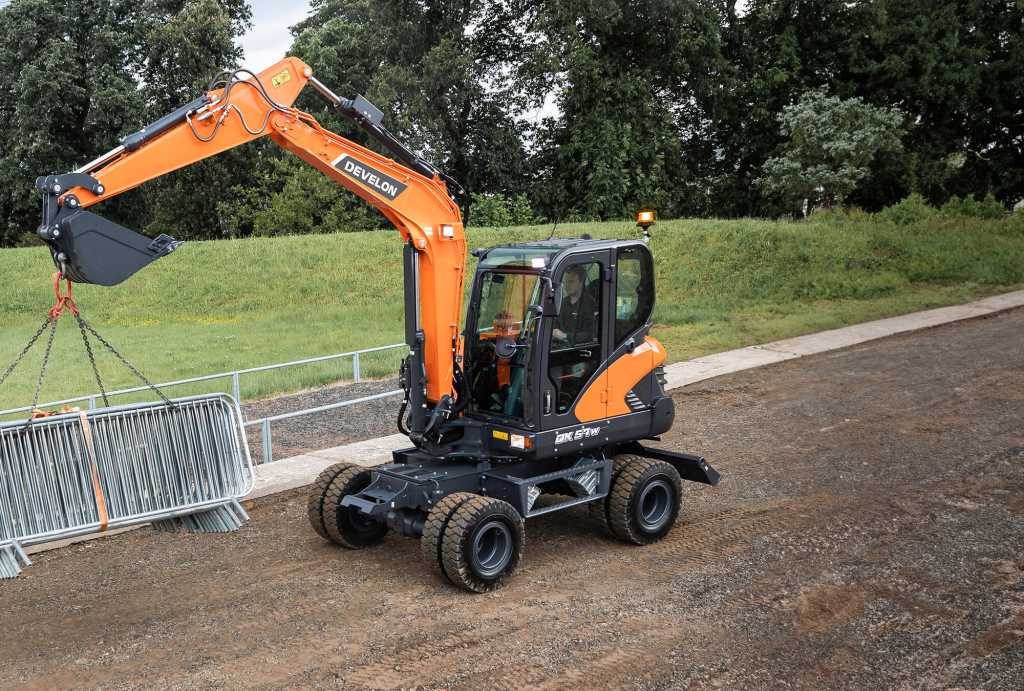

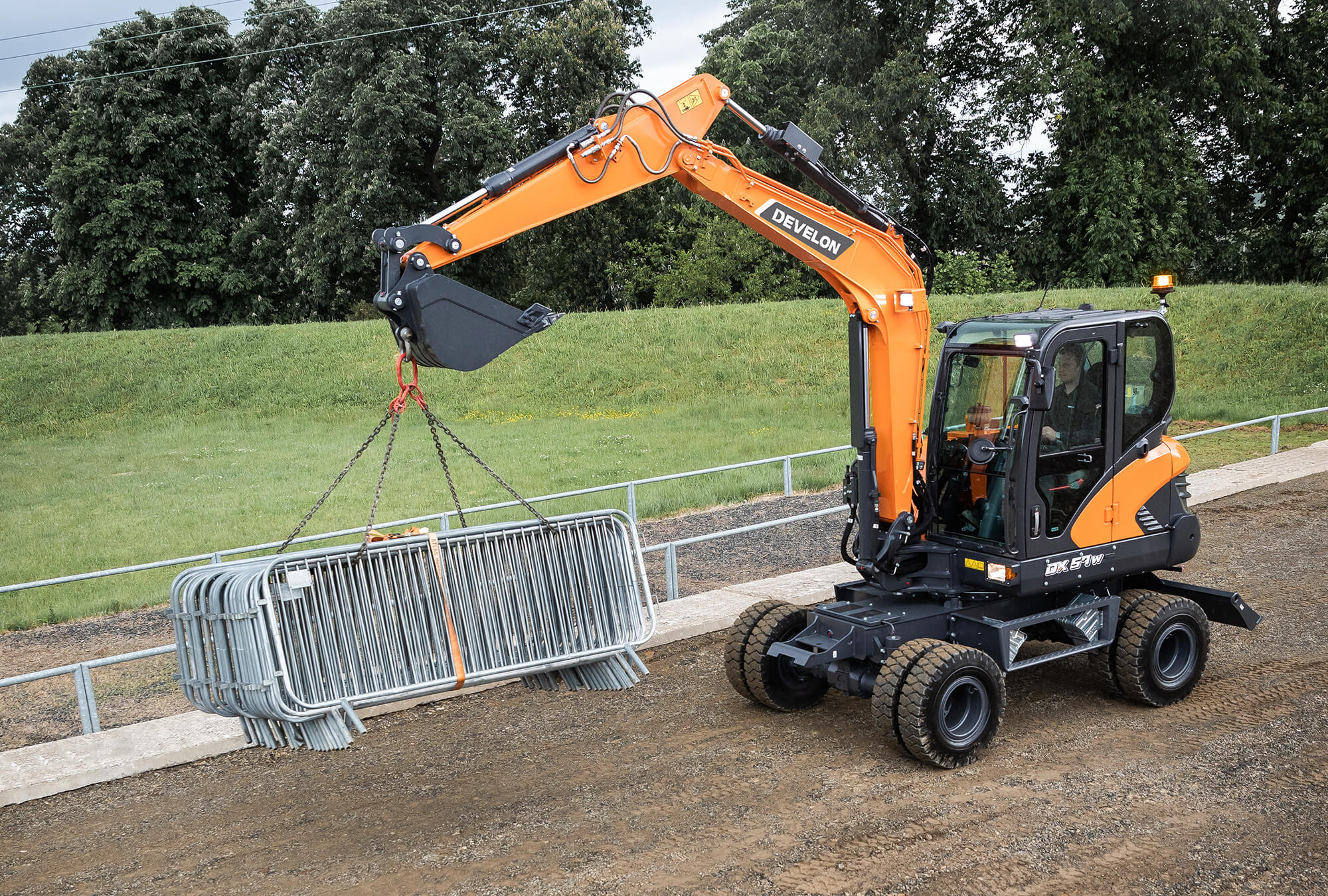

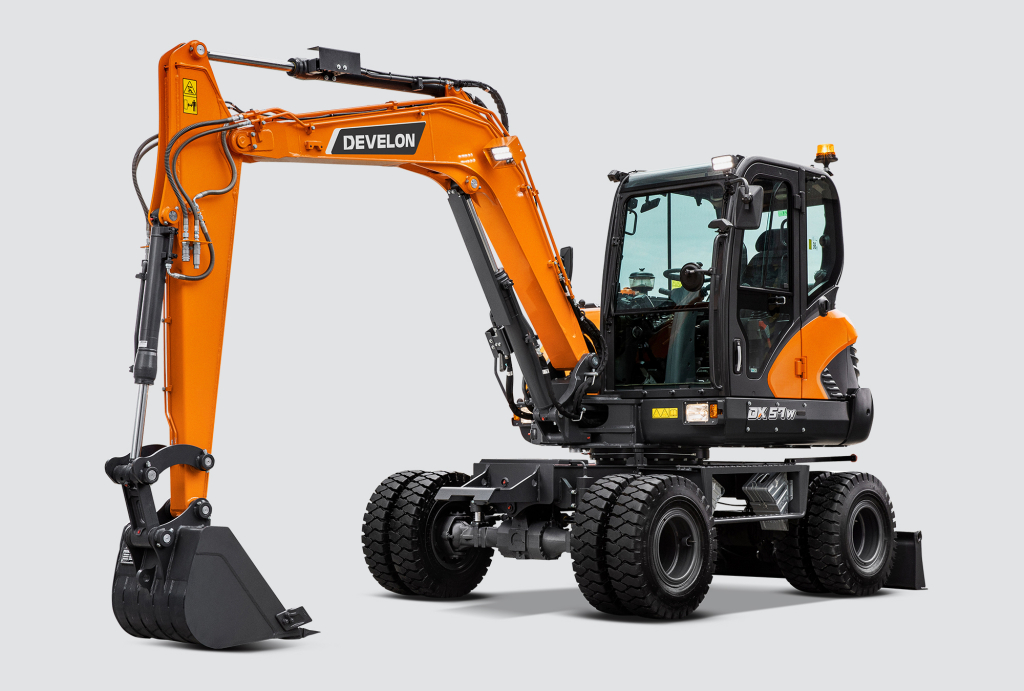

DX57W-7

Boost your productivity

The DX57W-7 takes even the heaviest tasks in its stride with efficient, dependable performance that saves you time and money.


The DX57W-7 is equipped with a Develon D24 Stage V engine. Famous for excellent fuel efficiency, reliability and long service life, it combines exceptional power output and high torque at low revs. Diesel Oxidation Catalyst (DOC) and Diesel Particulate Filter (DPF) ensure compliance with Stage V regulations.

Machine Specs
Operating weight5.800 kg
Bucket capacity0.175 m3
Engine42.5 kW / 2.400 RPM
ModelDevelon D24 (SAE J1349)
Width2290 mm
Max. reach ground level (short / long arm)5880 / 6190 mm
Max. digging depth (std / long arm)3495 / 3795 mm
Max. digging force - bucket4.2 t
Max. digging force - arm (short / long arm)2.8 / 2.5 t
Travel speed0 / 30 km/h
Options & Attachments

Quick Coupler

Part namePart #Pin Diameter mmMin - Max Centers x - y )mmBase Width  mmWeight  kg (lbs)
5-7t Quick CouplerQC45 (H) (M)45218 - 394144/150139 (63)

Bucket

Part namePart #Width mmCapacity m3Weight kg
Bucket G06-1500G06-150015000,236170
Bucket H06-0450H06-04504500,09795
Bucket H06-0750H06-07507500,182139
Bucket H06-0900H06-09009000,224152
