DX380DM-7
Boost your productivity

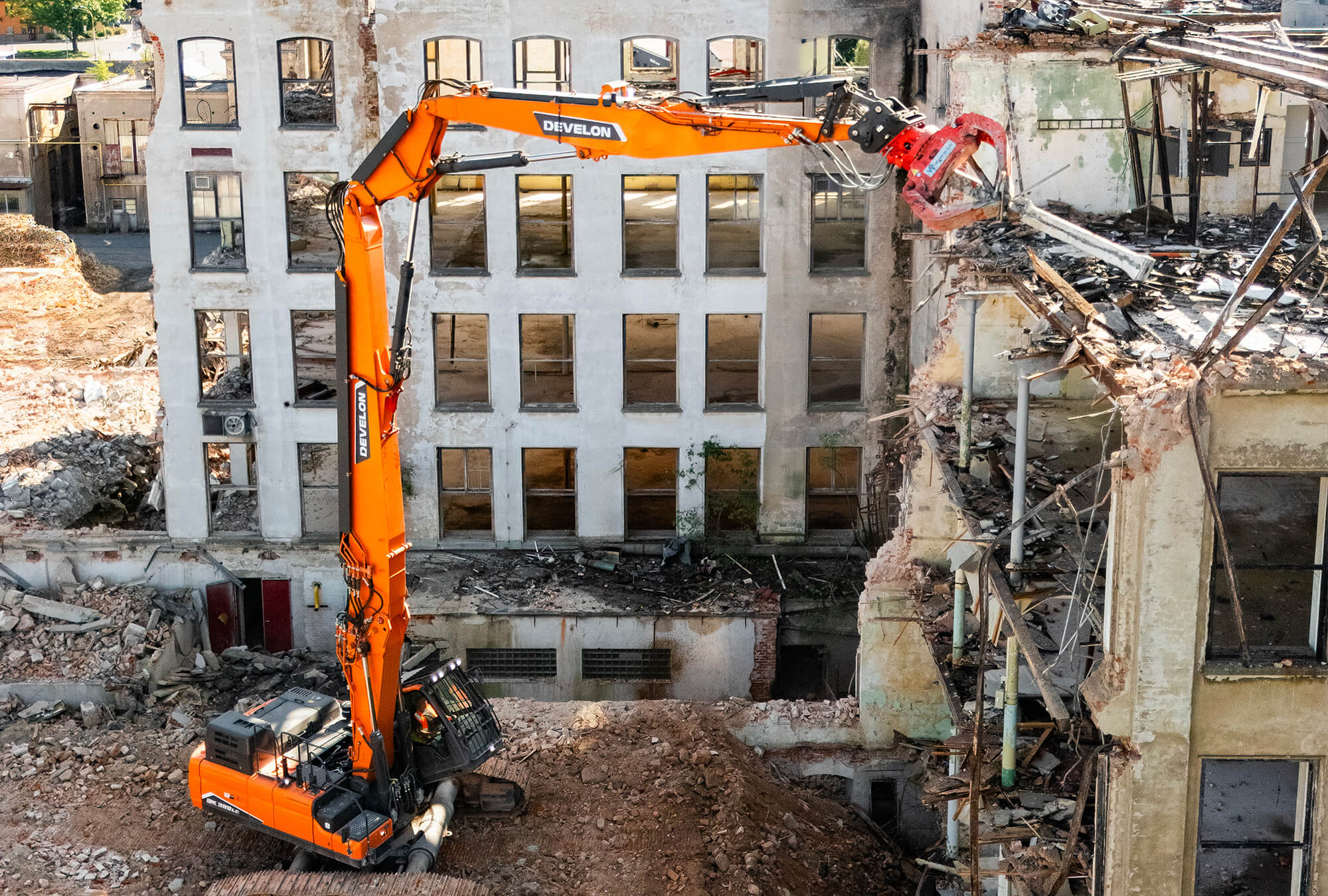

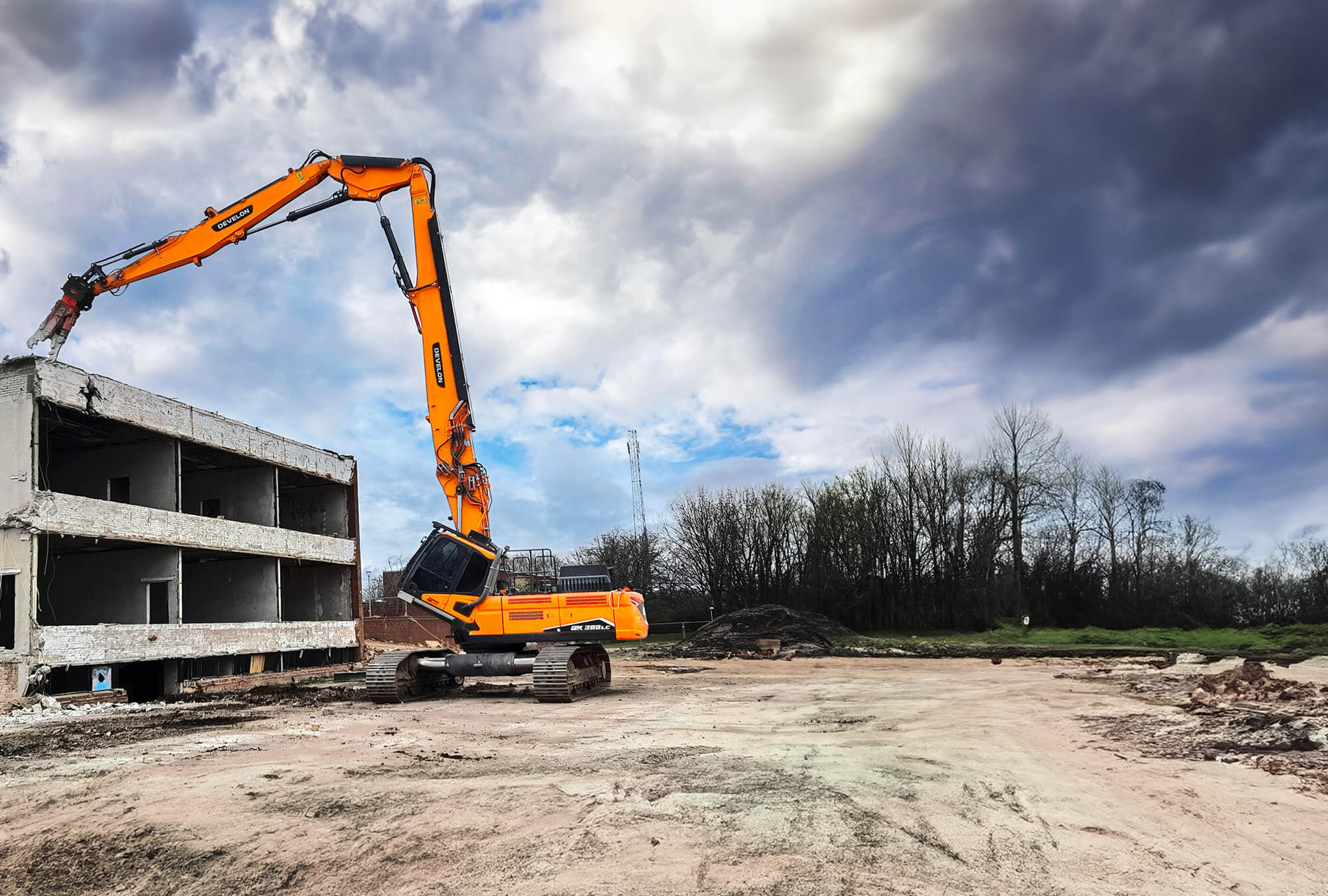

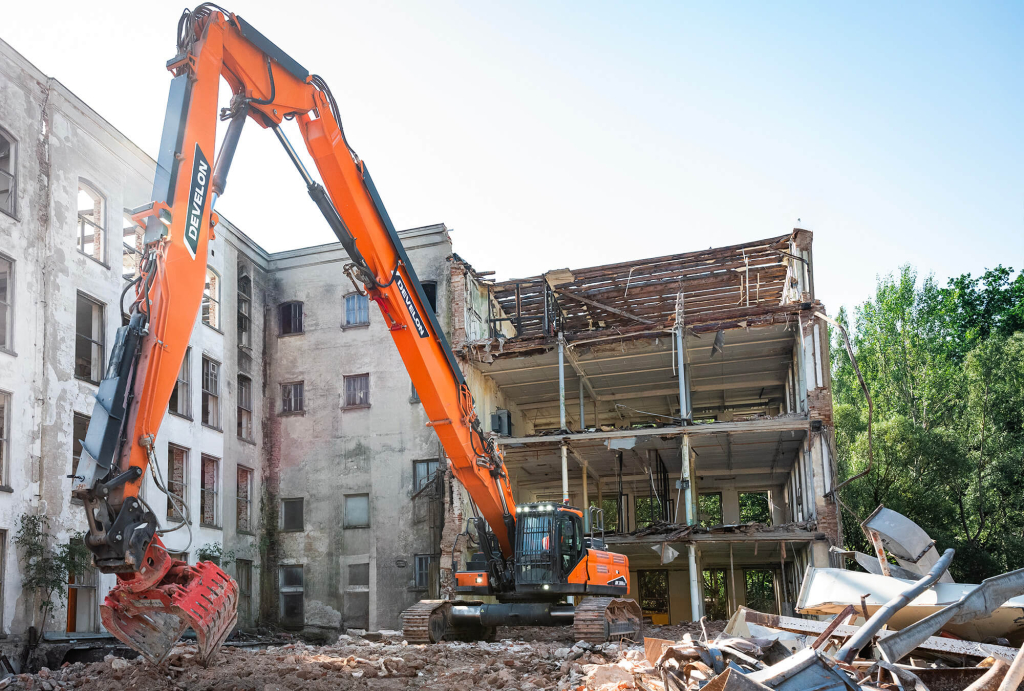

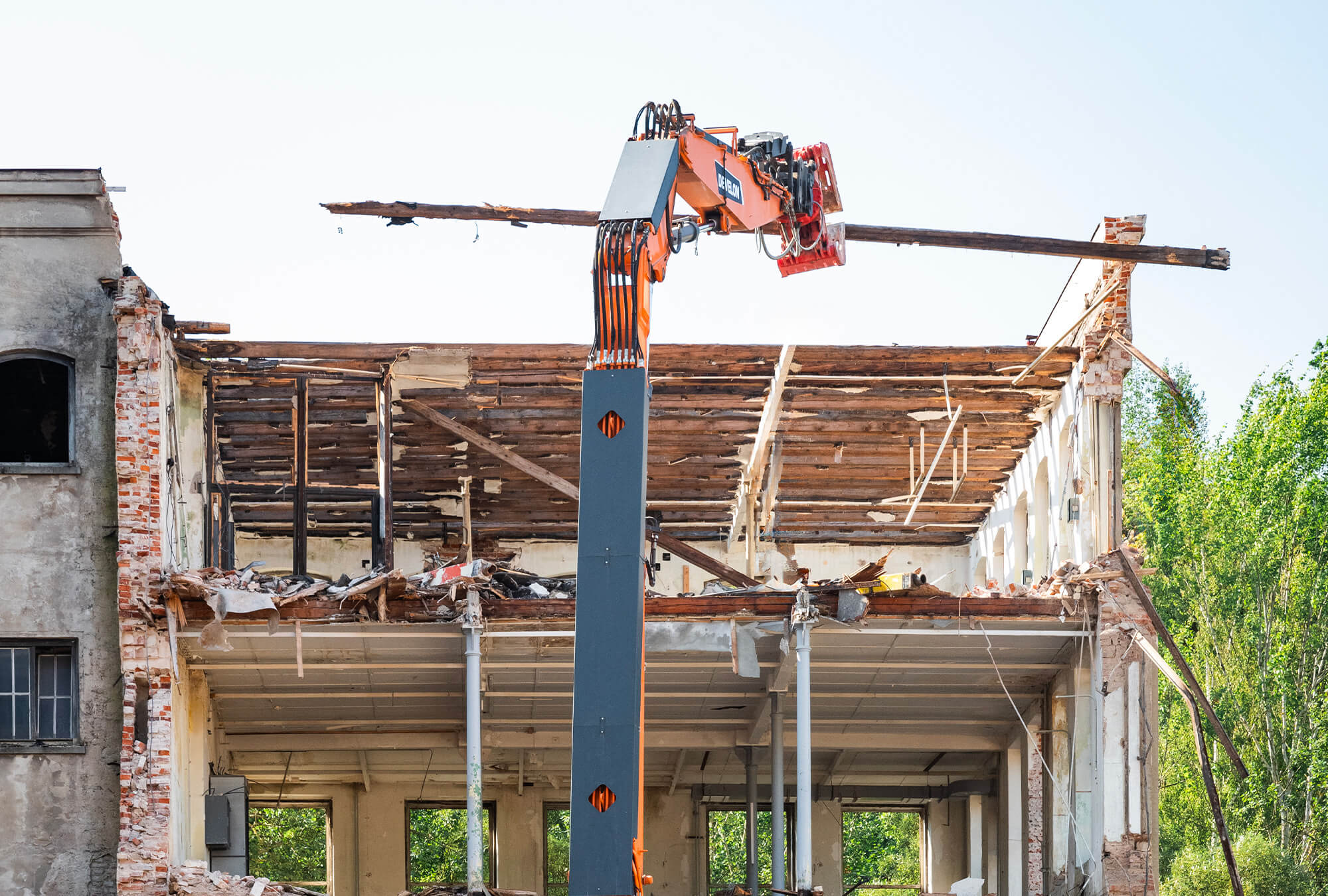

In common with the other models in the High Reach range, the DX380DM-7 model is designed with the power to tear down the toughest structures, and the power and stability to keep the operator completely safe.

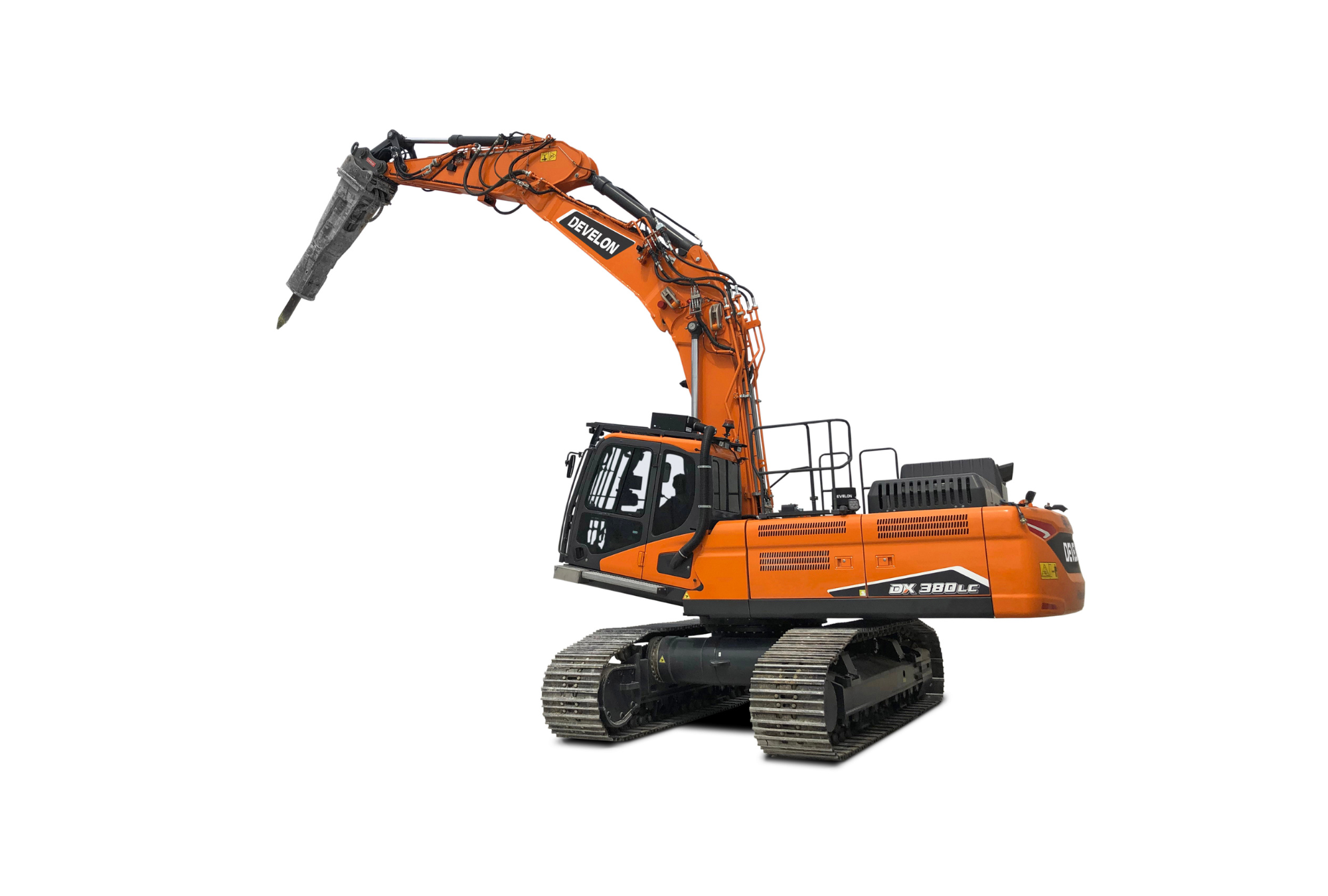

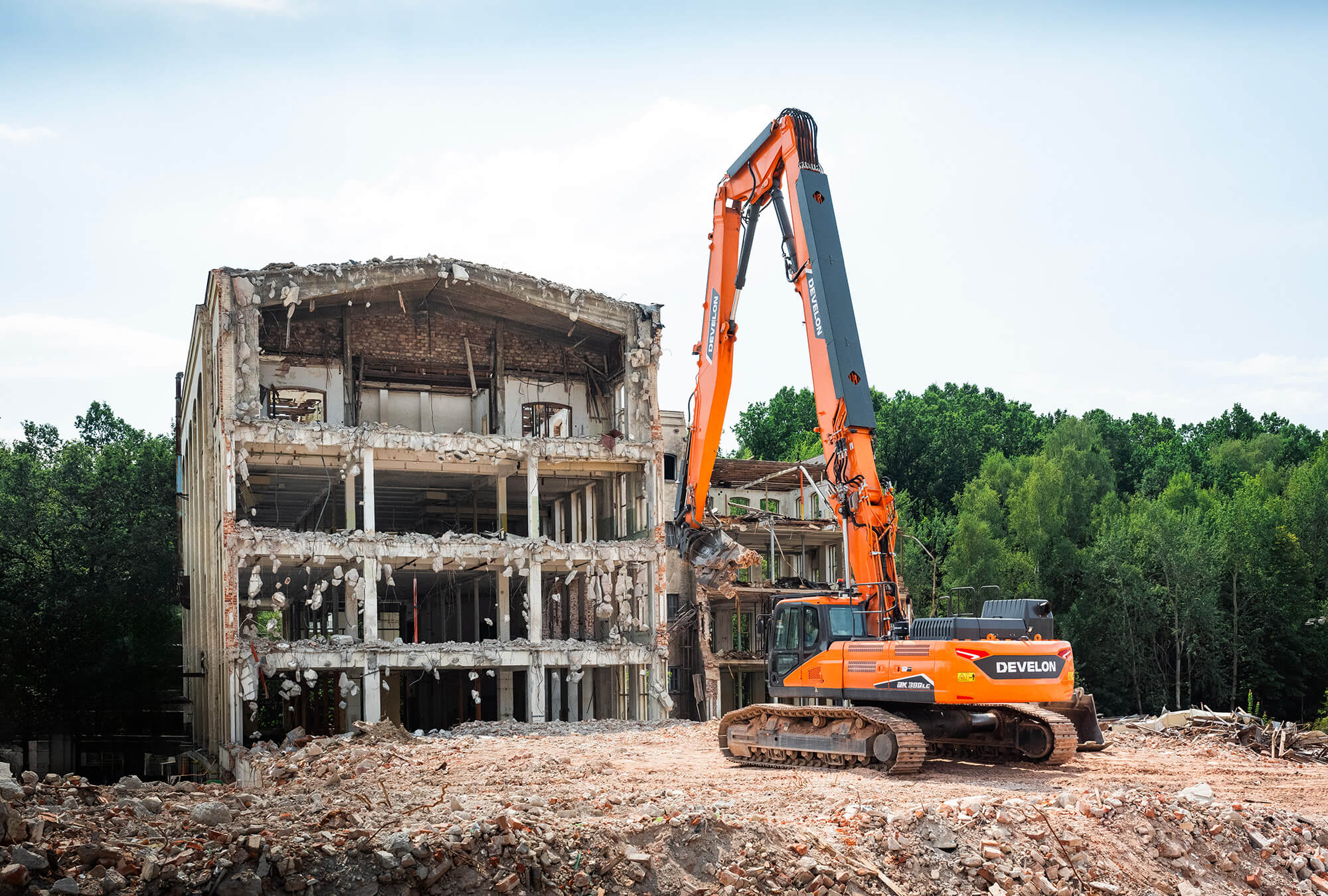

The Develon DX380DM-7 demolition excavator offers operator an excellent environment particularly suited to high-reach demolition applications, with a 30-degree tilting angle.

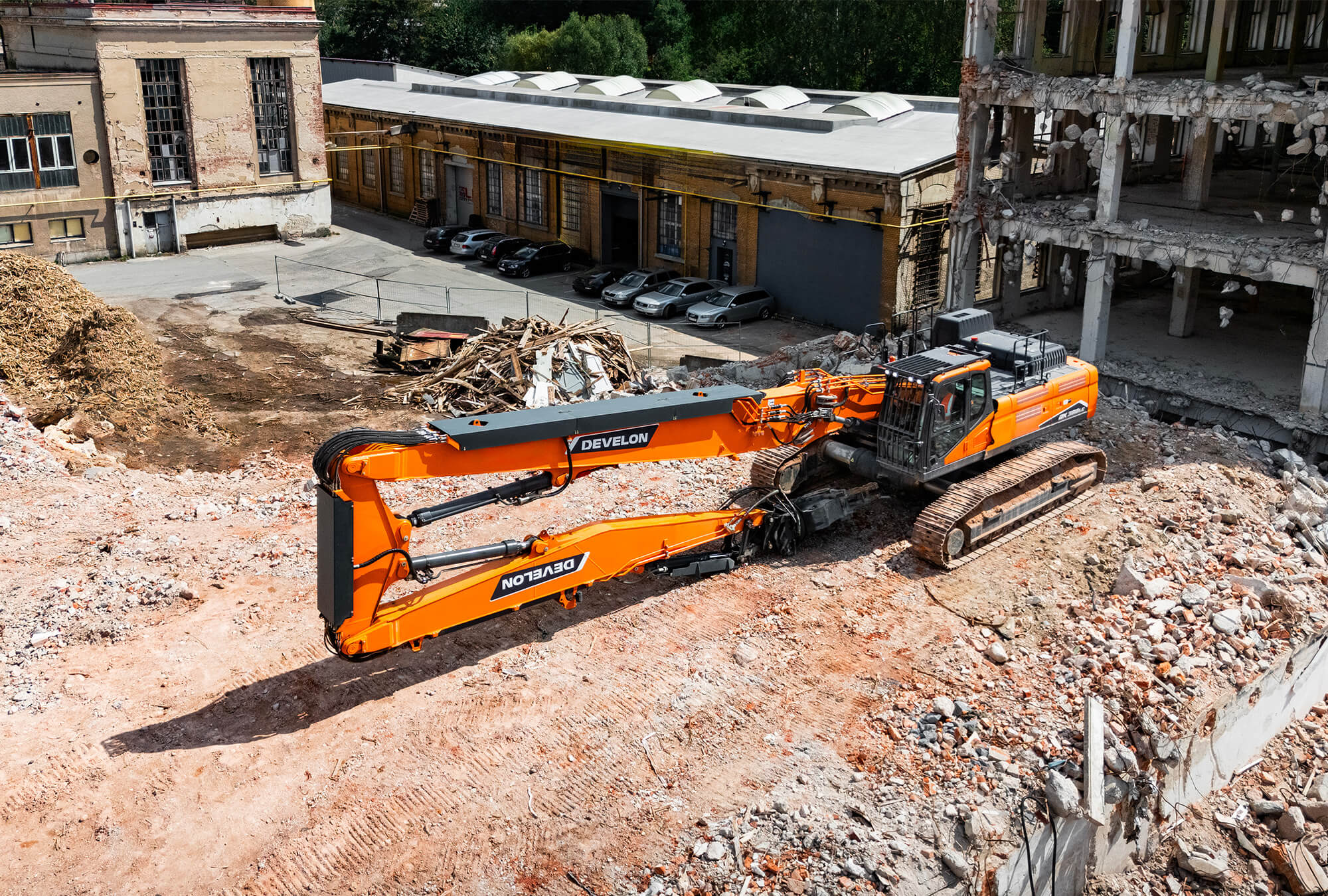

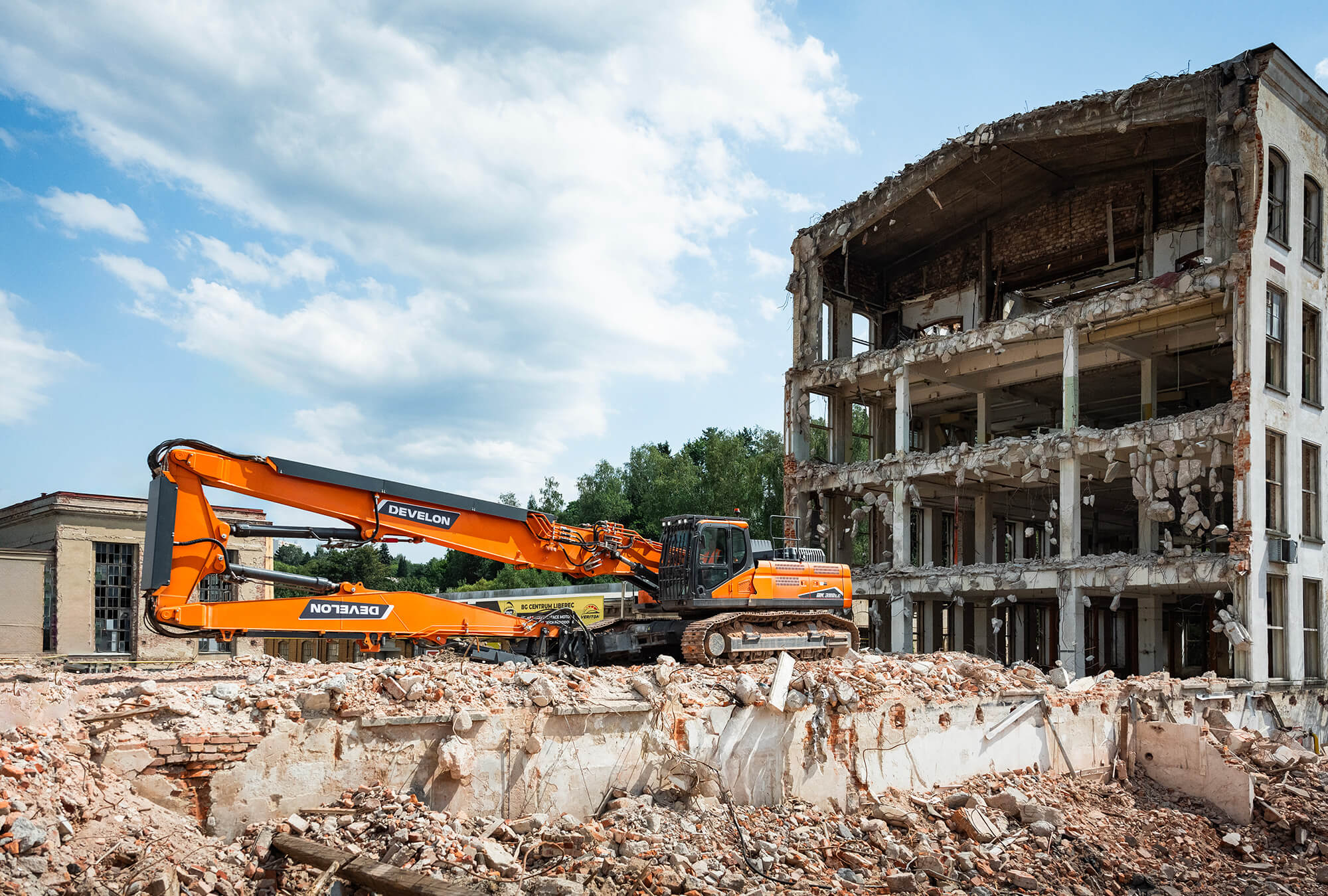

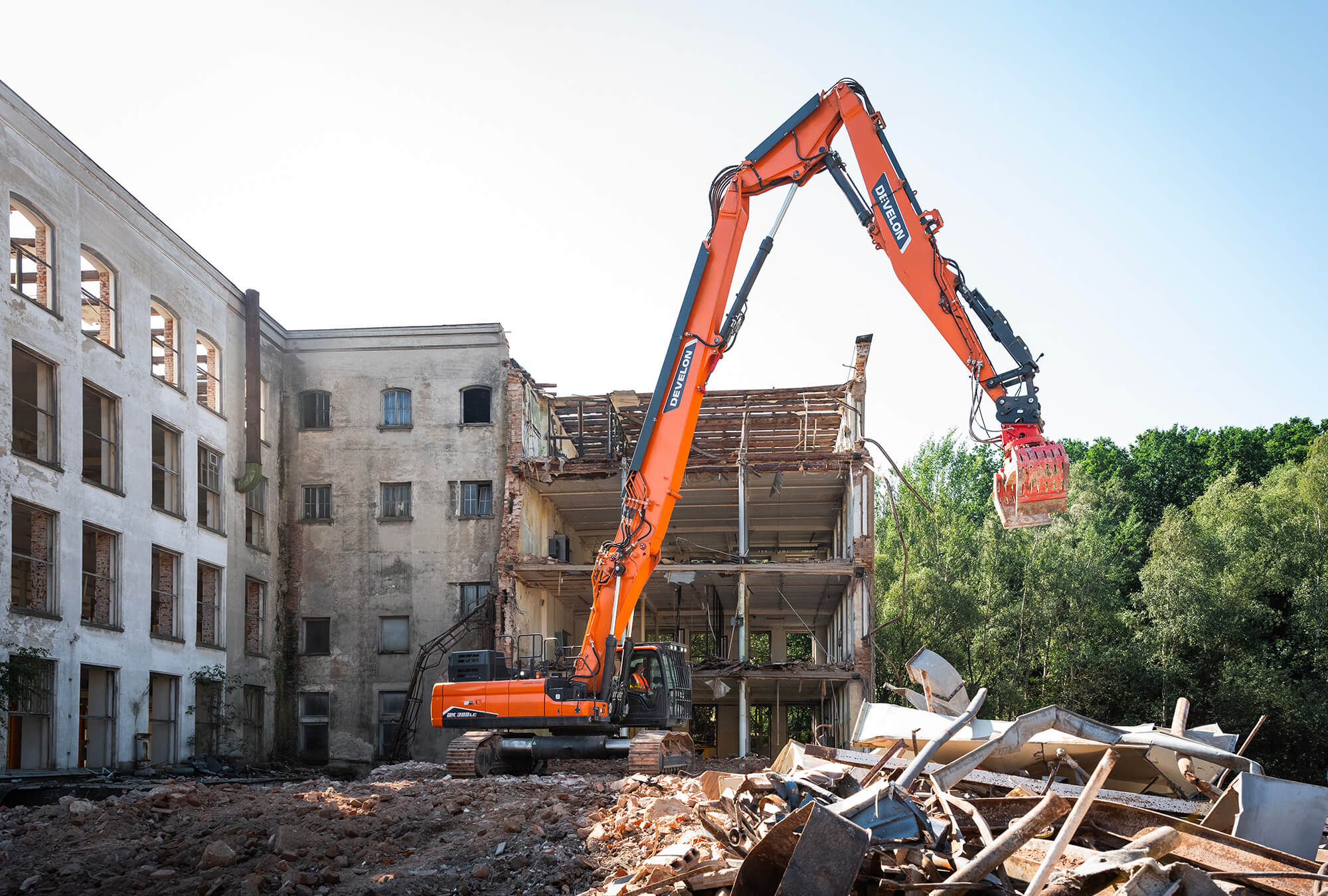

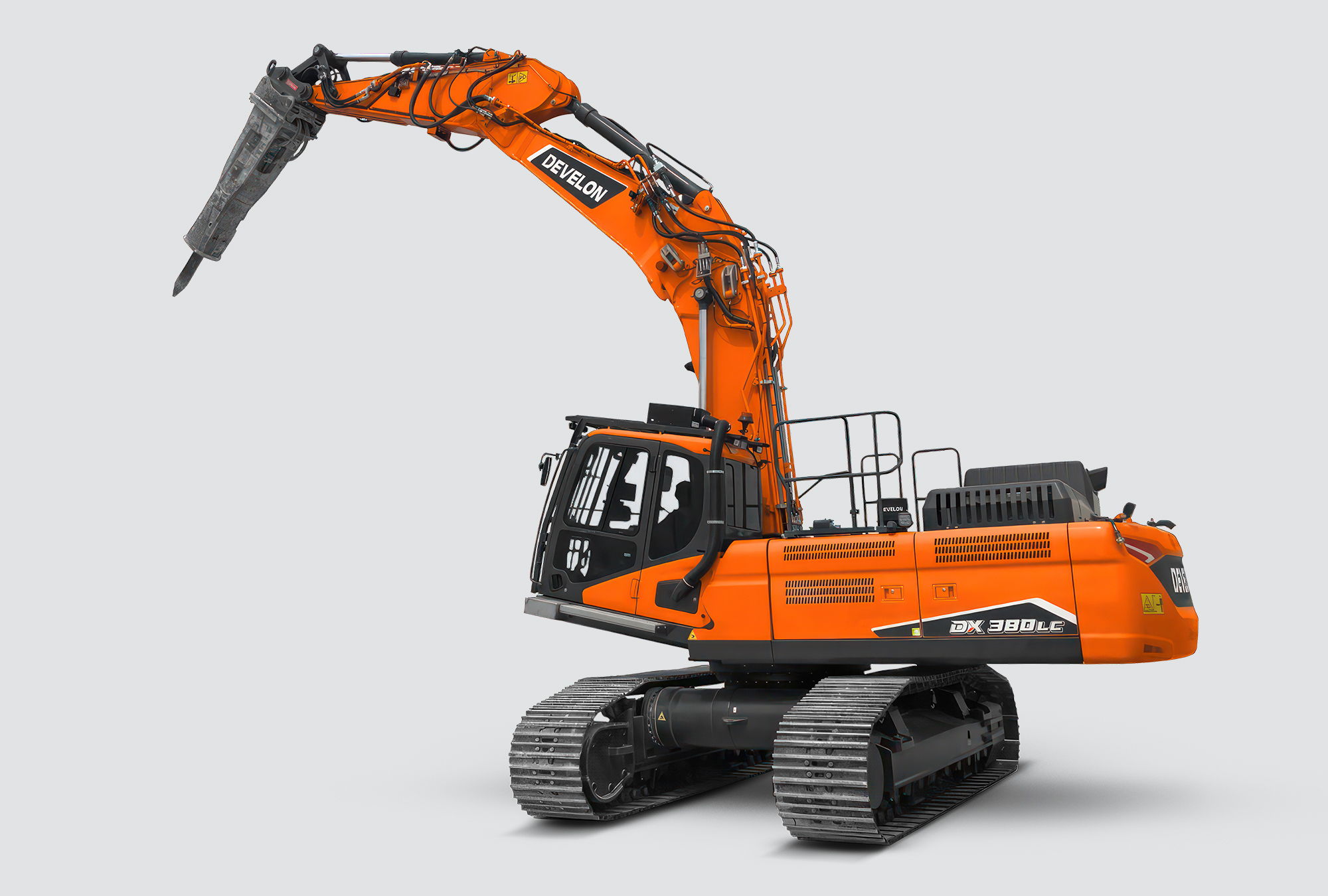

The multi-boom design on the DX380DM-7 model increases
overall flexibility. This innovative design facilitates an easy change between
a demolition boom and an earthmoving boom to accomplish different types of work

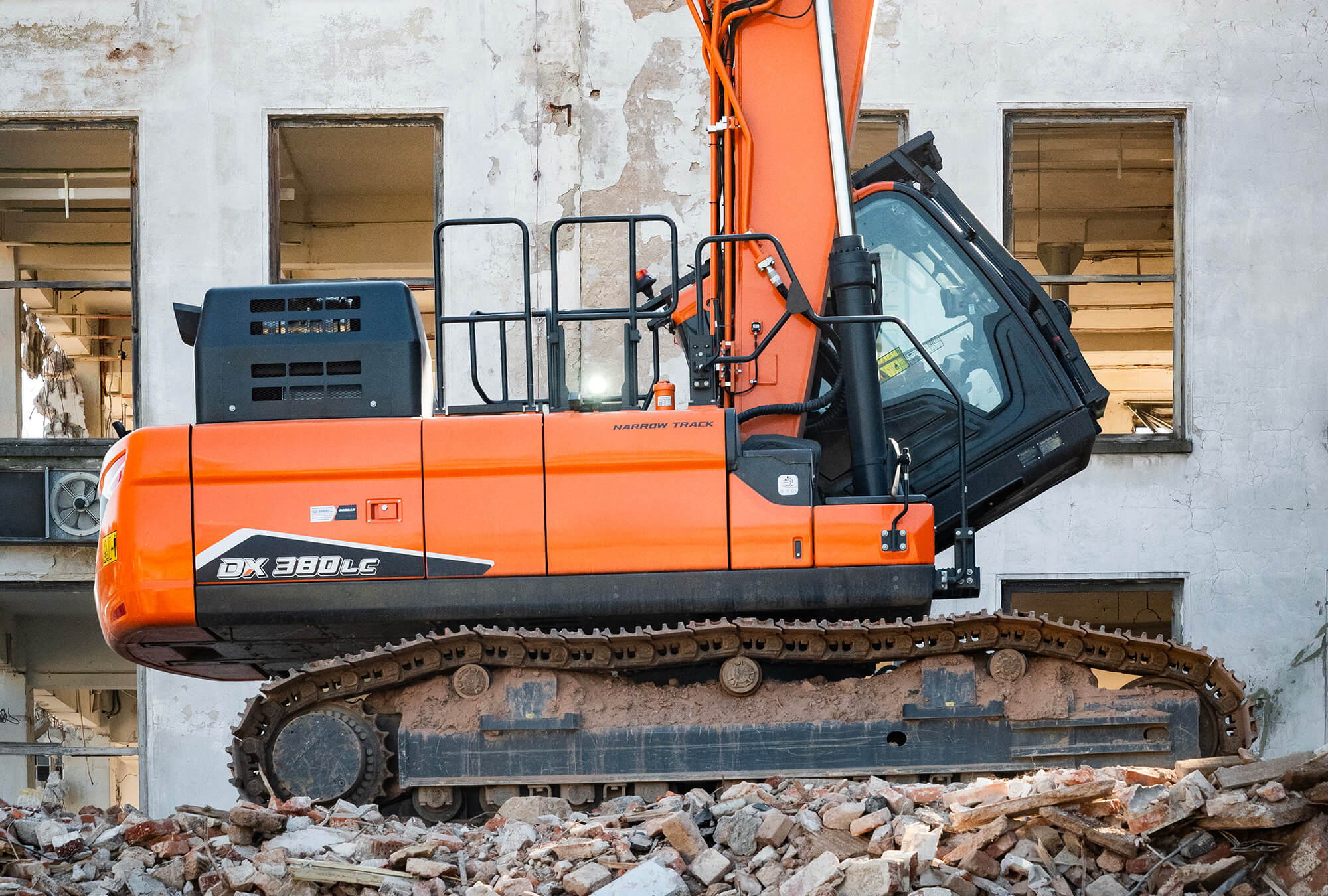

on the same project, using the same machine. The DX380DM-7 also retains a
hydraulically adjustable undercarriage, which extends to a maximum width of
4.37 m to provide optimum stability when working on demolition sites. The width
of the undercarriage can be retracted hydraulically to 2.97 m in the narrow
width position, for ideal transportation.

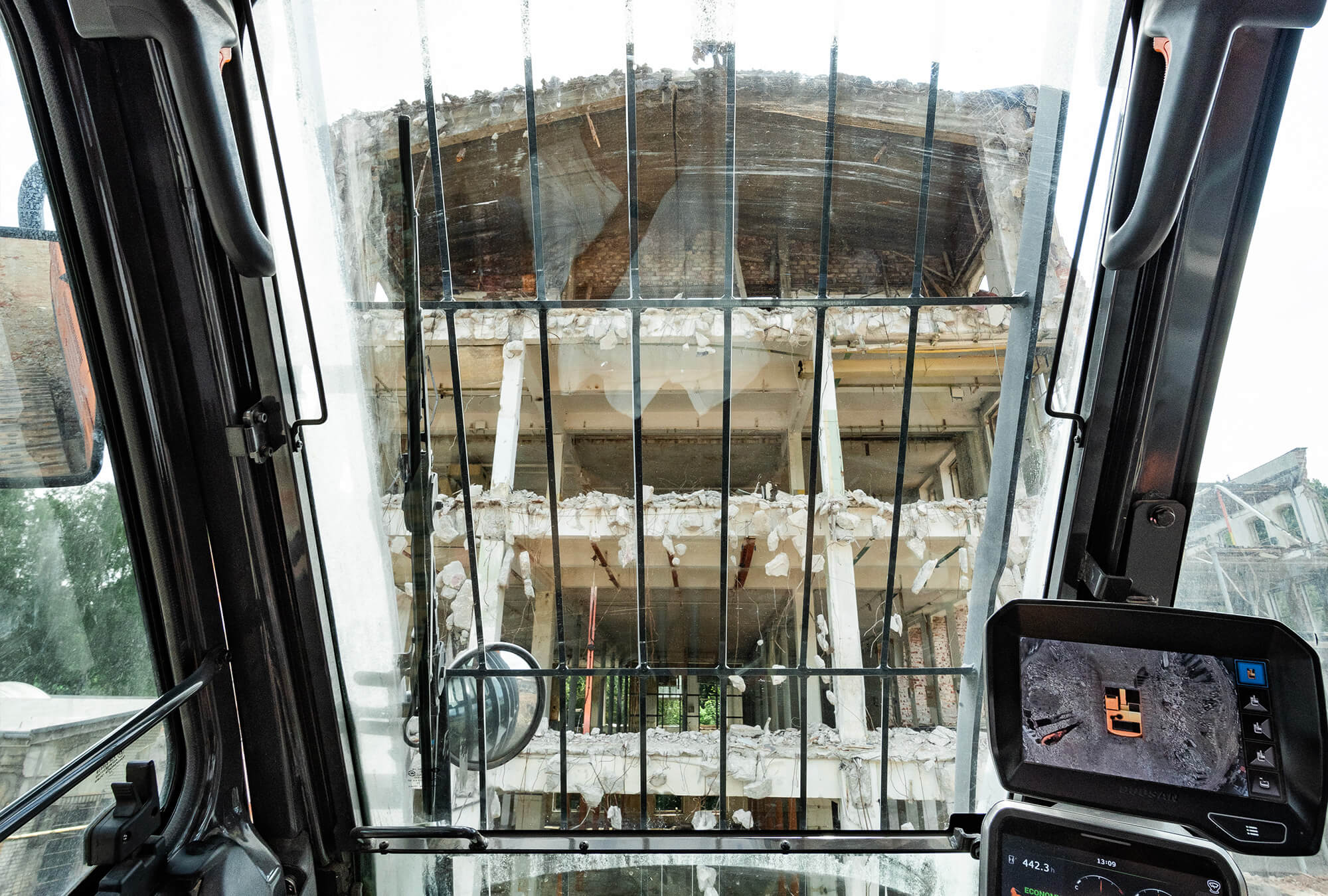

The 30° tilting cab also provides better visibility and
reduces operator fatigue during high elevation demolition work.
Download brochure
Find a Dealer| Operating weight | 47400/44800 kg (Demolition Arm/Digging Arm) |
| Travel speed | 3.0 - 5.4 km/h |
| Engine model | Scania DC9 |
| Power (SAE J1995) | 327 hp/240 kW at 1800 rpm |
| Pin reach | 14500/ 10200 mm (Demolition Arm/Digging Arm) |
| Pin depth | -/ 5500 mm (Demolition Arm/Digging Arm) |
| Pin height | 23000/ 9200 mm (Demolition Arm/Digging Arm) |
| Overall Length | 15200/ 11285 mm (Demolition Arm/Digging Arm) |
| Width superstructure | 2990 mm |
| Variable undercarriage width | 2970 - 4370 mm |
| Overall Height (Incl.FOG) | 3148 mm |
