141 kW / 189 hp (SAE J1995)
28.3 t
4 / 9 / 19 km/h

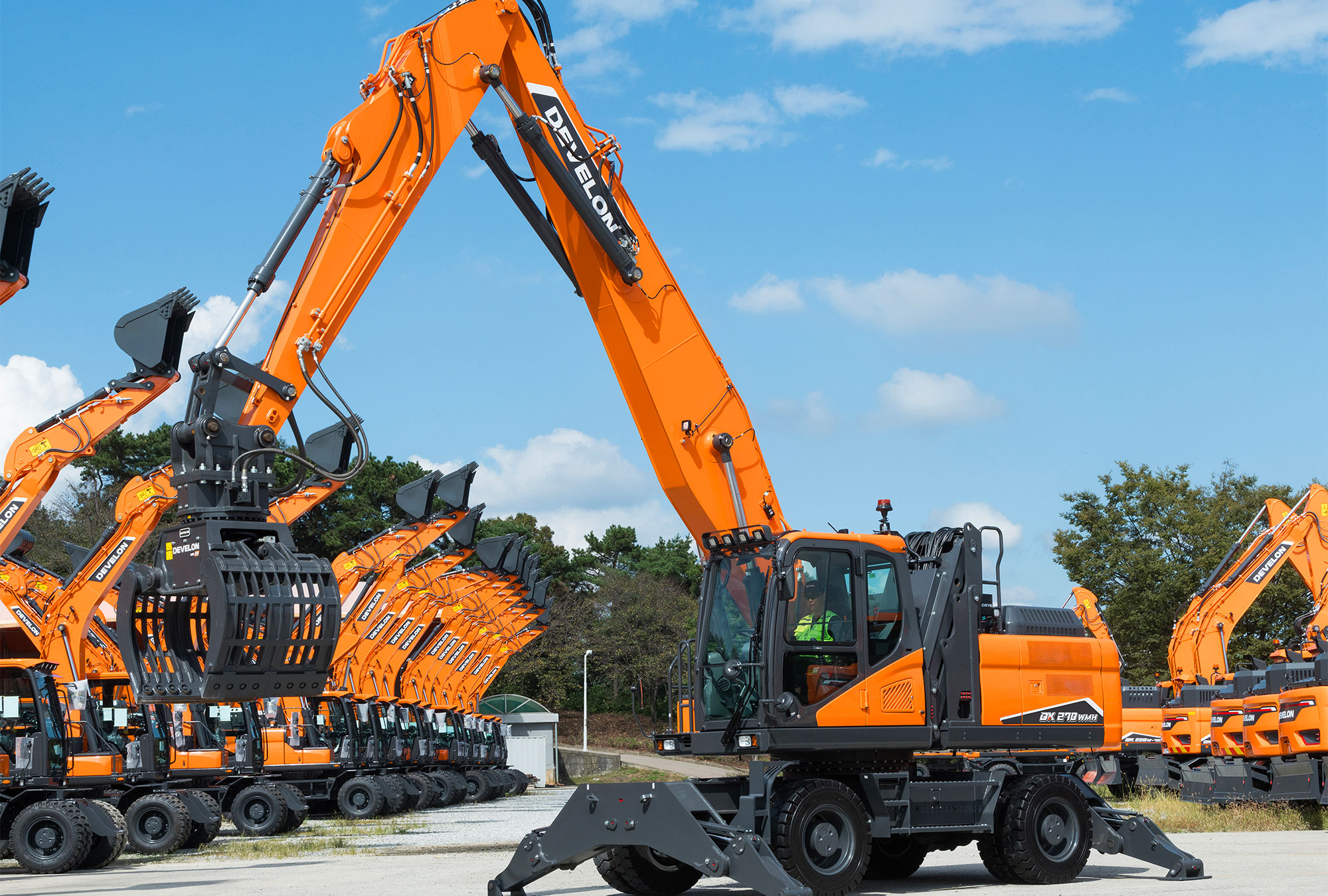

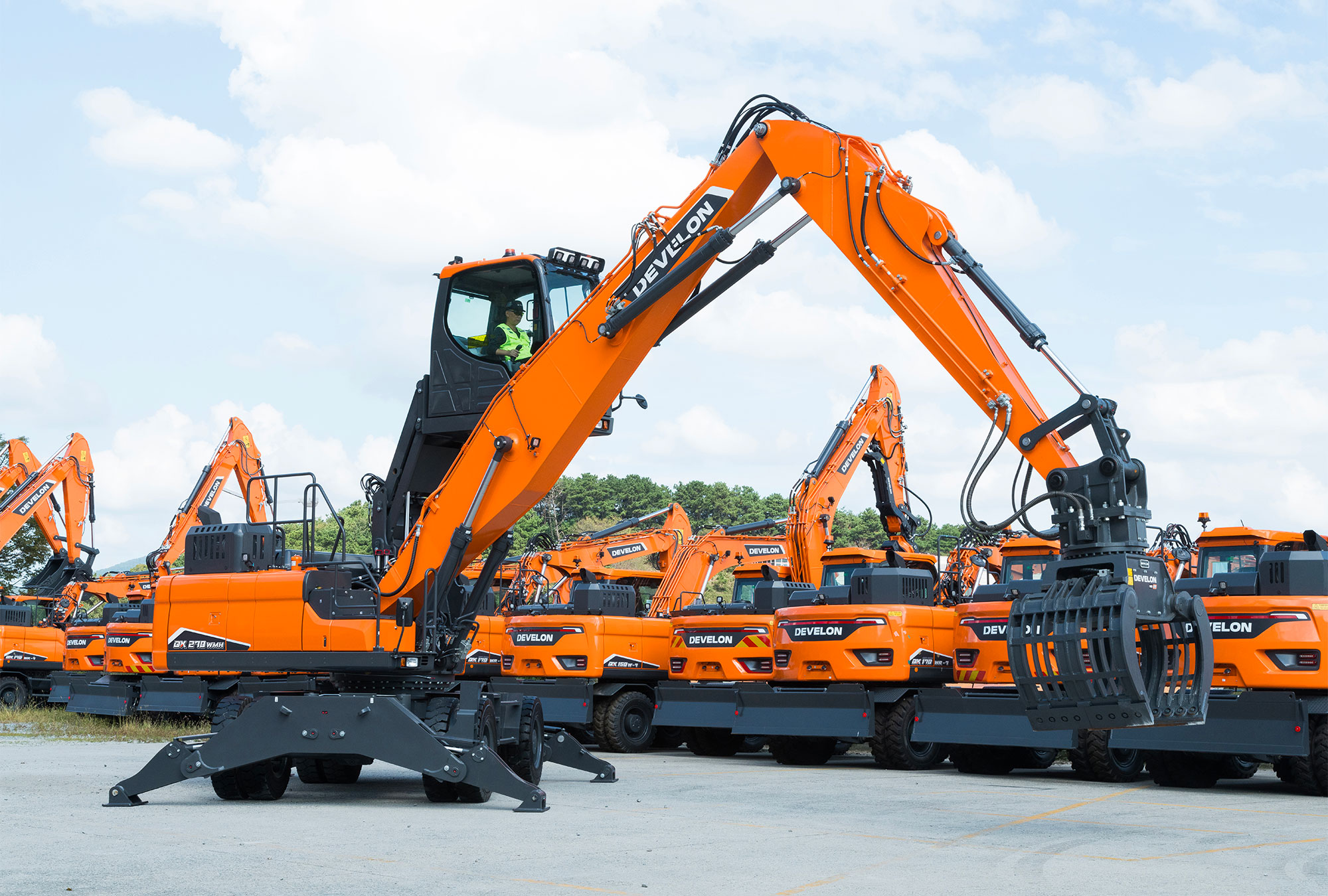

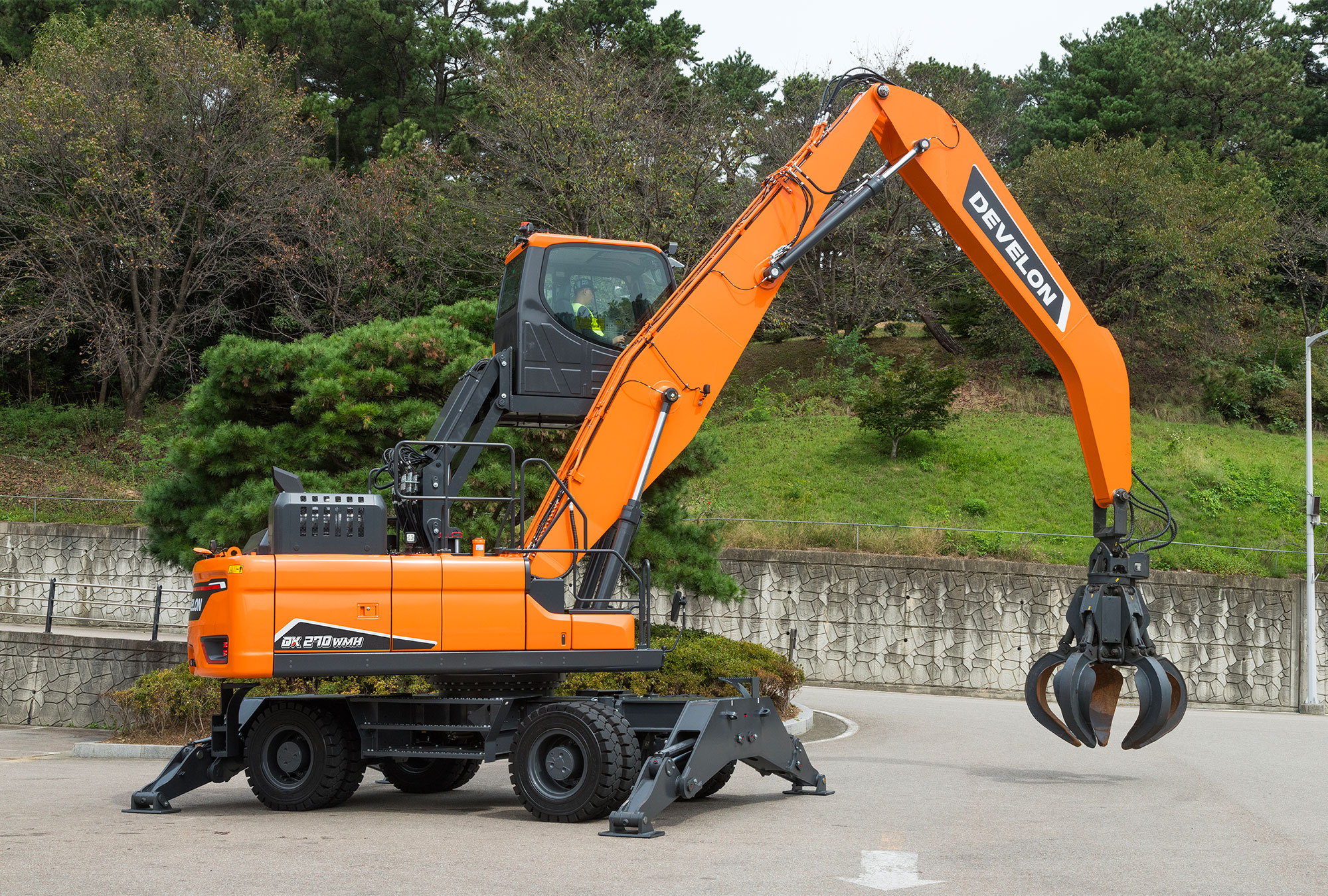

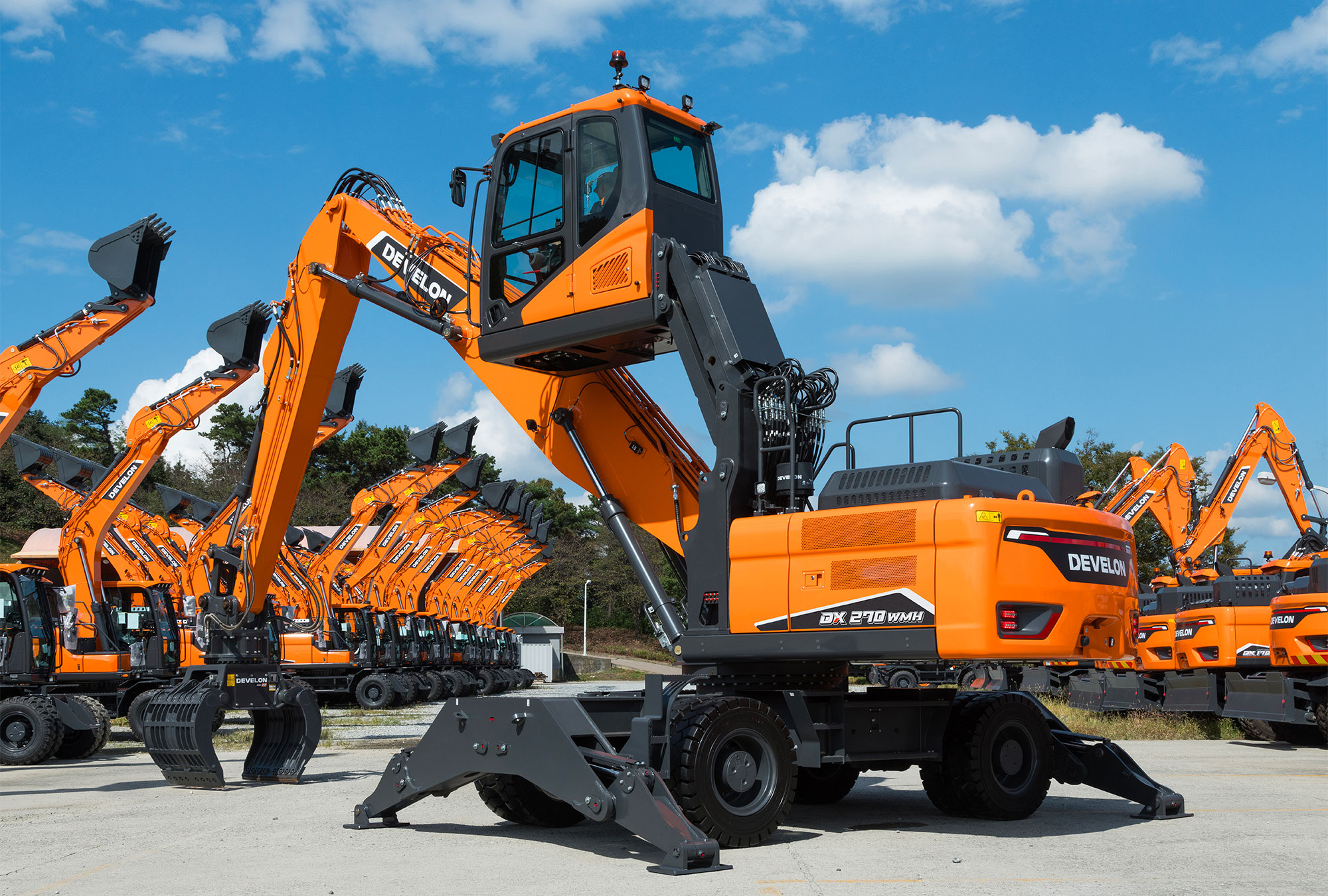

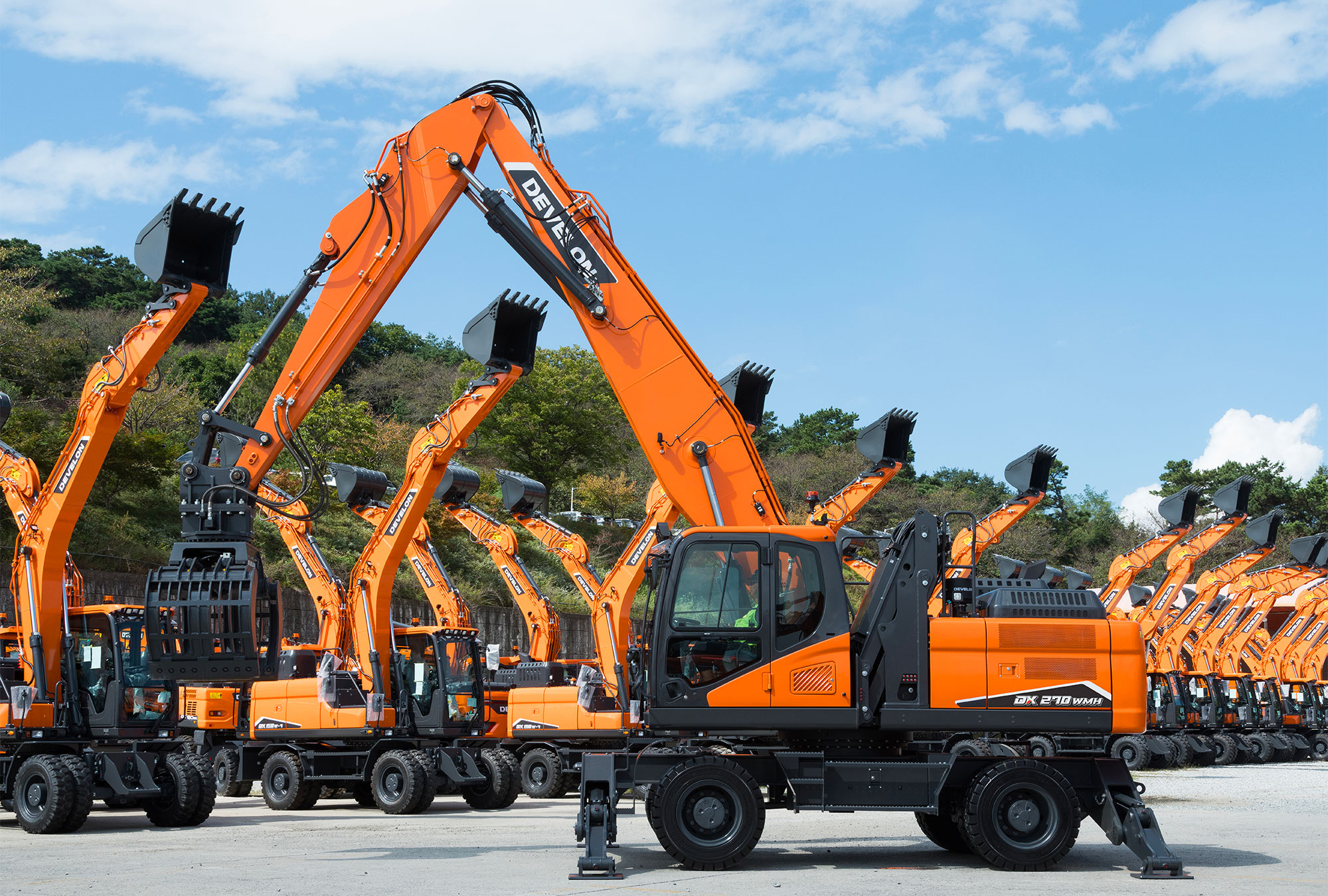

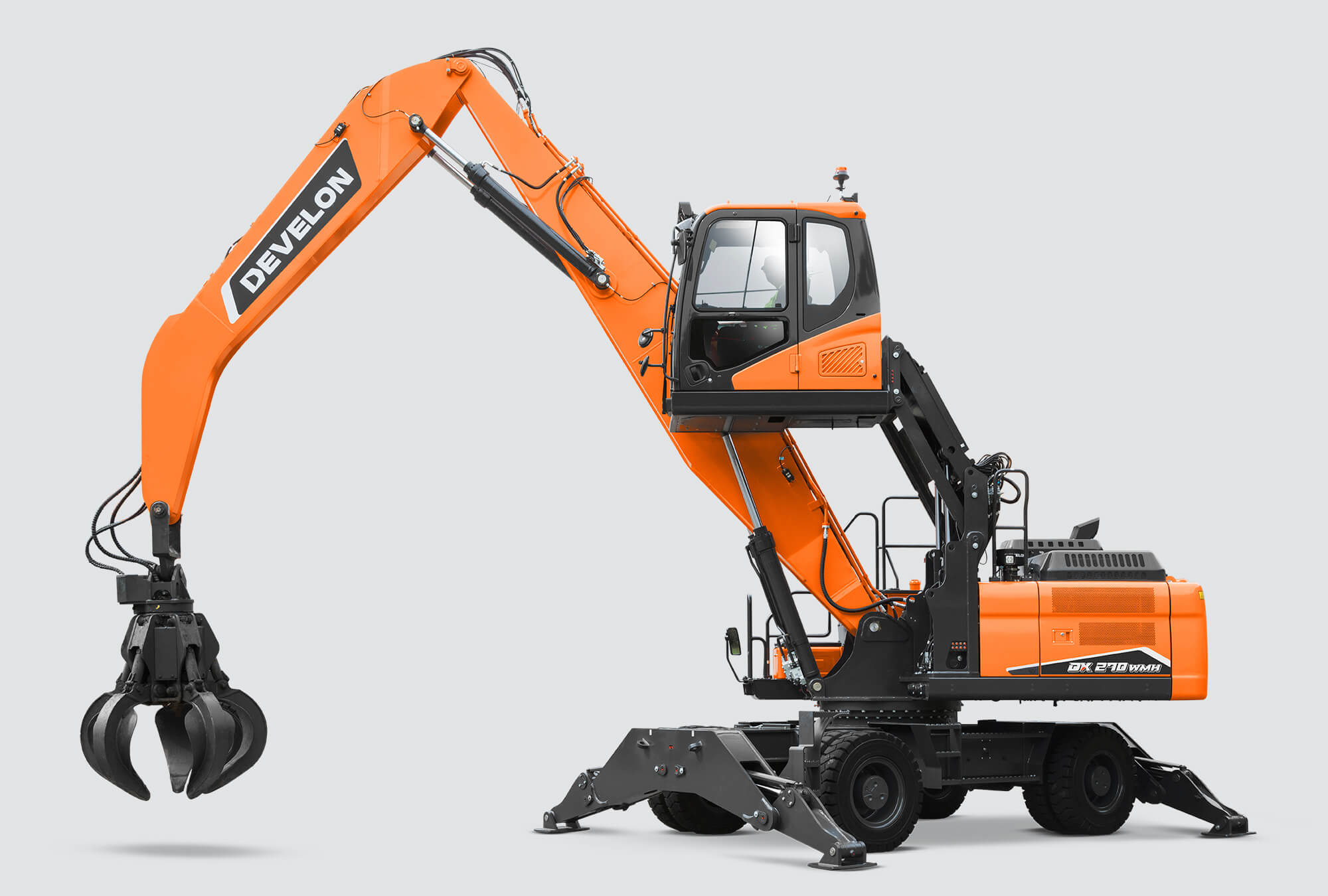

DX270WMH-7

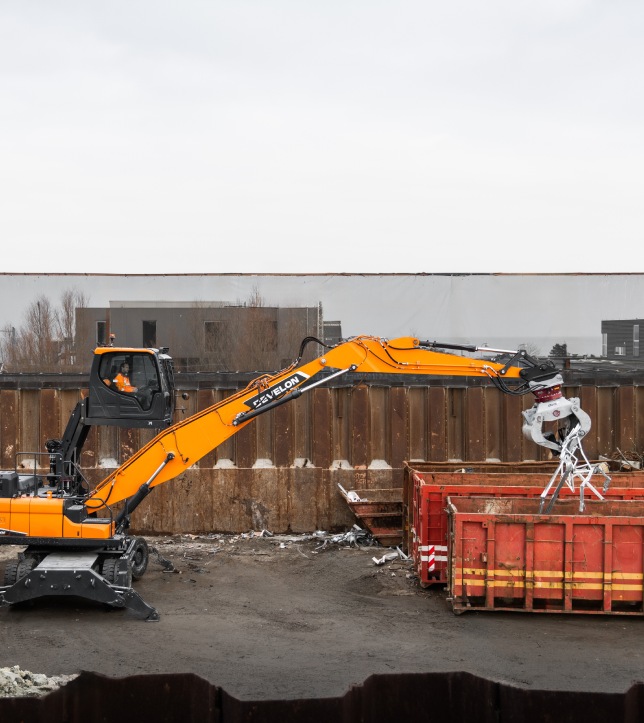

The DX270WMH-7 delivers 141 kW (189 hp) of power, strong hydraulics, and a robust arm design made for demanding tasks. Its fuel-efficient engine and enhanced cooling system keep performance high and costs low, even during long, heavy-duty shifts.
Develon material handlers come equipped with smart safety features, including an overload warning system, virtual wall, and around-view monitoring (AVM), to protect operators and keep work moving smoothly. Additionally, the My Develon app with remote dealer access enables close monitoring of machine health and performance, ensuring proactive maintenance and minimal downtime.

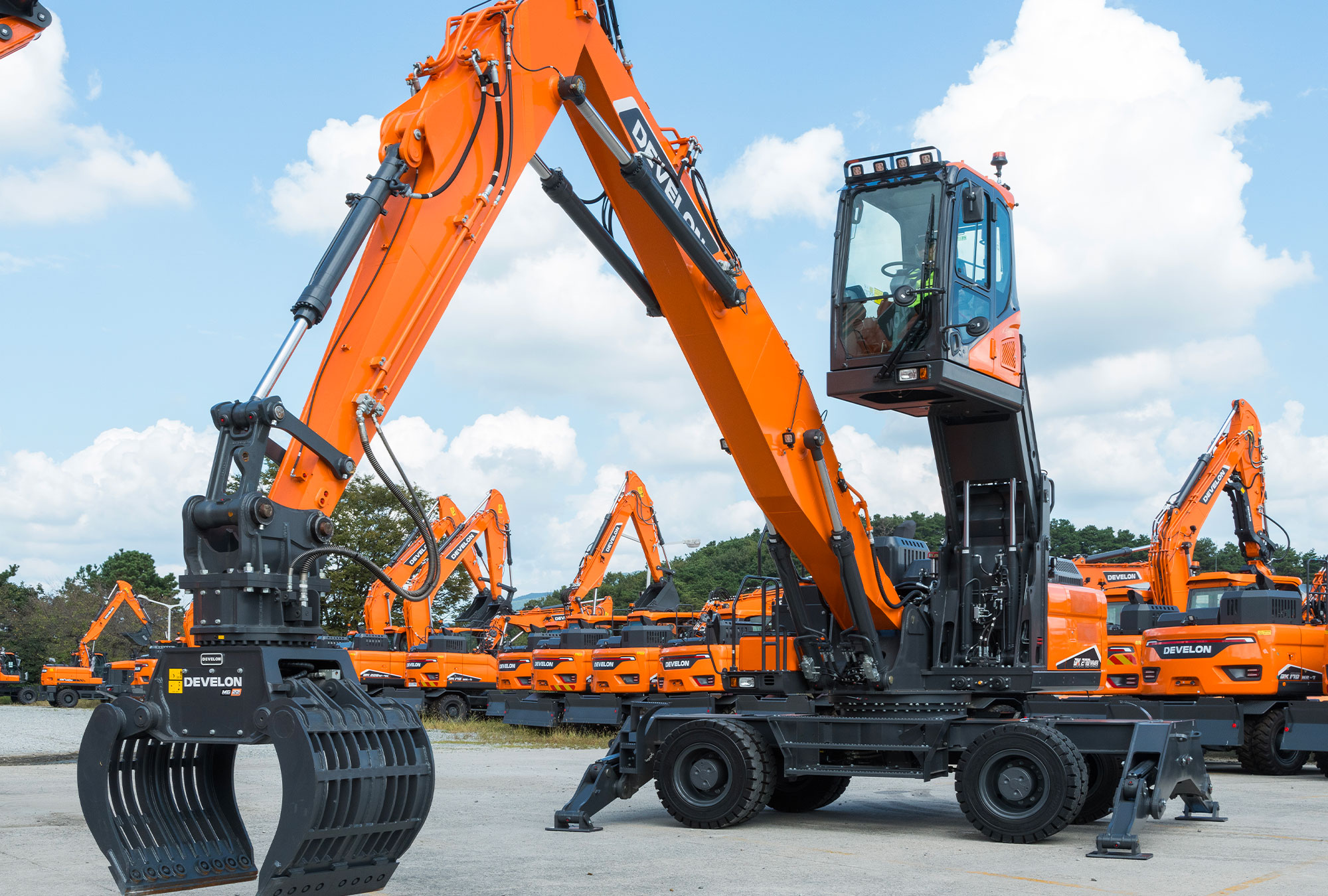

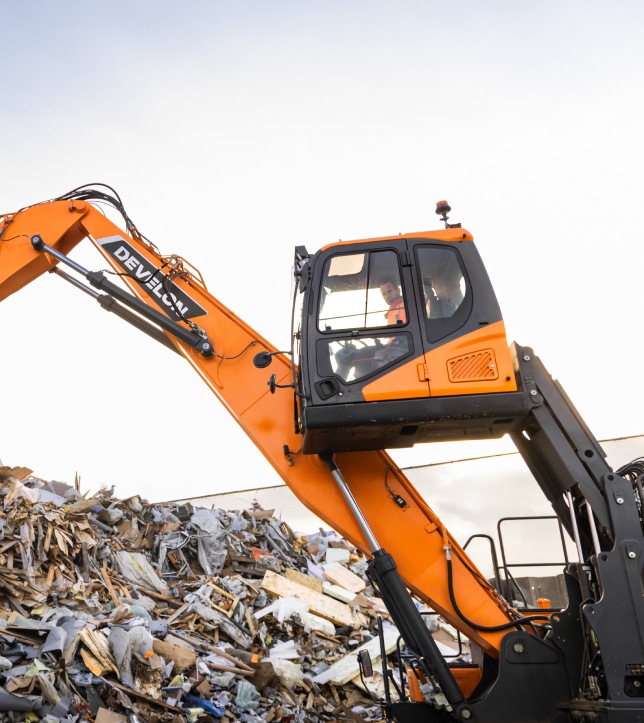

Rising up by an impressive 2.6 meters, the ROPS-certified cab provides one of the highest vantage points in its class, delivering clear visibility and full command of the worksite. Inside, the best-in-class operator environment features an automotive-style heated and air-conditioned cab that maintains the perfect climate regardless of conditions. A wide, intuitive 8” Develon Smart Touch screen makes control navigation effortless, enabling a smoother and well-connected workday.
Features
The ROPS-certified cab rises up by 2.6 meters — among the highest in its class — offering operators clear visibility for safer, more precise control, along with emergency evacuation capabilities even during power loss.

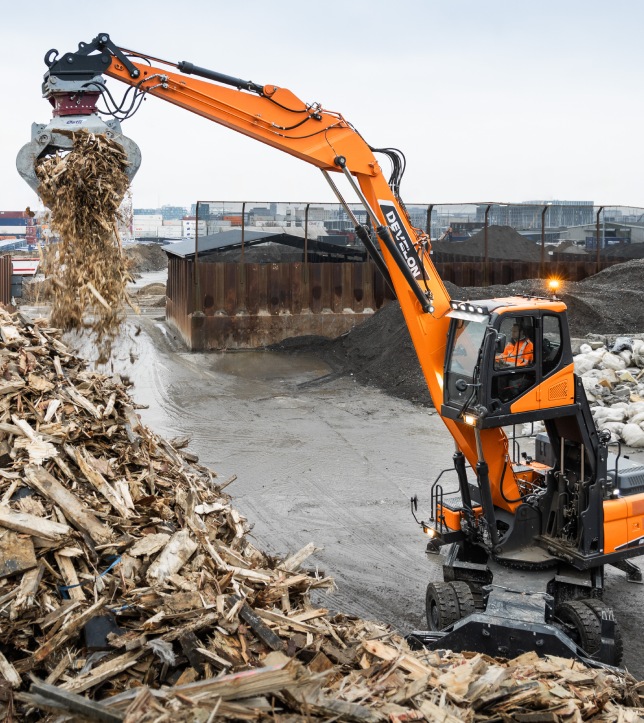

Monitors load capacity in real time, alerting operators to potential overloads to prevent tipping and ensure safe operation.
The virtual wall feature lets operators set movement limits for the boom and arm, preventing accidental contact with ceilings or walls — perfect for working in confined spaces. Combined with the optimized swing device, the machine delivers excellent controllability for safer, more precise operation.

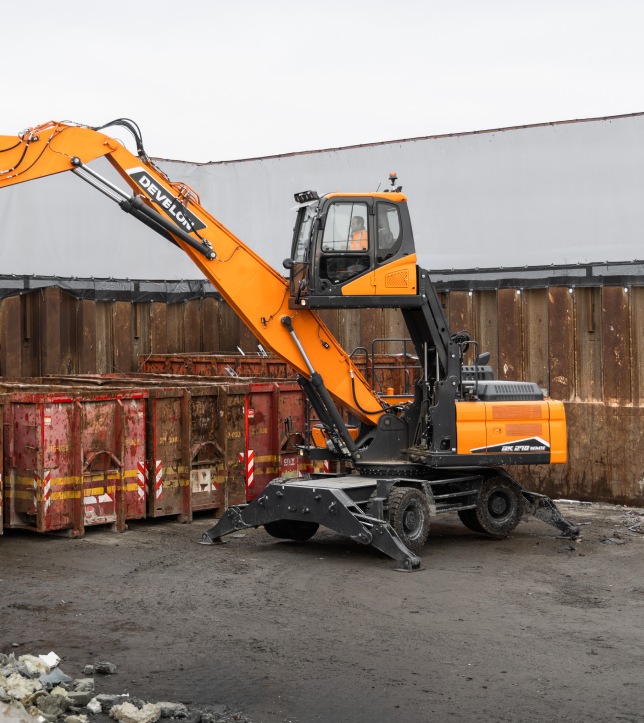

Built for exceptional stability, the wider and longer undercarriage anchors the machine, while four independent stabilizers with cylinder protection provide reliable support for safe and efficient operation.

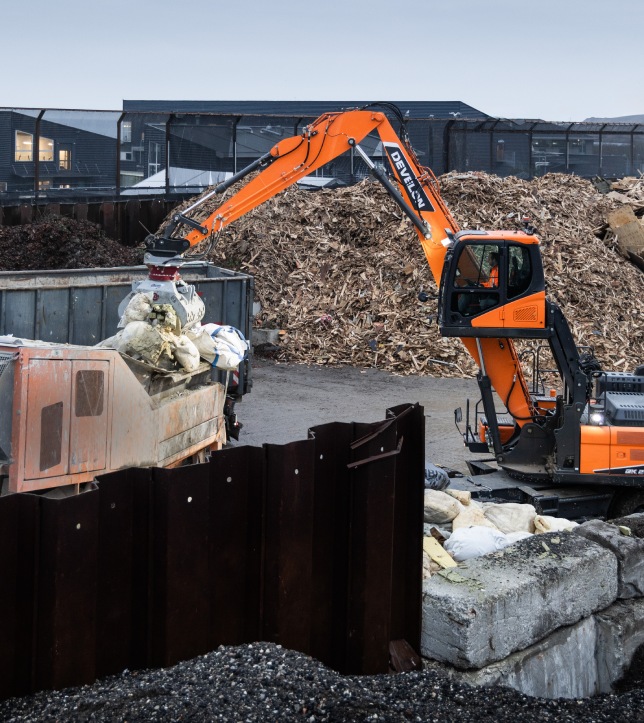

Lift more with each cycle and complete the job faster. Develon material handlers are designed to maximize lifting capability. Selection of front configurations allows you to pick the perfect specification for your jobsite, and you can lift and set material down with total confidence.
The Develon DL06V diesel engine delivers reliable power and fuel efficiency while meeting strict Stage V emission standards. With turbocharger, intercooler, and SCR technology working together, emissions stay low and performance stays strong. The 3rd Generation Smart Power Control adjusts engine speed and pump torque to match the job, optimizing fuel use. Auto shutdown and idle features further reduce fuel consumption, keeping the machine efficient and ready for work.

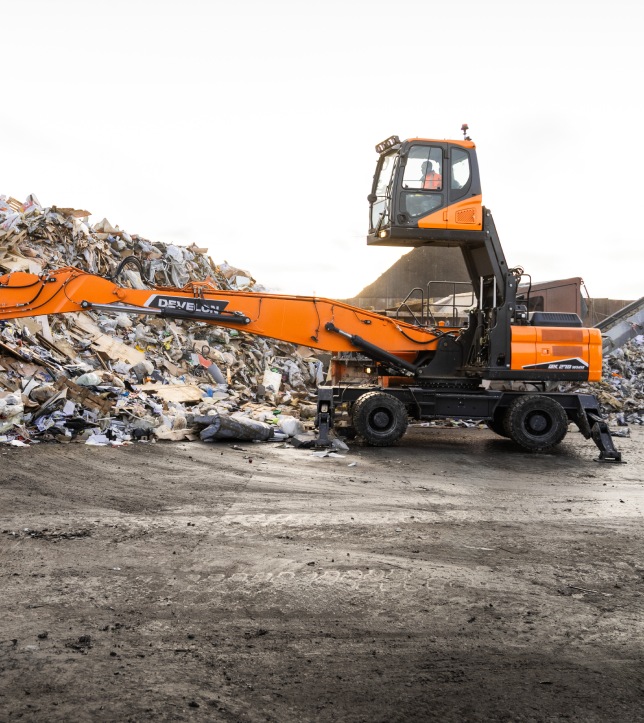

Built for exceptional stability, the DX270WMH-7 features a longer, wider undercarriage and four wide, independently controlled stabilizers with cylinder protection for strong, reliable support. Both front and rear axles are heavy-duty, with the front axle featuring an automatic or manual oscillation lock to further enhance lifting performance and stability during operation.

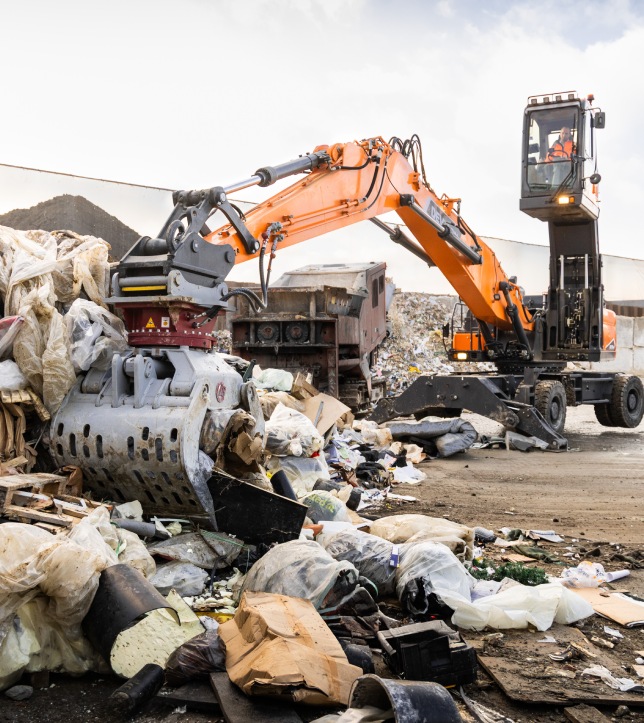

A convenient button on the right-hand joystick provides momentary increased hydraulic power for use on difficult loads that can slow other machines down.

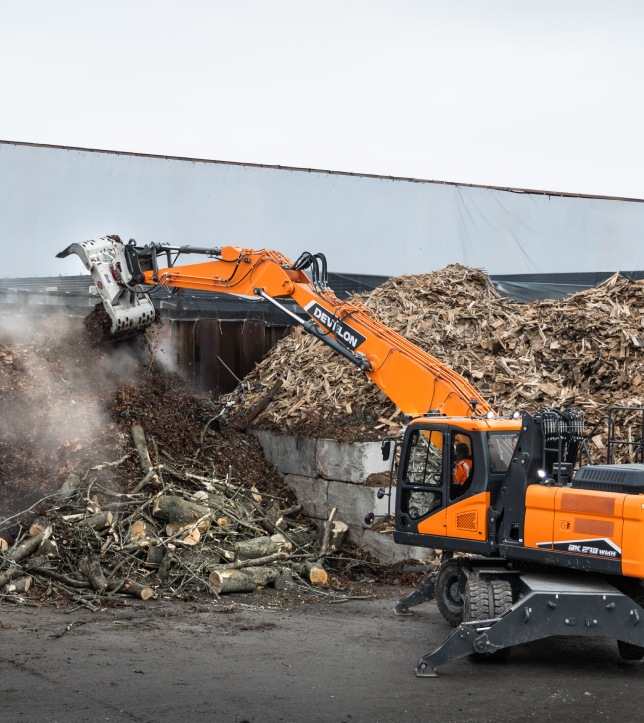

Develon machines are built tough from the ground up. The undercarriage features a strong, welded frame with well-protected hydraulic lines and rear differential guards for lasting durability. Heavy-duty axles and an oscillating axle lock improve stability and performance on rough terrain during digging and lifting. Plus, the boom and arm are reinforced with thicker materials and a lift-optimized design, tested to reduce wear and extend the machine’s lifespan.

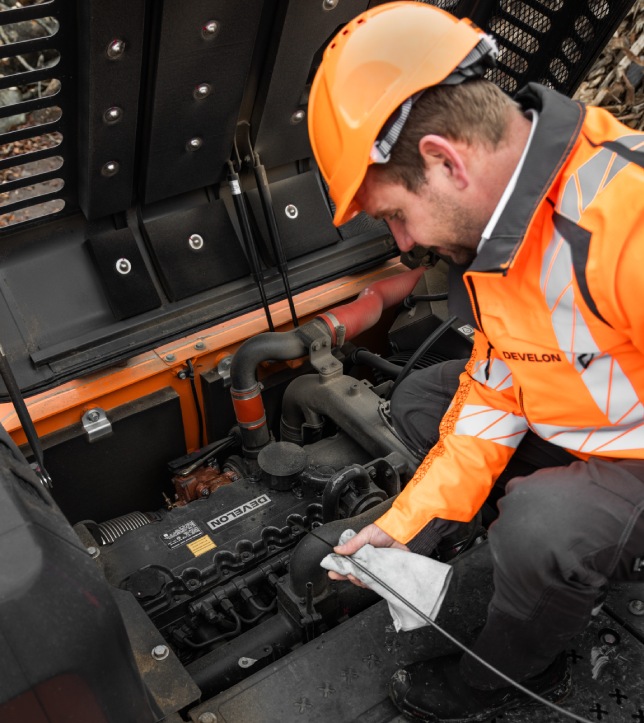

Develon’s advanced filtration system works hard to protect the engine and keep it running at its best. Fuel filters and a water separator trap moisture and impurities, delivering cleaner fuel and cutting down on costly system failures. Meanwhile, the cyclonic air pre-cleaner acts like a shield, preventing mud, snow, rain, and heavy debris from entering the engine. Maintenance-free and self-cleaning, it helps extend engine life so the machine stays strong, job after job.

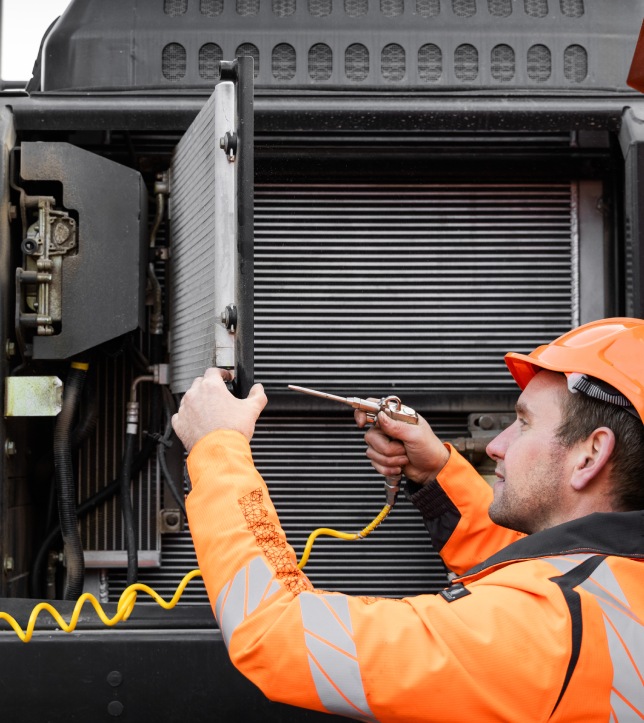

Access panels are easy to find and open from the top and sides of the material handler. A large engine bonnet provides plenty of room to reach the top of the engine. Solid steel side panels provide access to regular daily maintenance items, which makes for quick, easy service and a lower cost of operation.

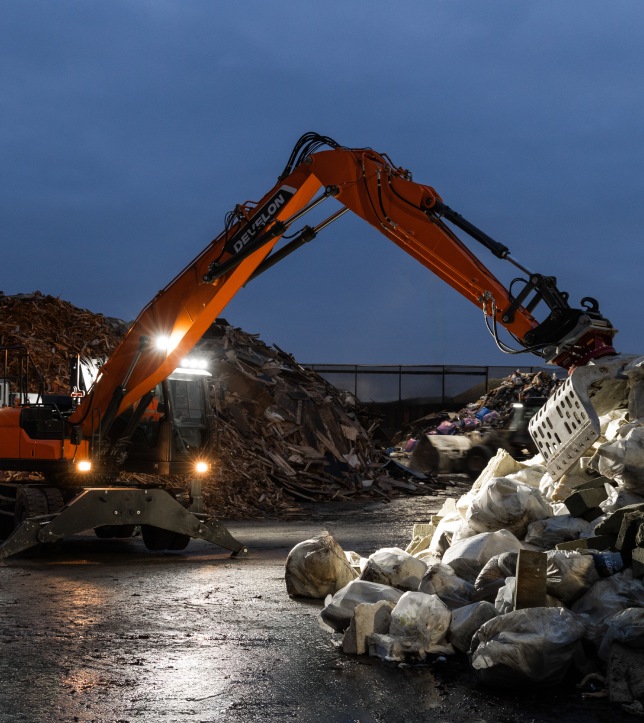

Highly lubricated metal extends boom pivot lifespan and lengthens greasing intervals. EM (Enhanced Macrosurface) bushings optimise greasing and debris removal, while ultra-hard wearresistant discs and polymer shims improve durability.
| Power (SAE J1995) | 141 kW / 189 hp (SAE J1995) |
| Operating weight | 28.3 t |
| Travel speed | 4 / 9 / 19 km/h |
| Engine model | Develon DL06V |
| Max. working reach | 12.41 m |
| Cab elevating height | 2.6 m |
| Number of cylinders | 6 |
| Maximum torque at 1400 rpm | 82 kgf-m |
| Overall width (standard axle/ wide axle) | 2 740 mm |
