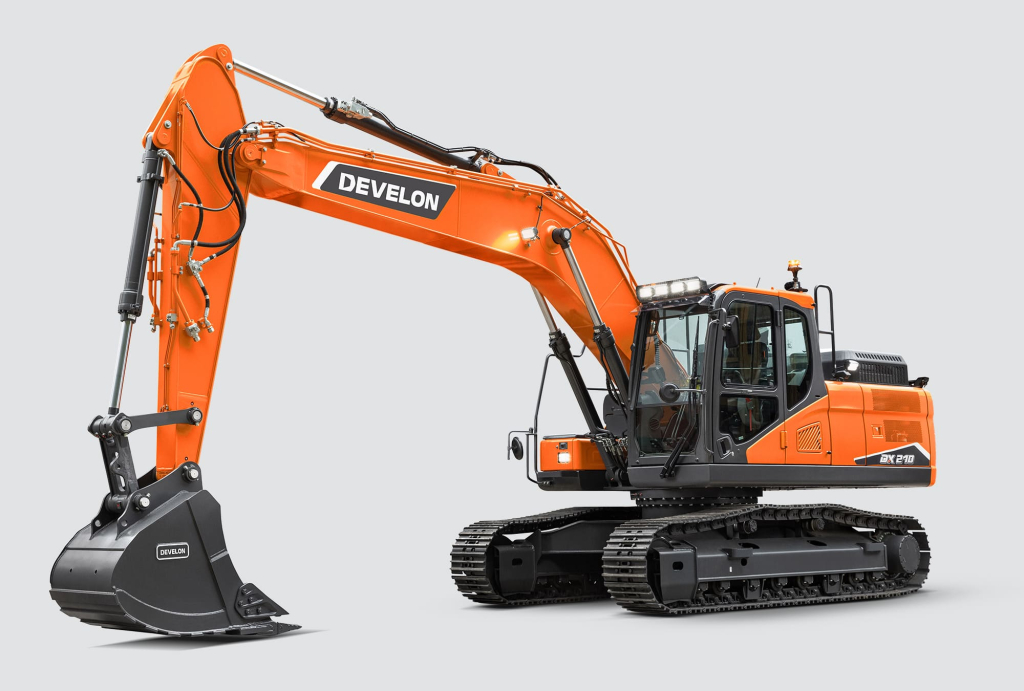

DX210-7
Boost your productivity
Lift your business to the next level with the DX210-7/LC-7/NLC-7 Develon excavators. Exceptionally powerful, yet environmentally friendly, the DX210-7/LC-7/NLC-7 excavators feature extraordinary fuel efficiency.
3 DIFFERENT UNDERCARRIAGES POSSIBLE, TO PERFECTLY MATCH YOUR APPLICATION
DX210-7 – for the best balance between transportability and low ground pressure: Standard undercarriage, 2800 mm width with 600 mm shoes / 2900 mm with 700 mm shoes / 3000 mm with 800 mm shoes.
DX210LC-7 – for the best stability: Long and wide undercarriage, 2990 mm width with 600 mm shoes.
DX210NLC-7 – to meet Italian regulations: Long and narrow undercarriage, 2540 mm width with 500 mm shoes.
Download Brochure
Find a Dealer
Machine Specs
| Maximum power | 166 hp |
| Operating weight | 21.900 kg |
| Bucket capacity | 0.92 m3 |
| Emission standard | Stage V |
| Engine | Develon DL06V |
| Number of cylinders | 6 |
| Engine power | 124 kW / 166 HP @ 1800 RPM |
| Arm lenght | 2400 – 2600 mm |
| Boom lenght | 5600 – 5850 mm |
| BUCKET (Normal/Press. Up) | 15.6 - 16.5 t |
| ARM (Normal/Press. Up) | 10.8 - 11.4 t |
| Main pumps max flow | 2 × 210.6 l/min |
| Buckets | 0.51 - 1.32 m3 |
