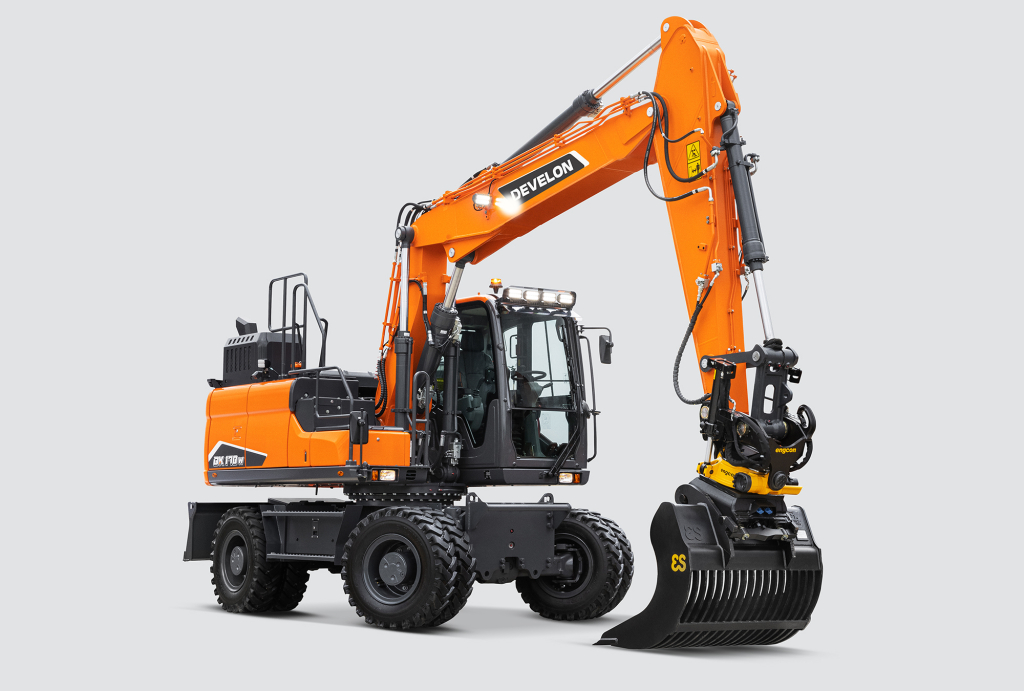

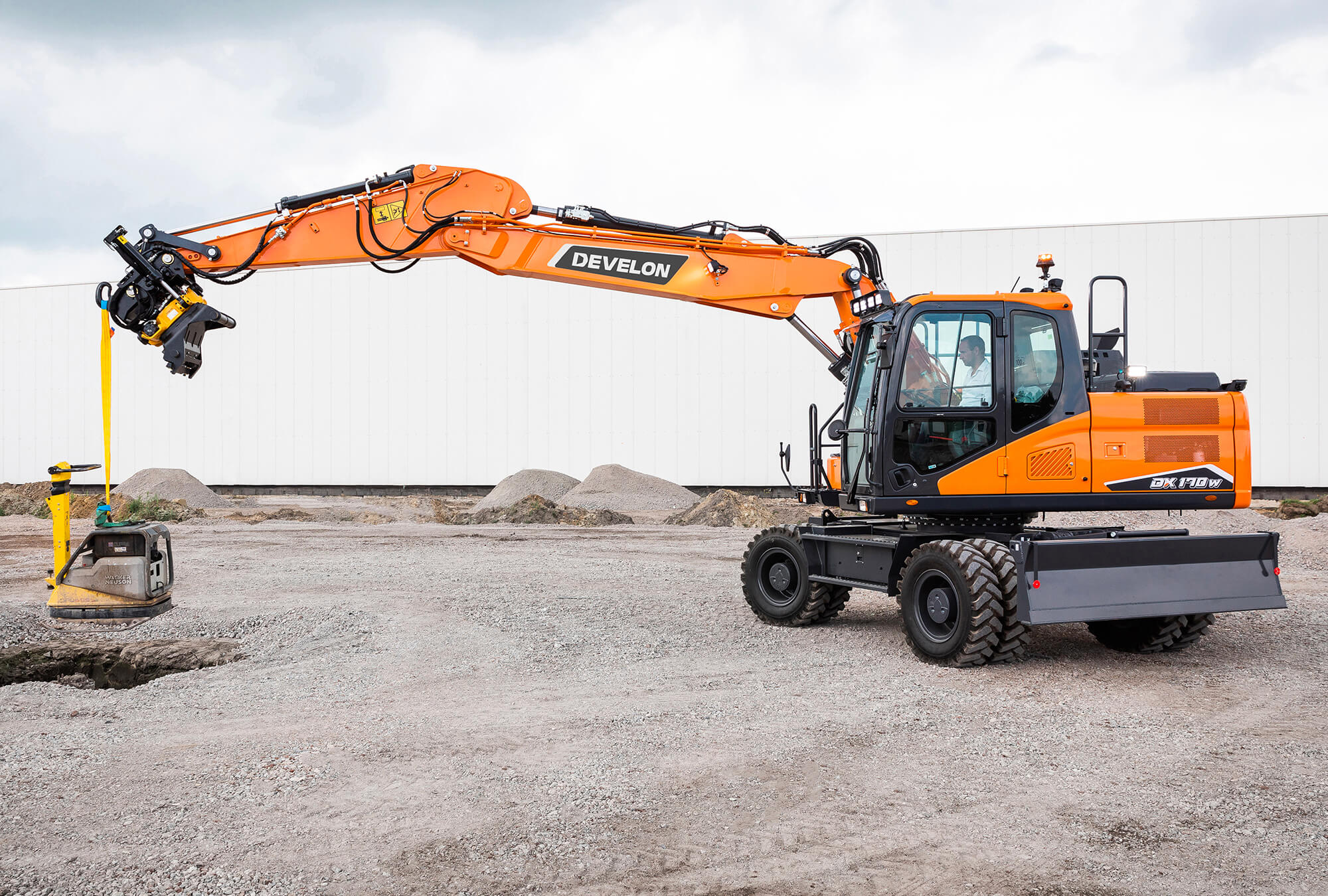

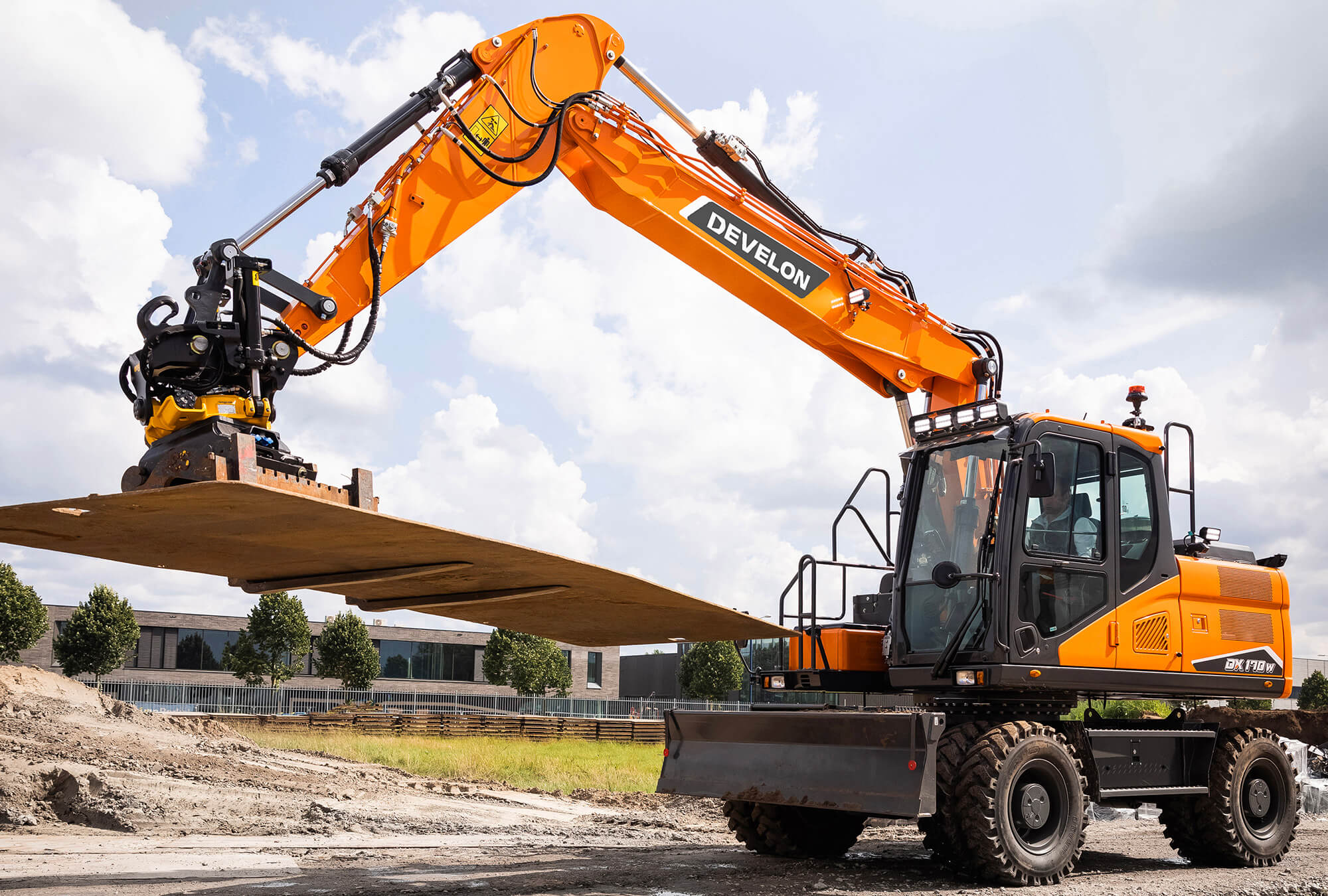

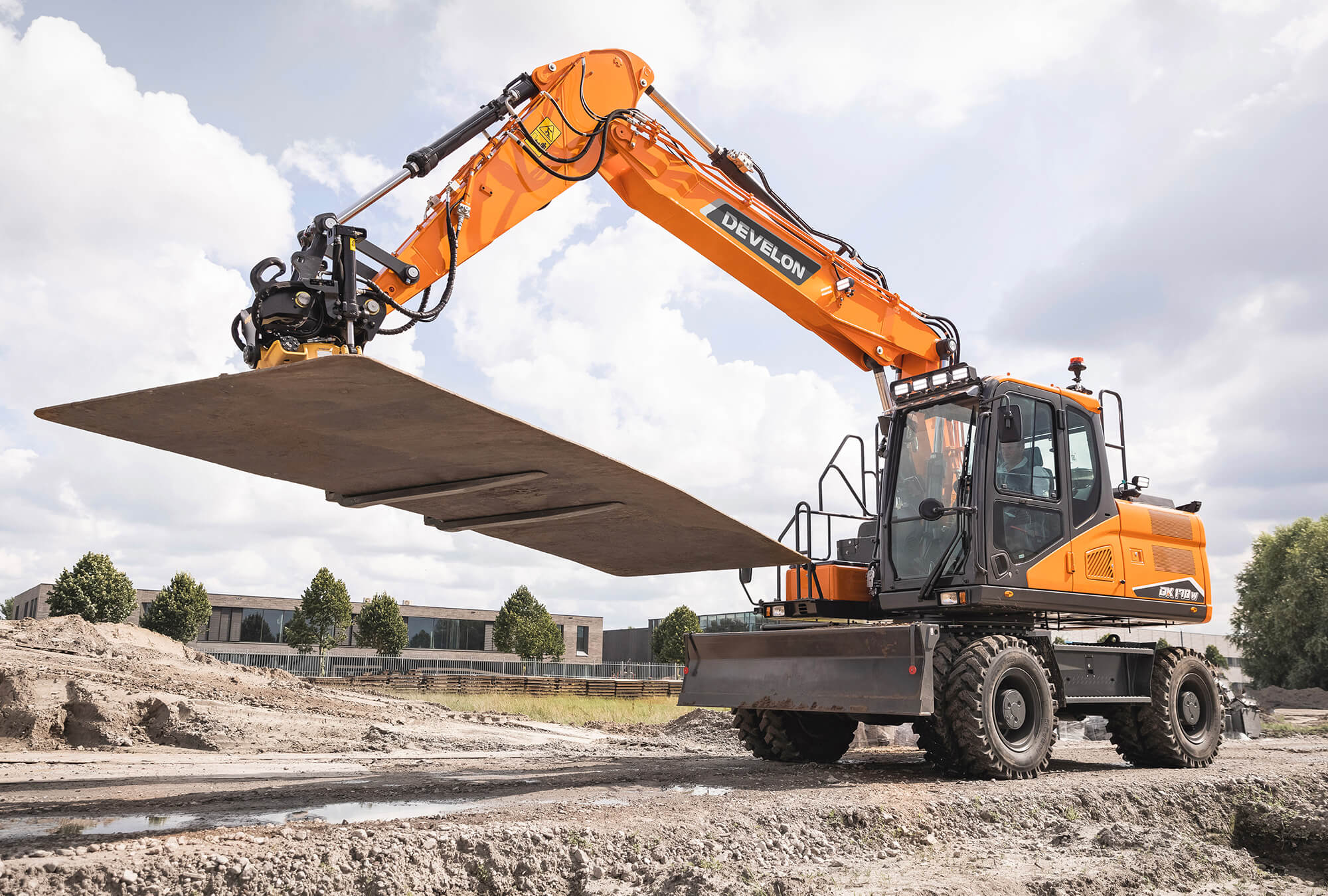

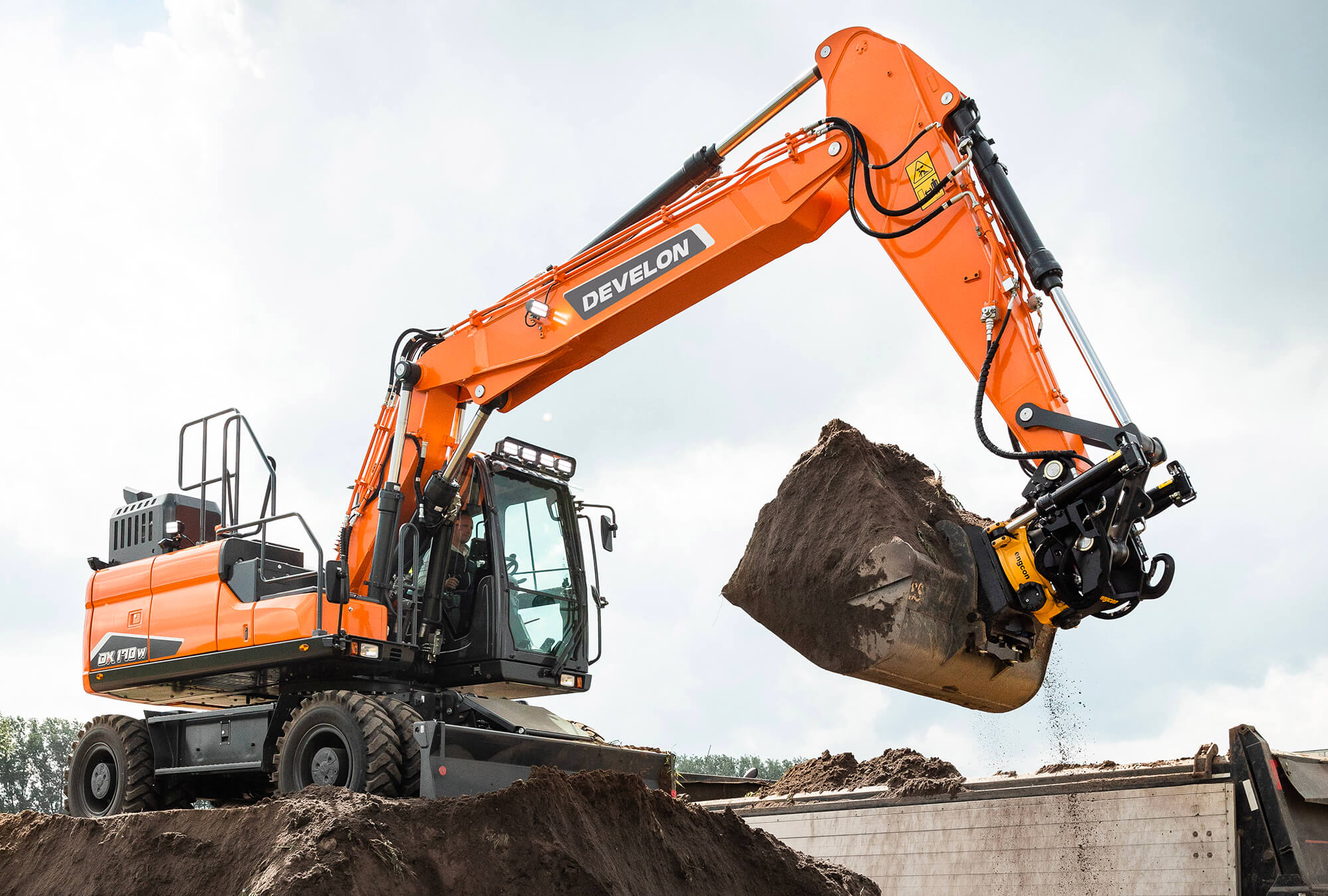

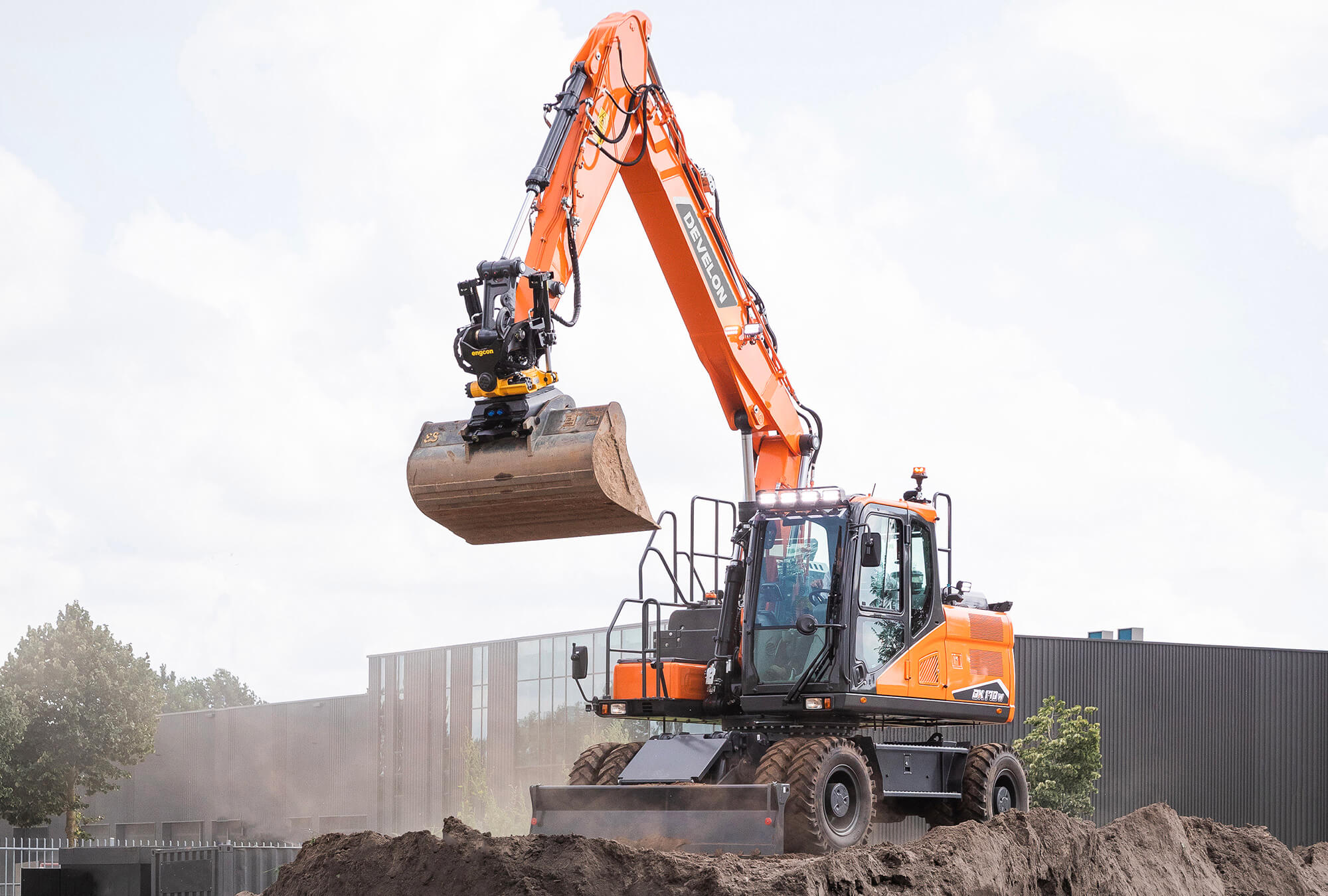

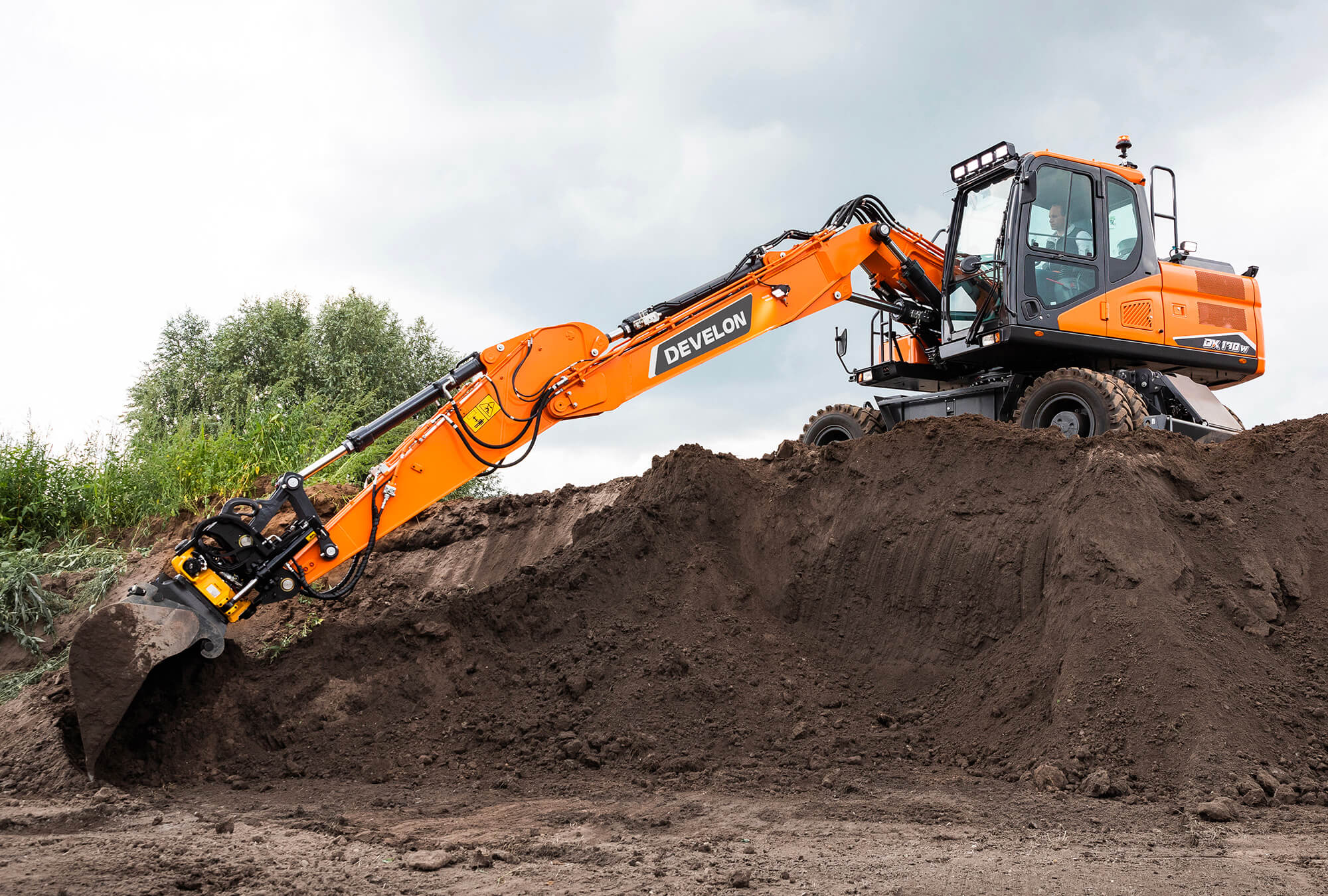

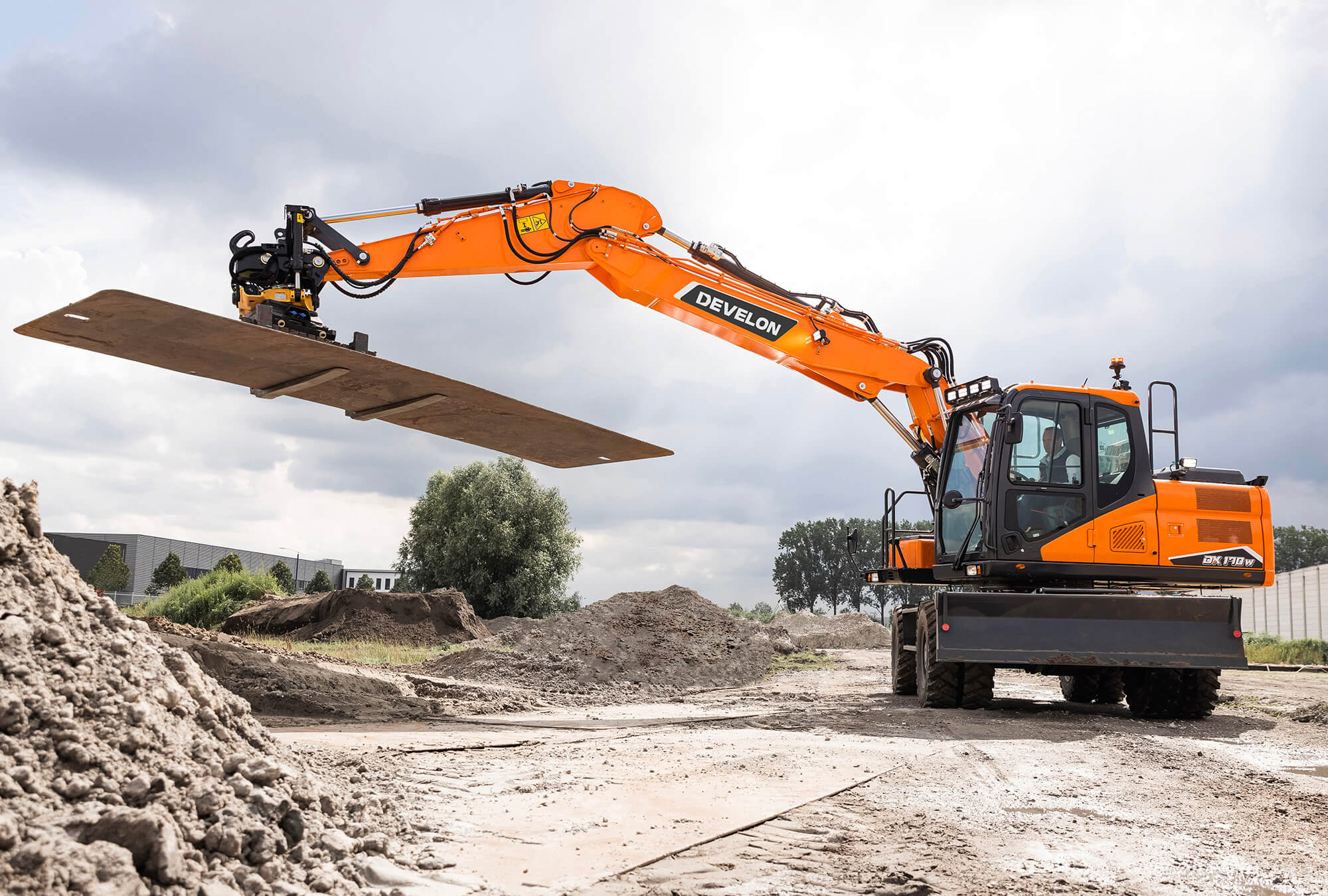

New DX170W-7 Wheeled Excavator offers a host of redesigned features and new technologies to ensure smooth operation, superior productivity and stability, top-class operator comfort and improved fuel efficiency.

Rock-solid in every moment. Thanks to optimized weight distribution, longer wheelbase cast counterweight and optional heavier counterweights for the biggest attachments, the DX-7 Series offers excellent stability for confidence and peace of mind in all situations. Reinforced castings and forged steel pivot points and reinforced heavy-duty arm and boom to withstand high-impact materials. Mono boom or articulated boom for added versatility. Improved hydraulic line routing to protect your investment. Rear and right side cameras as standard, anti-slip steps and platforms, as well as guard rails on upper structure. Optional: a 360° all-around view camera (AVM) can be linked with unique ultrasonic detection for maximum safety while working with people around. Large side mirrors, 9 powerful LED work lights (4 additional lights possible as an option), travel alarm.

New Brand, Same Values: A Story From Netherlands
Machine Specs
Maximum power152 HP
Operating weight17.700 kg
Bucket capacity0.66 m³
Emission standardStage V
EngineDevelon DL06V
Engine power113 kW / 152 hp at 2000 rpm
Overall width (standard / wide axle)2530 mm / 2780 mm
Wheel base2650 mm
Tread width1944 mm
Travel speed (creep / low / high)3 / 10 / 37 km/h
Maximum traction force10800 kg
Minimum turning radius5872 mm
Maximum swing speed10.6 rpm
Maximum swing torque5825 kgf·m
Max. digging reach (Mono / Arti boom)8525 mm / 9140 mm
Max. digging depth (Mono / Arti boom)4920 mm / 5820 mm
Max. digging height (Mono / Arti boom)8975 mm / 10210 mm
Main pumps max flow2 × 167 l/min
Options & Attachments

Quick Coupler

Part namePart #Pin Diameter mmMin - Max Centers x - y )mmBase Width  mmWeight  kg (lbs)
11-17t Quick CouplerQC60 (H) (M)60280 - 480160/210/250330 (150)


Part namePart #Width mmCapacity m3Weight kg
Bucket H14-1200H14-120012000,58592
