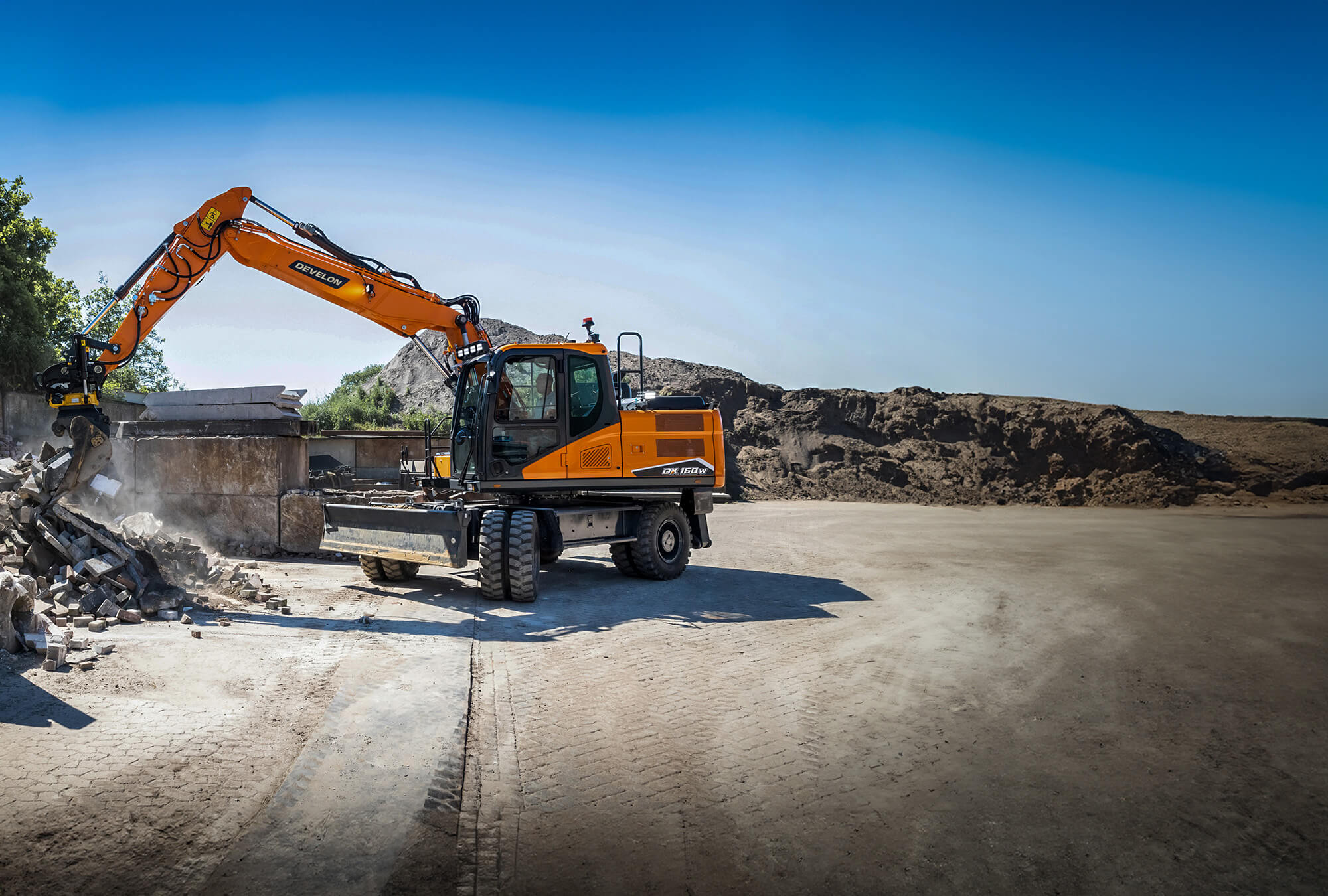

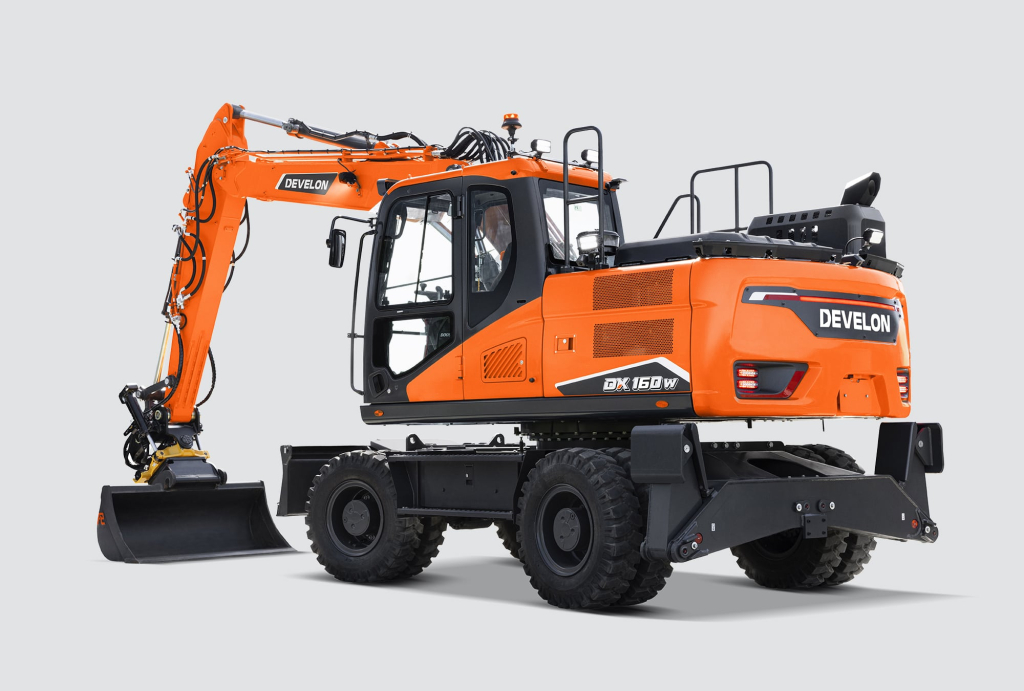

DX160W-7

New WEX-7 Series Wheeled Excavators offers a host of redesigned features and new technologies to ensure smooth operation, superior productivity and stability, top-class operator comfort and improved fuel efficiency.These powerful machines will give your job site a huge boost.

One of the most spacious cabs in the market, with low noise & vibration levels and excellent all-round visibility. Thanks to the premium seat's heating, and even an optional cooling functionality, and improved air ventilation in both the DX140W-7 and DX160W-7, you can focus on the job at hand under all conditions. Rock-solid in every moment. Thanks to optimized weight distribution, longer wheelbase cast counterweight and optional heavier counterweights for the biggest attachments, the DX-7 Series offers excellent stability for confidence and peace of mind in all situations. The DX140W-7 and DX160W-7 are equipped with the latest generation Develon engine. Stage V compliant, this engine boasts extremely low emissions because reducing our environmental impact is paramount to us. Exhaust gases are purified by Selective Catalytic Reduction (SCR) technology, a Diesel Oxidation Catalyst (DOC) and a Diesel Particulate Filter (DPF).

New Brand, Same Values: A Story From Netherlands
Machine Specs
Maximum power137 HP
Operating weight17.000 kg
Buckets0.59 m³
Emission standardStage V
EngineDevelon DL06V
Engine power103 kW / 137 hp at 2000 rpm
Overall width2500 mm
Wheel base2800 mm
Tread width1944 mm
Travel speed (creep / low / high)3.5/ 10 / 37 km/h
Maximum traction force8100 kg
Minimum turning radius65 m
Maximum swing speed1.8 rpm
Maximum swing torque3744 kgf·m
Max. digging reach (Mono / Arti boom)7585 mm / 8700 mm
Max. digging depth (Mono / Arti boom)4490 mm / 5455 mm
Max. digging height (Mono / Arti boom)8195 mm / 9655 mm
Main pumps max flow2 × 167 l/min
Options & Attachments

Quick Coupler

Part namePart #Pin Diameter mmMin - Max Centers x - y )mmBase Width  mmWeight  kg (lbs)
11-17t Quick CouplerQC60 (H) (M)60280 - 480160/210/250330 (150)
11-17t Quick CouplerQC60 (H) (M)71280 - 480160/210/250330 (150)
11-17t Quick CouplerQC60 (H) (M)65280 - 480160/210/250330 (150)

Bucket

Part namePart #Width mmCapacity m3Weight kg
Bucket H14-1200H14-120012000,58592
