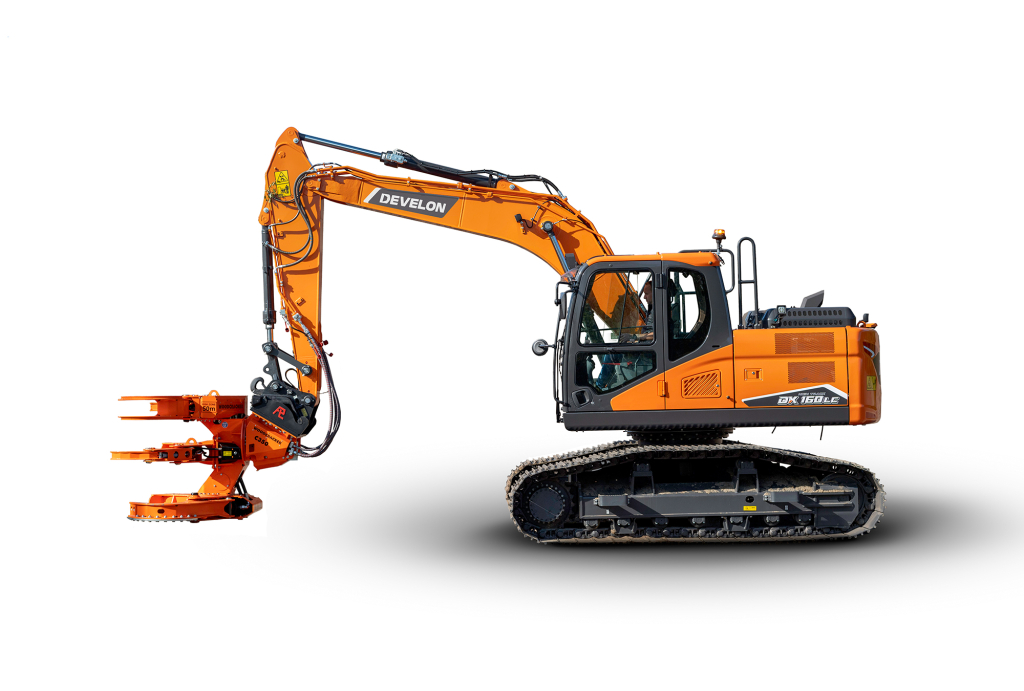

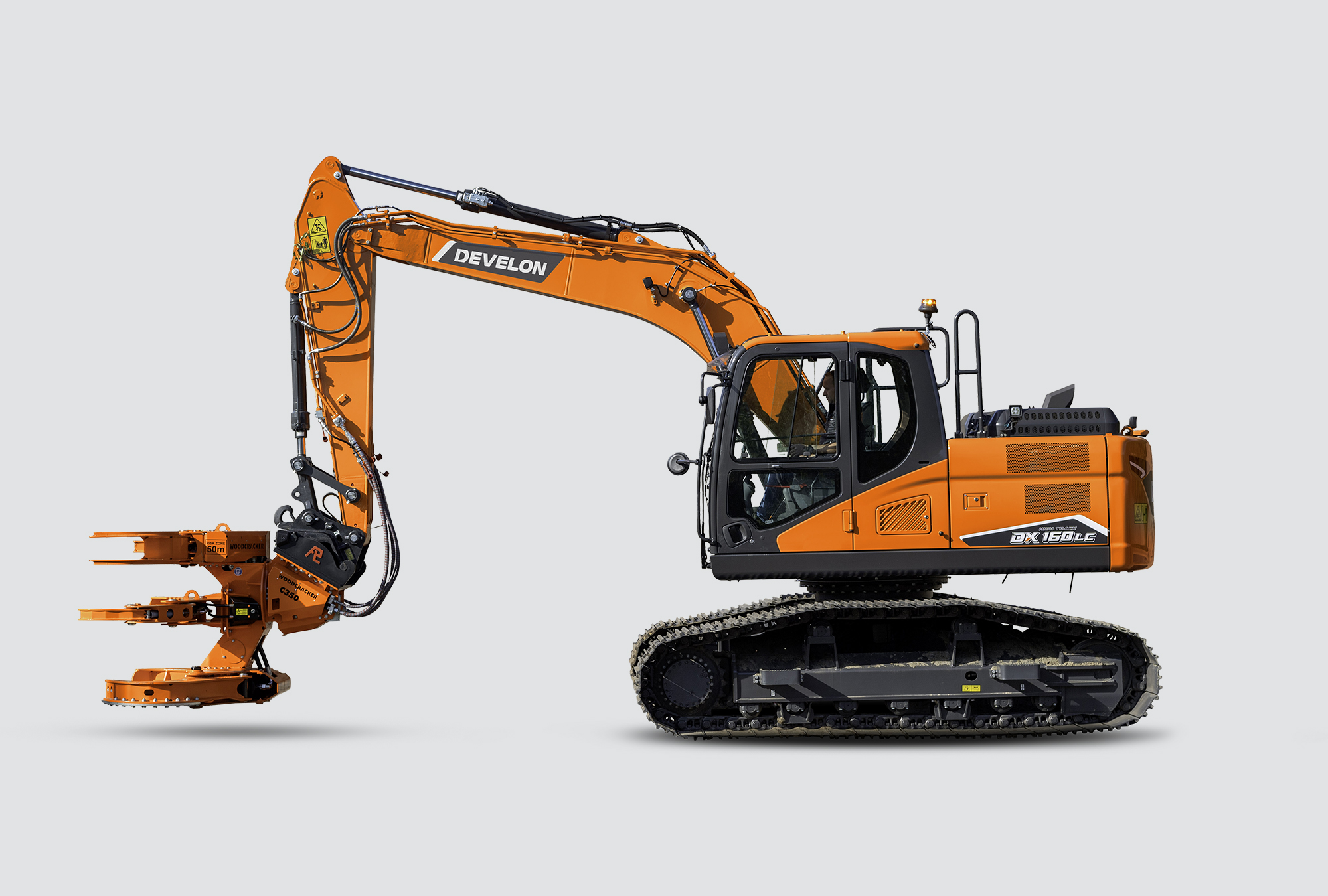

DX160LC-7HT

Maximum power

115 hp

Operating weight

16.8 t

Buckets

0.5 - 0.75 m³

Request a Quote Download Brochure

DX160LC-7HT

Enjoy Unparalleled Efficiency

Exceptionally powerful, yet environmentally-friendly, the DX160LC-7 HT excavator features extraordinary fuel efficiency.

More information

The DX160LC-7 HT is equipped with the latest generation Develon engine. The new Develon engine combines
reliability and low environmental impact. This Stage V compliant 4 cylinder engine delivers 86 kW at 2000 rpm.

Specifications

Machine Specs

Maximum power	115 hp
Operating weight	16.8 t
Buckets	0.5 - 0.75 m³
Emission standard	Stage V
Engine	Develon D34 G2
Engine power	86 kW / 115 HP @ 2000 RPM

Main pumps max flow	2 × 114 l/min
Maximum swing speed	10.13 rpm
Maximum swing torque	4888 kgf·m
Travel speed (low - high)	2.3 - 3.7 km/h
Maximum traction	Low speed 29.7 t / High speed 12 t
Maximum gradeability	35° / 70%
