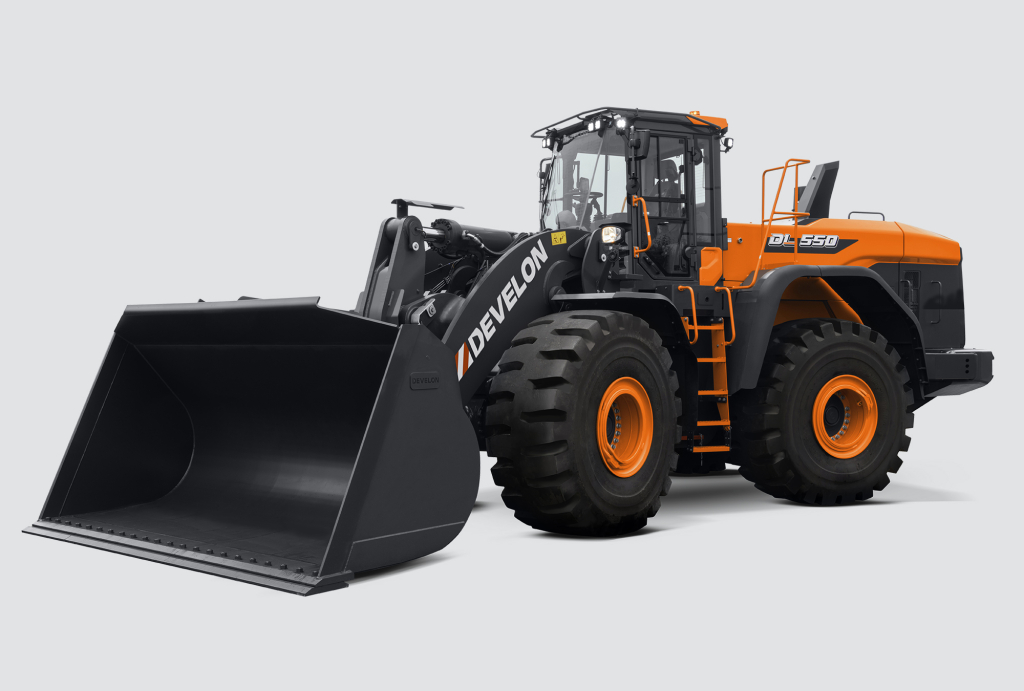

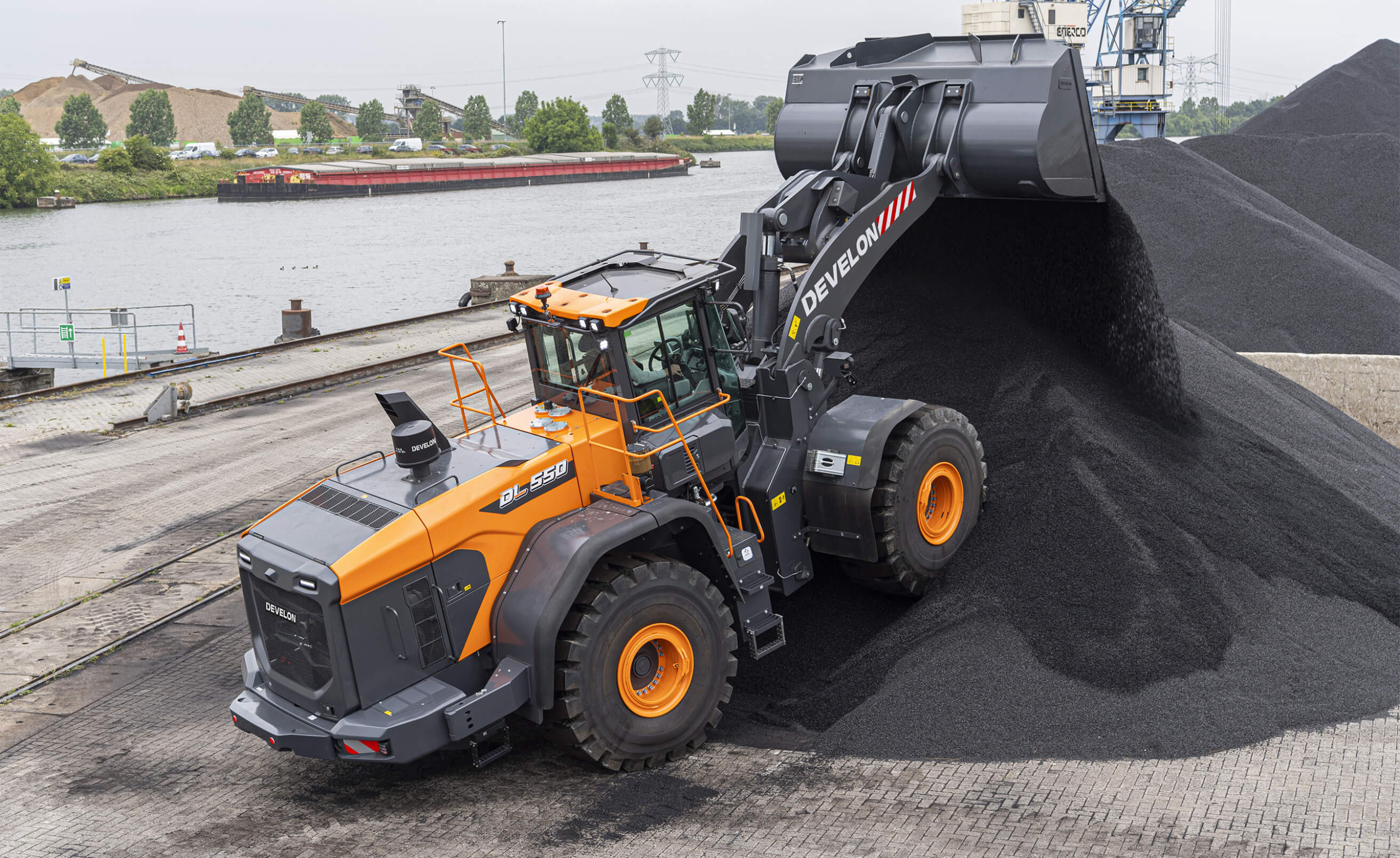

The new DL550-7 Stage V wheel loader, featuring a completely new design, providing higher performance, increased fuel efficiency and a much enhanced environment for the operator compared to the previous Stage IV model.
Exceptional power – combined with the finest workmanship – results in machines that perform at the highest level. The DL550-7 enhance your output from every angle. Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials. Powerful hydraulic system makes work quick and efficient.Scania DC13 engine provides the power you need while meeting Stage V environmental regulations. The combination of these features gives Develon wheel loaders excellent penetration power, ensuring optimum bucket load in each cycle.
|Straight side cutter, teeth, width 3404 mm||5.4 m³|
|Straight side cutter, Bolt-on cutting edge, width 3404 mm||5.7 m³|
|Performance bucket - straight side cutter, teeth, width 3400 mm||5.7 m³|
|Performance bucket - straight side cutter, Bolt-on cutting edge, width 3400 mm||5.9 m³|
|Convex side cutter, teeth, width 3400 mm||5.9 m³|
|Convex side cutter, Bolt-on cutting edge, width 3400 mm||6.1 m³|
Owing to blind spots caused by the buckets on wheel loaders, the area in front of the machine has been considered an area of major concern in terms of safety. The system records images at the front of the wheel loader with two cameras mounted on the top and bottom of the machine and displays the combined images in real time on the monitor in the cab using a curved projection method.
See more information about our Transparent Bucket System.
|Bucket capacity||5.4 m³|
|Tipping load||24.830 kg|
|Static tipping load, at 40°||21.897 kg|
|Length with bucket||9.885 mm|
|Width with bucket||3.400 mm|
|Dump height (at 45°) with bolt-on cutting edge||3.228 mm|
|Dump reach (at 45°) with bolt-on cutting edge||1.504 mm|
|Wheel Base||3.700 mm|
|Engine||Scania DC13 Stage V (6-cylinder )|
|Operating weight||33.209 kg|
|Engine power||283 kW (380 HP) at 1800 rpm|
|Breakout force||230 kN|
