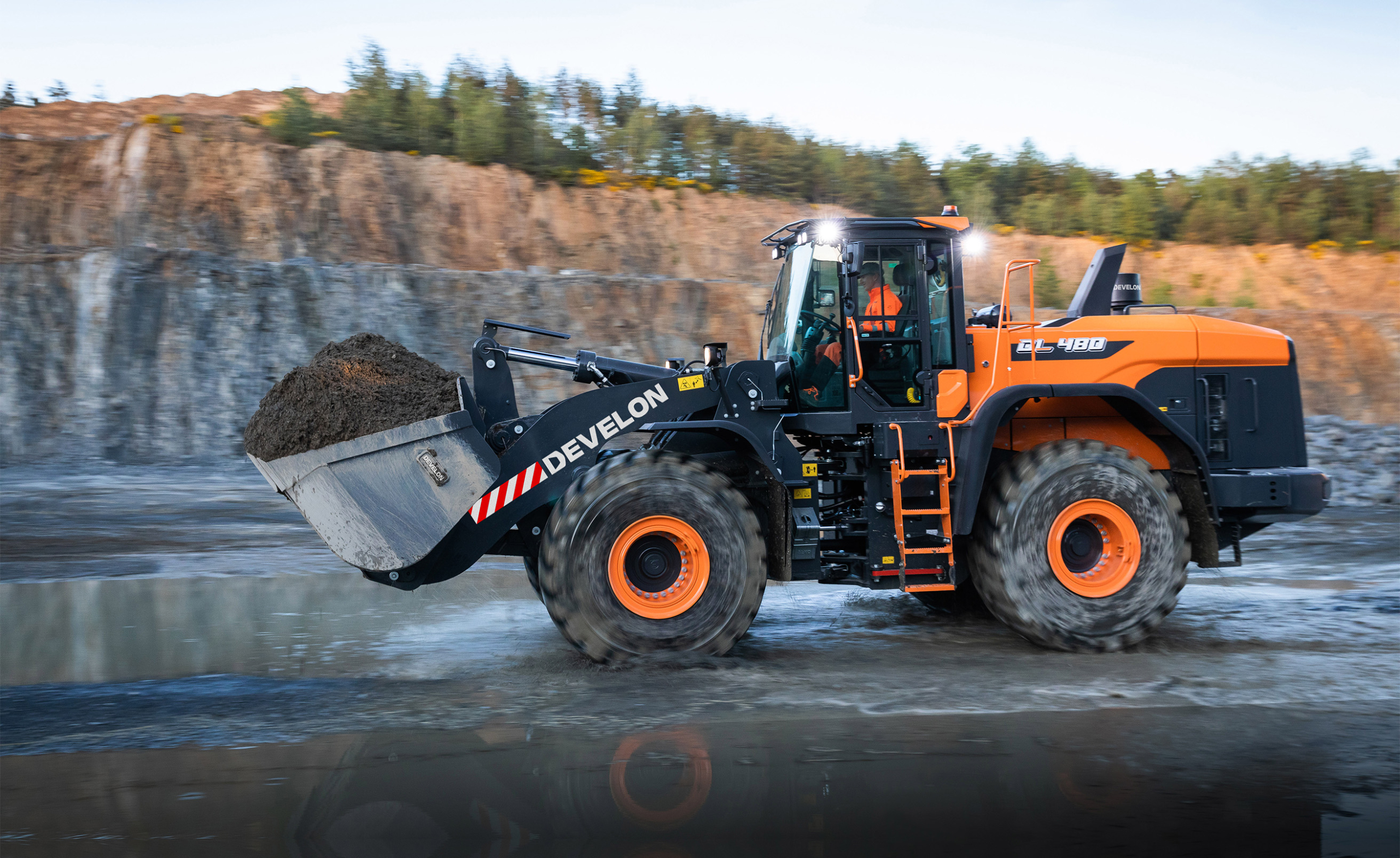

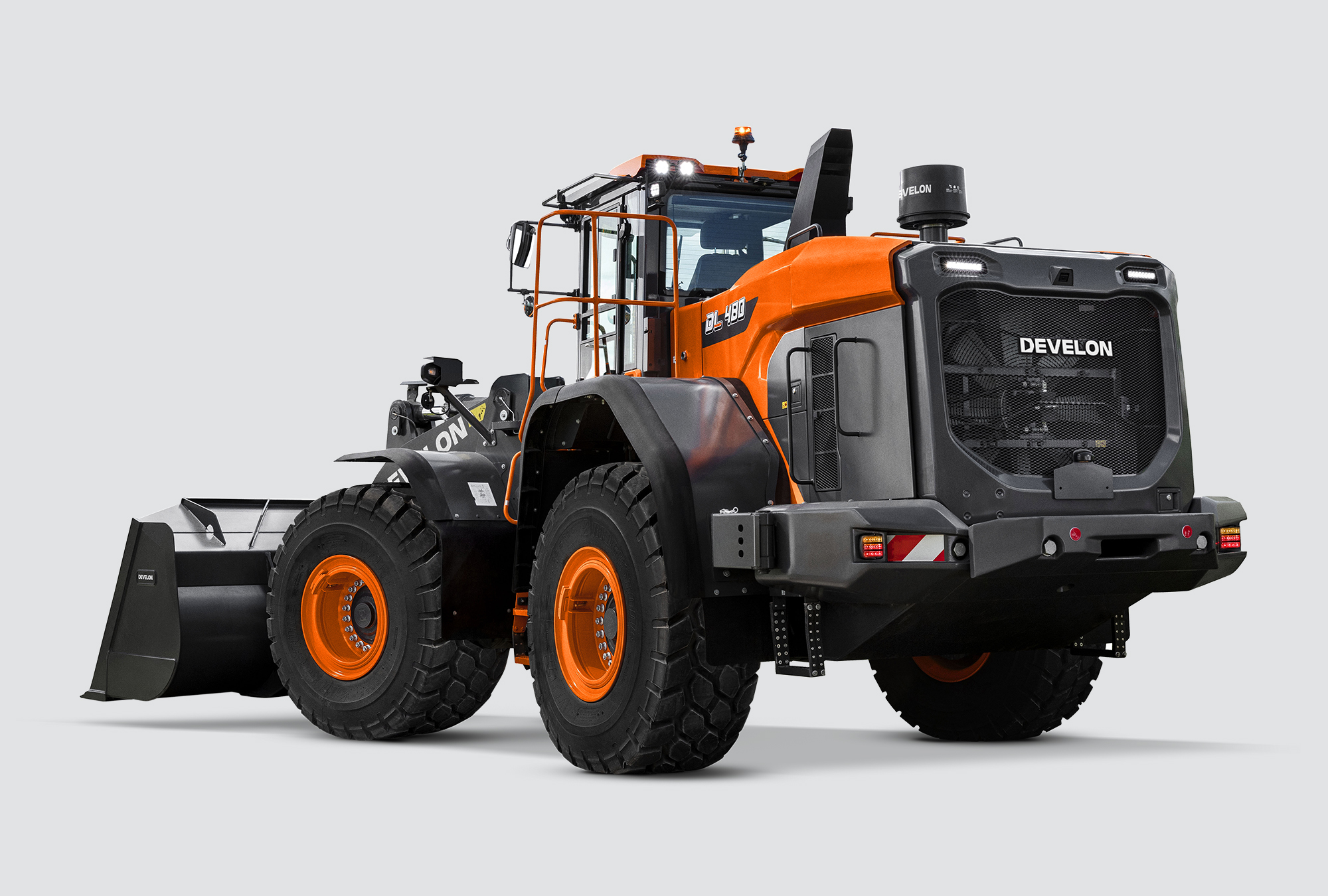

Boost your productivity with the new DL480-7 Develon wheel loader. Exceptional power – combined with the finest workmanship – results in machines that perform at the highest level.
The DL480-7 enhance your output from every angle Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials.
|Straight side cutter, teeth, width 3300 mm||4.8 m³|
|Straight side cutter, Bolt-on cutting edge, width 3300 mm||5.0 m³|
|Performance bucket - straight side cutter, teeth, width 3300 mm||4.8 m³|
|Performance bucket - straight side cutter, Bolt-on cutting edge, width 3300 mm||5.0 m³|
|Convex side cutter, teeth, width 2910 mm||4.8 m³|
|Convex side cutter, Bolt-on cutting edge, width 2910 mm||5.0 m³|
Owing to blind spots caused by the buckets on wheel loaders, the area in front of the machine has been considered an area of major concern in terms of safety. The system records images at the front of the wheel loader with two cameras mounted on the top and bottom of the machine and displays the combined images in real time on the monitor in the cab using a curved projection method.
See more information about our Transparent Bucket System.
|Bucket capacity||4.8 m³|
|Tipping load||20.769 kg|
|Static tipping load, at 40°||18.331 kg|
|Length with bucket||9.363 mm|
|Width with bucket||3.300 mm|
|Dump height (at 45°) with bolt-on cutting edge||3.088 mm|
|Dump reach (at 45°) with bolt-on cutting edge||1.452 mm|
|Engine||Scania DC13 Stage V (6-cylinder)|
|Operating weight||26.410 kg|
|Engine power||257 kW (345 HP) at 1800 rpm|
|Breakout force||231 kN|
