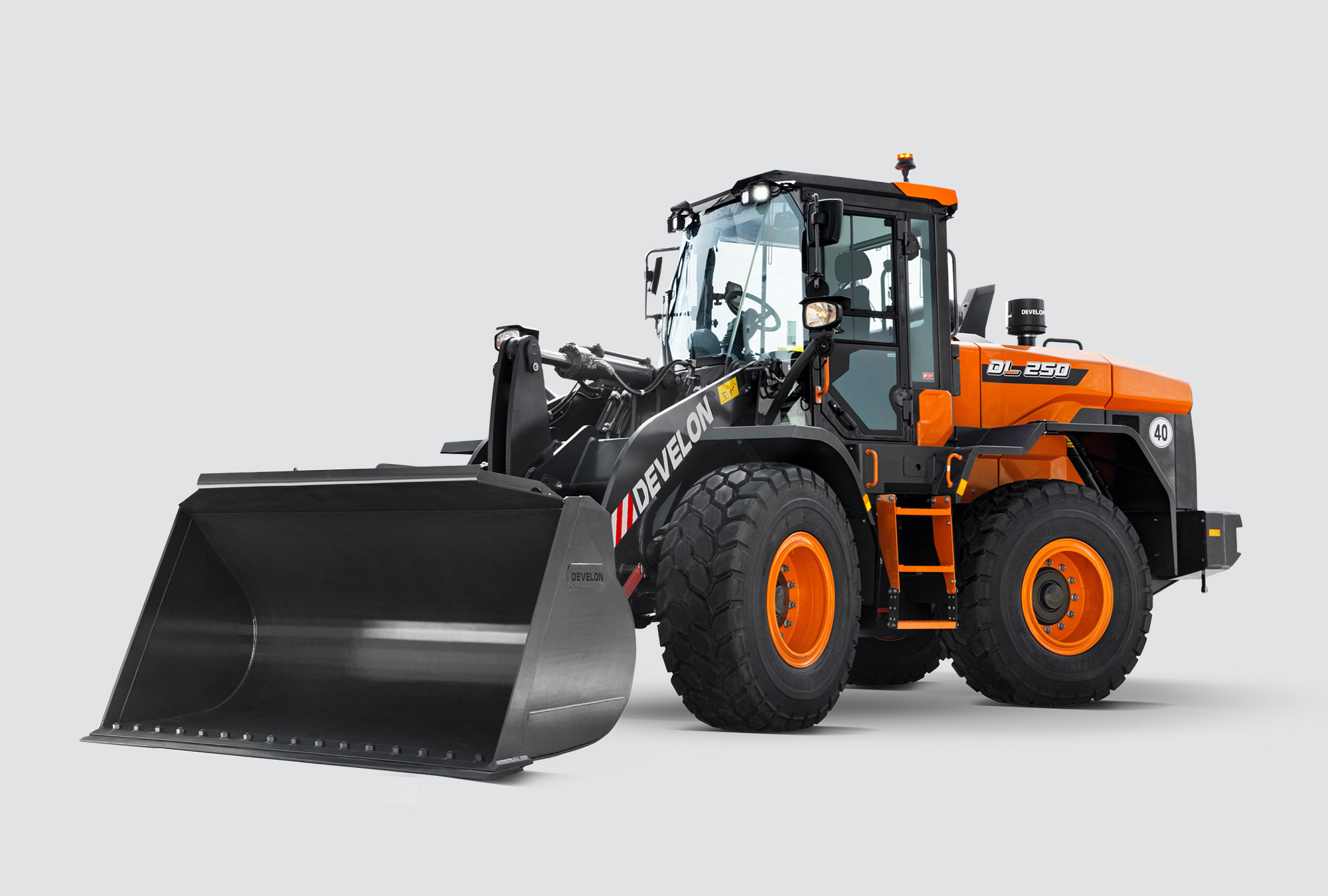

DL250-7

Boost your productivity with the new DL250-7 Develon wheel loader. Exceptional power – combined with the finest workmanship – results in a machine that performs at the highest level.


The DL250-7 enhances your output from every angle Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials.

General Purpose Buckets

General purpose

Straight side cutter, teeth, width 2740 mm 2.4 m³
Straight side cutter, Bolt-on cutting edge, width 2740 mm 2.5 m³
Performance bucket - straight side cutter, teeth, width 2550 mm 2.6 m³
Performance bucket - straight side cutter, Bolt-on cutting edge, width 2550 mm 2.7 m³

Material handling

Convex side cutter, teeth, width 2550 mm 2.6 m³
Convex side cutter, Bolt-on cutting edge, width 2550 mm 2.7 m³
Transparent Bucket System

Owing to blind spots caused by the buckets on wheel loaders, the area in front of the machine has been considered an area of major concern in terms of safety. The system records images at the front of the wheel loader with two cameras mounted on the top and bottom of the machine and displays the combined images in real time on the monitor in the cab using a curved projection method.



See more information about our Transparent Bucket System.


New Brand, Same Values: A Story From Germany
Machine Specs
Bucket capacity2.5 m³
Tipping load11.015 kg
Static tipping load, at 40°9.809 kg
Length with bucket7.887 mm
Width with bucket2.539 mm
Height3.313 mm
Dump height (at 45°) with bolt-on cutting edge2.762 mm
Dump reach (at 45°) with bolt-on cutting edge1.017 mm
Wheelbase3.050 mm
EngineDevelon DL06 Stage V (6-cylinder)
Operating weight13.847 kg
Engine power128 kW (172 HP) at 2100 rpm
Breakout force116 kN
