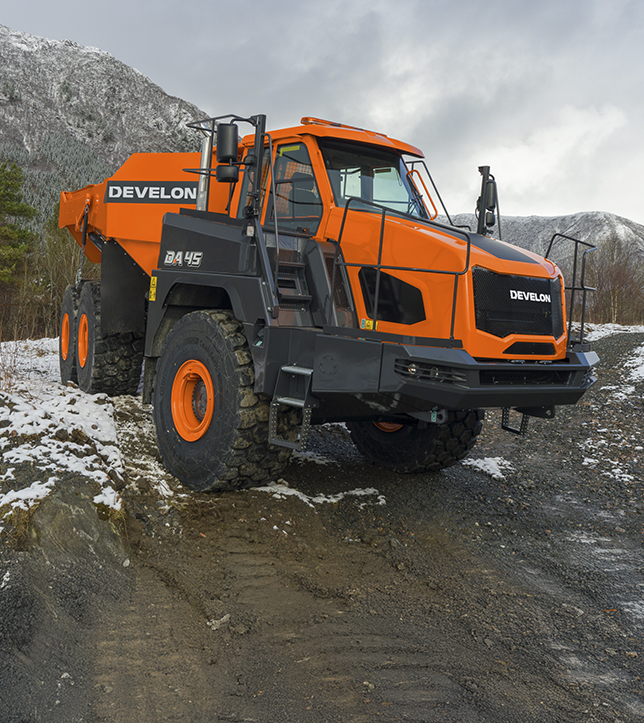

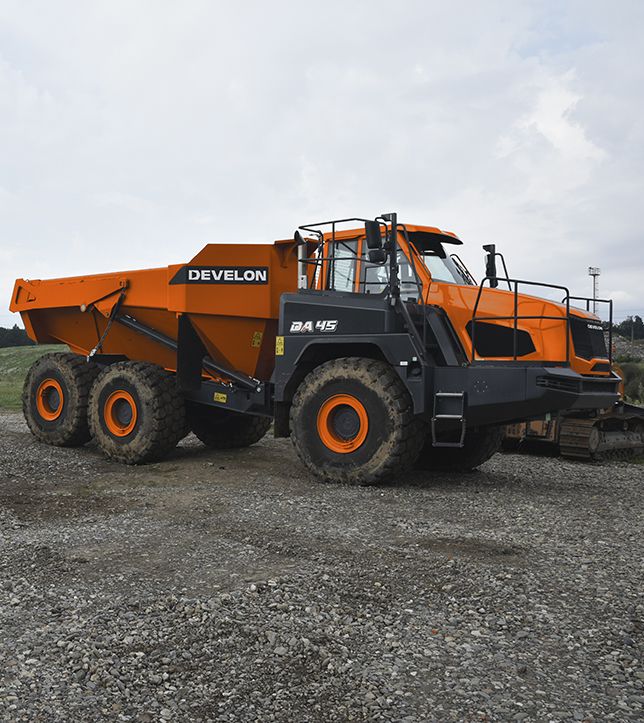

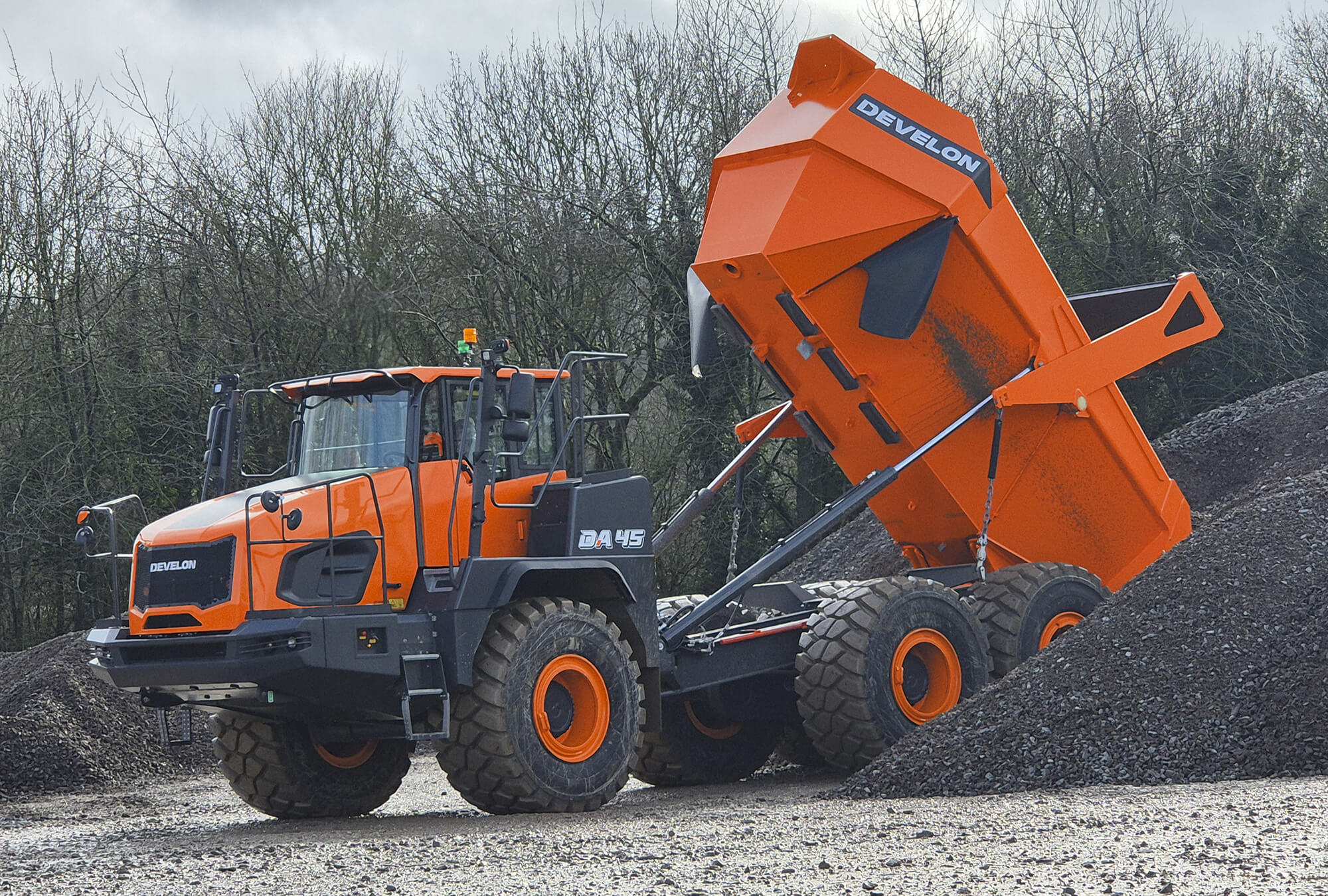

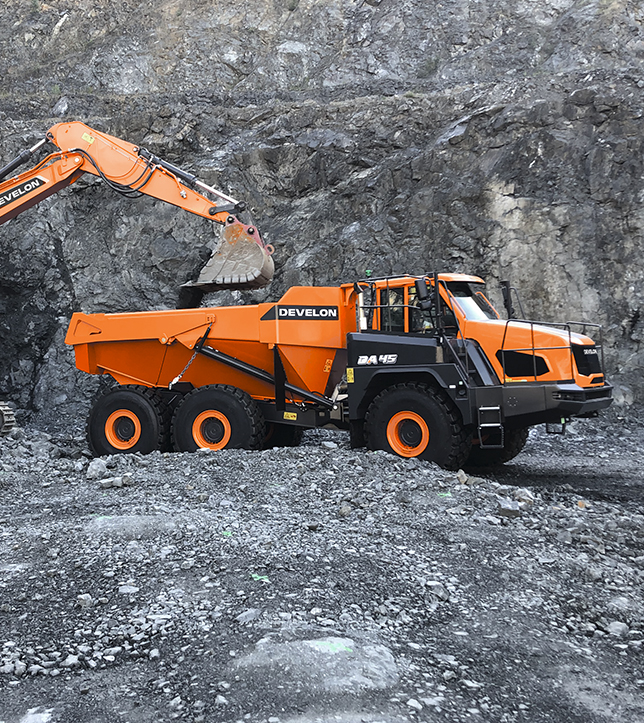

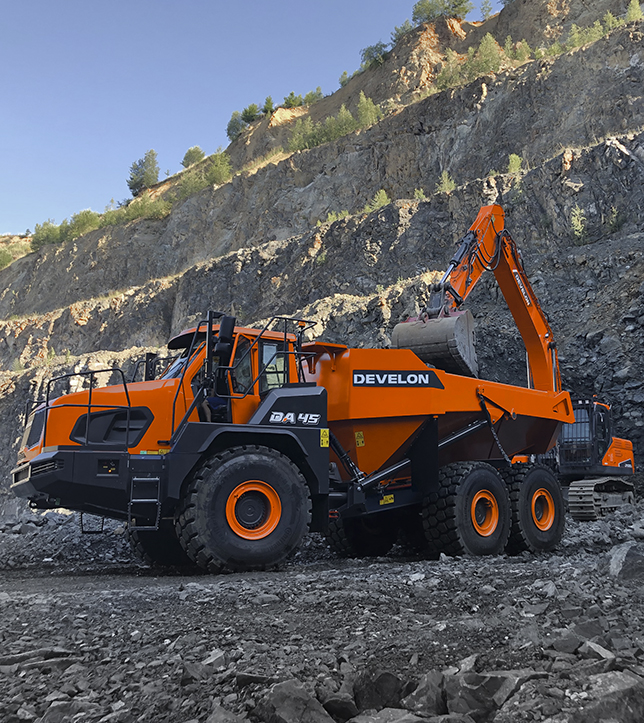

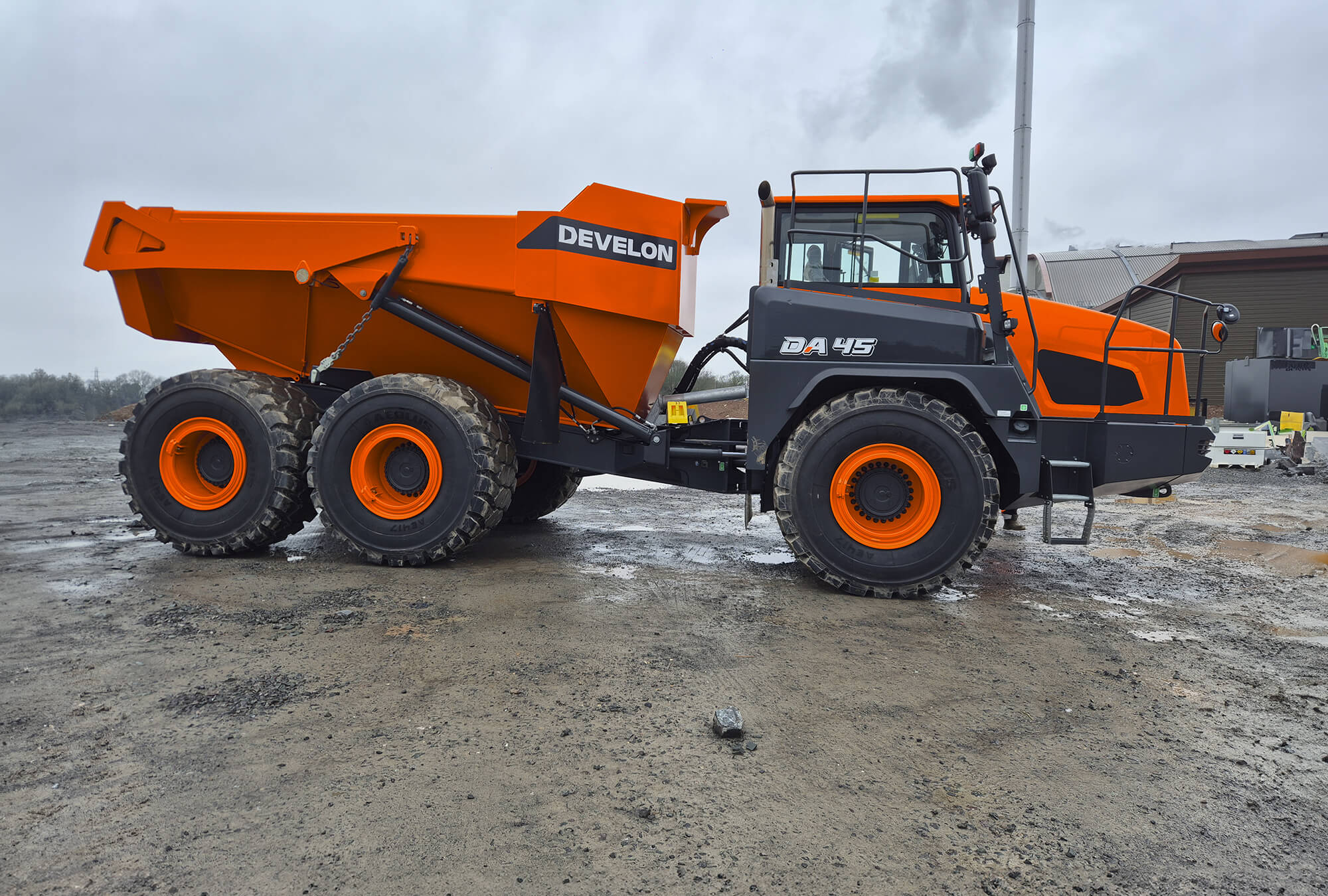

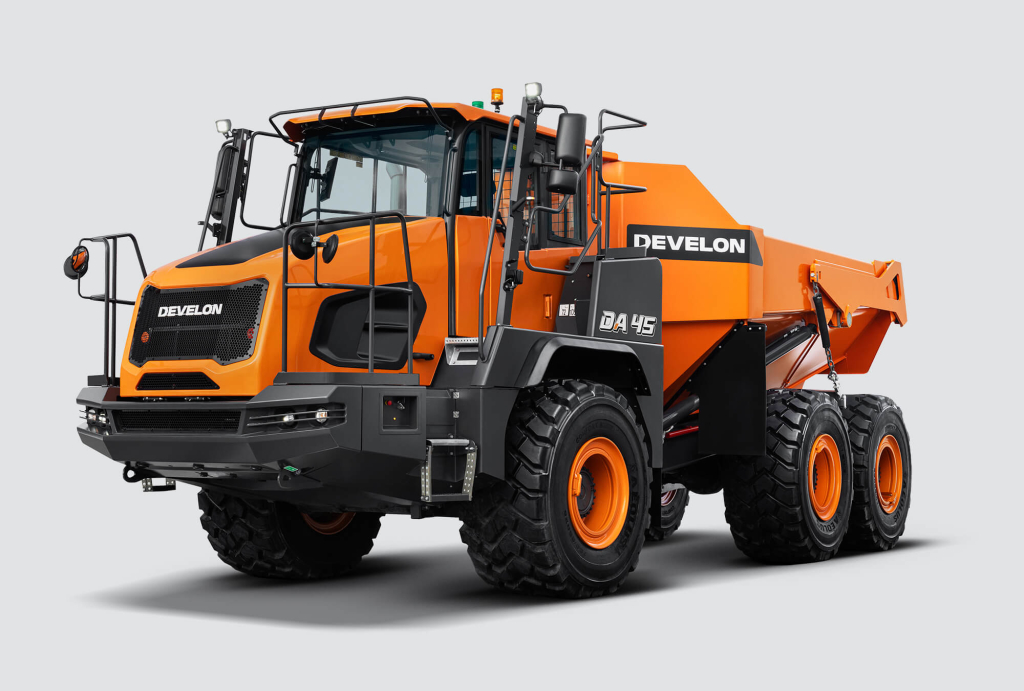

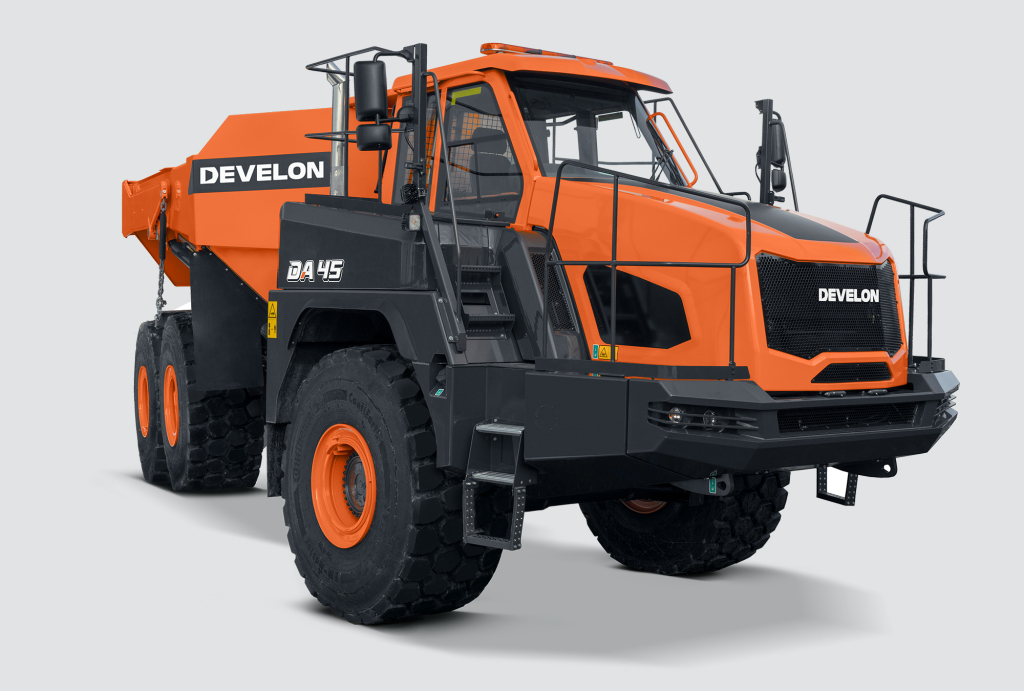

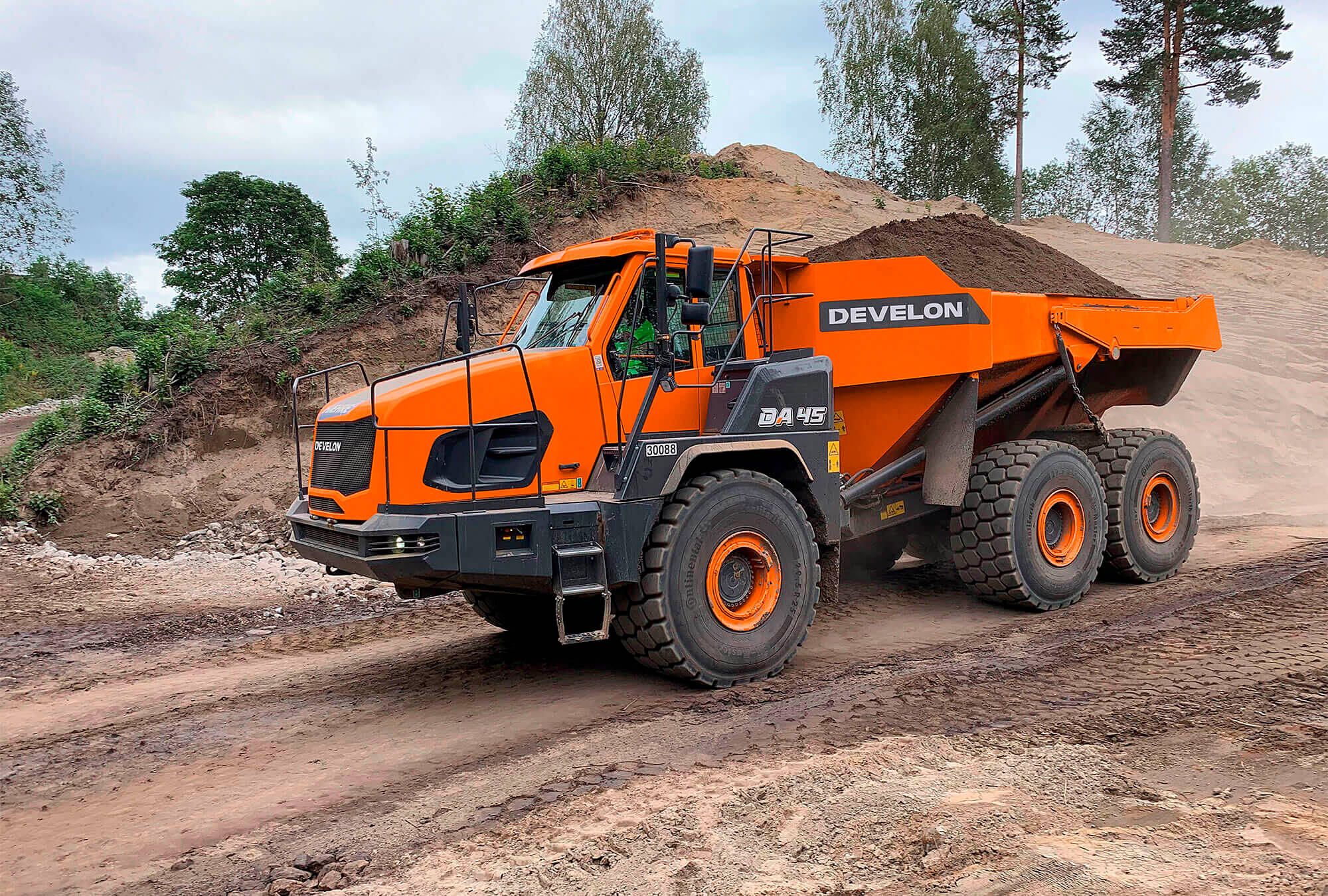

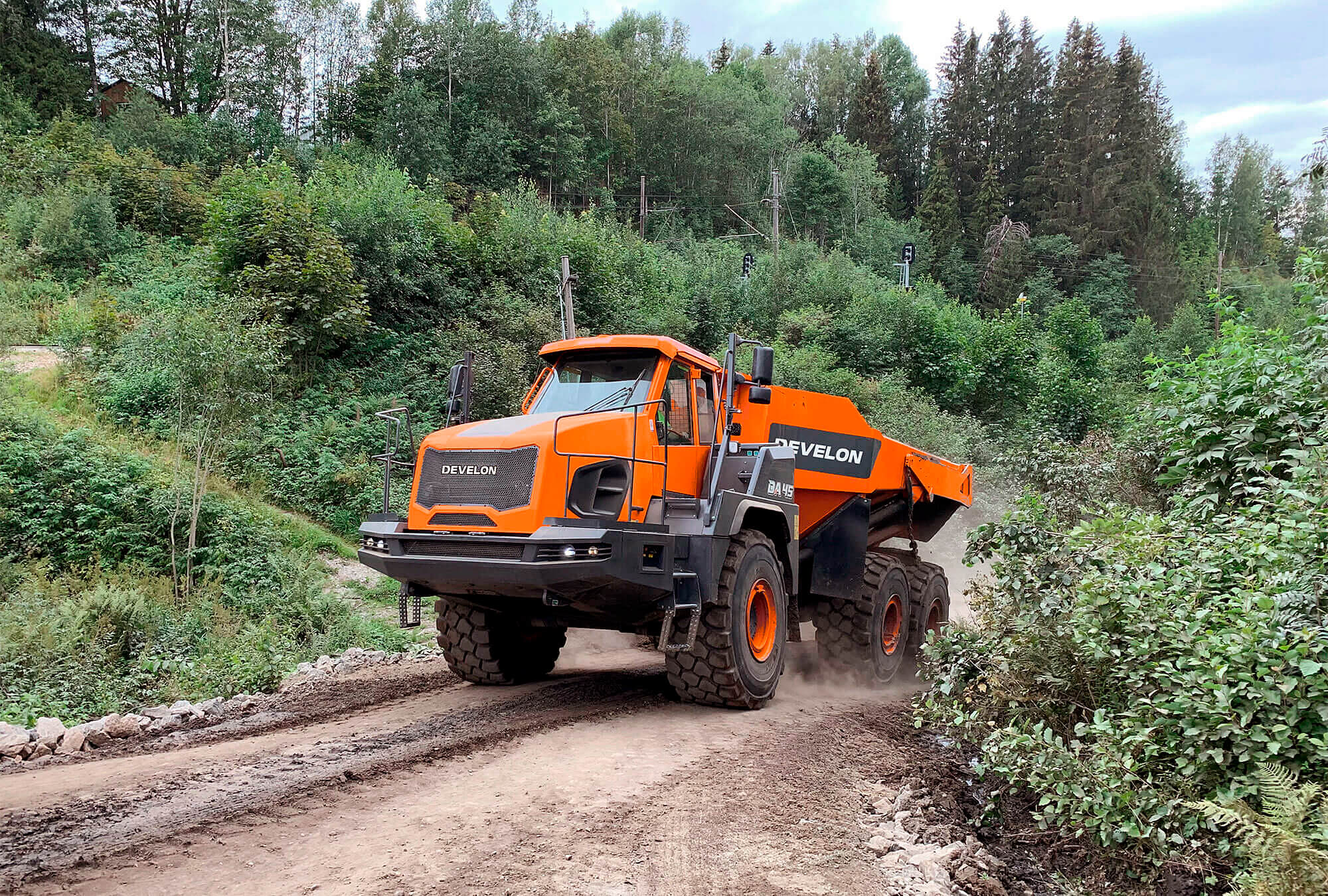

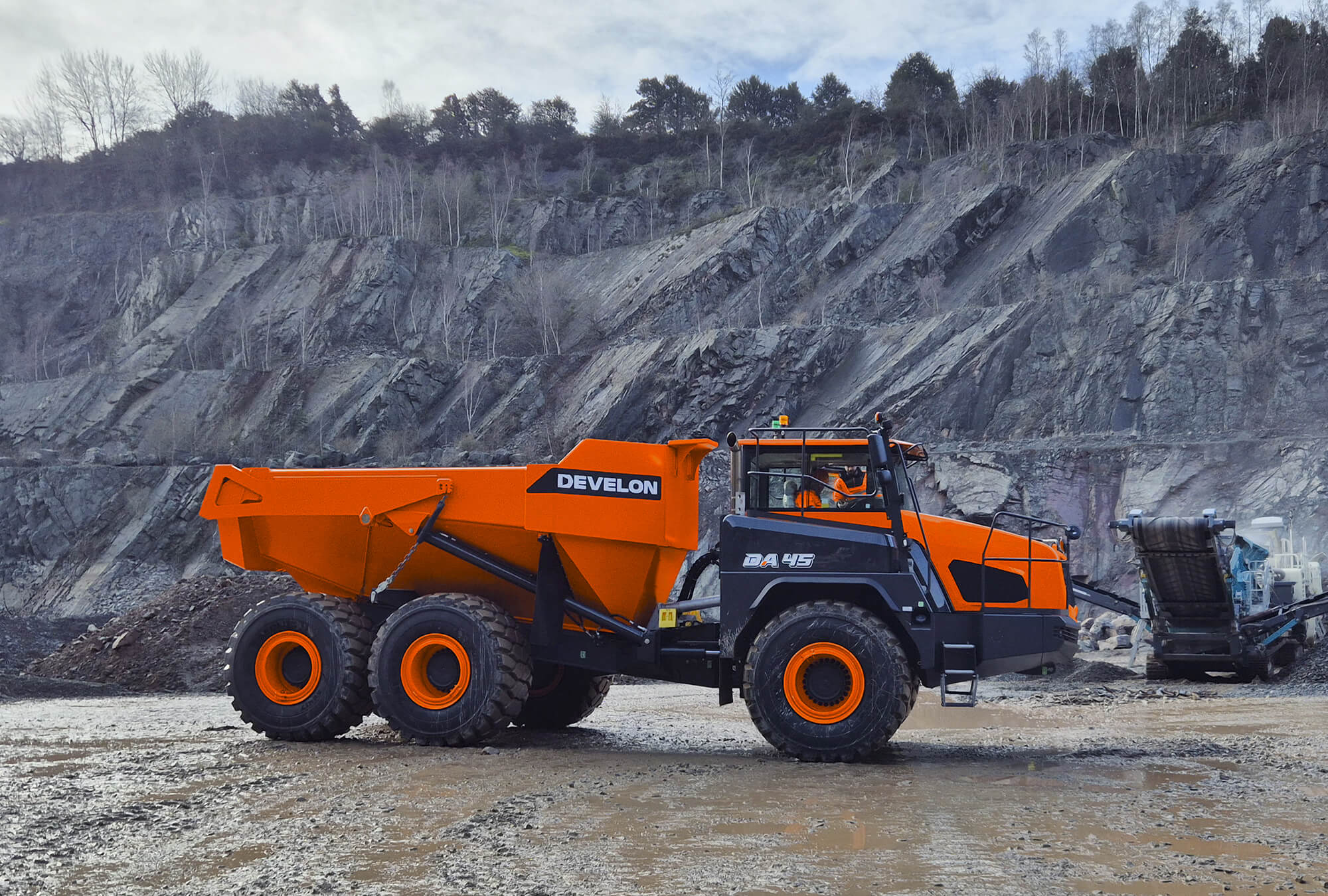

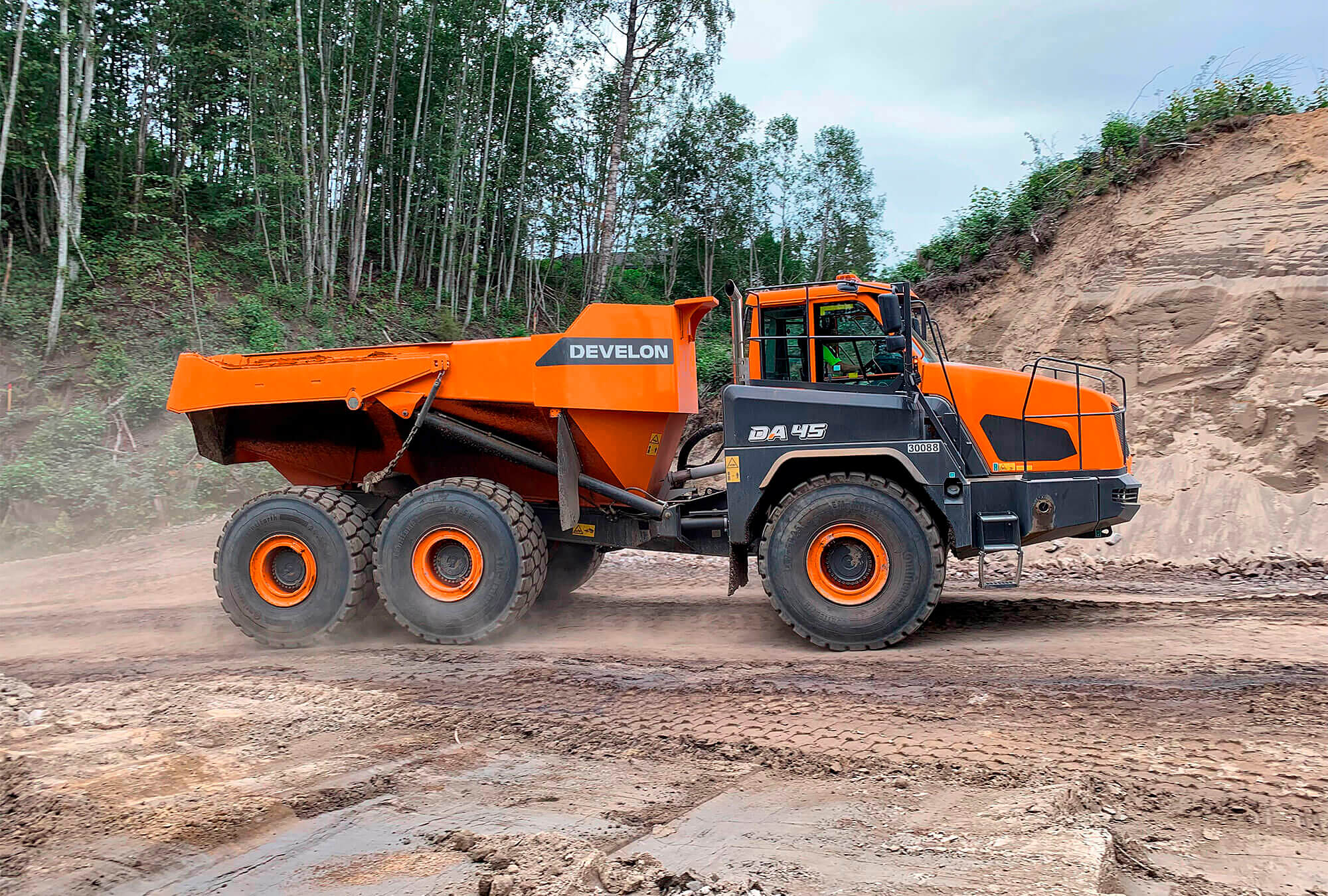

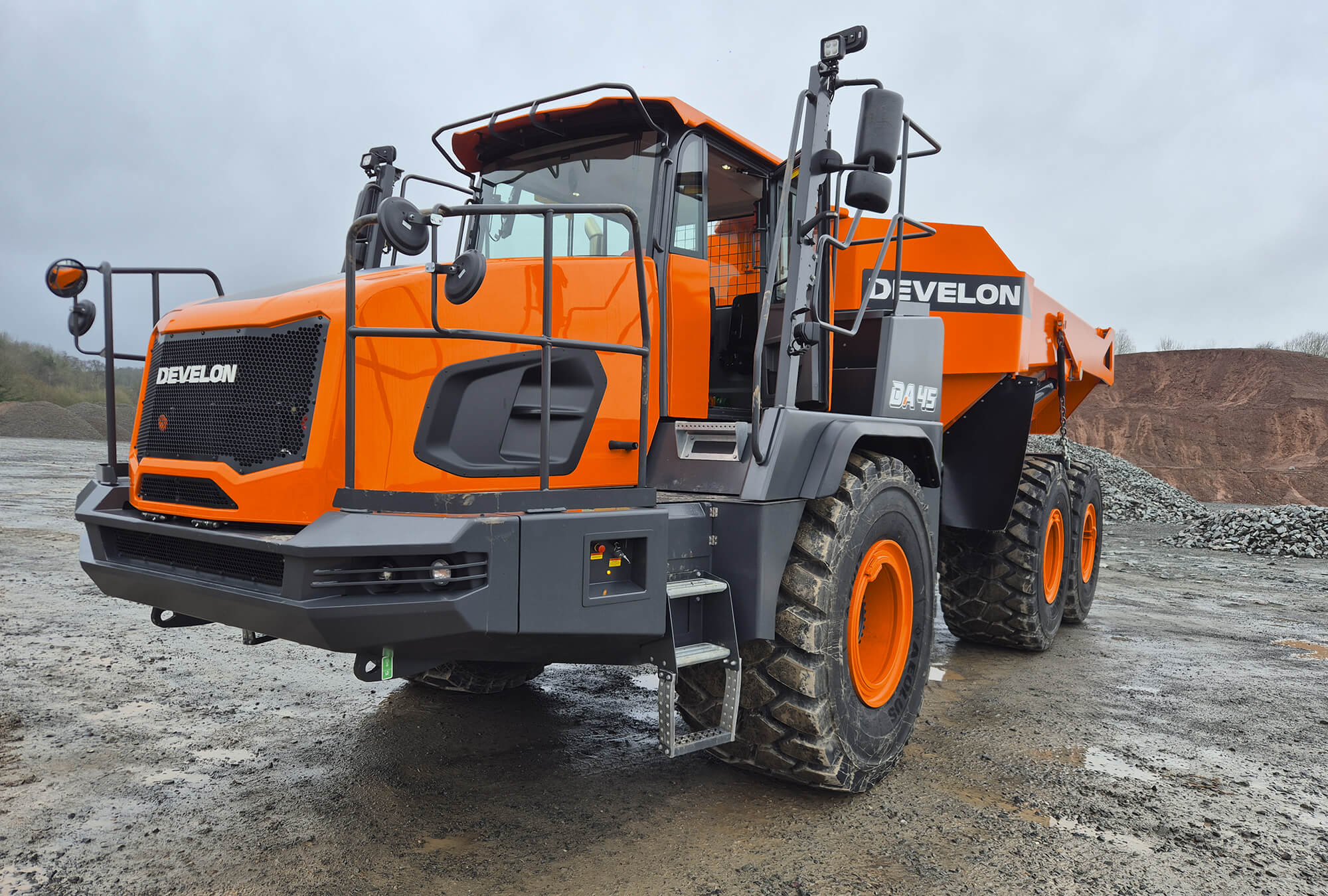

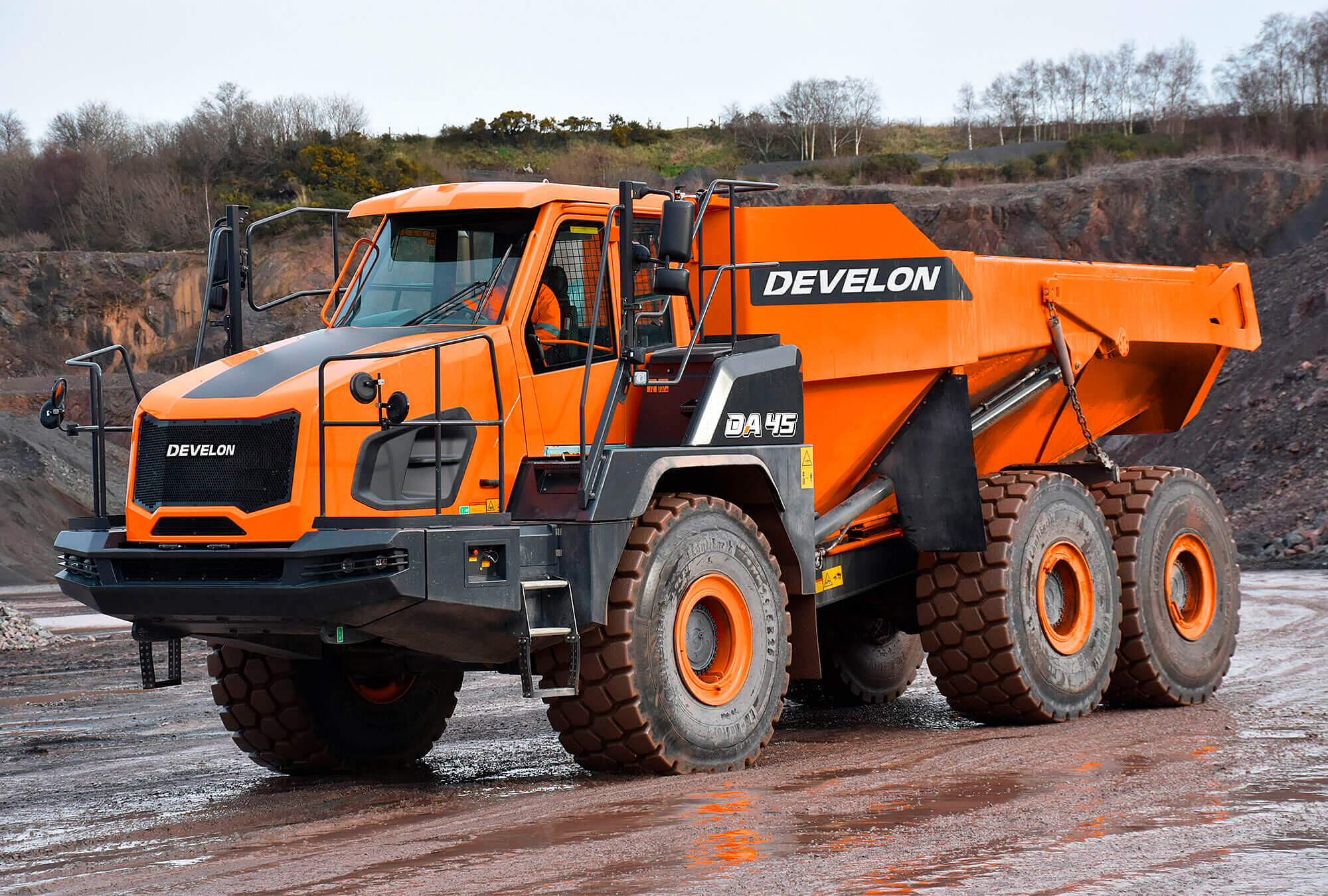

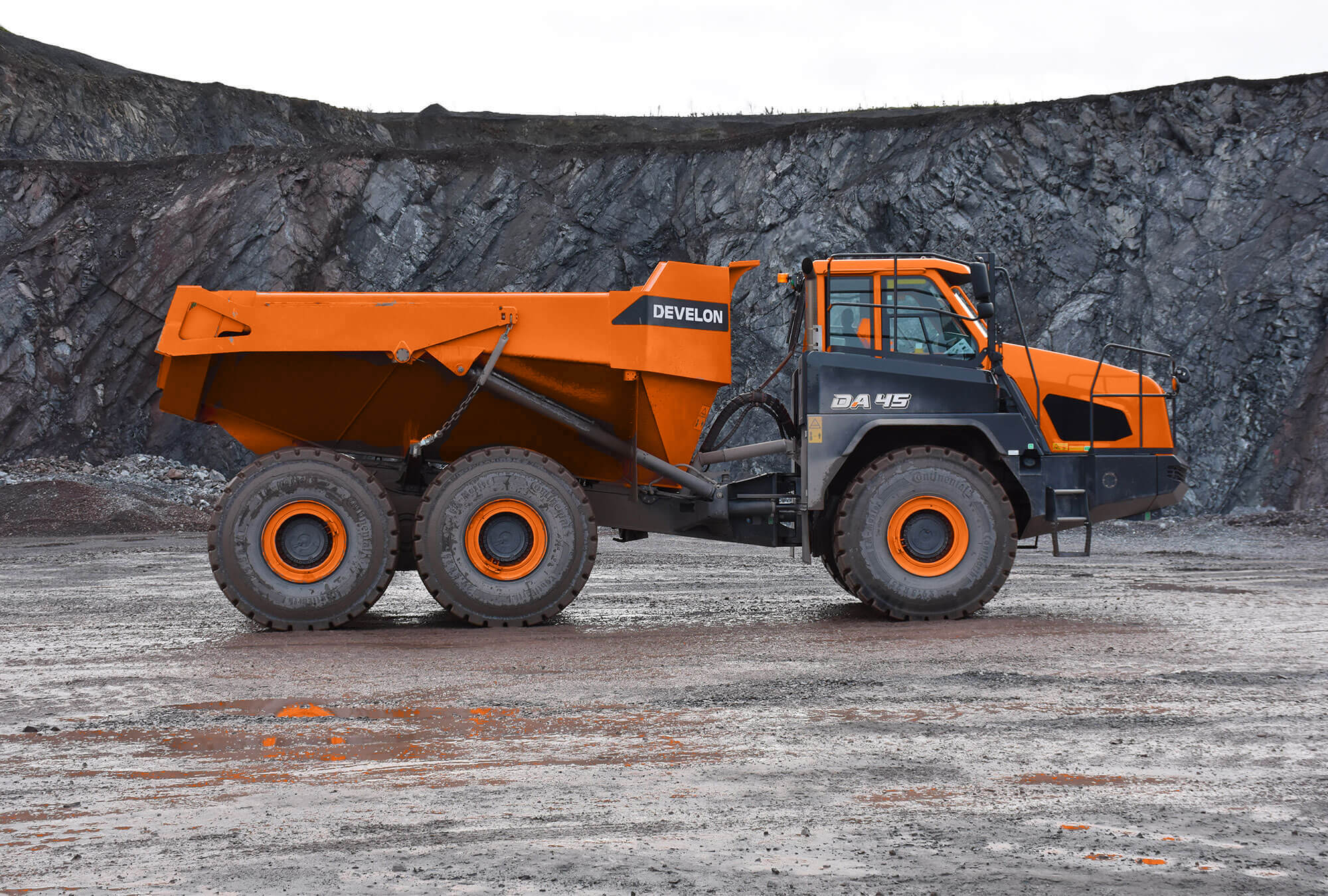

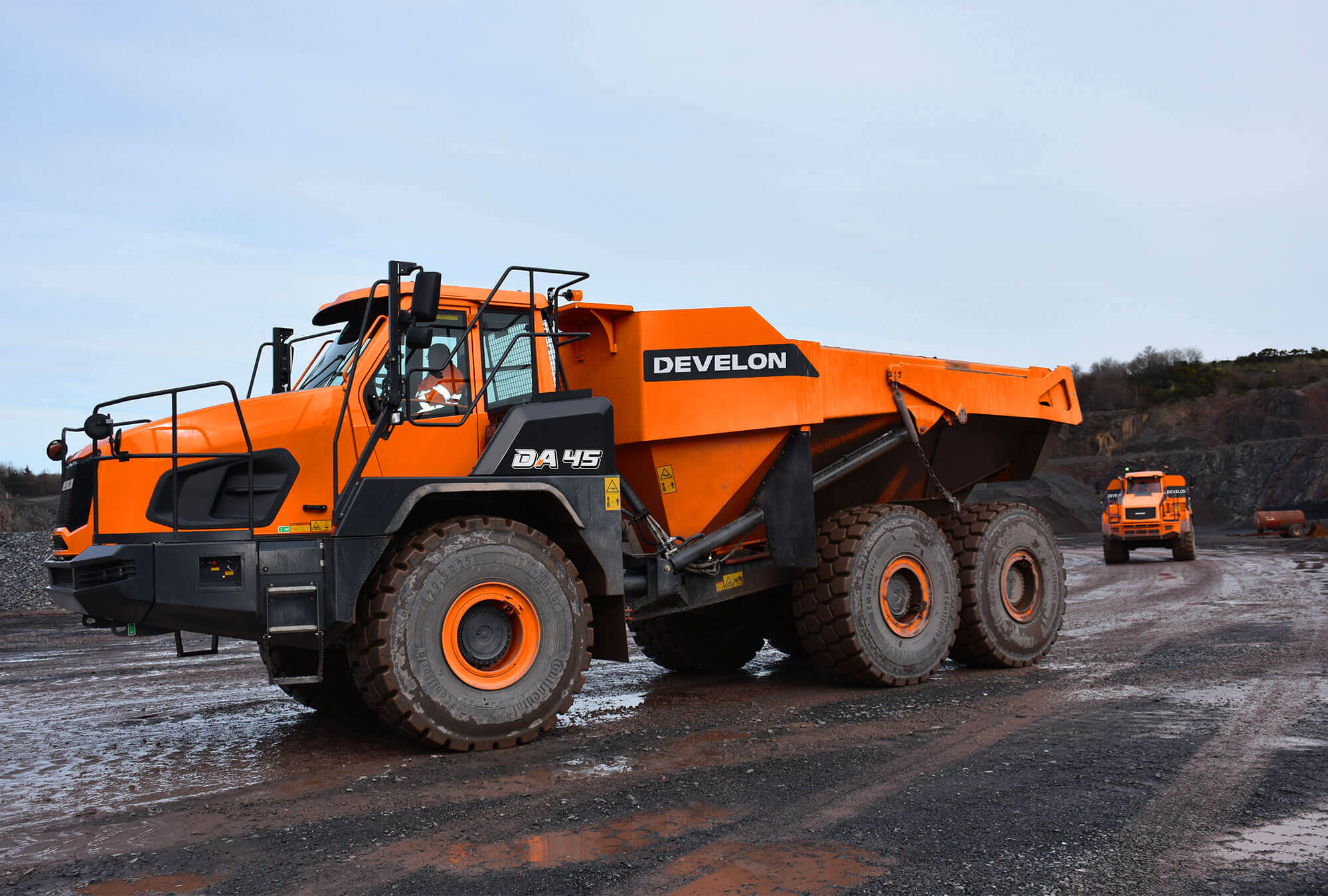

DA45-7
Boost your productivity
The Develon DA45-7 offers the best combination of payload and efficiency in its class. Thanks to its unique design, best productivity is delivered in all working conditions.

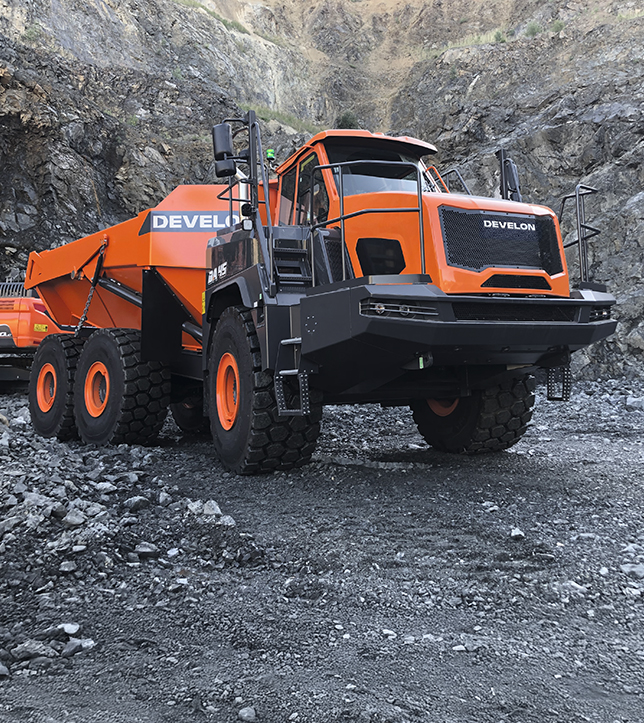

Unstoppable Stage V compliant Scania DC13 engine: 368 kW (500 HP) at 2100 rpm. Unique design of rear frame, body, and front-mounted differential and transmission make the Develon machine the most compact ADT in its class, which results in smallest turning radius and outstanding stability.
Download Brochure
Find a DealerMachine Specs
| Engine | Scania DC13 |
| Transmission | ZF 8 EP420 |
| Configuration | 6 in line cyl / 12.7 l |
| Gross power | 500HP (368 kW) @ 2.100 RPM |
| Net power | 483 HP (360 kW) @ 2.100 RPM |
| Gross torque | 2.373 Nm @ 1.300 RPM |
| Body volume (SAE 2:1) without tailgate | 24.4 m³ |
| Power to weight, empty | 11.8 kW/t |
| Power to weight, loaded | 5.0 kW/t |
| Max. travel speed forward (1 / 2 / 3 / 4 / 5 / 6 / 7 / 8) | 5 / 8 / 11 / 16 / 23 / 32 / 45 / 55 km/h |
| Total lenght | 10590 mm |
| Width | 3630 mm |
| Maximum payload | 41 t |
| Net weight (SAE 2:1) | 30.500 kg |
