DX55R-7
Boost your productivity

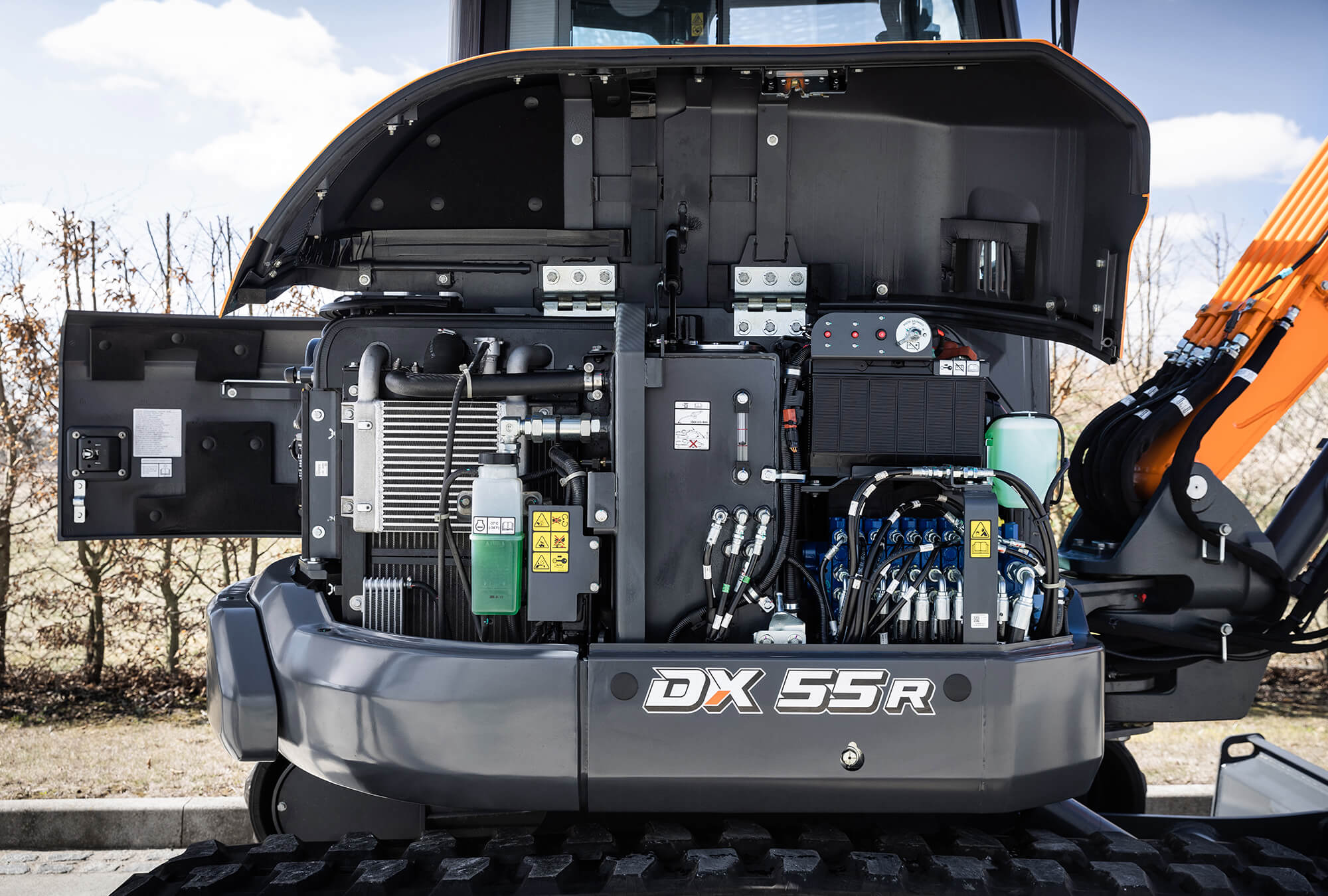

Designed to deliver superior performance and fuel efficiency, the Develon D18 diesel engine fully meets the latest Stage V emission regulations. To optimize machine performance, the engine uses high-pressure fuel injectors, air-to-air inter-cooler and electronic engine controls. 4-Cycle Water-Cooled, Wastegate Turbocharged, Diesel Oxidation Catalyst (DOC).
The air-conditioning and heating systems are integrated for optimal climate control. An automatically-controlled fan supplies the pressurized and filtered cab air, which is distributed throughout the cab from multiple vents. The heated air suspension, adjustable operator’s seat includes a seat belt. The operator can adjust the ergonomic seat and joystick console separately according to his preferences.
Download Brochure
Find a Dealer| Operating weight | 5740 kg |
| Bucket capacity | 0.16 m3 |
| Emission standard | Stage V |
| Engine | Develon D18 |
| Engine power | 36.4 kW / 48.8 hp at 2000 rpm |
| Maximum swing speed | 9.8 rpm |
| Maximum swing torque | 1380 kgf·m |
| Maximum traction | 4580 kg |
| Maximum gradeability | 35° / 70% |
| Width | 1980 mm |
| Max. reach ground level (standard/long arm) | 5950 mm |
| Max. digging depth (std / long arm) | 3630 mm |
