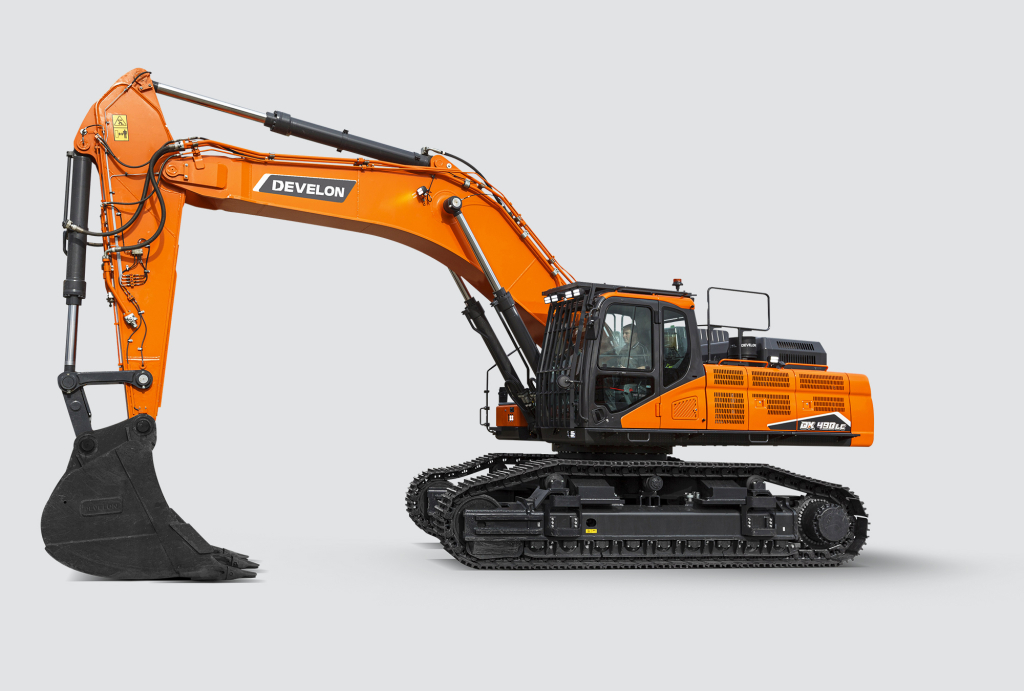

DX490LC-7K
Boost your productivity

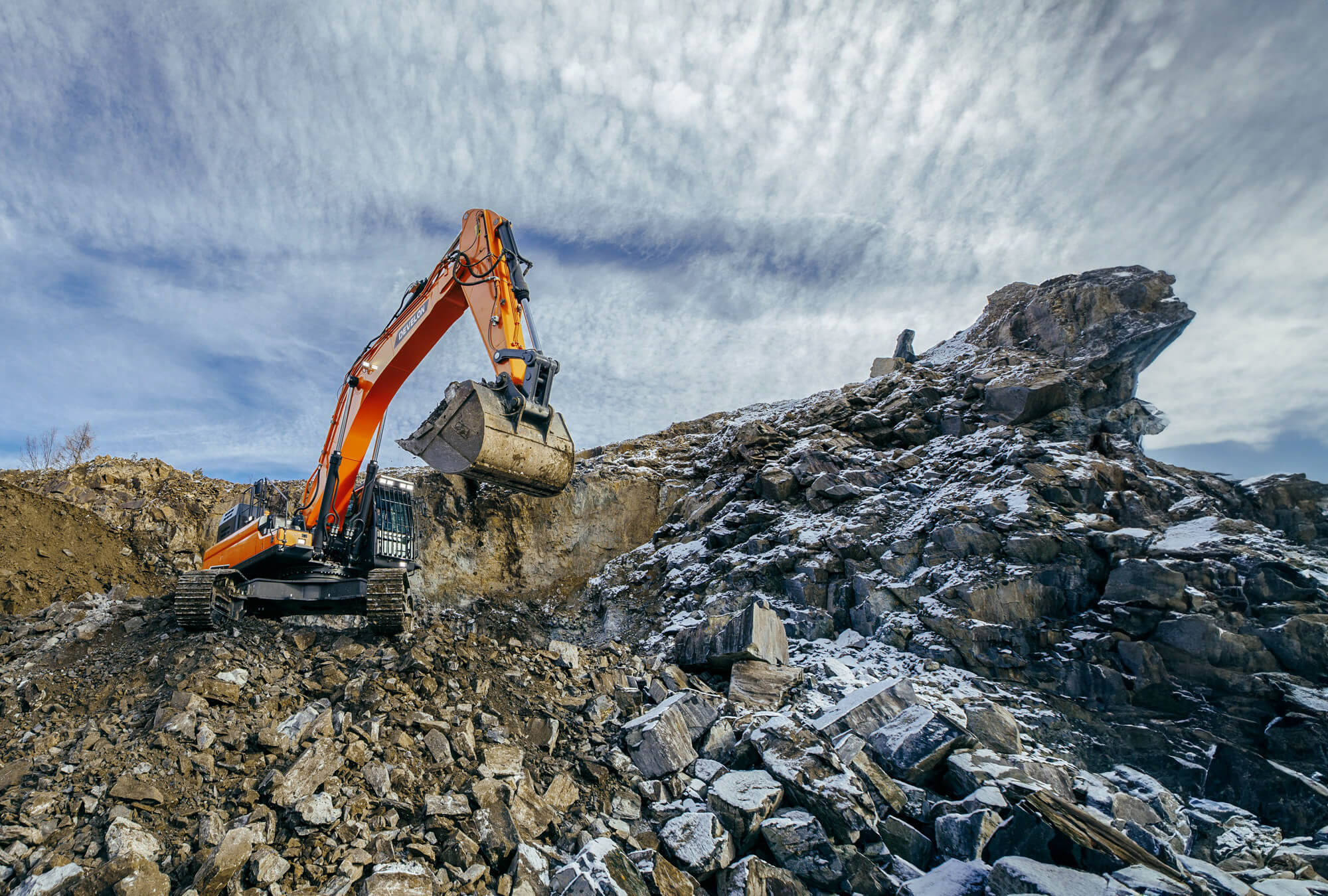

Lift your business to the next level with the new DX490LC-7K Develon excavatos!
Exceptionally powerful, yet environmentally friendly, the DX490LC-7K excavators equipped with the latest generation Scania DC13 engine features extraordinary fuel efficiency.
Download Brochure
Find a Dealer
Machine Specs
| Operating weight | 50.400 kg |
| Buckets | 1.71 – 3.6 m³ |
| Engine | Scania DC13 |
| Maximum power | 394 HP |
| Emission standard | Stage V |
| Engine power | 294 kW (394 HP) @ 1800 rpm (SAE J1995) |
| Main pumps max flow | 2 x 390 l/m |
| Number of cylinders | 6 |
| Travel speed | 3.2 / 5.6 km/h |
| Maximum traction | 45.7 t |
| Bucket capacity | 3.0 m³ |
| Tail swing radius | 3800 mm |
| Max. digging reach | 11720 mm |
| Max. digging depth | 7340 mm |
| Max. loading height | 7725 mm |
| Max. digging height | 10920 mm |
| BUCKET (Normal/Press. Up) | 29.0 / 30.8 t |
| ARM (Normal/Press. Up) | 24.4 / 25.8 t |
