43.500 kg
1,5 – 2,1 m³
Scania DC13
DX420LC-7K

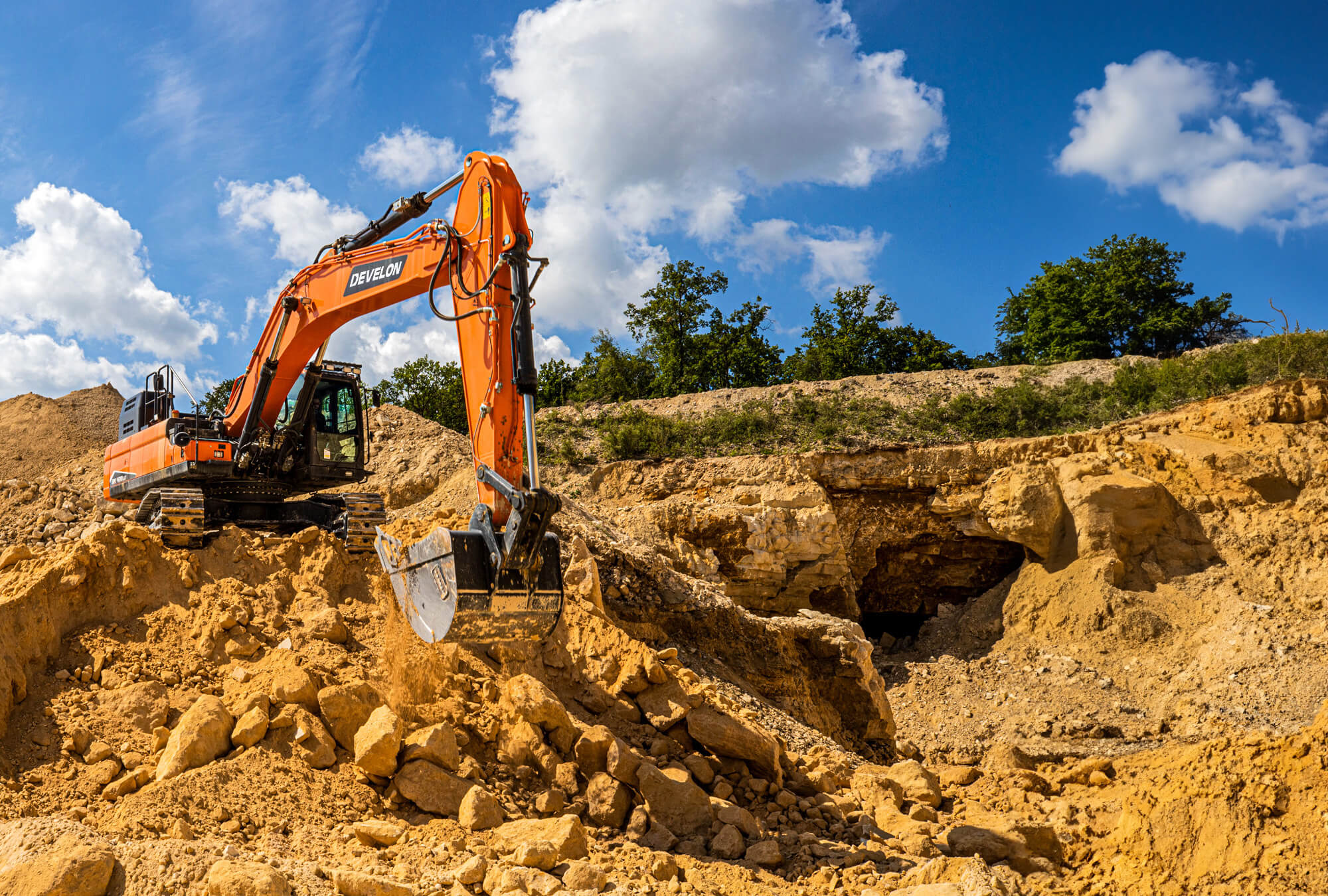

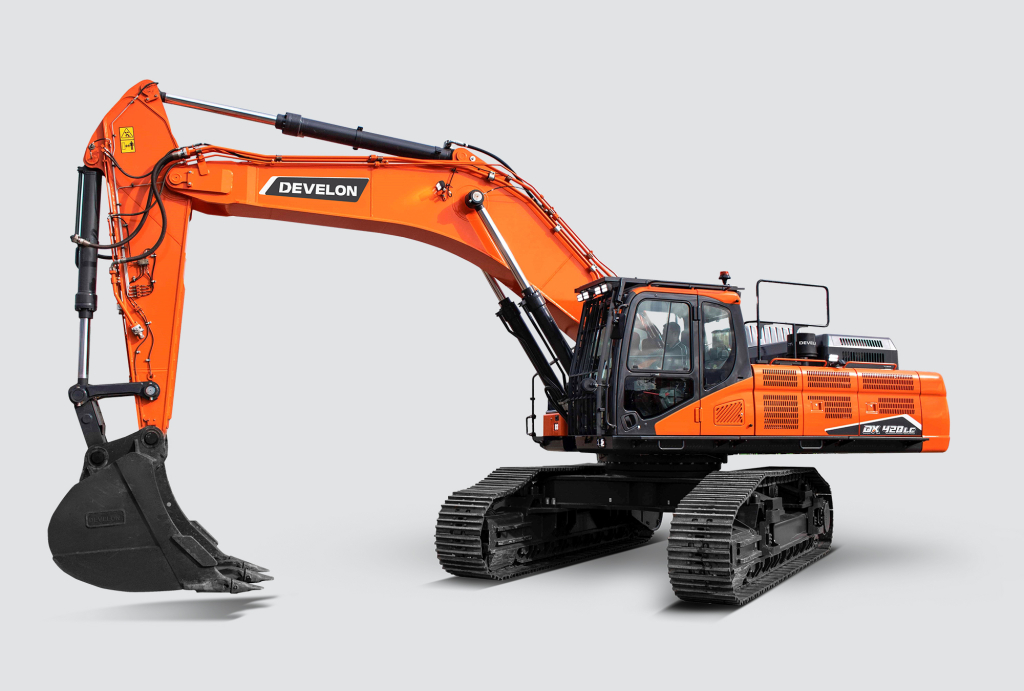

Exceptionally powerful, yet environmentally friendly, the DX420LC-7K excavator equipped
with the latest generation Scania DC13 engine features extraordinary fuel efficiency.
| Operating weight | 43.500 kg |
| Buckets | 1,5 – 2,1 m³ |
| Engine | Scania DC13 |
| Maximum power | 344 HP |
| Emission standard | Stage V |
| Engine power | 257 kW (344 HP) @ 1800 rpm (SAE J1995) |
| Main pumps max flow | 2 x 333 l/m |
| Number of cylinders | 6 |
| Travel speed | 3.2 / 5.3 km/h |
| Maximum traction | 43.4 t |
| Bucket capacity | 2.2 m³ |
| Tail swing radius | 3760 mm |
| Max. digging reach | 12120 mm |
| Max. digging depth | 8335 mm |
| Max. loading height | 8200 mm |
| Max. digging height | 11045 mm |
| BUCKET (Normal/Press. Up) | 26.5 / 28.1 t |
| ARM (Normal/Press. Up) | 23.5 / 24.9 t |
DX420LC-7K
