25 hp (18.5 kW) @ 2 300 rpm
2830 kg
4520/4720 mm

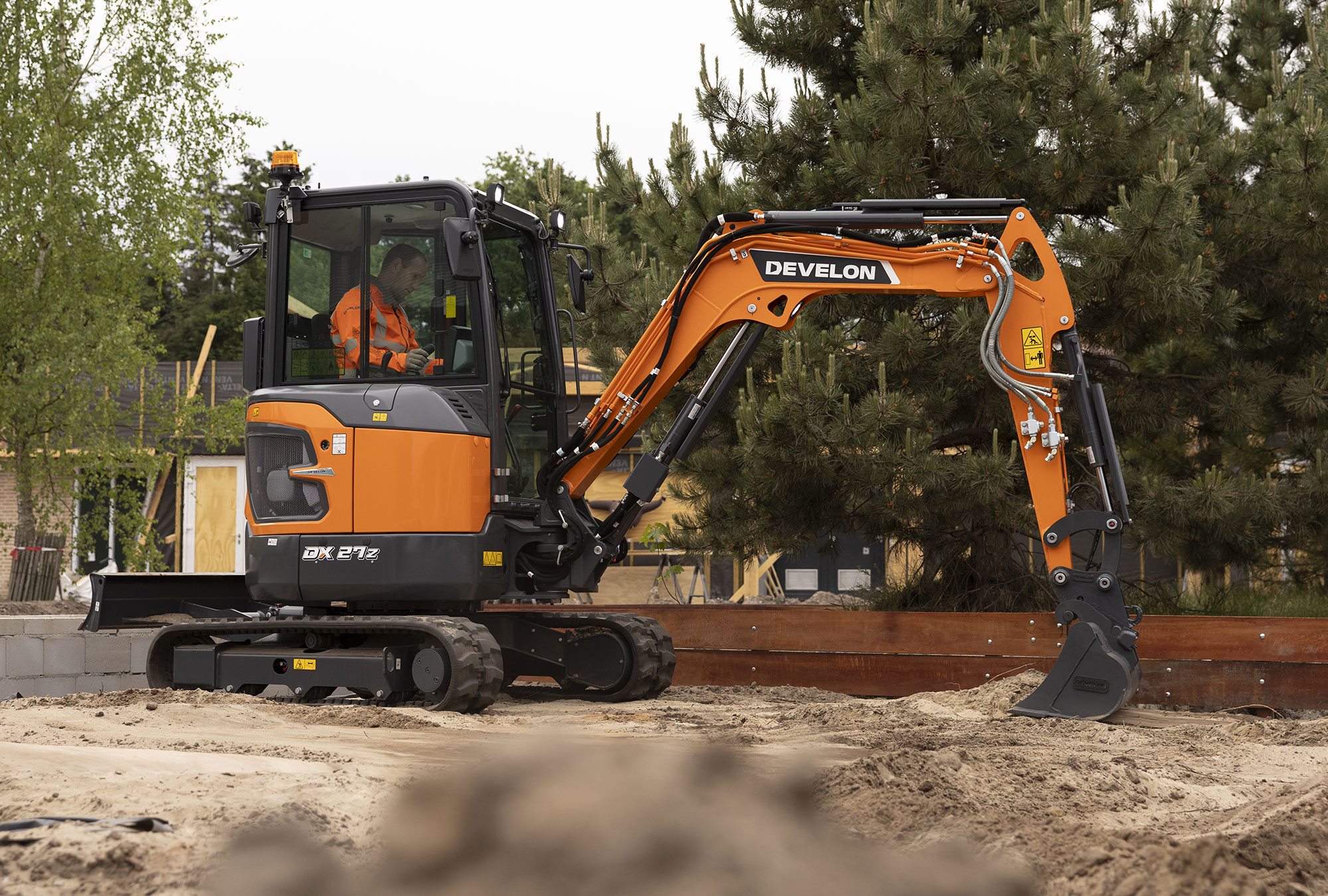

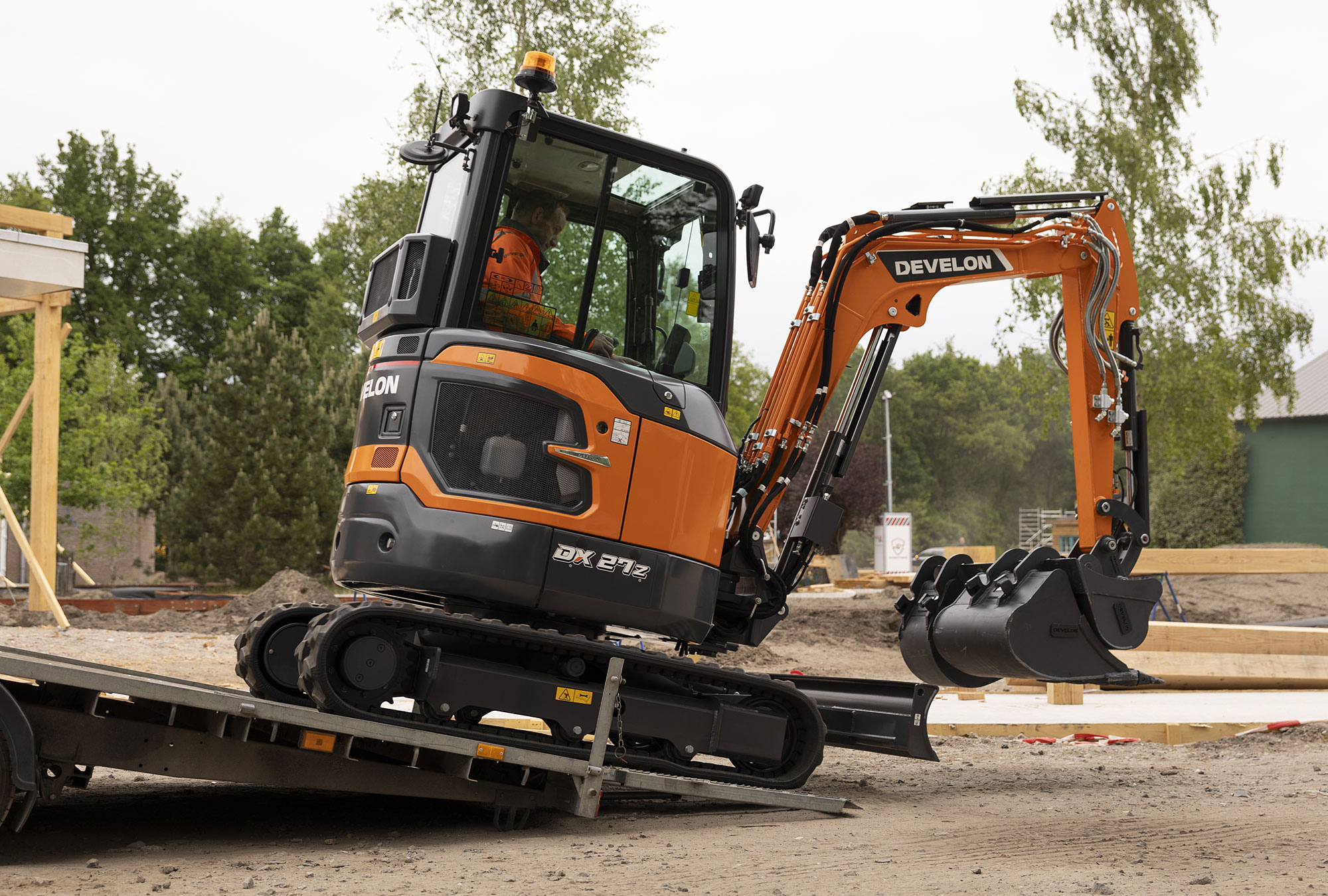

DX27Z-7
Offers a host of redesigned features and new technologies to ensure smooth operation, superior
productivity and stability, top-class operator comfort and improved fuel efficiency. This powerful
machine will give your job site a huge boost.
The new DX27Z-7 offers really high level of efficiency, in any application, thanks to a brand new design and the best compactness in the market.
| Engine power | 25 hp (18.5 kW) @ 2 300 rpm |
| Operating weight | 2830 kg |
| Max. reach ground level (standard/long arm) | 4520/4720 mm |
| Max. bucket capacity | 0,06 m³ |
| Engine | KUBOTA V1505 |
| Maximum power | 18.5kW / 2300 RPM |
| Max. dumping height (standard / long arm) | 2935/3065 mm |
| Max. digging depth (std / long arm) | 2645/2845 mm |
| Digging force - bucket | 21.8 kN |
| Travel speed | 2.5/4.3 km/h |
| Width | 1550 mm |

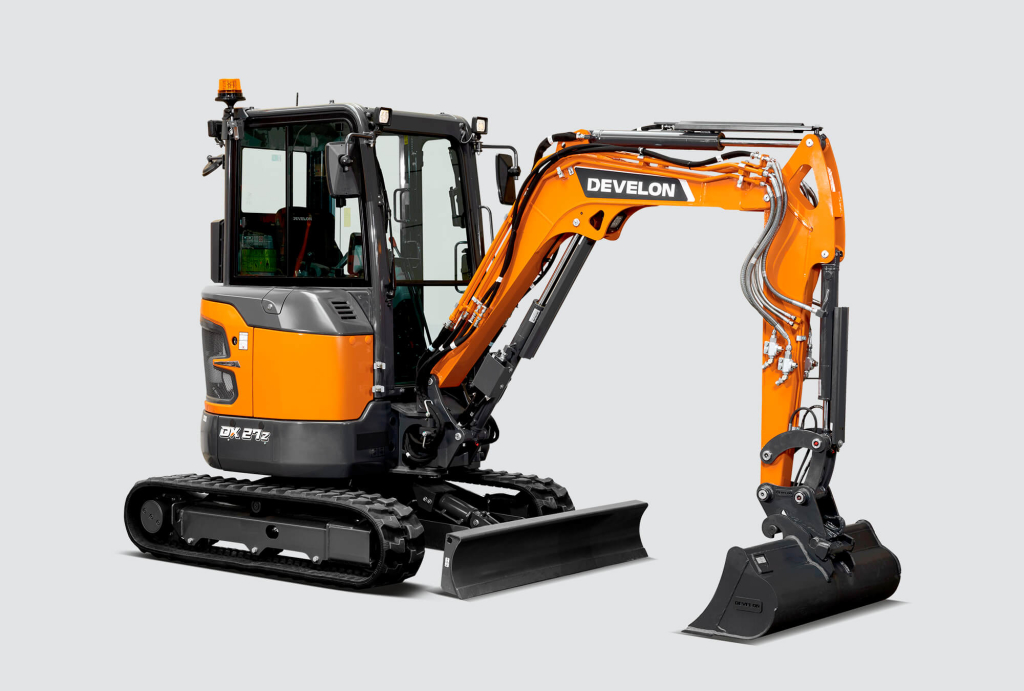

DX27Z-7
