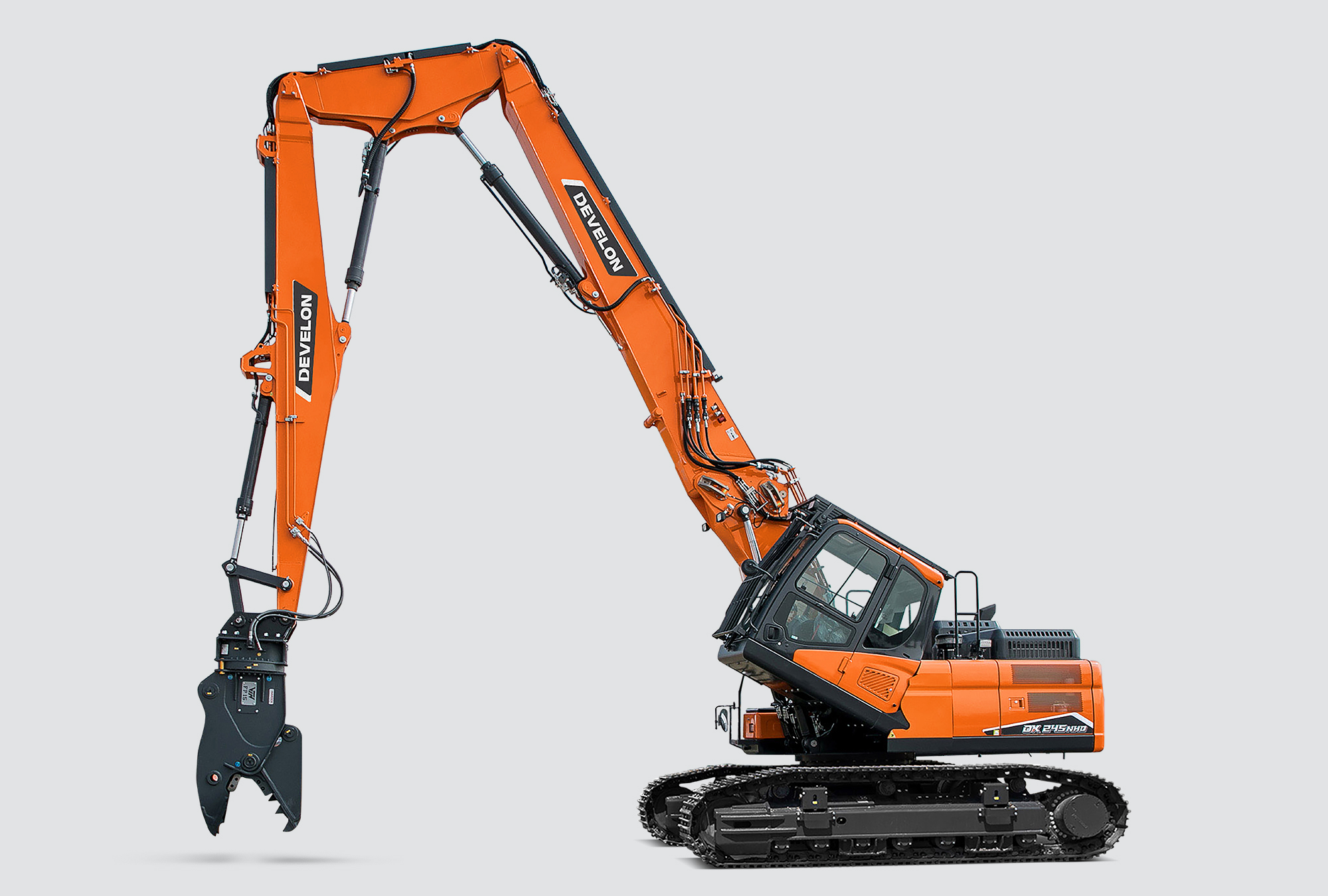

DX245DM-7
Boost your productivity
The DX245DM-7 model has a high visibility, tiltable cab,
particularly suited to high reach demolition applications and offering a 30
degree tilting angle which provides an excellent operator environment.
A key feature of the DX245DM-7 which is shared with other
models in the range, is a modular boom design and hydraulic lock mechanism.
This provides the customer with a complete, flexible solution that allows them
to use the same excavator for other applications on site as well as demolition.
The multi-boom design also allows the earthmoving boom to be
mounted in two different ways, which with the demolition boom, provides further
flexibility with a total of three different configurations for the same base
machine.
The DX245DM-7 also has a hydraulically adjustable
undercarriage, which extends to a maximum width of 3.74 m to provide optimum
stability when working on demolition sites. This can then be retracted to 2.54m
which is an ideal width for transportation
Download brochure
Find a Dealer| Operating weight | 30800/28900 kg (Demolition Arm/Digging Arm) |
| Travel speed | 3.0 - 5.5 km/h |
| Engine model | DL06P |
| Power (SAE J1995) | 173 hp/129 kW at 1800 rpm (Demolition Arm/Digging Arm) |
| Pin reach | 12900/ 8170 mm (Demolition Arm/Digging Arm) |
| Pin depth | -/4785 mm (Demolition Arm/Digging Arm) |
| Pin height | 18070/ 8155 mm (Demolition Arm/Digging Arm) |
| Overall Length | 11460/ 9590 mm (Demolition Arm/Digging Arm) |
| Width superstructure | 2540 mm |
| Variable undercarriage width | 2540 ~ 3740(Variable) mm |
| Overall Height (Incl.FOG) | 3150 mm |
