173 hp
23.200 kg
1.3 m3

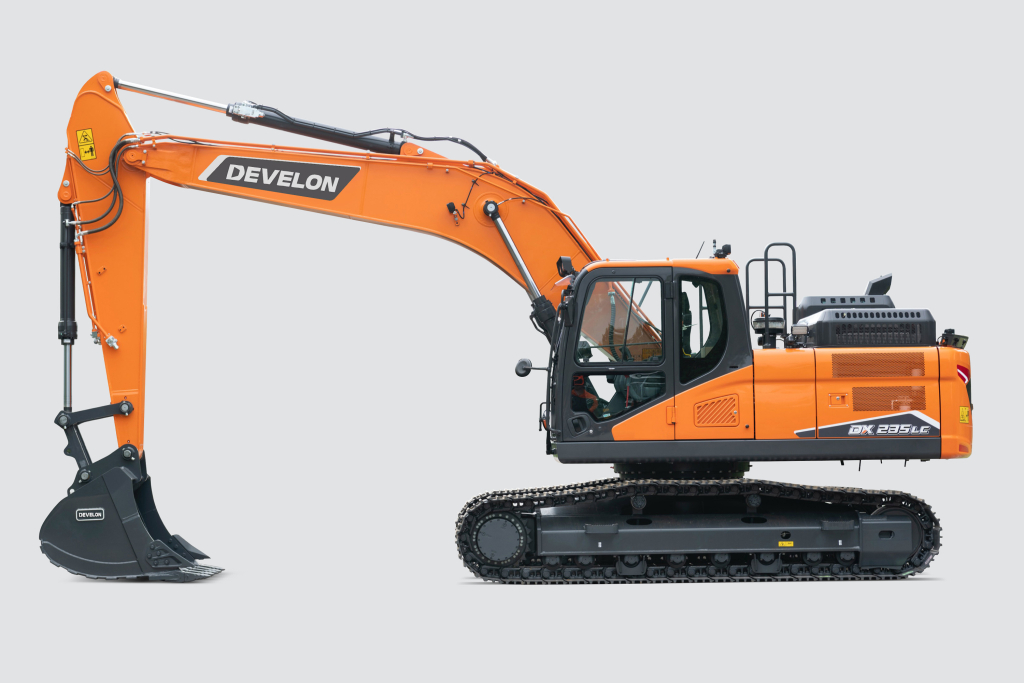

DX235LC-7
Lift your business to the next level with the next generation DX235LC-7 Develon excavator. Exceptionally powerful, yet environmentally-friendly, the DX235LC-7 excavator is designed for the toughest applications.
The DX235LC-7 is equipped with the latest generation Develon engine. Stage V compliant, this engine boasts extremely low emissions because reducing our environmental impact is paramount to us. Exhaust gases are purified by Selective Catalytic Reduction (SCR) technology, a Diesel Oxidation Catalyst (DOC) and a Diesel Particulate Filter (DPF).
| Maximum power | 173 hp |
| Operating weight | 23.200 kg |
| Buckets | 1.3 m3 |
| Emission standard | Stage V |
| Engine | Develon DL06V |
| Number of cylinders | 6 |
| Engine power | 129 kW / 173 hp @ 1800 rpm |
| Bucket capacity | 0.81 – 1.05 m³ |
| Arm lenght | 2400 – 2900 mm |
| Boom lenght | 5700 – 5850 mm |
| BUCKET (Normal/Press. Up) | 15.6 - 16.5 t |
| ARM (Normal/Press. Up) | 10.9 - 13.4 t |
| Main pumps max flow | 2 × 210.6 l/min |
DX235LC-7
