174 hp
18.320 kg
0.8 m³

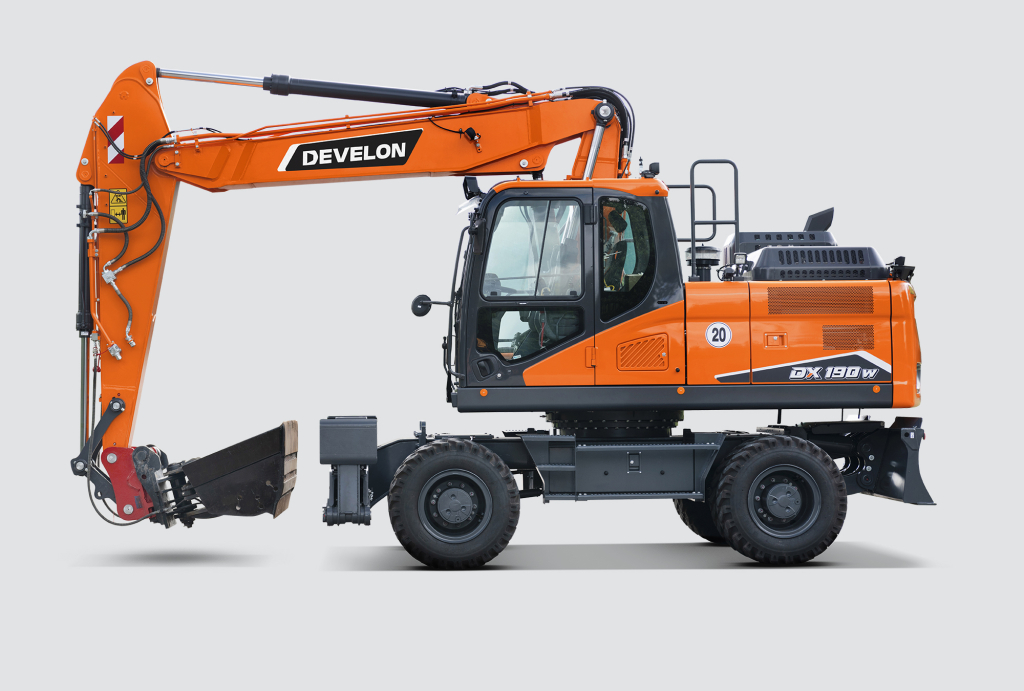

DX190W-7

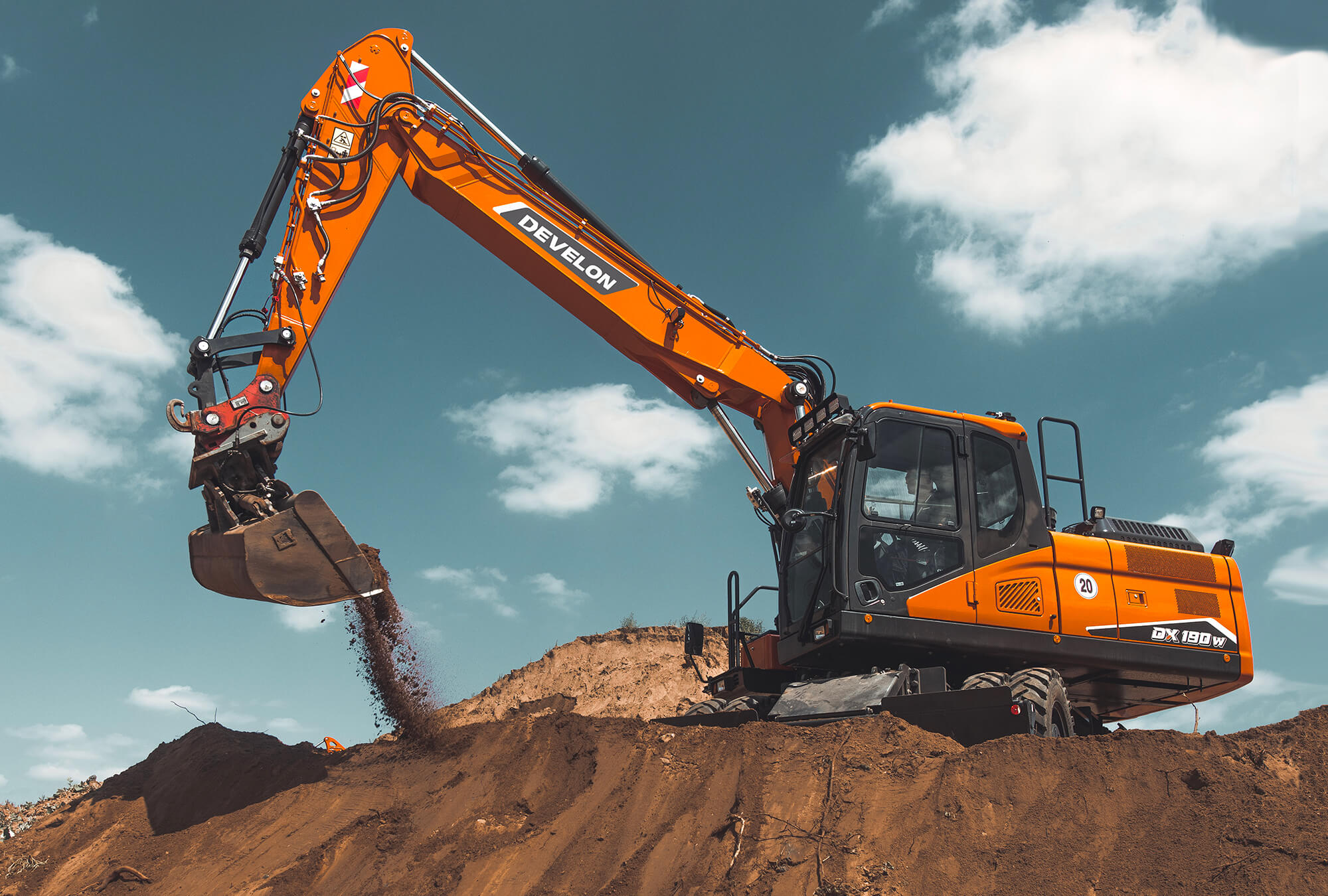

New DX190W-7K Wheeled Excavator offers a host of redesigned features and new technologies to ensure smooth operation, superior productivity and stability, top-class operator comfort and improved fuel efficiency. This powerful machine will give your job site a huge boost.
Rock-solid in every moment. Thanks to optimized weight distribution, longer wheelbase cast counterweight and optional heavier counterweights for the biggest attachments, the DX-7 Series offers excellent stability for confidence and peace of mind in all situations. Rear and right side cameras as standard, anti-slip steps and platforms, as well as guard rails on upper structure. Optional: a 360° all-around view camera (AVM) can be linked with unique ultrasonic detection for maximum safety while working with people around. Large side mirrors, 7 powerful LED work lights (4 additional lights possible as an option), travel alarm.
| Maximum power | 174 hp |
| Operating weight | 18.320 kg |
| Buckets | 0.8 m³ |
| Emission standard | Stage V |
| Engine | Develon DL06V |
| Engine power | 129.8 kW / 174 hp at 1900 rpm |
| Main pumps max flow | 2 × 200 l/min |
| Maximum swing speed | 11.8 rpm |
| Maximum swing torque | 5030 kgf·m |
| Travel speed (creep/low/economy/high) | 3.5 / 10 / 35 km/h |
| Maximum traction force | 11.800 kg |
| Minimum turning radius | 6125 mm |
| Max. digging reach | 8.875 mm / 9.750 mm |
| Max. digging depth | 5.320 mm / 5.915 mm |
| Max. loading height | 6.520 mm / 8.065 mm |
| Max. digging height | 9.195 mm / 10.885 mm |
