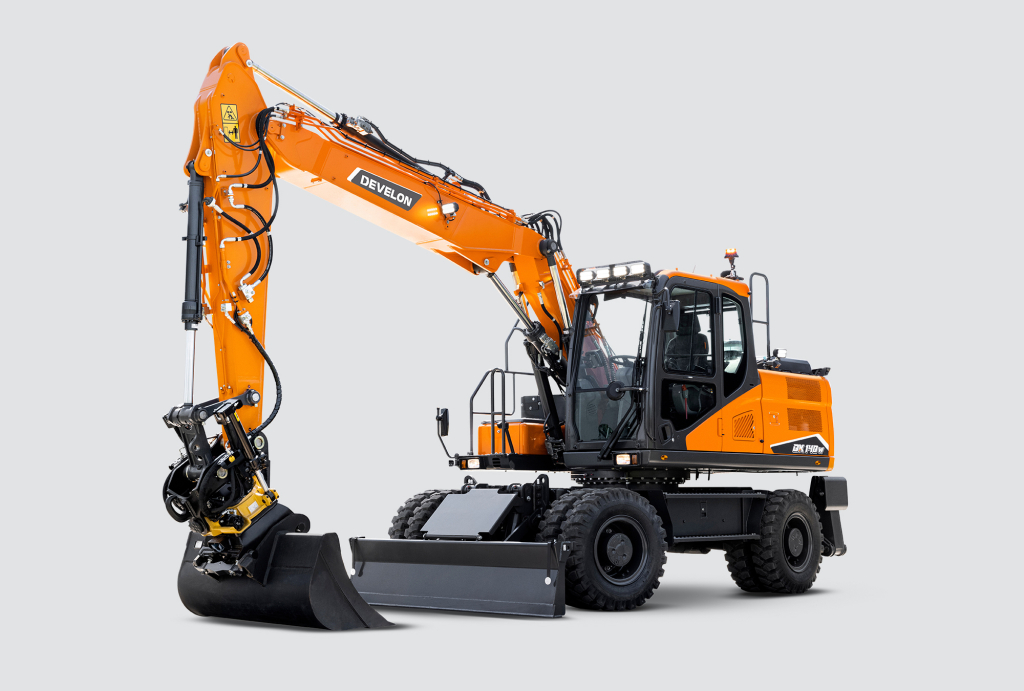

DX140W-7
Boost your productivity
Develon new WEX-7 Series Wheeled Excavators offers a host of redesigned features and new technologies to ensure smooth operation, superior productivity and stability, top-class operator comfort and improved fuel efficiency.These powerful machines will give your job site a huge boost.
One of the most spacious cabs in the market, with low noise & vibration levels and excellent all-round visibility. Thanks to the premium seat's heating, and even an optional cooling functionality, and improved air ventilation in both the DX140W-7 and DX160W-7, you can focus on the job at hand under all conditions.Rock-solid in every moment. Thanks to optimized weight distribution, longer wheelbase cast counterweight and optional heavier counterweights for the biggest attachments, the DX-7 Series offers excellent stability for confidence and peace of mind in all situations. The DX140W-7 and DX160W-7 are equipped with the latest generation Develon engine. Stage V compliant, this engine boasts extremely low emissions because reducing our environmental impact is paramount to us. Exhaust gases are purified by Selective Catalytic Reduction (SCR) technology, a Diesel Oxidation Catalyst (DOC) and a Diesel Particulate Filter (DPF).
Download Brochure
Find a Dealer
| Maximum power | 137 hp |
| Operating weight | 15.800 kg |
| Buckets | 0.59 m³ |
| Emission standard | Stage V |
| Engine | Develon DL06V |
| Engine power | 103 kW / 137 hp at 2000 rpm |
| Overall width | 2500 mm |
| Wheel base | 2800 mm |
| Tread width | 1944 mm |
| Travel speed (creep / low / high) | 3.5/ 10 / 37 km/h |
| Maximum traction force | 8100 kg |
| Minimum turning radius | 65 m |
| Maximum swing speed | 1.8 rpm |
| Maximum swing torque | 3744 kgf·m |
| Max. digging reach (Mono / Arti boom) | 7585 mm / 8700 mm |
| Max. digging depth (Mono / Arti boom) | 4490 mm / 5455 mm |
| Max. digging height (Mono / Arti boom) | 8195 mm / 9655 mm |
| Main pumps max flow | 2 × 167 l/min |
