4.5 m³
18.696 kg
16.493 kg
DL420CVT-7

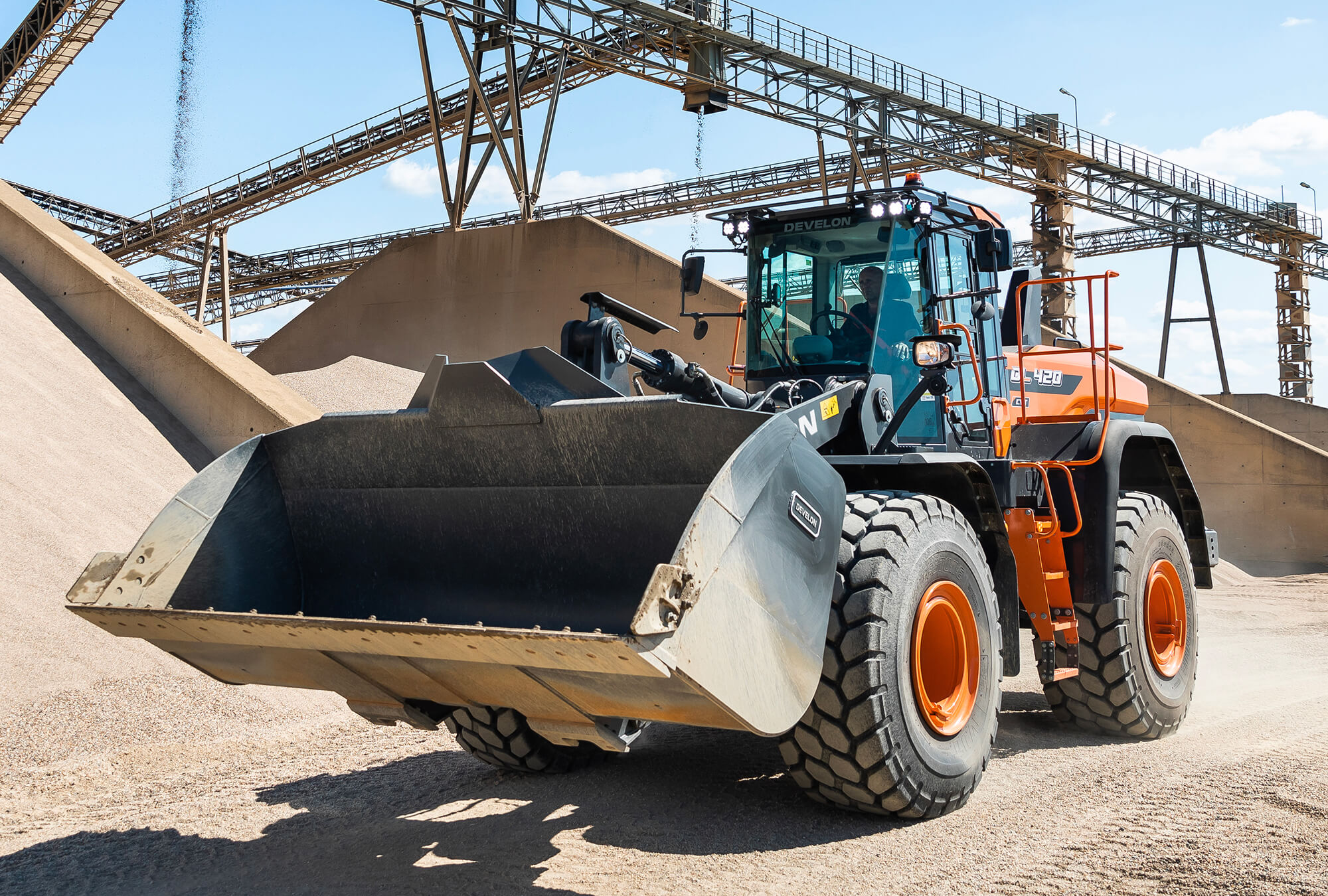

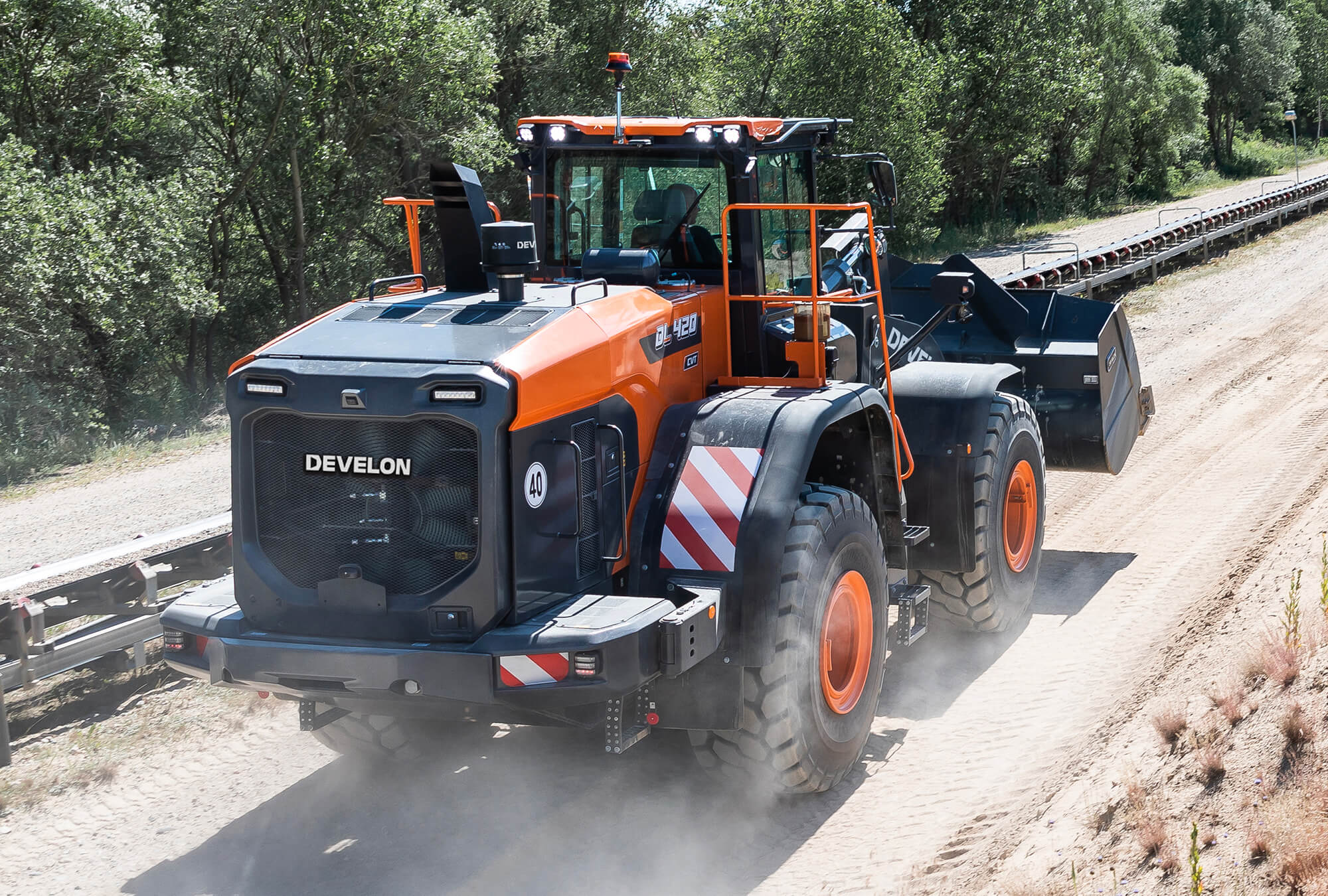

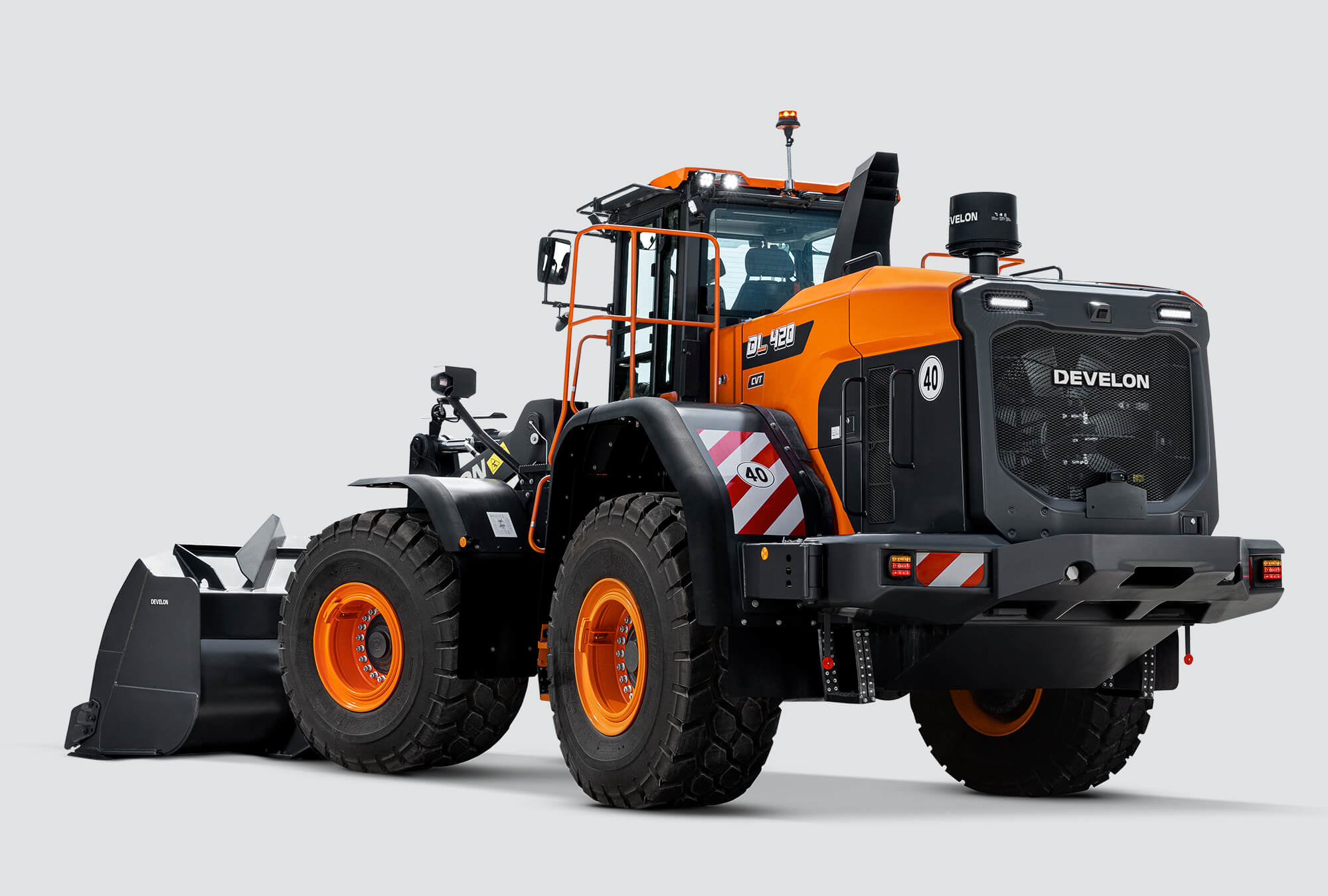

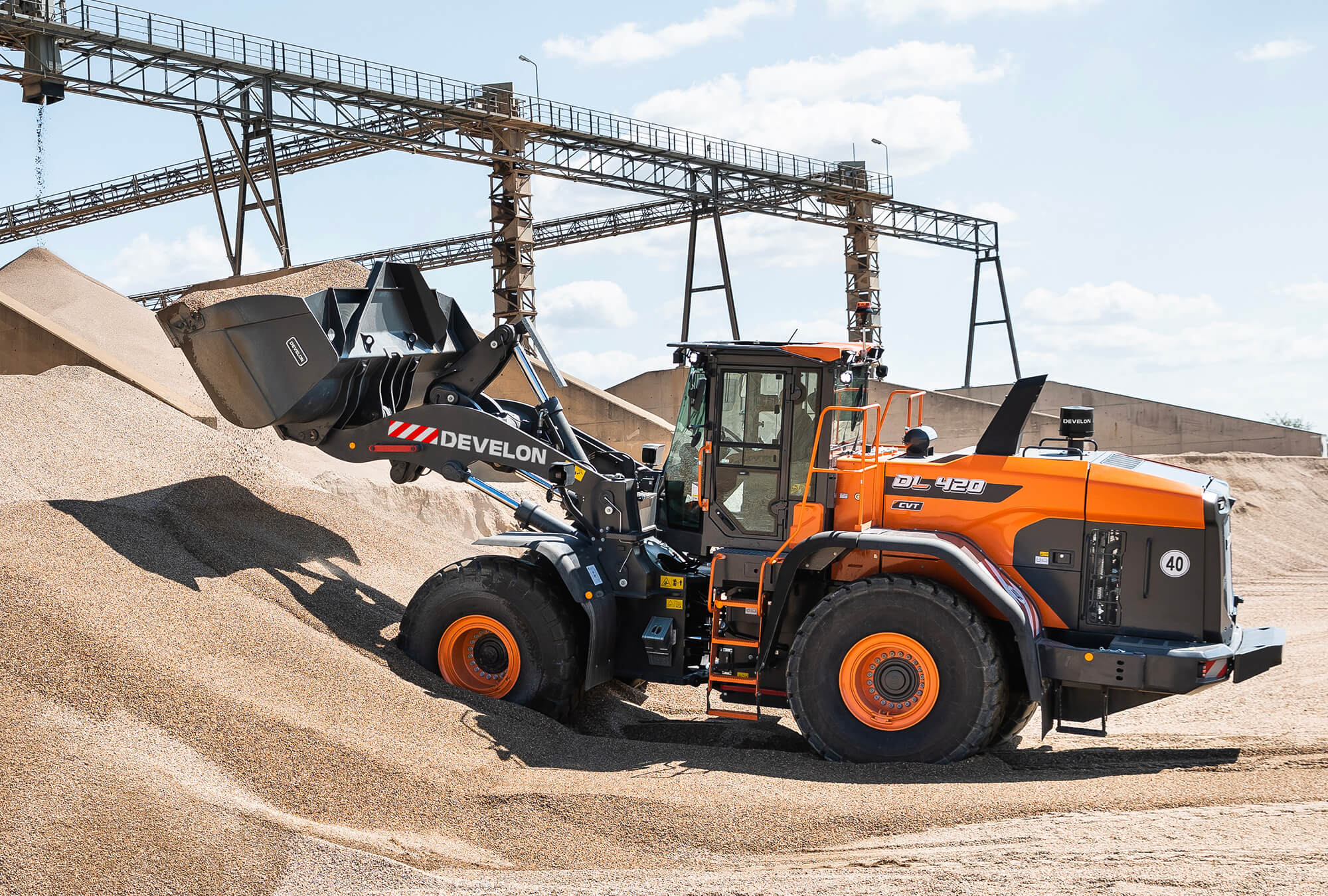

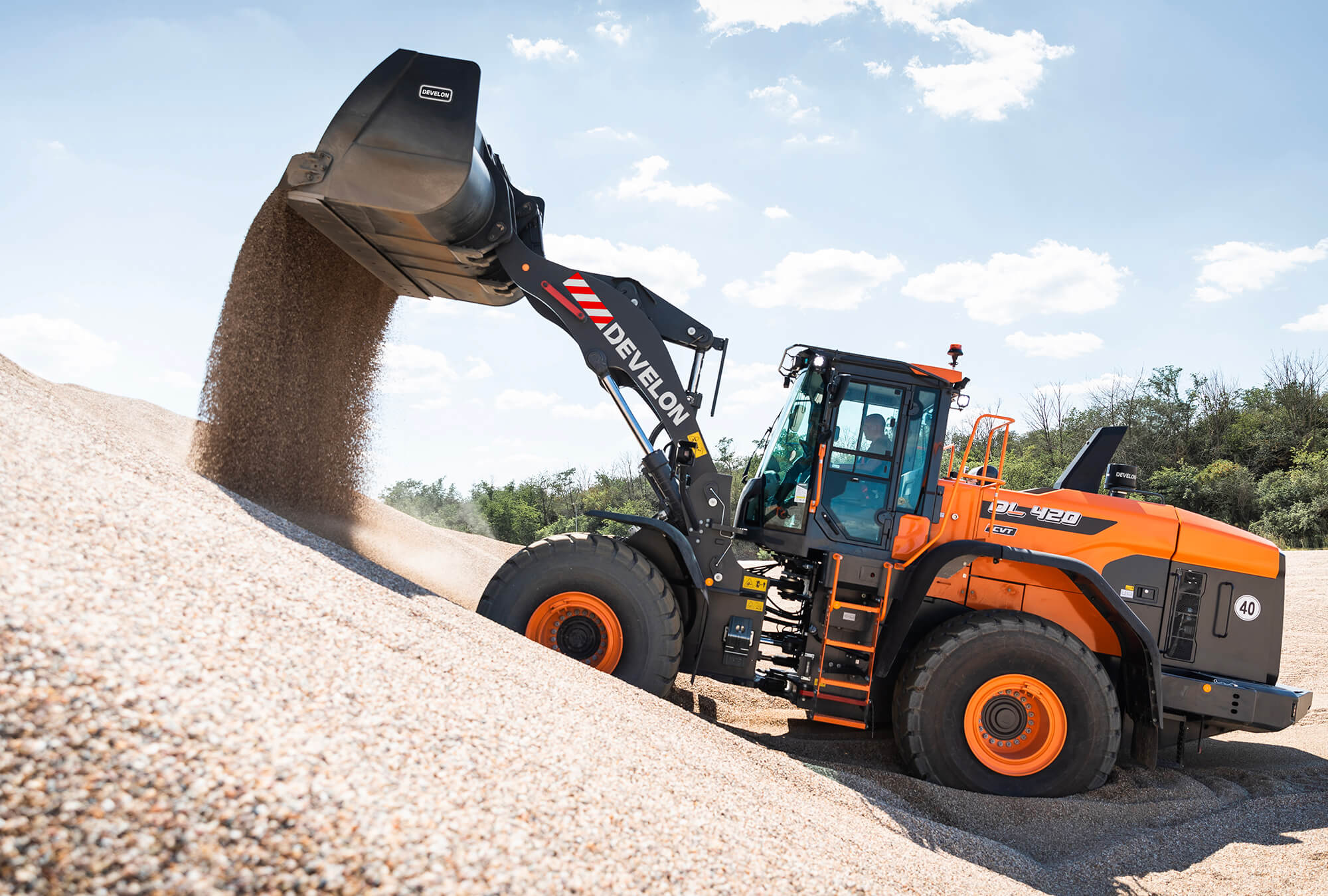

The new DL420CVT-7 Stage V wheel loader, featuring a completely new design, providing higher performance, increased fuel efficiency and a much enhanced environment for the operator compared to the previous Stage IV model.
The DL420CVT-7 enhances your output from every angle. Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials. Powerful hydraulic system makes work quick and efficient.Scania DC9 engine provides the power you need while meeting Stage V environmental regulations. The combination of these features gives Develon wheel loaders excellent penetration power, ensuring optimum bucket load in each cycle.
General purpose | |
|---|---|
| Straight side cutter, teeth, width 3200 mm | 4.3 m³ |
| Straight side cutter, Bolt-on cutting edge, width 3200 mm | 4.5 m³ |
| Performance bucket - straight side cutter, teeth, width 3000 mm | 4.4 m³ |
| Performance bucket - straight side cutter, Bolt-on cutting edge, width 3000 mm | 4.5 m³ |
Material handling | |
|---|---|
| Convex side cutter, teeth, width 3000 mm | 4.7 m³ |
| Convex side cutter, Bolt-on cutting edge, width 3000 mm | 4.9 m³ |
Owing to blind spots caused by the buckets on wheel loaders, the area in front of the machine has been considered an area of major concern in terms of safety. The system records images at the front of the wheel loader with two cameras mounted on the top and bottom of the machine and displays the combined images in real time on the monitor in the cab using a curved projection method.
See more information about our Transparent Bucket System.
| Bucket capacity | 4.5 m³ |
| Tipping load | 18.696 kg |
| Static tipping load, at 40° | 16.493 kg |
| Length with bucket | 8.926 mm |
| Width with bucket | 3.200 mm |
| Height | 3.660 mm |
| Dump height (at 45°) with bolt-on cutting edge | 2.990 mm |
| Dump reach (at 45°) with bolt-on cutting edge | 1.320 mm |
| Wheelbase | 3.525 mm |
| Engine | Scania DC9 Stage V (5-cylinder) |
| Operating weight | 23.990 kg |
| Engine power | 240 kW (326 HP) at 1800 rpm |
| Breakout force | 171 kN |
DL420CVT-7
