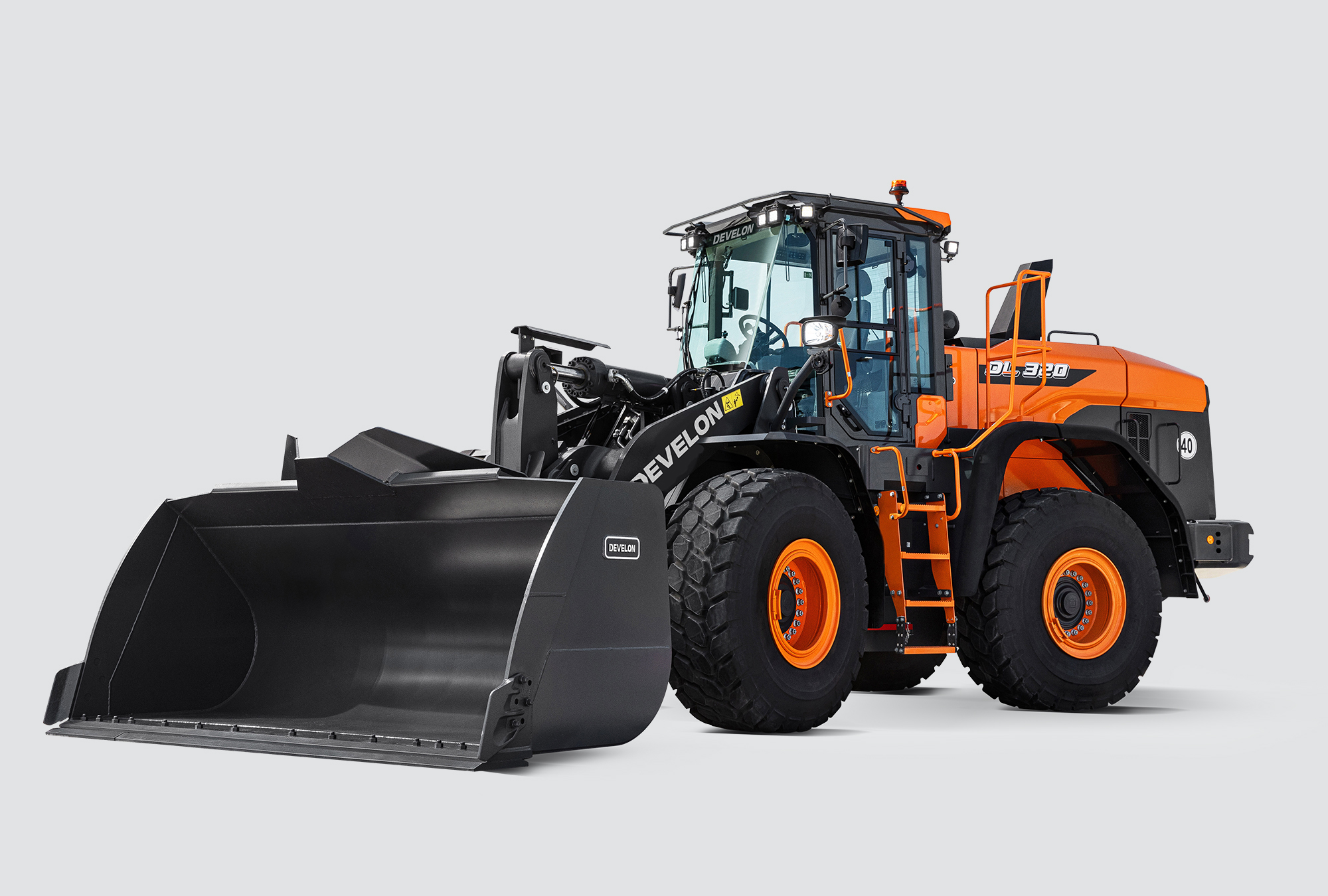

DL320-7
Boost your productivity

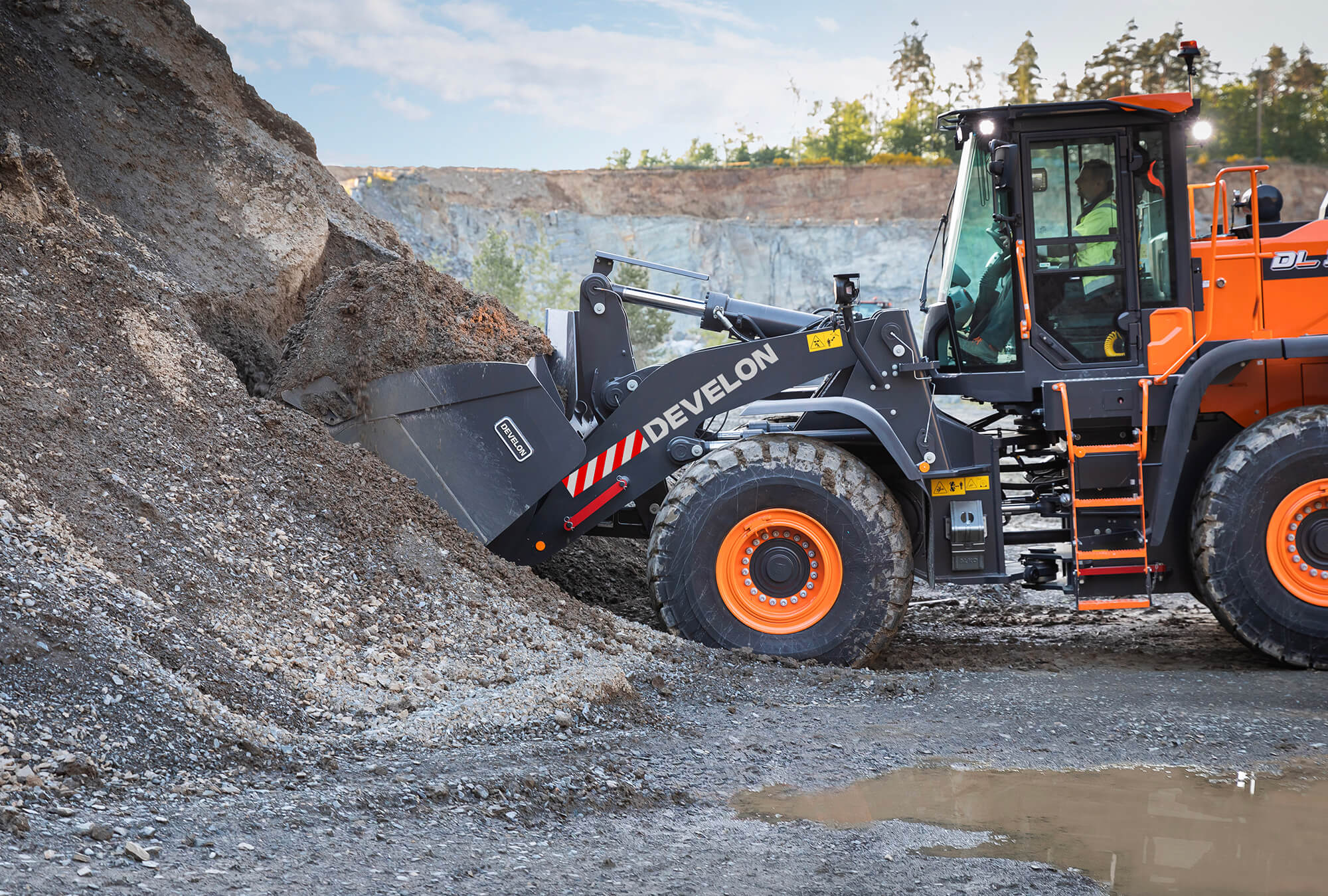

The DL320-7 and DL380-7 enhance your output from every angle Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials.
Boost your productivity with the new DL320-7 and DL380-7 Develon wheel loaders. Exceptional power – combined with the finest workmanship – results in machines that perform at the highest level.
Download Brochure
Find a DealerGeneral purpose | |
|---|---|
| Straight side cutter, teeth, width 3000 mm | 3.3 m³ |
| Straight side cutter, Bolt-on cutting edge, width 3000 mm | 3.5 m³ |
| Performance bucket - straight side cutter, teeth, width 2910 mm | 3.7 m³ |
| Performance bucket - straight side cutter, Bolt-on cutting edge, width 2910 mm | 3.8 m³ |
Material handling | |
|---|---|
| Convex side cutter, teeth, width 2910 mm | 3.7 m³ |
| Convex side cutter, Bolt-on cutting edge, width 2910 mm | 3.8 m³ |
Owing to blind spots caused by the buckets on wheel loaders, the area in front of the machine has been considered an area of major concern in terms of safety. The system records images at the front of the wheel loader with two cameras mounted on the top and bottom of the machine and displays the combined images in real time on the monitor in the cab using a curved projection method.
See more information about our Transparent Bucket System.
| Bucket capacity | 3.3 m³ |
| Tipping load | 15.948 kg |
| Static tipping load, at 40° | 14.079 kg |
| Length with bucket | 8.530 mm |
| Width with bucket | 3.000 mm |
| Height | 3.511 mm |
| Dump height (at 45°) with bolt-on cutting edge | 2.887 mm |
| Dump reach (at 45°) with bolt-on cutting edge | 1.360 mm |
| Wheel Base | 3.300 mm |
| Engine | Develon DL08 Stage V (6-cylinder) |
| Operating weight | 19.493 kg |
| Engine power | 202 kW (271 HP) at 1800 rpm |
| Breakout force | 170 kN |
